The MIVAR 20L1T is A 20 inches comfortable color television with 39 programs PLL synthesized tuning and remote MIVAR TC3, the television tuning system employs a frequency synthesizer system for establishing the tuning of the receiver, featured with a Microcomputer driven synthesis system, coupled to a frequency lock controller chip such as a Philips TSA5511 / SIEMENS SDA3202. This tuner can tune television signals on VHF and UHF band. Recently, frequency synthesizers including a phase locked loop (PLL) have been suggested to accurately generate local oscillator signals at predetermined frequencies corresponding to the various channels which a viewer may select.
The system employed in the tv permits utilization of a frequency synthesizer tuning system which correctly tunes to a desired television station o channel even if the transmitted signals from that station are not precisely maintained at the proper frequencies even in combination of a fine tuning adjustable by the user.To enable operation of the receiver in a fringe area, where it may be desirable to intentionally mistune a channel slightly, manual fine tuning control logic circuitry is employed to disable the frequency offset logic circuit and to permit changing the count of the reversible counter by the viewer to manually fine tune the receiver as desired.
Accordingly, it is an object of this invention to provide an improved tuning system for a television receiver.
It is an additional object of this invention to provide an improved frequency synthesizer tuning system for a television receiver.
The set has an AV SCART SOCKET and headphones jack rear side located.
It has teletext featured unit.Teletext is a television-based communication technique in which a given horizontal video line is utilized for broadcasting textual and graphical information encoded in a digital binary representation. Such horizontal video line signal that contains teletext data is referred to herein as a Data-line. It is assumed herein, for explanation purposes, that teletext is sent by the broadcaster only during the vertical blanking interval (VBI), when no other picture information is sent. The organization of the binary information in the broadcast signal is determined by the standard employed by the broadcaster. By way of an example only, references are made herein to a teletext based on a standard referred to by the British Broadcasting Corporation (BBC) as CEEFAX.
Each Data-line carries data synchronizing and address information and the codes for a Row of 40 characters. The synchronizing information includes a clock run-in sequence followed by an 8-bit framing code sequence. Each Data-line contains a 3 bit code referred to as the Magazine number. A teletext Page includes 24 Rows of 40 characters, including a special top Row called the Page-Header. Each ROW is contained in a corresponding Data-line. A user selected Page is intended to be displayed in place of, or added to a corresponding television picture frame. A Magazine is defined to include Pages having Data-lines containing a corresponding Magazine number. The transmission of a selected Page begins with, and includes its Page Header and ends with and excludes the next Page Header of the selected Magazine number. All intermediate Data lines carrying the selected Magazine number relate to the selected Page.
A SCART Connector (which stands for Syndicat des Constructeurs d'Appareils Radiorécepteurs et Téléviseurs) is a standard for connecting audio-visual equipment together. The official standard for SCART is CENELEC document number EN 50049-1. SCART is also known as Péritel (especially in France) and Euroconnector but the name SCART will be used exclusively herein. The standard defines a 21-pin connector (herein after a SCART connector) for carrying analog television signals. Various pieces of equipment may be connected by cables having a plug fitting the SCART connectors. Television apparatuses commonly include one or more SCART connectors.Although a SCART connector is bidirectional, the present invention is concerned with the use of a SCART connector as an input connector for receiving signals into a television apparatus. A SCART connector can receive input television signals either in an RGB format in which the red, green and blue signals are received on Pins 15, 11 and 7, respectively, or alternatively in an S-Video format in which the luminance (Y) and chroma (C) signals are received on Pins 20 and 15. As a result of the common usage of Pin 15 in accordance with the SCART standard, a SCART connector cannot receive input television signals in an RGB format and in an S-Video format at the same time.Consequently many commercially available television apparatuses include a separate SCART connectors each dedicated to receive input television signals in one of an RGB format and an S-Video format. This limits the functionality of the SCART connectors. In practical terms, the number of SCART connectors which can be provided on a television apparatus is limited by cost and space considerations. However, different users wish the input a wide range of different combinations of formats of television signals, depending on the equipment they personally own and use. However, the provision of SCART connectors dedicated to input television signals in one of an RGB format and an S-Video format limits the overall connectivity of the television apparatus. Furthermore, for many users the different RGB format and S-Video format are confusing. Some users may not understand or may mistake the format of a television signal being supplied on a given cable from a given piece of equipment. This can result in the supply of input television signals of an inappropriate format for the SCART connector concerned.This kind of connector is todays obsoleted !

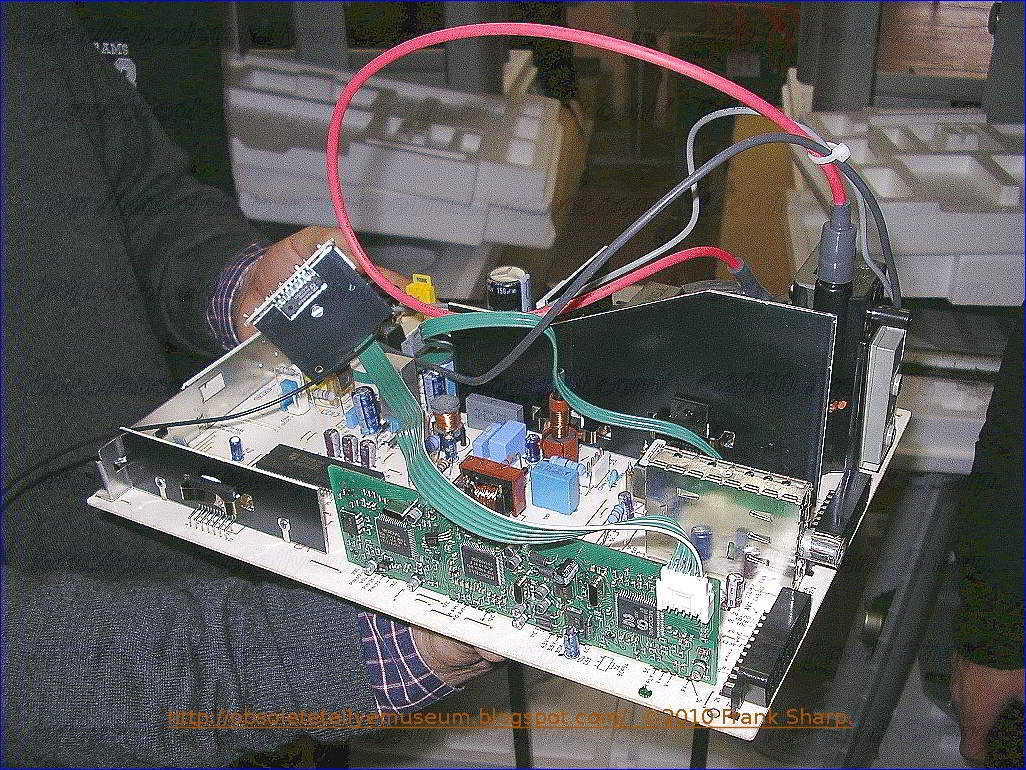

(The CHASSIS circuits are far better than majority of the sets of the same era of time even highly more expensive than this Mivar TV here, indeed this tv here is in mint condition.)
The set here shown like other Mivar tv's was introducing a novelty in power supply design;Switch-mode power supply with burst mode standby operation:

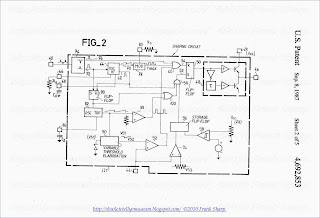

In a typical switch mode power supply (SMPS) of a television receiver the AC mains supply voltage is coupled to a bridge rectifier. An unregulated direct current (DC) input supply voltage is produced. A pulse width modulator controls the duty cycle of a chopper transistor switch that applies the unregulated supply voltage across a primary winding of a flyback transformer. A flyback voltage at a frequency that is determined by the modulator is developed at a secondary winding of the transformer and is rectified to produce DC output supply voltages such as a voltage B+ that energizes a horizontal deflection circuit of the television receiver and a voltage that energizes a remote control unit.
During normal operation, the DC output supply voltages are regulated by the pulse width modulator in a negative feedback manner. During standby operation, the SMPS is required to generate the DC output supply voltage that energizes the remote control unit. However, most other stages of the television receiver are inoperative and do not draw supply currents. Consequently, the average value of the duty cycle of the chopper transistor may have to be substantially lower during standby than during normal operation.
Because of, for example, storage time limitation in the chopper transistor, it may not be possible to reduce the length of the conduction interval in a given cycle below a minimum level. Thus, in order to maintain the average value of the duty cycle low, it may be desirable to operate the chopper transistor in an intermittent or burst mode, during standby. During standby, a long dead time interval occurs between consecutively occurring burst mode operation intervals. Only during the burst mode operation interval switching operation occurs in the chopper transistor. The result is that each of the conduction intervals is of a sufficient length.
In accordance with an aspect of the invention, burst mode operation intervals are initiated and occur at a rate that is determined by a repetitive signal at the frequency of the AC mains supply voltage. For example, when the mains supply voltage is at 50 Hz, each burst mode operation interval, when switching cycles occur, may last 5 milliseconds and the dead time interval when no switching cycles occur, may last during the remainder portion or 15 milliseconds. Such arrangement that is triggered by a signal at the frequency of the mains supply voltage simplifies the design of the SMPS.
The burst mode operation intervals that occur in standby operation are synchronized to the 50 Hz signal. During each such interval, pulses of current are produced in transformers and inductances of the SMPS. The pulses of current occur in clusters that are repetitive at 50 Hz. The pulses of current occur at a frequency that is equal to the switching frequency of the chopper transistor within each burst mode operation interval. Such qurrent pulses might produce an objectionable sound during power-off or standby operation. The objectionable sound might be produced due to possible parasitic mechanical vibrations as a result of the pulse currents in, for example, the inductances and transformers of the SMPS.
In accordance with another aspect of the invention, the change in the AC mains supply voltage during each period causes the length of the conduction interval in consecutively occurring switching cycle during the burst mode operation interval to increase progressively. Such operation that occurs during each burst mode operation interval may be referred to as soft start operation. The soft start operation causes, for example, gradual charging of capacitors in the SMPS. Consequently, the parasitic mechanical vibrations are substantially reduced. Also, the frequency of the switching cycles within each burst mode operation interval is maintained above the audible range for further reducing the level of such audible noise during standby operation.
A switch mode power supply, embodying an aspect of the invention, for generating an output supply voltage during both a standby-mode of operation and during a run-mode of operation includes a source of AC mains input supply voltage. A control signal at a given frequency is generated. A switching arrangement energized by the input supply voltage and responsive to the first control signal produces a switching current during both the standby-mode of operation and the run-mode operation. The output supply voltage is generated from the switching current. An arrangement coupled to the switching arrangement and responsive to a standby-mode/run-mode control signal and to a signal at a frequency that is determined by a frequency of the AC mains input supply voltage controls the switching arrangement in a burst mode manner during the standby-mode of operation. During a burst interval, a plurality of switching cycles are performed and during an alternating dead time interval no switching cycles are performed. The two intervals alternate at a frequency that is determined by the frequency of the AC mains input supply voltage.
The cabinet is made of a high quality plastic which doesn't know age or degradation at all.
The set here shown is featuring an Orion CRT tube with blackmatrix and performs nice excellent crisp bright colors and pictures. The Speaker is a wideband type producing very good sound even if only mono.
The Story about the MIVAR 20L1T: I saw this Mivar 20L1T Tv in 1996 on a curbside submerged under 50cm or more in a water flow during a very heavy rain storm (which lasted uninterrupted more than 10 days). The set was abandoned half opened and completely parts dismounted but it wasn't missing parts (all anyway was washed very good).I brought it at home and fitted all parts under a warm air fan for a couple of days or more, cleaned parts and checked them. After that I have reconstructed the tv and powered up and It was fully working with perfect pictures and sound thankfully even of a very low time of use. I did a couple of mandatory regulations accordingly to Chassis specifications........closed.................runs perfect..........................today in 2014 it's here on the web showing itself.
This MIVAR model was replacing the MIVAR 20C6L YEAR 1989.
MIVAR was in tha era of time the main example of Italian industry capable to produce excellent tellyes with fair buy price combined with optimal quality and simplicity easy of use. The set MIVAR 20L1T here in collection is one example of these.
MIVAR tv Sets have had great features and extreme simplicity toghether with compactness and combined with reliability and durability.
(Basically all what today you won't see anymore !)
Furthermore they were very robust and easy to fix.
It's made by MIVAR an Italian Brand NO MORE ACTIVE In television manufacturing.
MIVAR is a Factory site in the near of Milan (italy) in a Industrial city conglomerate called Abbiate Grasso.
1945 - Milan, Via Ugo Tommei 5: Begin the activity assembling small radios.
1950 - Via Curtatone 12: developed with the construction of more direct major radio components fabricants.
1956 - 13 Street Strigelli: industrial production is manily targeted to first radio devices with frequency modulation (FM).
1958 - Via P. 30 Jordanians: TV become a reality, the industries is doubling his ACTIVITY, always in Milan, we build the first "real" plant with 400 employees.
1963 - Abbiategrasso, Via Dante 45: in the wake of decentralization and the rampant success of the television, building a facility that will become important in place 800 employees occupying between 1968-70.
1990 - Abbiategrasso Canal towpath: aware of the physiological importance that television plays in society? Modern, rich expertise and resources, we began construction of a factory area of 120,000 m? which covered 30.00o , for the viabilit with parking spaces and 60,000 park trees.
Today's activity is oriented in virtual production of LCD crap but with very low market penetration due to "unfair" asian competitors presence and a local governement which don't care about.
(You call it global market, I call it WORLD DESTRUCTION combined toghether with mass Afro scum crap filth Immigration to obtain destruction on a large scale in all places and to help more and better the loose of all OUR workplaces, all histroy, goods, houses, health and life).
Anyway Obsolete Technology Tellye will show even this model as a Time machine which looses nothing of the good tellyes ! ! !
