Thursday, May 30, 2013

METZ 7096 CLASSIC COLOR (CH679G) YEAR 1980.







The METZ  7096 CLASSIC COLOR  (CH679G)  is a compact 26 inches (66cm) color television.

It has 30 programs VST tuning system, automatic search system, external loudspeaker connector, audio recorder din jack and headphones din jack.

The set was first METZ color television featuring the PHILIPS 30AX CRT TUBE and first time an Isolated from mains chassis design.
 The 30AX system, which Philips introduced in 1979, is an important landmark in the development of colour picture systems. With previous systems the assembly technician had to workthrough a large number of complicated setting-up procedures whenever he fitted a television picture tube with aset of coils for deflecting the electron beams. These procedures were necessary to ensure that the beams for the three colours would converge at thescreen for every deflection. They are no longer necessary with the 30AX system: for a given screen format any deflection unit can be combined  with any tube to form a single 'dynamically convergent' unit. A colour-television receiver can thus be assembled from its components almost as easily as a monochrome receiver. The colour picture tube of the PHILIPS 30AX system displays a noticeably sharper picture over the entire screen surface. This will be particularly noticeable when data transmissions such as Viewdata and Teletext are displayed. This has been achieved by a reduction in the size of the beam spot by about 30%. Absence of coma and the retention of the 36.5 mm neck diameter have both contributed to increased picture sharpness. Coma has been eliminated by means of corrective field shapers embedded in the deflection coils which are sectionally wound saddle types. The new deflection unit has no rear flanges. enabling uniform self-convergence to be obtained for all screen sizes. without special corrections, adjustments, or tolerance compensations. Horizontal raster distortion is reduced and no vertical correction is required. One of the inventions in 30AX is an internal magnetic correction system which obviates static convergence and colour purity errors. This enables the usual multiple unit to be dispensed with. together with the need for its adjustment !  New techniques have been employed to achieve close tolerance construction of the glass envelope. In addition, the 30AX picture tube incorporates two features whereby it can be accurately adjusted during the last stages of manufacture. One is the internal magnetic correction system. The other is an array of bosses on the cone that establish a precise reference for the axial purity positioning of the deflection unit on the tube axis and for raster orientation. During its manufacture, each deflection unit is individually adjusted for optimum convergence. The coil carrier also incorporates reference bosses that co-operate with those on the cone of the tube. ' Since every picture tube and every deflection unit is individually pre-aligned, any deflection unit automatically matches with any picture tube of the appropriate size. The deflection unit has only to be pushed onto the neck of the tube unit it seats. Once the reference bosses are engaged, the combination is accurately aligned and requires no adjustment for convergence, colour purity or raster orientation. With no multiple unit and a flangeless deflection unit, there is more space in the receiver cabinet. Higher deflection sensitivity means that less current is consumed, and consequently less heat is produced. This increases the reliability of the TV receiver again. 30AX means simple assembly. Any picture tube is compatible with any deflection unit of the appropriate size and is automatically self-aligning as well as being self-convergent.

The well-known 20AX features of HI-Bri, Soft-Flash and Quick-vision are maintained in the new 30AX systern.  In their work on the design of deflection coils in the last few years the developers have expanded  the magnetic deflectionfields into 'multipoles', Thisapproach has improved the understanding  of the relations between coil and field and between field and deflection to such an extent that  designing deflection units is now more like playing a difficult but fascinating game of chess than  carrying out the obscure computing procedure once necessary.

In their work on the design of deflection coils in the last few years the developers have expanded
the magnetic deflectionfields into 'multipoles', Thisapproach has improved the understanding
of the relations between coil and field and between field and deflection to such an extent that
designing deflection units is now more like playing a difficult but fascinating game of chess than
carrying out the obscure computing procedure once necessary.

Furthermore :

Sound is produced by a nice speakerbox integrated in the cabinet allowing super bass sound allowed even by the tone controls.

On the front panel Right down side near the headphones jack lid there is a ambient light sensor which drives, in opportune, way the contrast tracking of the picture as a function of the light in the room were the tellye is running; more particularly to a control system for maintaining proper balance between room lighting conditions and the level of picture tube excitation in a color television receiver. More especially the present invention functions to increase contrast, intensity and chroma signal strength when the room lighting level increases to diminish these parameters when the level of room lighting decreases.

Conventional television receivers, of course, have manually operable controls by means of which a viewer may set the level of contrast, intensity, and chroma signal strength to what he feels to be an optimum level for given room lighting conditions. Under changed room lighting conditions, the viewer will obtain the optimum viewing situation by changing these manual controls to a new preferred level.

- Horizontal Beam Deflection  and high voltage generating circuits realized with Thyristors circuits.
  It's a very good system to use where the line scan coils require large peak currents with only a moderate flyback voltage  an intrinsic characteristic of toroidally wound deflection coils. The basic thyristor line output stage arrangement used in all these chassis is shown in Fig. 1
it was originally devised by RCA. Many sets fitted with 110°, narrow -neck delta -gun tubes used a thyristor line output stage - for example those in the Grundig and Saba ranges and the Finlux Peacock , Indesit, Siemens, Salora, Metz, Nordmende, Blaupunkt, ITT, Seleco, REX, Mivar, Emerson, Brionvega, Loewe, Galaxi, Stern, Zanussi, Wega, Philco. The circuit continued to find favour in earlier chassis designed for use with in -line gun tubes, examples being found in the Grundig and Korting ranges - also,  Indesit, Siemens, Salora, Metz, Nordmende, Blaupunkt, ITT, Seleco, REX, Mivar, Emerson, Brionvega, Loewe, Galaxi, Stern, Zanussi, Wega, Philco the Rediffusion Mk. III chassis. Deflection currents of up to 13A peak -to -peak are commonly encountered with 110° tubes, with a flyback voltage of only some 600V peak  to peak. The total energy requirement is of the order of 6mJ, which is 50 per cent higher than modern 110° tubes of the 30AX and S4 variety with their saddle -wound line scan coils.   The only problem with this type of circuit is the large amount of energy that shuttles back and forth at line frequency. This places a heavy stress on certain components. Circuit losses produce quite high temperatures, which are concentrated at certain points, in particular the commutating combi coil. This leads to deterioration of the soldered joints around the coil, a common cause of failure. This can have a cumulative effect, a high resistance joint increasing the local heating until the joint becomes well and truly dry -a classic symptom with some Grundig / Emerson sets. The wound components themselves can be a source of trouble, due to losses - particularly the combi coil and the regulating transductor. Later chassis are less prone to this sort of thing, partly because of the use of later generation, higher efficiency yokes but mainly due to more generous and better design of the wound components. The ideal dielectric for use in the tuning capacitors is polypropylene (either metalised or film). It's a truly won- derful dielectric - very stable, with very small losses, and capable of operation at high frequencies and elevated temperatures. It's also nowadays reasonably inexpensive. Unfortunately many earlier chassis of this type used polyester capacitors, and it's no surprise that they were inclined to give up. When replacing the tuning capacitors in a thyristor line output stage it's essential to use polypropylene types -a good range of axial components with values ranging from 0.001µF to 047µF is available from RS Components, enabling even non-standard values to be made up from an appropriate combination. Using polypropylene capacitors in place of polyester ones will not only ensure capacitor reliability but will also lower the stress on other components by reducing the circuit losses (and hence power consumption).
       Numerous circuit designs for completely transistorized television receivers either have been incorporated in commercially available receivers or have been described in detail in various technical publications. One of the most troublesome areas in such transistor receivers, from the point of View of reliability and economy, lies in the horizontal deflection circuits.
       As an attempt to avoid the voltage and current limitations of transistor deflection circuits, a number of circuits have been proposed utilizing the silicon controlled rectifier (SCR), a semiconductor device capable of handling substantially higher currents and voltages than transistors.
       The circuit utilizes two bi-directionally conductive switching means which serve respectively as trace and commutating switches. Particularly, each of the switching means comprises the parallel combination of a silicon controlled rectifier (SCR) and a diode. The commutating switch is triggered on shortly before the desired beginning of retrace and, in conjunction with a resonant commutating circuit having an inductor and two capacitors, serves to turn off the trace switch to initiate retrace. The commutating circuit is also arranged to turn oft the commutating SCR before the end of retrace.

In order to maintain optimum performance of the television receiver, it is desirable to provide a regulated direct current potential (B+) to the various circuits of the receiver. Numerous types of regulated power supply circuits have been used to provide the desired regulation. One such type is a switching regulator power supply.
Also, television receivers like the tv in this post utilizing line rate deflection systems of the type disclosed in U.S. Pat. No. 3,452,244 employing two bidirectional conducting switches require an input reactor between the source of B+ and the commutating bidirectional conducting switch to prevent short circuiting of the B+ during the commutating interval (i.e., when the commutating switch is turned on).
The set is a first in featuring  a new set of PAL decoder chips which has been introduced by Siemens, the TDA2560/TDA2522/TDA2530. The first two of these second -source the latest Philips/Mullard decoder i.c.s, with the TDA2560 as luminance and chrominance signal amplifier and the TDA2522 as the reference oscillator/chrominance demodulator. Interesting features of this set up are the fact that the burst signal passes through the chrominance delay line and the fact that the reference oscillator operates at 8.86MHz, a digital divider providing exactly 90° phase displaced 4.43MHz outputs without the need for a phase shift coil. The first UK produced chassis to use these i.c.s is the Tandberg CTV3, the larger UK setmakers staying for the time being with the TBA560C/TBA540/TCA800 combination. The third i.c. from Siemens is the TDA2530 which supersedes the well known TBA530 luminance/colour-difference signal matrix- ing i.c. The TDA2530 contains a negative feedback driver amplifier and internal clamping in addition to the matrixing network.

The set is build with a Modular chassis design because as modern television receivers become more complex the problem of repairing the receiver becomes more difficult. As the number of components used in the television receiver increases the susceptibility to breakdown increases and it becomes more difficult to replace defective components as they are more closely spaced. The problem has become even more complicated with the increasing number of color television receivers in use. A color television receiver has a larger number of circuits of a higher degree of complexity than the black and white receiver and further a more highly trained serviceman is required to properly service the color television receiver.
Fortunately for the service problem to date, most failures occur in the vacuum tubes used in the television receivers. A faulty or inoperative vacuum tube is relatively easy to find and replace. However, where the television receiver malfunction is caused by the failure of other components, such as resistors, capacitors or inductors, it is harder to isolate the defective component and a higher degree of skill on the part of the serviceman is required.
Even with the great majority of the color television receiver malfunctions being of the "easy to find and repair" type proper servicing of color sets has been difficult to obtain due to the shortage of trained serviceman.
At the present time advances in the state of the semiconductor art have led to the increasing use of transistors in color television receivers. The receiver described in this application has only two tubes, the picture tube and the high voltage rectifier tube, all the other active components in the receiver being semiconductors.
One important characteristic of a semiconductor device is its extreme reliability in comparison with the vacuum tube. The number of transistor and integrated circuit failures in the television receiver will be very low in comparison with the failures of other components, the reverse of what is true in present day color television receivers. Thus most failures in future television receivers will be of the hard to service type and will require more highly qualified servicemen.
The primary symptoms of a television receiver malfunction are shown on the picture tube of the television receiver while the components causing the malfunction are located within the cabinet. Also many adjustments to the receiver require the serviceman to observe the screen. Thus the serviceman must use unsatisfactory mirror arrangements to remove the electronic chassis from the cabinet, usually a very difficult task. Further many components are "buried" in a maze of circuitry and other components so that they are difficult to remove and replace without damage to other components in the receiver.
Repairing a modern color television receiver often requires that the receiver be removed from the home and carried to a repair shop where it may remain for many weeks. This is an expensive undertaking since most receivers are bulky and heavy enough to require at least two persons to carry them. Further, two trips must be made to the home, one to pick up the receiver and one to deliver it. For these reasons, the cost of maintaining the color television receiver in operating condition often exceeds the initial cost of the receiver and is an important factor in determining whether a receiver will be purchased.
Therefore, the object of this invention is to provide a transistorized color television receiver in which the main electronic chassis is easily accessible for maintenance and adjustment.
Metz: 70 Years’ of "made in Germany" quality

Customer-oriented and successful

Metz, one of the German electronic industry’s most independent and successful companies, celebrates its rich tradition as it enters its seventieth year. An amazing success story during a period when numerous well-known manufacturers had to concede to difficult market conditions and suspend business activity. In 1938 Metz began producing electronic equipment. During subsequent years Paul Metz led his company to a position of worldwide importance. The company currently focuses on three business areas: entertainment electronics, photo electronics and plastics technology. Numerous innovations shape both past and present and create a promising potential for the future. To date this has united the company’s development and production, which is still owner-led and based in Germany, guaranteeing a consistently high "made in Germany" standard of quality.

Back to the future


Metz was founded back in 1938. From this point in time, Paul Metz managed his company with untiring effort, always introducing new ideas to steadily grow the business. In 1947 he began producing radio sets. He expanded to other fields in the following years. And to this day Metz stands its ground successfully in the entertainment electronics, photo electronics and plastics technology sectors.

In 1993, Paul Metz died at the age of 82. Since then, his wife Helene Metz has continued with the company’s success story undetered. Entrepreneurial spirit combined with responsibility and committment to employees and society certainly characterise her management style; innovative ideas and excellent quality lay the basis for the positive evolution of a company. "My husband and I have always invested in the company and promoted its development. Independence was important to us. At the same time, we always attached great importance to excellently trained, highly motivated employees. And nothing will change these values in future."




Photo electronics: Metz flashguns attain world fame


In 1952, Paul Metz went in into the flashgun business and began marketing an emblematic trend-setting innovation in 1979 with the introduction of the worldwide single SCA adapter system which made it possible to attach Metz flashguns to cameras of all well-known brands and went on to establish Metz as one of the leading worldwide brands in this area. Since then, Metz flashguns have been exported to over 90 countries. The latest successful model was voted "the best flash unit in Europe" at the end of 2007. It was the world’s first flash to be equipped with a USB interface. The individual firmware for every version of the model can be easily updated via computer and internet by means of this interface.









Entertainment electronics: Metz - reliable trade partner

In 1955, Metz entered a business sector which later became its most important source of revenue - the production of television sets. This sector was further expanded in 1967 with the development and production of their own brand of colour TVs. Around this time, Metz began selective sales in the specialist consumer electronics trade, which forms a cornerstone of Metz’s service-oriented recipe for success to this day, ensuring the customer gets an additional service benefit as well as excellent products.
In 1990, the first TV set with Metz’s own 100-Hertz technology was introduced. The excellent, flicker-free image quality delighted both consumers and specialist publications.

In 1995, Metz came up with an innovation in the field of TV which continues to make the product line flexible, unique and successful to this day: The modular-built TV chassis was launched. From the turn of the Millennium, the first digital tuner was integrated. Another milestone came in 2005 with the introduction of their own-brand LCD-TV. Since then, flat screen TV sets with innovative technologies have been developed and produced at the company’s Zirndorf site with the "made in Germany" quality seal. At the same time the opportunity get into high definition television meant that in 2007 integrated HDTV modules were introduced into the Metz product range – unique worldwide – and which can also be retrofitted.
The Metz team always manage to weigh up the future realistically, as you can see from the current product range, which is constantly evolving and supplemented with new components that offer great marketing opportunities. Latest example is the implementation of HD panels with high resolution when operating in 100 Hertz DMC-technology and integrated hard disc recorder at IFA 2008. All TV sets of Metz offer the benefits of flexible retrofitting or exchanging of modules thanks to the Metz digital module concept, on which every chassis is based on.

Plastics plant: Metz - renowned partner for system solutions

Metz’s third line of business came about in 1957: The hi-fi furniture plant at Zirndorf went into operation making wooden cabinets for radio and TV sets. It expanded when it began plastics production in 1969. To this day, this sector represents another important constituent for Metz, especially in the production of its own high-quality TV cabinets. But renowned industrial partners also use the reliable production line at the German site with all its individual system solutions. The Metz plastics plant is the right place to go, from choosing suitable materials for a product concept, up to the provision of injection moulding forms. Complex techniques are used at the Zirndorf factory: interior gas pressure processes, thermoplastic foam injection moulding processes and ultrasonic welding and inmold technology, to name but a few.

Metz - traditional company on a solid foundation

After its formation, Metz went on to enjoy seven decades of continual success. At present, the company employs about 680 people, with a turnover of €129 million in 2007. The development, production and sales departments are grouped together on a 86,000 square-metre site. To this day, the company owes its positive development to the introduction of more innovative products and processes in all corporate divisions which play a large part making the products technically feasible and user-friendly.

"Our company stands on a solid foundation. Our planning for the next few years shows great promise; we will go on to further improve our core competences," says managing director Dr. Norbert Kotzbauer, who currently runs the company with Helene Metz. " Metz’s strength is the combination of excellent "made in Germany" quality, sure-fire future product concepts, clear marketing structures and absolute customer focus."

Review of key points:

  • 1938: Company founded by Paul Metz
  • 1947: Production of radio sets begins
  • 1952: Flashgun production begins
  • 1955: Start of black-and-white television set production
  • 1957: The hi-fi furniture plant in Zirndorf goes into operation
  • 1967: The beginning of colour television set production
  • 1969: Start of plastics production
  • 1979: Development of the SCA system for adapting cameras from different manufacturers to Metz flashguns
  • 1987: Transformation to a GmbH & Co. KG
  • 1990: Production of the 100-Hertz TV sets starts
  • 1993: Founder Paul Metz dies. Wife Helene Metz carries on the company
  • 1995: Start of the Metz module concept
  • 1997: The Paul and Helene Metz Foundation is formed
  • 2000: Start of the Metz digital module concept with the ability to retrofit future technologies
  • 2002: Ten-millionth Metz flashgun
  • 2004: A world first: Digital, adaptive flashgun MB of 28 CS-2
  • 2005: First presentation of developed LCD-TV equipment "Made in Germany"
  • 2006: Presentation of the first flashgun with an innovative USB connection
  • 2007: LCD-TV product line with HDTV reception and unique ability to retrofit HDTV
  • 2008: Wide LCD-TV range with high resolution 42” Full HD panels,
    100 Hz DMC-technology and integrated hard disc recorder.
  • 19 November 2014: Metz filed for insolvency.
  • January 2015: About 110 of the 540 employees will be laid off.
  • March 2015: Two investors were found. The company will be split in two. The TV business is taken over by the Chinese electronics manufacturer Skyworth as Metz Consumer Electronics GmbH, whereas the plastics technology and flash business were bought by the local Daum Group (Germany) to firm Metz mecatech GmbH. 298 of the employees will be taken over.
The company filed for insolvency in 2014 and backed up by new investors now refirms as two independent companies Metz Consumer Electronics GmbH and Metz mecatech GmbH since 2015.

 (Again one more time......one more step ..........Europe=Africa !!!!!!!!!!!!)

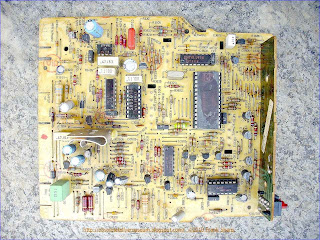

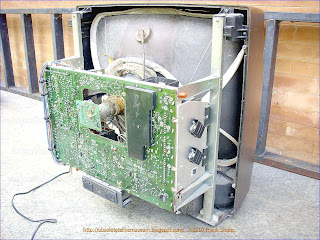

METZ 7096 CLASSIC COLOR (CH679G) CHASSIS 679G INTERNAL VIEW.






















































The METZ  7096 CLASSIC COLOR  (CH679G)  CHASSIS 679G  has a completely modular approach, see pictures, and it's quite complex expecially in the power supply / horizontal deflection parts.

Was even first METZ TV COLOR CHASSIS ground isolated from mains and featuring PHILIPS 30AX CRT TUBE.








TDA2541 IF AMPLIFIER WITH DEMODULATOR AND AFC

DESCRIPTION
The TDA2540 and 2541 are IF amplifier and A.M.
demodulator circuits for colour and black and white
televisionreceiversusingPNPorNPNtuners. They
are intended for reception of negative or positive
modulation CCIR standard.
They incorporate the following functions : .Gain controlled amplifier .Synchronous demodulator .White spot inverter .Video preamplifier with noise protection .Switchable AFC .AGC with noise gating .Tuner AGC output (NPN tuner for 2540)-(PNP
tuner for 2541) .VCR switch for video output inhibition (VCR
play back).




SGS-THOMSON TDA2030 14W Hi-Fi AUDIO AMPLIFIER
DESCRIPTION
The TDA2030 is a monolithic integrated circuit in
Pentawatt package, intended for use as a low
frequency class AB amplifier. Typically it provides
14W output power (d = 0.5%) at 14V/4Ω;at ± 14V
the guaranteedoutput poweris 12W on a 4Ω load
and 8Won a 8Ω (DIN45500).
TheTDA2030provideshighoutputcurrentandhas
very lowharmonic and cross-over distortion.
Further the device incorporates an original (and
patented) short circuit protection system compris-
ing an arrangement for automatically limiting the
dissipated power so as to keep the working point
of the outputtransistorswithin their safe operating
area.A conventionalthermal shut-downsystem is
also included.


SHORT CIRCUIT PROTECTION
The TDA2030 has an originalc ircuitwhichlimitsthe
current of the output transistors.Fig.18 showsthat
the maximum output current is a function of the
collector emitter voltage; hence the output transis-
tors work within their safe operating area (Fig. 2).
This functioncan thereforebe consideredas being
peak power limiting rather than simple current lim-
iting.
It reducesthe possibility that the devicegetsdam-
aged during an accidental short circuit from AC
output to ground.


THERMAL SHUT-DOWN
The presenceof a thermallimiting circuit offersthe
following advantages:
1. An overload on the output (even if it is perma-
nent),oranabovelimitambienttemperaturecan
be easily supported since the Tj cannot be
higher than 150°C.
2. The heatsinkcan havea smaller factorof safety
compared with that of a conventional circuit.
There is no possibility of devicedamage due to
high junctiontemperature.If for any reason,the
junctiontemperatureincreasesup to 150°C, the
thermal shut-down simply reduces the power
dissipationat the current consumption.
The maximum allowable power dissipation de-
pendsuponthe sizeof the externalheatsink(i.e.its
thermal resistance); fig. 22 shows this dissipable
power as a function of ambient temperature for
differentthermalresistance.


METZ  7096 CLASSIC COLOR  (CH679G)  CHASSIS 679G  AMBIENT LIGHT RESPONSIVE CONTROL OF BRIGHTNESS, CONTRAST AND COLOR SATURATION
1. In a color television apparatus, a circuit for varying color display characteristics in accordance with variations in ambient light comprising: 2. In a color picture display system having a display device comprising: 3. The display system of claim 2 with kinescope means having a first set of electrodes and a second set of electrodes, 4. The display system of claim 2 with said light sensing means being responsive to the intensity of the ambient light and said parameter varying in accordance with the intensity of ambient light. 5. The display system of claim 4 with said modifying means increasing the gain of said luminance amplifying means at a greater rate than the gain of said chroma amplifying means as said ambient light intensity is increased. 6. A color television apparatus comprising: 7. In a color television receiver: 8. The receiver of claim 7 with said modifying means comprising a light dependent resistor means, 9. The receiver of claim 8 with second impedance means coupling said light dependent resistor means to said luminance gain means to control the gain of said luminance gain means. 10. The receiver of claim 9 with said second impedance means comprising a parallel combination of capacitance and resistance. 11. The receiver of claim 7 with said modifying means varying the gain of the luminance gain means at a greater rate than the gain of the chroma gain means as ambient light is varied. 12. The receiver of claim 7 with said modifying means being responsive to the intensity of ambient light and said parameter being varied as the intensity of the ambient light is varied. 13. The receiver of claim 7 with said modifying means attenuating the gain of said luminance amplifying means approximately fifty percent more than the gain of said chroma amplifying means, when the attenuation is measured in decibels, as said ambient light intensity is decreased. 14. In a color television receiver:
Description:
BACKGROUND OF THE INVENTION

The present invention relates generally to a television receiver control system and more particularly to a control system for maintaining proper balance between room lighting conditions and the level of picture tube excitation in a color television receiver. More especially the present invention functions to increase contrast, intensity and chroma signal strength when the room lighting level increases to diminish these parameters when the level of room lighting decreases.

Conventional television receivers, of course, have manually operable controls by means of which a viewer may set the level of contrast, intensity, and chroma signal strength to what he feels to be an optimum level for given room lighting conditions. Under changed room lighting conditions, the viewer will obtain the optimum viewing situation by changing these manual controls to a new preferred level.

It is also known in the prior art to automate this process for a black and white television receiver, for example, as taught in the U.S. Pat. No. 3,165,582 to Korda, issued Jan. 12, 1965, and the French patent 1,223,058 issued in June of 1960.

It is accordingly an object of the present invention to provide an automatic color saturation control for a color television receiver by providing separate, predetermined gains for the luminance and chroma for a given change in ambient light. In the disclosed preferred embodiment, the luminance signal is attenuated 3.3 dB and the chroma signal is attenuated 2.1 dB for a change in ambient light from 100 footcandles to 0.1 footcandles, measured at the display face.

SUMMARY OF THE INVENTION

The foregoing as well as numerous other objects and advantages of the present invention are achieved by providing a light sensitive element in a television receiver exposed to ambient light in the vicinity of the receiver for separately controlling brightness, contrast and chroma signal strength of the displayed picture in accordance with the level of ambient light. The circuit of a preferred embodiment of the present invention, in response to an increase of ambient light level, functions to increase the gain of the luminance amplifier in a relatively greater ratio than the increase in the gain of the chrominance amplifier whereas when the ambient light level decreases the respective gains of these two amplifiers are decreased, again, with the change in the luminance signal being in a greater proportion than the change in the chroma signal strength signal. By using the teaching of this invention, other gain relationships between the luminance components and chroma signal, for a given change in ambient light, may be automatically attained to achieve a desired result of luminance and color saturation.

BRIEF DESCRIPTION OF THE DRAWINGS

The aforementioned and other objects, features and advantages of the present invention will become more apparent from the following detailed description thereof when considered in conjunction with the drawings wherein:

FIG. 1 is a partial block diagram of a color television receiver employing the present invention;

FIG. 2 is a detailed schematic diagram of those portions of FIG. 1 embodying the present invention;

FIG. 3 illustrates chroma gain control characteristic curves for the circuit of FIG. 2; and

FIG. 4 is a graph showing changes in luminance and chroma signal strength according to changes in ambient light.

DESCRIPTION OF THE PREFERRED EMBODIMENT

Considering first FIG. 1 which illustrates generally in block diagram form a color television receiver embodying the present invention, this receiver is seen to comprise a tuner and radio frequency amplifier 11 for detecting and amplifying incoming signals received on the antenna 13 and supplying those signals through an appropriate heterodyning process to an intermediate frequency amplifier 15. After detection in the detector 17, the luminance signals are passed through a delay 19 which compensates for the delays experienced by the chroma signal strength signals and then to the luminance amplifier 21, which, of course, corresponds to the video amplifier of a black and white receiver, to then be supplied to the cathode ray tube 23. The luminance or video amplifier may also be provided with gain control circuitry 25. An appropriate band pass amplifier 27 may be employed to separate out the chroma signal strength signals which are demodulated by the demodulator 29 in well known fashion to provide the three color difference signals to grids in the color cathode ray tube 23. While the present invention will be described with respect to such color difference signals, it is equally applicable to direct RGB color separation systems. An ambient light level detector 31 such as a light dependent resistor of the cadmium sulphide variety is physically located on the front of the television receiver in such a position as to be exposed to the light levels in the vicinity of the receiver so that its resistance varies inversely in accordance with variations in the ambient light levels around the receiver. These resistance variations are then employed to control the gain of the luminance amplifier 21 by way of gain control 25 and to control the gain of the chroma signal strength amplifier circuitry.

The entire color demodulation process is only generally depicted in the block diagram of FIG. 1 and is illustrated as a closed loop burst gain controlled chroma amplifier system with auxiliary chroma gain control introduced by way of the detector 33 from the ambient light level detector 31. A burst gain controlled chroma amplifier circuit is somewhat analogous to a black and white keyed AGC circuit and functions to set the gain level of the amplifier 27 in accordance with the color sync burst rather than the chroma signal level associated with a particular picture. While the present invention is being described with respect to this preferred type of gain control, it would, of course, be possible, in television circuits employing DC gain controls for chroma and/or contrast, to connect the ambient light tracking means to these direct current control circuits. The gain controlled chroma band pass amplifier, of course, supplies an output to a burst amplifier 35 which in turn drives an automatic phase control system 37 for synchronizing the 3.58 megacycle oscillator 39 the output of which is used in the color demodulation process.

Considering now FIG. 2 which illustrates schematically in detail those portions of the receiver of FIG. 1 necessary for a complete understanding of the present invention, the light dependent resistor 41 is mounted near the front of the television receiver in such a position as to adequately receive the ambient lighting conditions in the vicinity of the receiver. The resistance of this device is inversely proportional to the intensity of light incident thereon. If the room ambient light experiences an increase in level, the resistance of light dependent resistor 41 will decrease which decrease in turn lowers the voltage at the base of transistor 43 which in turn lowers the voltage at the emitter due to increased conduction through that transistor. This in turn increases the gain of the chroma amplifier transistor stage 45. More precisely the lowering the voltage at the emitter of transistor 43 raises a threshold in the automatic chroma control detector 33 so that the chroma signal  strength signal, and hence the color saturation level, to the picture tube is increased. In the absence of a chroma signal with its synchronizing burst, the gain of the chroma amplifier is set at a maximum by the voltage divider comprising resistors 47 and 49. At this time there is no output from the automatic chroma control detector to the base of transistor 51 and that transistor is non-conducting.

When a color signal is received, the detector provides an output signal proportional to the color sync burst level which turns on the transistor 51 to control the gain of the chroma amplifier stage 45 so as to maintain the desired output level. The turn on level of transistor 51 represents a fairly well defined knee in the chroma gain control characteristic curves illustrated in FIG. 3. Operation beyond the knee or threshold of such a curve operates to maintain a nearly constant chroma output level while operation below the knee of the curve and its extension as the almost vertical dotted line represents the open loop characteristic wherein there is no automatic gain control to the chroma amplifier. Since transistor 51 is non-conducting below the knee of this curve, gain control is delayed until the output signal reaches this threshold point. Since variations in the potential at the emitter of transistor 43 cause corresponding variations in the potential at the base of transistor 51, it is clear that a variation in the resistance of the light dependent resistor 41 will, for example, cause the gain control characteristic curve to shift from that depicted by curve A to that depicted by curve B and that for a given burst level input as represented by the vertical dotted line, two different levels of chroma output which, in turn, cause two different levels of color saturation will be achieved by a change in the light intensity incident on the resistor 41.

To better understand the operation of detector 33, assume that the burst voltage induced across the top half of the secondary of transformer 34 is in phase with the 3.58 megacycle reference signal and that the burst voltage induced across the bottom half of the secondary of transformer 34 is 180° out of phase with this reference signal. Assuming further that the diodes 36 and 38 have equal characteristics, that the resistors 40 and 42 are equal, that the capacitors 44 and 46 are equal, and that the two portions of the secondary winding on transformer 34 are equal when no burst is being received, diodes 36 and 38 will conduct equally but during opposite portions of a cycle. Diode 36 conducts during negative excursions of the reference signal whereas diode 38 conducts during positive portions of that reference wave form. Thus during the negative portions of the reference wave form diode 36 conducts to charge capacitor 44 so that its right hand plate is negative and its left hand plate is positive. During the positive excursions, diode 38 conducts to charge capacitor 46 with its right hand plate positive and its left hand plate negative. Under this assumed no burst input condition the net charge on these capacitors yields a voltage on line 48 which is zero. If noise is introduced into the system, it will be of equal amplitude but opposite phase across the two diodes and both diodes will be affected to an equal extent resulting in no change in the voltage on line 48. When during a color telecast a burst signal is present, we may assume that the burst voltage induced across the two portions of the secondary of transformer 34 are of equal amplitude to the 3.58 megacycle reference signal. With this situation the diode 36 will not conduct since the burst voltage is equal in phase and amplitude to the reference signal and its anode and cathode remain at the same potential. The diode 38 will, however, conduct readily since the burst and reference signals have an additive rather than a cancelling effect on it resulting in the diode 38 conducting twice as much as in the previous no burst example and resulting in the capacitor 46 charging to about twice its previous voltage which voltage is presented on line 48 as a control signal.

Suppose now that the burst signal amplitude is reduced to one half that of the foregoing example. With this new assumption the phase relationships remain as before but now diode 36 will conduct about one half its previous amount while diode 38 conducts about one and one half times its previous amount resulting in a voltage on line 48 which is about one half the previous voltage.

The voltage on line 48 which is approximately proportional to the burst voltage is applied to the base of transistor 51 which biases the base of the chroma amplifier transistor 45 thereby controlling the gain of that chroma amplifier stage.

A variation in threshold can be achieved by altering the conduction points of the diodes 36 and 38. This is accomplished by applying a bias voltage to the junction of these two diodes to alter their respective points of conduction thereby changing the output voltage on line 48. For example, if a positive 2-volt direct current bias is applied to the junction of the two diodes, under a no burst input condition, diode 38 will conduct sooner and turn off later than with no bias applied, while diode 36 will turn on later and off sooner than under the no bias condition. This results in a control voltage on line 48 under the no burst condition. In other words, a bias voltage applied to the junction of the two diodes acts as an additional bias on the chroma amplifier stage thereby affecting its gain.

The control of brightness (intensity) and contrast is achieved in the present invention by a second light dependent resistor 53 which is optically coupled to a light emitting diode 55. LIght emitting diode 55 and light dependent resistor 53 are encapsulated in a light impervious housing illustrated by the dotted line 57. As the room ambient light changes, the change in the resistance of light dependent resistor 41 causes a change in the current through light emitting diode 55. Variations in the current through the light emitting diode cause corresponding variations in the light emitted thereby which in turn cause variations in the resistance of the light dependent resistor 53. The luminance or video amplifier is here illustrated as a three transistor amplifier with the output of the first amplifier stage being across resistor 59. A diminution in the resistance of light dependent resistor 53 causes a lowering of this output impedance and thus a diminution in the gain of the luminance amplifier. In other words, if the light intensity in the room increases, the resistance of resistor 41 will decrease causing a decrease in the current through light emitting diode 55 and, therefore, a decrease in its light output level and this decreased light will cause an increase in the resistance of light dependent resistor 53 thus increasing the effective output load resistor for the transistor 61 thus increasing the gain of the video amplifier as desired.

Variable resistor 63 being effectively in series with the light dependent resistor 41 may be varied to compensate for differences in specific light dependent resistors so as to establish a desired level of picture brightness, contrast and color saturation for a given level of ambient light. Variable resistance 65 which is in parallel with the light dependent resistor 41 may be varied so as to effectively change the range of variation in brightness, contrast and color saturation for a specific range of variations in the ambient light conditions. The entire automatic control circuit of the present invention may be bypassed by closing the defeat switch 67.

Looking now at FIGS. 2 and 4, the relative attenuation of the chroma channel and luminance channel will become apparent. Looking first at FIG. 4, the abscissa is the measure of ambient illumination in foot candles on a log scale, and the ordinate is the measure of attenuation of signal amplitude in dB. At 100 footcandles there is 0 dB attenuation of luminance and chroma signals and as the ambient illumination decreases to 0.1 foot candles, it is seen that the chroma signal line 72 is down 2.1 dB while the luminance signal line 72 is down 3.3 dB. This ratio has been found to be a highly satisfactory ratio giving a very pleasing picture at all ambient light levels between 0.1 footcandles and 100 footcandles of ambient light.

The manner in which this variation in luminance attenuation is achieved may be seen by looking at FIG. 2. As mentioned, the chroma channel signal is varied by the conduction level of transistor 43. As light dependent resistor 41 changes in resistance, the conduction level of transistor 43 will also change with the degree of change being determined by divider resistances 75 and 76. Further the luminance channel gain is determined by resistor 77 since it is this resistor which will control the signal level of light emitting diode 55 which in turn will control the gain to luminance transistor 61. It is these resistors which determine the relative amount of attenuation of gain in the chroma and luminance channels as the ambient light is changed. In this embodiment, resistance 75 is 5.6 k ohms, resistance 76 is 4.3 k ohms, resistance 77 is 3.9 k ohms, resistance 78 is 7.5 k ohms, the voltage applied to the upper terminal of resistance 78 is 35 volts, resistance 63 is 500 ohms, resistance 65 is 25 k ohms, resistance 69 is 4.7 k ohms, capacitance 71 is 47 microfarads, resistance 59 is 1 k ohm, resistance 59a is 6.8 k ohms, resistance 62a is 1 k ohms, resistance 64a is 100 ohms, resistance 64b is 6.8 k ohms. Light dependent resistor 41 is a Clariex CL-11360, photocoupler unit 57 is Magnavox Part Number 701482. Transistors 43, 61, 62, and 64 are 2N3962, 2N4916, MPSA20 and 25C685A, respectively. This invention has been incorporated in a Magnavox Company T979 color television chassis.

The effective load resistance for the transistor 61 under direct current conditions is the parallel combination of the resistor 59 and the series pair of resistors 53 and 69 whereas due to the presence of capacitor 71 this effective load resistance under alternating current conditions is the parallel combination of resistors 59 and 53. Thus the ratio of AC to DC gain for this video amplifier stage may be selected by proper selection of these parameters so as to maintain the black level of the picture essentially constant.

Thus while the present invention has been described with respect to a specific embodiment, numerous modifications will suggest themselves to those of ordinary skill in the art. Since the luminance and chroma gains are individually controlled for a given change in ambient light, the gain ratios between the luminance and chroma channels may be selected as desired to achieve a desired effect for a given change in ambient light. Also, while the present invention has been described in the environment of a television receiver, the invention could equally well be used in television monitors as well as many other types of display devices. Accordingly the scope of the present invention is to be measured only by that of the appended claims.


 METZ  7096 CLASSIC COLOR  (CH679G)  CHASSIS 679G AMBIENT LIGHT RESPONSIVE CONTROL OF BRIGHTNESS, CONTRAST AND COLOR SATURATION Gain control arrangement useful in a television signal processing system
In a color television receiver, first and second amplifiers are respectively included in the luminance and chrominance channels to permit control of contrast and saturation. The amplifiers have gain versus control voltage characteristics including linear portions extrapolated to cut off at predetermined voltages which may or may not be the same. A first potentiometer is coupled between a source of fixed voltage equal to the extrapolated cut off voltage of the first amplifier and a gain controlling voltage source. The gain controlling voltage may be produced by a circuit including an element responsive to ambient light. The wiper of the first potentiometer is coupled to the first amplifier to couple a voltage developed at a predetermined point of the first potentiometer to the first amplifier to control its gain. A second potentiometer is coupled between a source of voltage equal to the extrapolated cut off voltage of the second amplifier and the gain controlling voltage source to receive a portion of the gain controlling voltage in accordance with the ratio of the extrapolated cut off voltages of the first and second amplifiers. The wiper of the second potentiometer is coupled to the second amplifier to couple a voltage developed at a predetermined point of the second potentiometer to the second amplifier to control its gain. In this manner, the contrast of the receiver may be varied over a relatively wide range while saturation is maintained substantially constant.


1. In a color television signal processing system of the type including luminance and chrominance signal processing channels, apparatus comprising:
first and second amplifiers respectively included in said luminance and chrominance channels, said amplifiers having gain versus control voltage characteristics including linear portions extrapolated to cut-off at predetermined voltages which may or may not be the same voltage;
a gain controlling voltage source;
means for coupling said gain controlling voltage to said first amplifier to control its gain;
potentiometer means coupled between a fixed voltage substantially equal to the extrapolated cut-off voltage of said second amplifier and to said gain controlling voltage source to recieve a portion of said gain controlling voltage in accordance with the ratio of the extrapolated cut-off voltages of said first and second amplifiers; and
means for coupling a voltage developed at a predetermined point on said potentiometer means to said second amplifier to control its gain.
2. The apparatus recited in claim 1 wherein said means for coupling said gain controlling voltage to said first amplifier includes another potentiometer coupled between a source of fixed voltage substantially equal to the extrapolated cut-off voltage of said first amplifier and said gain controlling voltage source. 3. In a color television signal processing system of the type including luminance and chrominance signal processing channels, apparatus comprising:
first and second amplifiers respectively included in said luminance and chrominance channels, said amplifiers having gain control voltage characteristics including linear portions extrapolated to cut-off at substantially the same predetermined voltage;
a source of gain controlling voltage; and
means for coupling said gain controlling voltage to said first and second amplifiers.
4. Apparatus comprising:
first variable gain amplifying means for amplifying a first signal in response to a first DC control signal, said first amplifying means having a first gain versus DC control voltage characteristic including a linear region, said linear region having a gain substantially equal to 0 at a DC control voltage equal to VO ;
second variable gain amplifying means for amplifying a second signal in response to a second DC control signal, said second amplifying means having a second gain versus DC control voltage characteristic including a linear region, said linear region having a gain substantially equal to 0 at a DC control voltage equal to AVO, where A is a number greater than 0;
a first source of fixed voltage substantially equal to VO ;
a second source of fixed voltage substantially equal to AVO ;
means for developing a third DC control voltage v;
means for developing a portion Av of said third control voltage v;
first means for deriving said first control voltage including means for providing the difference between said third control voltage v and said fixed voltage VO and means for adding a predetermined portion of the difference between said third control voltage v and said fixed voltage VO to said DC control voltage v; and
second means for deriving said second control voltage including means for providing the difference between a portion Av of said third control voltage v and said fixed voltage AVO and means for adding a predetermined portion of the difference between said portion Av and said fixed voltage AVO to said DC control voltage v.
5. The apparatus recited in claim 4 wherein A is equal to 1. 6. The apparatus recited in claim 4 wherein said first amplifying means is included in a luminance channel of a televeision signal processing system and said second amplifying means is included in a chrominance channel of said television signal processing system. 7. The apparatus recited in claim 6 wherein means for developing said third control voltage includes means responsive to ambient light. 8. The apparatus recited in claim 4 wherein said first means includes first voltage divider means coupled between said fixed voltage VO and said third DC control voltage v; and wherein said second means includes second voltage divider means coupled between said fixed voltage AVO and said portion Av. 9. The apparatus recited in claim 8 wherein said first voltage divider means includes a first potentiometer, said first potentiometer having a wiper coupled to said first amplifying means; and wherein said second voltage divider means includes a second potentiometer, said second potentiometer having a wiper coupled to said amplifying means. 10. The apparatus recited in claim 4 wherein said second gain versus DC control voltage characteristic includes a region between said voltage AVO and a voltage VB where the gain is greater than 0, said voltage VB being substantially equal to the voltage at which said second amplifying means has a gain substantially equal to 0; and wherein said second source of fixed voltage includes means for coupling said voltage VB to said second amplifying means. 11. The apparatus recited in claim 10 wherein said second source of said voltage AVO includes a third source of fixed voltage VB ; potentiometer means coupled between said third source of fixed voltage VB and said means for developing said third DC control voltage; and means coupled to said potentiometer means for developing said voltage AVO at a point along said potentiometer means; said potentiometer means including a wiper coupled to said second amplifier means, said wiper being adjustable to couple a DC voltage VFB and said third control voltage to said second amplifying means.
Description:
The present invention pertains to gain controlling apparatus and particularly to apparatus for controlling the gains of amplifiers included in the luminance and chrominance channels of a television signal processing system.
Recently, the maximum brightness available from television receivers has increased sufficiently so that a pleasing image may be reproduced under conditions of high ambient light as well as under conditions of low ambient light. Apparatus is known for automatically controlling the contrast and brightness properties of a television receiver in response to ambient light to provide a pleasing image over a range of ambient light conditions. Such apparatus is described in U.S. Pat. Nos. 3,027,421, entitled "Circuit Arrangements For Automatically Adjusting The Brightness And The Contrast In A Television Receiver," issued to H. Heijligers on Mar. 27, 1962 and 3,025,345, entitled "Circuit Arrangement For Automatic Readjustment Of The Background Brightness And The Contrast In A Television Receiver," issued to R. Suhrmann on Mar. 13, 1962.
Apparatus is also known for automatically controlling the contrast and saturation properties of a color television receiver by controlling the gains of luminance and chrominance channel amplifiers, respectively, in response to ambient light. Such apparatus is described in U.S. Pat. Nos. 3,813,686 entitled "Ambient Light Responsive Control Of Brightness, Contrast And Color Saturation," issued to Eugene Peter Mierzwinski, on May 28, 1974 and 3,814,852 entitled "Ambient Light Responsive Control Of Brightness, Contrast and Color Saturation," issued to Eugene P. Mierzwinski on June 4, 1974.
Also of interest is apparatus for manually controlling the gains of luminance and chrominance channel amplifiers. Such apparatus is described in U.S. Pat. Nos. 3,374,310, entitled "Color Television Receiver with Simultaneous Brightness and Color Saturation Controls," issued to G.L. Beers on Mar. 19, 1968; 3,467,770, entitled "Dual Channel Automatic Control Circuit," issued to DuMonte O. Voigt on June 7, 1966; and 3,715,463, entitled "Tracking Control Circuits Using a Common Potentiometer," issued to Lester Tucker Matzek, on Feb. 6, 1973.
When the gain of luminance channel is adjusted to control the contrast of an image, either manually or automatically, in response to ambient light, it is desirable to simultaneously control the gain of the chrominance channel in such a manner that the ratio of the gains of the luminance and chrominance channels is substantially constant over a wide range of contrast control to maintain constant saturation. If the proper ratio between the amplitudes of the chrominance and luminance signals is not maintained incorrect color reproduction may result. For instance, if the amplitude of the luminance signals are increased without correspondingly increasing the amplitude of the chrominance signals, colors may become desaturated, i.e., they will appear washed out or pastel in shade. Furthermore, it may be desirable to provide controls for presetting the gains of the luminance and chrominance channels to compensate for tolerance variations in other portions of the television signal processing apparatus.
In accordance with the present invention, apparatus is provided which may be utilized in a color television receiver to control contrast over a relatively wide range while maintaining constant saturation. The apparatus includes first and second amplifiers having gain versus control voltage characteristics including linear portions extrapolated to cut off at predetermined voltages which may or may not be the same. Means couple a gain controlling voltage source to the first amplifier to control its gain. Potentiometer means are coupled between a source of fixed voltage substantially equal to the extrapolated cut off voltage of the second amplifier and the source of gain controlling voltage to receive a portion of said gain controlling voltage in accordance with the ratio of the extrapolated cut off voltages of the amplifiers. A voltage developed at a predetermined point along the potentiometer means is coupled to the second amplifier to control its gain.
In accordance with another feature of the present invention, the means for coupling said gain controlling voltage to said first amplifier includes another potentiometer coupled between a source of fixed voltage substantially equal to the extrapolated cut off voltage of said first amplifier and said gain controlling voltage source.
In accordance with still another feature of the present invention the gain controlling voltage source includes an element responsive to ambient light .
These and other aspects of the present invention may best be understood by references to the following detailed description and accompanying drawing in which:
FIG. 1 shows the general arrangement, partly in block diagram form and partly in schematic diagram form, of a color television receiver employing an embodiment of the present invention;
FIG. 1A shows, in schematic form, a modification to the embodiment shown in FIG. 1;
FIG. 2 shows graphical representation of gain versus control voltage characteristics of amplifiers utilized in the embodiment shown in FIG. 1;
FIG. 3 shows graphical representations of gain versus control voltage characteristics of amplifiers which may be utilized in the receiver shown in FIG. 1;
FIG. 4 shows, in schematic form, another embodiment of the present invention which may be utilized to control the amplifiers whose gain versus control voltage characteristics are shown in FIG. 3;
FIG. 5 shows, in schematic form, an amplifier which may be utilized in the receiver shown in FIG. 1; and
FIG. 6 shows, in schematic form, another amplifier which may be utilized in the receiver shown in FIG. 1.
Referring now to FIG. 1, the general arrangement of a color television receiver employing the present invention includes a video signal processing unit 112 responsive to radio frequency (RF) television signals for generating, by means of suitable intermediate frequency (IF) circuits (not shown) and detection circuits (not shown), a composite video signal comprising chrominance, luminance, sound and synchronizing signals. The output of signal processing unit 112 is coupled to chrominance channel 114, luminance channel 116, a channel 118 for processing the synchronizing signals and a channel (not shown) for processing sound signals.
Chrominance processing channel 114 includes chrominance processing unit 120 which serves to remove chrominance signals from the composite video signal and otherwise process chrominance signals. Chrominance signal processing unit 120 may include, for example, automatic color control (ACC) circuits for adjusting the amplitude of the chrominance channels in response to amplitude variations of a reference signals, such as a color burst signal, included in the commposite video signal. Chrominance signal processing circuits of the type described in the U.S. Pat. No. 3,740,462, entitled "Automatic Chroma Gain Control System," issued to L.A. Harwood, on June 19, 1973 and assigned to the same assignee as the present invention are suitable for use as chrominance processing unit 120.
The output of the chrominance signal processing unit 120 is coupled to chrominance amplifier 122 which serves to amplify chrominance signals in response to a DC signal vC generated by gain control network 142. As illustrated, chrominance amplifier 122 provides chrominance signals to a chroma demodulator 124. An amplifier suitable for use as chrominance amplifier 122 will subsequently be described with reference to FIG. 6.
Chroma demodulator 124 derives color difference signals representing, for example, R-Y, B-Y and G-Y information from the chrominance signals. Demodulator circuits of the general type illustrated by the chrominance amplifier CA 3067 integrated circuit manufactured by RCA Corporation are suitable for use as chrominance demodulator 124.
The color difference signals are applied to a video driver 126 where they are combined with the output signals -Y of luminance channel 116 to produce color signals of the appropriate polarity, representing for example, red (R), green (G) and blue (B) information. The color signals are coupled to kinescope 128.
Luminance channel 116 includes a first luminance signal processing unit 129 which relatively attenuates undesirable signals, such as chrominance or sound signals or both, present in luminance channel 116 and otherwise processes the luminance signals. The output of first luminance processing unit 129 is coupled to luminance amplifier 130 which serves to amplify the luminance signals in response to a DC control signal vL generated by gain control unit 142 to thereby determine the contrast of a reproduced image. An amplifier suitable for use as luminance amplifier 130 will subsequently be described with reference to FIG. 5. The output of luminance amplifier 130 is coupled to second luminance signal processing unit 132 which serves to further process luminance signals. A brightness control unit 131 is coupled to luminance signal processing unit 132 to control the DC content of the luminance signals. The output -Y of luminance processing unit 132 is coupled to kinescope driver 126.
Channel 118 includes a sync separator 134 which separates horizontal and vertical synchronizing pulses from the composite video signal. The synchronizing pulses are coupled to horizontal deflection circuit 136 and vertical deflection circuit 138. Horizontal deflection circuit 136 and vertical deflection circuit 138 are coupled to kinescope 128 and to a high voltage unit 140 to control the generation and deflection of one or more electron beams generated by kinescope 128 in the conventional manner. Deflection circuits 136 and 138 also generate horizontal and vertical blanking signals which are coupled to luminance signal processing unit 132 to inhibit its operation during the horizontal and vertical retrace intervals.
Gain control unit 142 is coupled to luminance amplifier 130 and to chrominance amplifier 122 to control their gains. Gain control unit 142 includes a PNP transistor 152 arranged as an emitter-follower amplifier. The collector of transistor 152 is coupled to ground while its emitter is coupled through a series connection of a potentiometer 156 and fixed resistor 154 to a source of positive supply voltage VO. The wiper of potentiometer 156 is coupled to luminance amplifier 130. The series connection of a potentiometer 158 and a variable resistor 159 is coupled between the source of positive supply voltage VO and the emitter of transistor 152. The wiper of potentiometer 158 is coupled to chrominance amplifier 122.
The base of transistor 152 is coupled to the wiper of a potentiometer 146. One end of potentiometer 146 is coupled to the source of positive supply voltage VO through a fixed resistor 144. The other end of potentionmeter 146 is coupled to ground through a light dependent resistor (LDR) 148. LDR 148 is a resistance element whose impedance varies in inverse relationship with light which impinges on it. LDR 148 may comprise a simple cadmium sulfide type of light dependent element or other suitable light dependent device. LDR 148 is desirably mounted to receive ambient light in the vicinity of the screen of kinescope 128.
A single pole double-throw switch 150 has a pole coupled to the junction of potentiometer 146 and LDR 148. A resistor 151 is coupled between the wiper of potentiometer 146 and the other pole of switch 150. The arm of switch 150 is coupled to ground.
The general arrangement shown in FIG. 1 is suitable for use in a color television receiver of the type shown, for example, in RCA Color Television Service Data 1973 No. C -8 for a CTC-68 type receiver, published by RCA Corporation, Indianapolis, Indiana.
In operation, gain control circuit 142 maintains the ratio of the gain of chrominance amplifier 122 to the gain of amplifier 130 constant in order to maintain constant saturation while providing for contrast adjustment either manually by means of potentiometer 146 or automatically by means of LDR 148. If the gain of luminance were adjusted to control the contrast of an image without a corresponding change in the gain of chrominance amplifier 122, the amplitudes of luminance signals -Y and color difference signals R-Y, B-Y and G-Y would not, in general, be in the correct ratio when combined by divider 126 to provide the desired color.
When switch 140 is in the MANUAL position, the gains of chrominance amplifier 122 and luminance amplifier 130 are controlled by adjustment of the position of potentiometer 146. When switch 150 is in the AUTO position the gain of the chrominance amplifier 122 and luminance amplifier is automatically controlled by the response of LDR 148 to ambient light conditions. The voltage developed at the wiper of potentiometer 146 (base of transistor 152) when switch 150 is in the AUTO position is inversely related to the ambient light recieved by LDR 148. It is noted that the values of resistors 114, potentiometer 146, LDR 148 and resistor 151 are desirably selected such that the adjustment of the wiper arm of potentiometer 146 when switch 150 is in the MANUAL position does not substantially affect the voltage developed at the base of transister 152 when switch 150 is placed in the AUTO position.
The control voltage v developed at the wiper arm of potentiometer 146 is coupled through emitter-follower transistor 152 to the common junction of potentiometer 156 and variable resistor 159. A control voltage vL comprising v plus a predetermined portion of the difference VO -v developed across the series connection of fixed resistor 154 and potentiometer 156, depending on the setting of potentiometer 156, is coupled to luminance amplifier 130 to control its gain. Similarly, a control voltage vC comprising v plus a predetermined portion of the difference voltage VO -v developed across the series connection of potentiometer resistor 158 and variable resistor 159, depending on the setting of the wiper of potentiometer 158, is coupled to chrominance amplifier 122 to control its gain.
The gain of luminance amplifier 130 may be pre-set to a desired value by the factory adjustment of potentiometer 156. Similarly, variable resistor 159 is provided to allow factory pre-set of the gain of the chrominance amplifier 122. Potentiometer 158 is provided to allow customer control of saturation.
Referring to FIG. 2, the gain versus voltage characteristics of chroma amplifier 122 (gC) and luminance amplifier 130 (gL) are shown. The characteristic gC has a reversed S-shape including a linear portion 214. Extrapolated linear portion 214 of gC intersects the GAIN axis at GC and intersects the CONTROL VOLTAGE axis at VO. Similarly, the characteristics gL has a reverse S-shape characteristic including a linear portion 212. Extrapolated linear portion 214 of gL intersects the GAIN axis at GL and intersects the CONTROL VOLTAGE axis at VO.
From FIG. 2, the expression for linear portion 212 of gL is ##EQU1## The expression for linear portion 214 of gC is ##EQU2## From FIG. 1, the expression for vL is vL = v + (VO -v) K1 [3]
where K1 is determined by the voltage division of fixed resistor 154 and potentiometer 156 at the wiper of potentiometer 156. When the wiper of potentiometer 156 is at the emitter of transistor 152, K1 =0. The expression for vC is vC = v + (VO -v)K2 [4]
where K2 is determined by the voltage division of potentiometer 158 and fixed resistor 159 at the wiper of potentiometer 158. By combining equations [1] and [3], the equation for gL becomes ##EQU3## By combining equations [2] and [4], the equation for gC becomes ##EQU4## The ratio of gL to gC is thus ##EQU5## It is noted that this ratio is independent of DC control voltage v. Thus, although DC control voltage v may be varied either manually or in response to ambient light to control the contrast of an image reproduced by kinescope 128, the saturation remains constant.
With reference to FIG. 2, it is noted that although the linear portion 214 of gC has an extrapolated gain equal to 0 at a control voltage equal to VO, the non-linear portion of gC does not attain a gain equal to 0 until a control voltage equal to VB. That is, a control voltage of VO will not cut-off chrominance amplifier 122.
In FIG. 1A there is shown, in schematic form, a modification to the arrangement of gain control network 142 of FIG. 1 with provisions which allow a viewer to cut off chrominance amplifier 122 to produce a more pleasing image under conditions of poor color reception due, for example, to noise or interference. The modifications to gain control unit 142 shown in FIG. 1A include coupling potentiometer resistor 158 between a source of positive supply voltage VB, the value of VB being greater than the value of VO, and coupling a resistor 160 from a tap-off point 162 along potentiometer 158 to ground. The value of potentiometer 158 and resistor 160 and the location of tap 162 are selected so that voltage VO is developed at tap 162.
The arrangement shown in FIG. 1A allows for the adjustment of contrast while constant saturation is maintained and additionally allows a viewer, by adjusting the wiper of potentiometer 158 to voltage VB, to cut off chrominance amplifier 122.
Referring to FIG. 3 there are shown gain versus DC control voltage characteristics of chrominance and luminance amplifiers which do not have the same extrapolated linear cut off control voltage. The gain versus control voltage characteristic gL ' of the luminance amplifier has a reverse S-shape characteristic including a linear portion 312. Extrapolated linear portion 312 of gL ' intersects the GAIN axis at a gain GL ' and intersects the CONTROL VOLTAGE axis at a voltage VO '. The gain versus control voltage characteristic gC ' of the chrominance amplifier has a reverse S-shape characteristic having a linear portion 314. Extrapolated linear portion 314 of gC ' intersects the GAIN axis at a gain GC ' and intersects the CONTROL VOLTAGE axis at a voltage AVO ', where A is a number greater than zero.
From FIG. 3, the expression for linear portion 312 of gL ' is ##EQU6## where vL ' is the DC conrol voltage coupled to the luminance amplifier. The expression for linear portion 314 of gC ' is ##EQU7## where vC ' is the DC control voltage coupled to the chrominance amplifier.
A modified form of the control network 142 of FIG. 1 suitable for controlling the gain of a chrominance and a luminance amplifier having characteristics such as shown in FIG. 3 is shown in FIG. 4. Similar portions of FIGS. 1 and 4 are identified by reference numbers having the same last two significant digits and primed (') designations. The modified portions of FIG. 1 shown in FIG. 4 include the series connection resistors 460 and 462 coupled between the emitter of transistor 452 to ground. The values of resistors 460 and 462 are selected so that a portion Av' of the DC control voltage v' developed at the emitter of transistor 452 is developed at the junction of resistors 460 and 462. Furthermore, the series connection of potentiometer 458 and variable resistor 459 is coupled between the junction of resistor 460 and 462 and a source of positive supply voltage AVO '.
From FIG. 4, the expression for control voltage vL ' developed at the wiper of potentiometer 456 is vL ' = v' + (vO '-v')K1 ' [10]
where K1 ' is determined by the voltage division at the wiper of potentiometer 456. The expression for control voltage vC ' developed at the wiper of potentiometer 458 is VC ' = Av' + (AVO ' - Av')K 2 ' [11]
where K2 ' is determined by the voltage division at the wiper of potentiometer 458. By combining equations [8] and [10], ##EQU8## By combining equations [9] and [11], ##EQU9## The ratio of gL ' to gC ' is given by the expression ##EQU10## It is noted that this ratio is independent of DC control voltage v'. Therefore, gain control network 442 of FIG. 4 also allows for the adjustment of contrast while maintaining constant saturation.
It is noted that if A were made equal to 1, the arrangement gain control unit 442 would be suitable to control the gains of chrominance and luminance amplifiers having the characteristics shown in FIG. 2.
In FIG. 5, there is shown an amplifier suitable for use as luminance amplifier 130 of FIG. 1. The amplifier includes a differential amplifier comprising NPN transistors 532 and 534. The commonly coupled emitters of transistors 532 and 534 are coupled to the collector of an NPN transistor 528. The emitter of transistor 528 is coupled via a resistor 530 to ground. The collector of transistor 532 and the collector of transistor 534, via load resistor 536, is coupled to a bias voltage provided by bias supply 546, illustrated as a series connection of batteries. The bases of transistors 532 and 534 are respectively coupled to a lower bias voltage through resistors 533 and 535 respectively.
An input signal, such as, for example, the output signal provided by first luminance processing circuit 129 of FIG. 1 is coupled to the base of transistor 532 via terminal 542. The output signal of the amplifier is developed at the collector of transistor 534 and coupled to output terminal 544.
A DC control voltage, such as vL provided by gain control unit 142 of FIG. 1, is coupled to the base of an NPN transistor 514, arranged as an emitter-follower, via terminal 512. The collector of transistor 514 is coupled to bias supply 546. The emitter of transistor 514 is coupled to ground through the series connection of resistor 516, a diode connected transistor 518 and resistor 520.
The anode of diode 520 is coupled to the base of an NPN transistor 538. The collector of transistor 538 is coupled to the collector of transistor 534 while its emitter is coupled to ground through resistor 540. Transistor 538, resistor 540, diode 518 and resistor 520 are arranged in a current mirror configuration.
The emitter of transistor 514 is coupled to the base of a PNP transistor 522. The emitter of transistor 522 is coupled to bias supply 546 while its collector is coupled to the base of transistor 528 and to ground through the series connection of a diode connected transistor 524 and resistor 526. Transistor 528, resistor 530, diode 524 and resistor 526 are arranged in a current mirror configuration
In operation, the DC control voltage coupled to terminal 512 is coupled in inverted fashion to the anode of diode 524 by transistor 522. As a result, current directly related to the voltage developed at the anode of diode 524 flows through diode 524 and resistor 526. Due to the operation of the current mirror arrangement of diode 524, resistor 526, transistor 528 and resistor 530, a similar current flows through the emitter circuit of transistor 528. The gain of the differential amplifier comprising transistors 532 and 534 is directly related to this current flowing in the emitter circuit of transistor 528, and therefore is inversely related to the DC control voltage at terminal 512. The gain versus DC control voltage characteristics of the differential is similar to gL shown in FIG. 2.
Further, a current is developed through the series connection of resistor 516, diode 518 and resistor 520 in direct relationship to the DC control coupled to terminal 512. A similar current is developed through resistor 540 due to the operation of the current mirror comprising diode 518, resistor 520, transistor 538 and resistor 540. This current is of the opposite sense to that provided by the current mirror arrangement of diode 524, resistor 526, transistor 528 and resistor 530 and is coupled to the collector of transistor 534 so that the DC voltage at output terminal 544 does not substantially vary with the DC control voltage.
In FIG. 6, there is shown an amplifier suitable for use as chroma amplifier 120 of FIG. 1. The amplifier shown in FIG. 6 is of the type described in U.S. patent application Ser. No. 530,405 entitled "Controllable Gain Signal Amplifier," fled by L.A. Harwood et al. on Dec. 6, 1974.
The amplifier comprises a differential amplifier including NPN transistors 624 and 625 having their bases coupled to terminal 603 via a resistor 626. Chrominance signals, provided by a source of chrominance signals such as chrominance processing unit 120 of FIG. 1, are coupled to terminal 603. The current conduction paths between the collectors and emitters of transistors 624 and 625 are respectively coupled to ground via resistors 628, 629 and 630.
A current splitter circuit comprising an NPN transistor 632 and a diode 634 is coupled to the collector of transistor 624. Diode 634 and the base-emitter junction of transistor 632 are poled in the same direction with respect to the flow of collector current in transistor 624. It desirable that conduction characteristics of transistor 632 and diode 635 be substantially matched. Similarly, the collector of transistor 625 is coupled to a second current splitter comprising a transistor 633 and a diode 635.
An output load circuit comprising series connected resistors 636 and 638 is coupled between the collector of transistor 632 and a source of operating voltage provided by bias supply 610. Amplified chrominance signals are provided at output terminal 640 for coupling, for example, to a chroma demodulator such as chroma demodulator 124 of FIG. 1. Similarly, series connected load resistors 637 and 639 are coupled between the collector of transistor 633 and bias supply 610. An output terminal 641 at the junction of resistors 637 ad 639 provides oppositely phased chrominance signals to those provided at terminal 640. The gain associated with the cascode combination of transistors 624 and 632 is controlled in response to a DC control voltage, such as, for example, vC provided by gain control unit 142 of FIG. 1, coupled to the base of an NPN transistor 646 via terminal 602. Direct control current is supplied from the emitter of transistor 646 to diode 634 and 635 via a series resistor 652. A signal by-pass circuit comprising a series resonant combination 654 of inductance and capacitance is coupled from the anode of diode 634 to ground. Resonant circuit 654 is tuned, for example, to 3.58 MHz to provide a low impedance path to ground for color subcarrier signals.
Bias voltages and currents are supplied to the amplifier arrangement by bias supply 610, illustrated as a series connection of batterys. A voltage B+ is coupled to the collector of transistor 646. A lower bias voltage is coupled to the load circuits of transistors 632 and 633. The bases of transistors 632 and 633 are coupled in common to a still lower bias voltage. The bases of transistors 624 and 625 are coupled to a still lower bias voltage via substantially equal in value resistors 658 and 659. A resistor 694 is coupled from the common junction of resistors 658 and 659 to ground.
I
n operation, a quiescent operating current is provided through resistor 630. In the absence of an input signal at terminal 603, this current will divide substantially equally between the similarly biased transistors 624 and 625. If the DC control voltage at terminal 602 is near ground potential, transistor 646 will be effectively cut off and no current will flow in resistor 652 and diodes 634 and 635. In that case, neglecting the normally small difference betweeen collector and emitter currents of NPN transistors, the collector currents of transistors 624 and 625 will flow, respectively, in transistors 632 and 633. The transistors 632 and 633 are operated in common base mode and form cascode signal amplifiers with respective transistors 624 and 625. With the DC control voltage near ground potential, one-half of the quiescent current from resistor 630 flows in each of the load circuits and maximum gain for chrominance signals supplied from terminal 603 is provided.
Transistor 646 will conduct when the DC control voltage approaches the bias voltage supplied to the bases of transistors 632 and 633 of the current splitters. By selection of the circuit parameters, diodes 634 and 635 may be arranged to operate in a range between cut off to the conduction of all of the quiescent operating current supplied via resistor 630, thereby cutting off transistors 632 and 633 to provide no output signals at terminals 640 and 641.
At a DC control voltage intermediate to that corresponding to cut off of transistors 632 and 633 on the one hand and cut off of diodes 634 and 635 on the other hand, the voltage gain of the illustrated amplifier will vary in a substantially linear manner with the DC control voltage.
It is noted that although the characteristics shown in FIGS. 2 and 3 were reversed S-shaped characteristics, the characteristics could have other shapes including linear portions. For example, the characteristics could be substantially linear. Furthermore, with reference to FIG. 3, although gC ' was shown as having a linear portion that had a cut off control voltage lower than the cut off control voltage of the linear portion of gL ', the cut off control voltage of the linear portion of gC ' could be greater than the cut off voltage for the linear region of gL '. In addition, the gain control units and associate amplifiers could be arranged to utilize voltages opposite in polarity to those shown. These and other modifications are intended to be within the scope of the invention.







PHILIPS TDA2593 SYNCHRO AND HORIZONTAL DEFLECTION CONTROL FOR COLOR TV SET:

DESCRIPTION
The TDA2593 isacircuitintendedforthehorizontal
deflectionofcolorTVsets,suppliedwithtransistors
or SCR’S.
LINE OSCILLATOR(two levels switching)
.PHASE
COMPARISON
BETWEEN
SYN-
CHRO-PULSE AND OSCILLATOR VOLTAGE
Ø 1, ENABLED BY AN INTERNAL PULSE,
(better parasitic immunity)
.PHASE COMPARISON BETWEEN THE FLY-
BACK PULSESAND THE OSCILLATORVOL-
TAGE Ø2
.COINCIDENCE DETECTOR PROVIDING A
LARGE HOLD-IN-RANGE
.FILTER
CHARACTERISTICS
AND
GATE
SWITCHING FOR VIDEO RECORDER AP-
PLICATION
.NOISE GATED SYNCHRO SEPARATOR
.FRAME PULSE SEPARATOR
.BLANKING AND SAND CASTLE OUTPUT
PULSES
.HORIZONTAL POWER STAGE PHASE LAG-
GING CIRCUIT
.SWITCHING OF CONTROL OUTPUT PULSE
WIDTH
.SEPARATED SUPPLY VOLTAGE OUTPUT
STAGE
ALLOWING
DIRECT
DRIVE
OF
SCR’S CIRCUIT
.SECURITY CIRCUIT MAKES THE OUTPUT
PULSE SUPPRESSED WHEN LOW SUPPLY
VOLTAGE.

METZ  7096 CLASSIC COLOR  (CH679G)  CHASSIS 679G  Supply circuit for a television receiver:In one prior art arrangement utilizing a transformerless power supply, the electrical components in the receiver and the chassis carrying the same are directly grounded. To avoid the danger of the user being subjected to electric shock on touching the grounded chassis should the receiver power line plug be inserted in a domestic power source in a position to apply the "hot" high voltage side of the source to the chassis, it has been the practice to insulate the chassis from the cabinet of the receiver set. Externally located knobs, their associated controls, and antenna circuits also had to be electrically insulated from the grounded chassis to avoid serious injury to the user. When record player and channel converter components are used in association with such television receivers, these components also had to be electrically insulated from the grounded receiver chassis.
A supply circuit for television receivers in which power source isolation is effected via a backward transformer. For the sake of achieving an insusceptibility to interferences, the operating frequency is equal to the line frequency. According to the invention, the supplied energy is controlled by varying the switch-on time during one period of the line frequency, in that the disconnecting time position is changed with the aid of a thyristor switching stage.

1. A supply circuit for a television receiver having a horizontal output stage including means for controlling line sweep and commutation, the energy required by said horizontal output stage being provided by a power source through a controllable supply circuit that isolates the power source from the horizontal output stage, said controllable supply circuit comprising:
an input transformer having a secondary winding connected to the horizontal output stage for providing the energy required thereby and a primary winding adapted for connection to the power source and being electrically isolated from the secondary winding and the horizontal output stage;
electronic switch means connected in series with the primary winding of the transformer;
first switching control means for switching on the electronic switch means as a function of line frequency; and
second switching control means for switching off the electronic switch means as a function of the energy required by the horizontal output stage, whereby the supply circuit provides the horizontal output stage with the required energy from the power source while also electrically isolating the horizontal output stage from the power source.The term "power transformer" as used herein refers to a transformer used in a commercial power supply network for supplying power to the deflection circuits from a commercial power supply, and should not be confused with transformers in other portions of the receiver designated by different terms. Thus, the expression "television receiver of a power transformerless type" refers to a television receiver which does not use the defined power transformer.

It is an object of the invention to provide in conjunction with a transformerless power supply a transformer coupling means effective to isolate, d.c. wise, deflection circuits of the receiver from grounded receiver circuit components while at the same time enabling a.c. coupling between components to be coupled to one another.

It is another object of the invention to provide a transformerless power supply and a transformer coupling means which co-operate to permit operation of the deflection circuits without need for connecting the deflection circuits to chassis ground for a.c. by means of a small coupling condenser or otherwise.

It is a further object of the invention to provide transformerless coupling means having a turns ratio between the primary and secondary windings thereof effective to couple in a forward direction a sync signal amplifier output to the ungrounded horizontal and vertical deflection circuits while substantially attenuating in the reverse direction transients and external noise prevalent in the ungrounded deflection circuits.

The present invention relates to a supply circuit for a television receiver in which, for effecting isolation of the power source , an input transformer serving the horizontal or line output stage, is operated as a backward transformer and in which, within the horizontal (line) output stage, there are taken off further voltages required for operating the television receiver.
Owing to the various attachments which are capable of being operated in connection with a television receiver, it has increasingly become necessary, for safety reasons, to provide for isolation of the power source the television receiver.
In conventional types of circuits employing backward transformers for effecting the source isolation, it is customary to control the energy supply by way of inserting a transistorized control stage.

 A switching regulator for a television receiver, wherein a non-stable dc voltage is periodically interrupted at the horizontal frequency by a chopper and the dc voltage obtained as the output of the chopper is applied to the horizontal output circuit. Flyback pulses generated by the horizontal output circuit are integrated to generate a saw-tooth waveform, and the dc component of the saw-tooth waveform is varied in accordance with the variation of the dc voltage delivered by the chopper. The duty ratio of the chopper is changed according to the variation of the dc component of the saw-tooth waveform.

 1. A switching regulator for use in a television receiver, comprising:
(a) a d.c. power source for generating a non-stabilized d.c. voltage;
(b) chopper means including a switching element, said chopper means being operatively turned on and off alternately for periodically interrupting said non-stabilized d.c. voltage in accordance with the turn-on and turn-off of said switching element to produce an interrupted voltage;
(c) rectifying means for converting the interrupted voltage from said chopper means into a d.c. output voltage;


This invention relates to a switching regulator for a television receiver and more particularly to a switching regulator in which the switching operation is performed at the horizontal frequency.
In the U.S. Pat. No. 3,819,986, a switching regulator for a television receiver is disclosed wherein a non-stabilized dc voltage is passed through a chopper and then rectified to be applied to a load circuit such as a horizontal oscillation circuit, and wherein an oscillator is incorporated in a control circuit for controlling the chopper, to which trigger pulses obtained by differentiating an output signal of the horizontal oscillation circuit are applied. According to this switching regulator, at the time when a power switch is closed, i.e., at the starting time, a non-stable dc voltage is applied through a capacitor to load circuits such as a horizontal oscillation circuit, a horizontal exciting circuit and a control circuit so that these circuits are temporarily actuated to cause the chopper to operate. The above circuits are then operated continuously by a dc voltage obtained at the output of the chopper due to the temporary actuation of the circuits. Such a type of regulator is advantageous in comparison with a regulator wherein the control circuit is always operated by a non-stabilized dc voltage, in that the load circuit such as the horizontal oscillation circuit, the horizontal exciting circuit and the control circuit are operated by a stabilized voltage after the starting of operation and that when the load is short-circuited the control circuit stops its operation and in turn the operation of the chopper is stopped.

According to this invention, for attaining the above objects, utilization is made of the horizontal flyback pulses generated by the horizontal output circuit. The control circuit receives as a control signal a signal in accordance with the output voltage of the chopper, and is also controlled by the flyback pulses, so that the duty ratio of the chopper is so controlled as to cause the chopper to deliver a constant output voltage. Moreover, the control circuit is supplied with a non-stable dc voltage applied to the chopper at the time of starting and with a stable dc voltage obtained at the output of the chopper after the starting.
According to this invention, there is provided a switching regulator for use in a television receiver, comprising: a dc power source for generating a non-stable dc voltage; a chopper which includes therein a switching element turned on and off alternately and which periodically interrupts the non-stable dc voltage in accordance with the turn-on and turn-off of the switching element; a rectifying means for reconverting a voltage obtained at an output of the chopper into a dc output voltage; a horizontal deflection circuit receiving the dc output voltage of the rectifying means; and a control circuit which receives a signal having the horizontal frequency from the horizontal deflection circuit, turns the switching element on and off at the horizontal frequency and controls the increase and decrease in the conduction period of the switching element in accordance with the decrease or increase in the dc output voltage, wherein the control circuit has means for responding to the horizontal flyback pulses generated by the horizontal output circuit in the horizontal deflection circuit.


In a switch mode power supply, a first switching transistor is coupled to a primary winding of an isolation transformer.
A second switching transistor periodically applies a low impedance across a second winding of the transformer that is coupled to an oscillator for synchronizing the oscillator to the horizontal frequency. A third winding of the transformer is coupled via a switching diode to a capacitor of a control circuit for developing a DC control voltage in the capacitor that varies in accordance with a supply voltage B+. The control voltage is applied via the transformer to a pulse width modulator that is responsive to the oscillator output signal for producing a pulse-width modulated control signal. The control signal is applied to a mains coupled chopper transistor for generating and regulating the supply voltage B+ in accordance with the pulse width modulation of the control signal.

Description:
The invention relates to switch-mode power supplies.
Some television receivers have signal terminals for receiving, for example, external video input signals such as R, G and B input signals, that are to be developed relative to the common conductor of the receiver. Such signal terminals and the receiver common conductor may be coupled to corresponding signal terminals and common conductors of external devices, such as, for example, a VCR or a teletext decoder.
To simplify the coupling of signals between the external devices and the television receiver, the common conductors of the receiver and of the external devices are connected together so that all are at the same potential. The signal lines of each external device are coupled to the corresponding signal terminals of the receiver. In such an arrangement, the common conductor of each device, such as of the television receiver, may be held "floating", or conductively isolated, relative to the corresponding AC mains supply source that energizes the device. When the common conductor is held floating, a user touching a terminal that is at the potential of the common conductor will not suffer an electrical shock.
Therefore, it may be desirable to isolate the common conductor, or ground, of, for example, the television receiver from the potentials of the terminals of the AC mains supply source that provide power to the television receiver. Such isolation is typically achieved by a transformer. The isolated common conductor is sometimes referred to as a "cold" ground conductor.
In a typical switch mode power supply (SMPS) of a television receiver the AC mains supply voltage is coupled, for example, directly, and without using transformer coupling, to a bridge rectifier. An unregulated direct current (DC) input supply voltage is produced that is, for example, referenced to a common conductor, referred to as "hot" ground, and that is conductively isolated from the cold ground conductor. A pulse width modulator controls the duty cycle of a chopper transistor switch that applies the unregulated supply voltage across a primary winding of an isolating flyback transformer. A flyback voltage at a frequency that is determined by the modulator is developed at a secondary winding of the transformer and is rectified to produce a DC output supply voltage such as a voltage B+ that energizes a horizontal deflection circuit of the television receiver. The primary winding of the flyback transformer is, for example, conductively coupled to the hot ground conductor. The secondary winding of the flyback transformer and voltage B+ may be conductively isolated from the hot ground conductor by the hot-cold barrier formed by the transformer.
It may be desirable to synchronize the operation of the chopper transistor to horizontal scanning frequency for preventing the occurrence of an objectionable visual pattern in an image displayed in a display of the television receiver.
It may be further desirable to couple a horizontal synchronizing signal that is referenced to the cold ground to the pulse-width modulator that is referenced to the hot ground such that isolation is maintained.
A synchronized switch mode power supply, embodying an aspect of the invention, includes a transfromer having first and second windings. A first switching arrangement is coupled to the first winding for generating a first switching current in the first winding to periodically energize the second winding. A source of a synchronizing input signal at a frequency that is related to a deflection frequency is provided. A second switching arrangement responsive to the input signal and coupled to the second winding periodically applies a low impedance across the energized second winding that by transformer action produces a substantial increase in the first switching current. A periodic first control signal is generated. The increase in the first switching current is sensed to synchronize the first control signal to the input signal. An output supply voltage is generated from an input supply voltage in accordance with the first control signal.







METZ  7096 CLASSIC COLOR  (CH679G)  CHASSIS 679G Synchronized and regulated power supply:


 A switching regulator adapted to be coupled to a source of alternating current potential produces a direct current potential having an amplitude proportional to the duration of a first drive signal condition relative to the duration of a second drive signal condition. A modulator coupled to a synchronized oscillator produces a synchronized control signal having an amplitude proportional to the amplitude of the direct current potential. A drive signal generator coupled to the modulator and the switching regulator produces a first drive signal condition having a duration relative to the duration of the second drive signal condition which is proportional to the amplitude of the control signal, thereby providing for regulation of the direct current potential.


1. A synchronized and regulated power supply comprising;
switching regulator means adapted to be coupled to a source of alternating current potential for producing a direct current potential having an amplitude proportional to the duration of a first drive signal condition relative to the duration of a second drive signal condition;

oscillating means adapted to be coupled to a source of synchronizing signals for producing a switching signal having a first predetermined phase offset relationship with respect to said synchronizing signals;

modulating means coupled to said switching regulator means and said oscillating means for producing a control signal having a second predetermined phase offset relationship with respect to said switching signal and having an amplitude which is proportional to the amplitude of said direct current potential; and

means including a drive signal generator coupled to said modulating means and said switching regulator means for initiating the production of said first drive signal condition in response to the initiation of said control signal and for controlling the duration of said first drive signal condition relative to the duration of said second drive signal condition in response to the amplitude of said control signal.


2. A synchronized and regulated power supply according to claim 1 wherein said modulating means includes:

means coupled to said oscillating means for producing said control signal for a first predetermined duration, said control signal having said second predetermined phase relationship with respect to said switching signal; and

amplifying means coupled to said means for producing said control signal and said switching regulator for controlling the amplitude of said control signal for said first duration in response to said direct current potential.


3. A synchronized and regulated power supply according to claim 2 wherein said means including a drive signal generator includes:

first peak detecting means coupled to said modulating means for producing a control voltage proportional to the peak amplitude of said control signal;


a reference voltage source;

voltage comparing means coupled to said first peak detecting means and said reference source for producing a charging voltage proportional to said control voltage; and

monostable means coupled to said voltage comparing means, said modulating means and said switching regulator for initiating the production of said first drive signal condition in response to the initiation of said control signal and for initiating the production of said second drive signal condition when a voltage produced by said charging voltage equals a predetermined voltage.


4. A synchronized and regulated power supply according to claim 2 wherein said means including a drive signal generator includes:

first peak detecting means coupled to said modulating means for producing a control voltage equal to the peak amplitude of said control signal during said first duration and providing for a reduction of said control voltage at a predetermined rate subsequent to said first duration;

a reference voltage source;

voltage comparing means coupled to said first peak detecting means and said reference source for producing a first charging voltage when said control voltage is greater than said reference voltage and a second charging voltage when said control voltage is less than said reference voltage; and

monostable means coupled to said voltage comparing means, said modulating means and said switching regulator for initiating the production of said first drive signal conditin in response to the initiation of said control signal and for initiating the production of said second drive signal condition when a voltage produced by said first and second charging voltages equals a predetermined voltage.


5. A synchronized and regulated power supply comprising:

switching regulator means adapted to be coupled to a source of alternating current potential for producing a direct current potential having an amplitude proportional to the duration of a first drive signal condition relative to the duration of a second drive signal condition;

oscillating means adapted to be coupled to a source of synchronizing signals for producing a switching signal having a first predetermined phase relationship with respect to said synchronizing signals;

modulating means coupled to said switching regulator means and said oscillating means, said modulating means including:

means coupled to said oscillating means for producing a control signal for a first predetermined duration, said control signal having said second predetermined phase relationship with respect to said switching signal; and

amplifing means coupled to said means for producing said control signal and said switching regulator for controlling the amplitude of said control signal for said first du
ration in response to said direct current potential;

means including a drive signal generator coupled to said modulating means and said switching regulator means, including:

first peak detecting means coupled to said modulating means for producing a control voltage proportional to the peak amplitude of said control signal;

a reference voltage source;

voltage comparing means coupled to said first peak detecting means and said reference source for producing a charging voltage proportional to said control voltage; and

monostable means coupled to said voltage comparing means, said modulating means and said switching regulator for initiating the production of said first drive signal condition in response to the initiation of said control signal and for initiating the production of said second drive signal condition when a voltage produced by said charging voltage equals a predetermined voltage; and

an auxiliary oscillator means coupled to said monostable means for repetitively initiating said first drive signal condition when said direct current potential is less than a predetermined amplitude.


6. A synchronized and regulated power supply according to claim 5 wherein said means includes an isolation transformer for providing isolated coupling between said modulating means and said means including a drive signal generator.

7. A synchronized and regulated power supply comprising:

switching regulator means adapted to be coupled to a source of alternating current potential for producing a direct current potential having an amplitude proportional to the duration of a first drive signal condition relative to the duration of a second drive signal condition;

oscillating means adapted to be coupled to a source of synchronizing signals for producing a switching signal having a first predetermined phase relationship with respect to said synchronizing signals;

modulating means coupled to said switching regulator means and said oscillator means, said modulating means including:

means coupled to said oscillating means for producin
g a control signal for a first predetermined duration, said control signal having said second predetermined phase relationship with respect to said switching signal; and

amplifying means coupled to said means for producing said control signal and said switching regulator for controlling the amplitude of said control signal for said first duration in response to said direct current potential;

means including a drive signal generator coupled to said modulating means and said switching regulator means,

first peak detecting means coupled to said modulating means for producing a control voltage equal to the peak amplitude of said control signal during said first duration and providing for a reduction of said control voltage at a predetermined rate subsequent to said first duration;

a reference voltage source;

voltage comparing means coupled to said first peak detecting means and said reference source for producing a first charging voltage when said control voltage is greater than said reference voltage and a second charging voltage when said control voltage is less than said reference voltage; and

monostable means coupled to said voltage comparing means, said modulating means and said switching regulator for initiating the production of said first drive signal condition in response to the initiation of said control signal and for initiating the production of said second drive signal condition when a voltage produced by said first and second charging voltages equals a predetermined voltage; and

an auxiliary oscillator means coupled to said monostable means for repetitively initiating said first drive signal condition when said direct current potential is less than a predetermined amplitude.


8. A synchronized and regulated power supply according to claim 7 wherein said means including a drive signal generator further includes an isolation transformer for providing isolated coupling between said modulating means and said means including a drive signal generator.

9. A synchronized and regulated power supply, comprising:

switching regulator means adapted to be coupled to a source of alternating current potential for producing a direct current potential and a pulsating direct current having amplitudes proportional to the duration of a first drive signal condition relative to the duration of a second drive signal condition;

oscillating means adapted to be coupled to a source of synchronizing signal for producing a switching signal having a first predetermined phase offset relationship with respect to said synchronizing signals;

modulating means coupled to said switching regulator means and said oscillating means for producing a control signal having a second predetermined phase offset relationship with respect to said switching signal and having an amplitude which is proportional to the amplitude of said direct current potential;

means including a drive signal generator coupled to said modulating means and said switching regulator means for initiating the production of said first drive signal condition in response to the initiation of said control signal and for controlling the duration of said first drive signal condition relative to the duration of said second drive signal condition in response to the amplitude of said control signal;

delay means coupled to said oscillating means for producing a delayed switching signal; and

deflection means coupled to said switching regulator means, said delay means, and said oscillating means for producing repetitive deflection cycles having a third predetermined phase relationship with respect to said synchronizing signals such that the current only flows between said switching regulator means and said deflection means during an energy replenishing period of said deflection cycle.


Description:

BACKGROUND OF THE INVENTION

The invention relates to a synchronized and regulated power supply.

In order to maintain optimum
performance of the television receiver, it is desirable to provide a regulated direct current potential (B+) to the various circuits of the receiver. Numerous types of regulated power supply circuits have been used to provide the desired regulation. One such type is a switching regulator power supply.

A switching regulator power supply is a very efficient type of regulated power supply since the switching device is alternately turned off and on and the regulation is accomplished by controlling the relative durations of the off condition and the on condition of the switching device.

In order to minimize the interference produced by switching of the switching regulator power supply, it is desirable to synchronize the switching with the synchronizing signals utilized to synchronize the deflection circuits. In addition to the synchronizing signals, the B+ level must be coupled to the switching device to provide feedback to control the B+ level.

In television receivers, where it is desirable to isolate the chassis from the alternating current potential source having an earthen ground reference to prevent electrical shock to the operator, the coupling of B+ and synchronizing signals to the switching device requires numerous components or complicated construction of an isolation transformer.

Also, television receivers utilizing line rate deflection systems of the type disclosed in U.S. Pat. No. 3,452,244 employing two bidirectional conducting switches require an input reactor between the source of B+ and the commutating bidirectional conducting switch to prevent short circuiting of the B+ during the commutating interval (i.e., when the commutating switch is turned on).

SUMMARY OF THE INVENTION

In accordance with the inventio
n, a synchronized and regulated power supply for a television receiver comprises a switching regulator means adapted to be coupled to a source of alternating current potential for producing a direct current potential having an amplitude proportional to the duration of a first drive signal condition relative to the duration of a second drive signal condition. Oscillating means adapted to be coupled to a source of synchronizing signals produces a switching signal having a first predetermined phase relationship with respect to the synchronizing signals. Modulating means coupled to the switching regulator means and the oscillating means produces a control signal having a second predetermined phase relationship with respect to the switching signal and having an amplitude which is proportional to the amplitude of the direct current potential. Means including a drive signal generator coupled to the modulating means and the switching regulator means initiates the production of the first drive signal condition in response to the initiation of the control signal and controls the duration of the first drive signal condition relative to the duration of the second drive signal condition in response to the amplitude of said control signal.

A more detailed description of the preferred embodiment of the invention is given in the following detailed description and the accompanying drawings of which:

FIG. 1 is a schematic diagram, partially in block form, of a non-isolated portion of a synchronized and regulated power supply of a television receiver;

FIG. 2 is a schematic diagram, partially in block form, of a preferred embodiment of an isolated portion of the synchronized and regulated power supply of the television receiver;

FIGS. 3A-3J illustrate normalized waveforms obtained at various points in the diagram of a first embodiment of FIG. 1 and the diagram of FIG. 2; and

FIG. 4A-4J illustrate normalized waveforms obtained at various points in the diagram of a second embodiment of FIG. 1 and the diagram of FIG. 2.

DESCRIPTION OF THE INVENTION

FIG. 1 is a schematic
diagram, partially in block form, of the non-isolated portion 42 of the television receiver of FIGS. 1 and 2. A source of alternating current (not shown), having an earthen ground reference, is coupled through a diode 16 to a filter capacitor 18 thereby providing for the development of a positive direct current potential at terminal 20 with respect to earthen ground. Terminal 20 is coupled through a winding 22a of an isolation transformer 22 to the collector electrode, designated as terminal I, of switching transistor 24. Winding 22a is magnetically coupled to and polarized as indicated by the polarizing dots with windings 22b and 22c of isolation transformer 22. A first terminal of winding 22b is designated as terminal J and another terminal of winding 22b is designated as terminal K. A first terminal of winding 22c is coupled to terminal K and another terminal of winding 22c is designated as terminal L. The emitter electrode of transistor 24 is coupled to earthen ground.

Terminal 20 is also coupled through a resistor 104 to the cathode of a zener diode 106. The anode of zener diode 106 is coupled to earthen ground. A filter capacitor 108 is coupled in parallel with zener diode 106. Zener diode 106 provides for a regulated potential at the cathode electrode with respect to earthen ground. The cathode of zener diode 106 is coupled through a collector resistor 110 to the collector electrode of transistor 112. The emitter electrode of transistor 112 is coupled to earthen ground. The collector electrode of transistor 112 is also coupled through a resistor 113 to the base electrode of a transistor 114 and a terminal 3 of a monostable 32. The emitter electrode of transistor 114 is coupled to the cathode electrode of zener diode 106. The collector electrode of transistor 114 is coupled through an integrating network comprising a capacitor 116 and a resistor 118 in parallel combination to earthen ground. The collector electrode of transistor 114 is also coupled to the base electrode of transistor 120 by means of a resistor 122. The emitter electrode of transistor 120 is coupled to earthen ground. The collector electrode of transistor 120 is coupled to the cathode of zener diode 106 by means of a resistor 124, to the base electrode of a transistor 126 by means of a resistor 128, and to a first gate 130 of a dual input NAND gate 132. The emitter electrode of transistor 126 is coupled to earthen ground and the collector electrode is coupled to the cathode of zener diode 106 by means of a resistor 134 and to a terminal 4 of monostable 32. Transistors 112, 114, 120 and 126, in conjunction with their associated circuitry, form a shaper and peak detector 28.

A second gate 136 of dual input NAND gate 132 is coupled through a capacitor 138 to earthen ground and to the output terminal of dual input NAND gate 132 by means of a resistor 140. Capacitor 138, resistor 140 and dual input NAND gate 132 form an auxiliary oscillator 26. The output terminal of dual input NAND gate 132 is coupled to terminal 5 of monostable 32.

The cathode of zener diode 106 is also coupled to pin 14 of monostable 32 and the collector electrode of a transistor 142. A terminal D of a winding 40a of an isolation transformer 40 is coupled through a resistor 144 to the base electrode of transistor 142, through a resistor 146 to the base electrode of transistor 112, and through a parallel combination of a protective and clamping diode 148 and a resistor 150 to earthen ground. Another terminal of winding 40a is coupled to earthen ground. Winding 40a of transformer 40 is magnetically coupled to and polarized as indicated by the polarizing dots with a winding 40b. A first terminal of winding 40b is designated as terminal M and another terminal is designated as terminal N.

The emitter electrode of transistor 142 is coupled to earthen ground by means of an integrating network comprising the parallel combination of a capacitor 152 and the series combination of a resistor 154, the resistive element of a potentiometer 156 and a resistor 158. The transistor 142 and the integrator form a peak detector 30.

The wiper terminal of potentiometer 156, designated as terminal F, is coupled to the base electrode of a transistor 160. The potentiometer provides for adjustment of
the voltage at the base electrode of transistor 160 relative to the peak voltage at the base electrode of transistor 142. Transistor 160 operates in conjunction with a transistor 162 and associated circuitry to form a voltage comparator and differential amplifier 34. The emitter electrodes of transistors 160 and 162 are coupled to earthen ground by means of a resistor 164. The collector electrode of transistor 160 is coupled through a resistor 166 to the cathode electrode of zener diode 106, and the collector electrode of transistor 162 is coupled through a resistor 168 to the cathode electrode of zener diode 106. Connected in this manner, the voltage at the collector electrode of transistor 162 increases as the voltage at terminal F increases within a predetermined range of voltage determined by a reference voltage on the base electrode of transistor 162.

The collector electrode of transistor 162 is also coupled through a series combination of a resistor 170 and a capacitor 172 to terminal 10 of monostable 32. The resistor 170, the capacitor and the voltage at the collector of transistor 162 determine the width of the logic 0 portion of the drive pulse produced by monostable 32 at terminal 1. The junction of resistor 170 and capacitor 172, designated as terminal G, is coupled to terminal 11 of monostable 32. The base electrode of transistor 162 is coupled to the cathode of a zener diode 174 and coupled to the cathode of zener diode 106 by means of a resistor 176. The anode of zener diode 174 is coupled to earthen ground. The zener diode 174 and the resistor 176 form a reference source 38 and provide a relatively constant voltage at the base electrode of transistor 162 and thereby serves as a reference for the voltage comparator and differential amplifi
er 34.

The output terminal 1 of monostable 32, designated as terminal H, is coupled through a parallel combination of a resistor 178 and a capacitor 180 to the base electrode of a transistor 182. The base electrode of transistor 182 is also coupled through a resistor 184 to earthen ground. The emitter electrode of transistor 182 is coupled to earthen ground, and the collector electrode is coupled to a first terminal of a winding 186a of a driver transformer 186 and to earthen ground by means of a high frequency suppression network comprising a series combination of a resistor 188 and a capacitor 190 to earthen ground. The other terminal of winding 186a is coupled through a resistor 192 to terminal 20 and through a capacitor 194 to earthen ground.

Another winding 186b of driver transformer 186, polarized with respect to winding 186a as indicated by polarizing dots, has a first terminal coupled to earthen ground and another terminal coupled by means of a parallel combination of a capacitor 196 and a resistor 198 to the base electrode of transistor 24. The base electrode of transistor 24 is also coupled through a parallel combination of a resistor 200 and a protection diode 202 to earthen ground. The emitter electrode of transistor 24 is coupled to earthen ground and the collector electrode, designated as terminal I, is coupled to earthen ground by means of a high frequency suppression network comprising a series combination of a resistor 204 and a capacitor 206. The transistor 182 and associated circuitry comprises a driver network 36 which provides for power gain and polarity inversion of the signal developed at terminal H of monostable 32.

FIG. 2 is a schematic diagram, partially in block form, of a preferred embodiment of the isolated portion 44 of the synchronized and regulated power supply of the television receiver of FIGS. 1 and 2.

Terminal J of winding 22b is coupled to the anode electrode of a diode 52. The cathode electrode of diode 52, designated as terminal C, provides a pulsating direct current voltage to a deflection system 53 and is coupled to the anode electrode of an SCR 54 and to the cathode electrode of a damper diode 56. The SCR 54 and the damper diode 56 comprise a commutating switch 58. The cathode electrode of SCR 54 and the anode electrode of damper diode 56 are coupled to reference potential. Terminal C is also coupled to the anode of SCR 60 by means of a commutating network 62 comprising a series combination of a commutating inductor 64, a first commutating capacitor 66, and a second commutating capacitor 68. An auxiliary capacitor 70 is coupled between the junction of commutating capacitors 66 and 68 and reference potential. A damper diode 72 is coupled in anti-parallel combination with SCR 60 to form a trace switch 73. The anode of SCR
60 is coupled through a series combination of a set of yoke windings 74 and an S-shaping capacitor 76 to reference potential. The anode of SCR 60 is also coupled through a series combination of a winding 78a of a high voltage transformer 78 and a DC blocking capacitor 80 to reference potential. A trace SCR gating network 98 comprising a resistor 278, a capacitor 280, a capacitor 282, a resistor 284, and an inductor 286 coupled between the anode electrode of SCR 54 and the gate electrode of SCR 60 provides for gating of the trace SCR 60 at the proper point in the deflection interval (t0 - t0 ' of FIGS. 3 and 4).

A winding 78b of high voltage transformer 78 has a first terminal coupled to reference potential and another terminal coupled to a high voltage multiplier and rectifier 82. An output terminal 84 of high voltage multiplier and rectifier 82 is coupled to a kinescope tube (not shown). Pulses produced by winding 78b are rectified and added in high voltage multiplier and rectifier 82 to produce a high voltage direct current potential at terminal 84 required to provide the necessary beam current in the kinescope tube. A first terminal of a winding 78c is coupled to reference potential and another terminal is coupled to a horizontal oscillator and automatic phase control (APC) network 96.

Terminal K is coupled to the anode electrode of diode 86 and the cathode electrode of diode 86 is coupled through the capacitor 88 to reference potential. The cathode of diode 86 which provides a source of B+ is also coupled through a resistor 208 to terminal M. Terminal M is coupled through a parallel combination of a resistor 210 and a filter capacitor 212 to reference potential. The cathode of diode 86 is also coupled through a resistor 214 to the cathode electrode of a zener diode 216. The anode electrode of zener diode 216 is coupled to reference potential. A filter capacitor 218 is coupled in parallel with zener diode 216. The cathode electrode of zener diode 216 is coupled through a series combination of a resistor 220 and a parallel combination of a zener diode 224 and a capacitor 226 to reference potential, the cathode electrode of diode 224 being coupled to terminal 14 of a monostable 222 and the anode electrode of diode 224 being coupled to reference potential. Terminal 14 of monostable 222 is coupled through a series combination of a resistor 228 and a capacitor 230 to terminal 10 of monostable 222. The junction of resistor 238 and cap
acitor 230 is coupled to terminal 11 of monostable 222. An output terminal 6 of monostable 222 is coupled through a resistor 232 to the base electrode of a switching transistor 234 and through a fast discharge diode 236 to reference potential. The emitter electrode of transistor 234 is coupled through a level shifting diode 238 to reference potential. Resistor 228, capacitor 230 and the voltage at terminal 14 of monostable 222 determined the width of the logic 1 portion of the signal produced by monostable 222 at terminal 6.

The collector electrode of transistor 234, which provides a control signal which has an amplitude proportional to B+, is coupled to terminal N and through a high frequency suppression network comprising a series combination of a resistor 240 and a capacitor 242 to reference potential. Terminals 3 and 7 of monostable 222 are coupled to reference potential. Monostable 222, transistor 234 and associated circuitry comprise a modulator 90.

The cathode electrode of zener diode 216 is also coupled through a resistor 244 to terminal 1 of a horizontal oscillator and APC 96 and through a parallel combination of a high frequency bypass capacitor 246 and a low frequency filter capacitor 248 to reference potential. Terminal 16 of oscillator and APC 96 is coupled to reference potential. A sync source 92 which provides a switching signal at line deflection rate is also coupled to oscillator and APC 96 to provide for proper phasing of the signal developed at output terminal A of oscillator and APC 96 to synchronize the pulse developed by winding 78c with the synchronizing signal produced by the synchronizing source 92. Output terminal A is coupled through a series combination of an RF choke 250 and a resistor 252 to terminal 5 of monostable 222. The junction of choke 250 and resistor 252 is coupled through a resistor 254 to reference potential and through a series combination of a resistor 256 and a capacitor 258 to the base electrode of a transistor 260. The junction of resistor 256 and capacitor 258 is coupled through a capacitor 262 to reference potential. The resistor 256 and the capacito
r 262 provide delay of the signal between terminal A of oscillator and APC 96 and the base electrode of transistor 260. The base electrode of transistor 260 is coupled though a resistor 264 to reference potential. The emitter electrode of transistor 260 is coupled to reference potential and the collector electrode of transistor 260 is coupled through a resistor 266 to the cathode electrode of zener diode 216 and to the base electrode of a transistor 268 by means of a resistor 270. The base electrode of transistor 268 is coupled to reference potential by means of a capacitor 272. The resistor 270 and the capacitor 272 form a pulse stretcher and give some additional delay. The emitter electrode of transistor 268 is coupled to the cathode electrode of zener diode 216 and the collector electrode of transistor 268 is coupled to reference potential by means of a resistor 274 and to the gate electrode of SCR 54 by means of a capacitor 276. Transistors 260 and 268 and associated circuitry comprise a pulse shaper and delay network 94.

The transistor 24 operating in conjunction with diode 16, capacitor 18, isolation transformer 22, diode 52, diode 86 nd capacitor 88 comprise a switching regulator. The switching regulator produces B+ which has an amplitude proportional to the duration that transistor 24 is turned on relative to the duration transistor 24 is turned off by drive signals.

Since the non-isolated portion 42 (FIG. 1) operates in conjunction with the isolated portion 44 (FIG. 2), the explanation of the operation will simultaneously consider both FIG. 1 and FIG. 2. Also, the operation will be first explained by referring to the solid curves of FIGS. 3A-3J and 4A-4J and then the dotted curves.

An alternating current source (not shown) provides an alternating current voltage which is rectified by the diode 16 and filtered by means of the capacitor 18 to develop a direct current voltage at terminal 20 with respect to earthen ground. The direct current voltage at terminal 20 provides for energization of the non-isolated portion 42 of the television receiver of FIGS. 1 and 2.

Before energy can be transferred from winding 22a to windings 22b and 22c, which provides for energization of the isolated portion 44 of the television receiver of FIGS. 1 and 2, the transistor 24 must alternately be switched off and on thereby creating an alternating flux in the core of isolation transformer 22. In the absence of such switching of transistor 24, no B+ is developed at the cathode of diode 86 and, therefore, no signal appears at terminal D of winding 40a of isolation transformer 40.

With no signal at terminal D, transistor 112 is cut off, thereby providing a logic 1 at terminal E. The logic 1 level at terminal E provides for cutoff of transistor 114. It will be assumed that the non-isolated portion 42 has previously been de-energized for a relatively long period of time; therefore, the collector electrode of transistor 114 is at earthen ground (logic 0). With the collector electrode of transistor 114 at a logic 0, the base electrode of transistor 120 is at a logic 0; therefore, transistor 120 is cut off. With the transistor 120 cut off, the collector electrode of transistor 120, the base electrode of transistor 126 and terminal 130 of dual input NAND gate 132 are at logic 1. With a logic 1 at the base electrode of transistor 126, the collector electrode is at a logic 0.

With the logic 1 at terminal E and a logic 0 at the collector electrode of transistor 126, monostable 32 is responsive; to positive transitions at terminal 5. With a logic 1 on terminal 130 of dual input NAND gate 132, terminal 5 of monostable 32 will be alternately pulsed from a logic 1 to a logic 0 at a rate determined by capacitor 138 and resistor 140.

Also, in the absence of signal on te
rminal D of winding 40a, the transistor 142 will be cut off; therefore, the voltage at terminal F will be at a logic 0 thereby placing transistor 160 in cutoff and transistor 162 in maximum conduction. With transistor 162 in maximum conduction, the voltage at the collector electrode of transistor 162 will be at a minimum voltage determined by the zener voltage of zener diode 174 and resistors 164 and 168. Since the voltage at the collector of transistor 162 is less than the zener voltage of zener diode 106, the charge rate of the capacitor 172 will be slower than when the transistor 162 is cut off. This slow charging rate of the capacitor 172 provides for a minimum duration logic 1 pulse (maximum monostable period) being produced by the monostable 32 at output terminal H when no signal is present at terminal D.

Transitions from a logic 0 to a logic 1 at terminal 5 of monostable 32 provided by the auxiliary oscillator 26 produce a transition from logic 1 to a logic 0 at terminal H and a negative transition at terminal G. As the capacitor 172 charges through resistor 168, the voltage at terminal G begins to become more positive. When the voltage at terminal G reaches a threshold voltage level established by the characteristics of monostable 32, a transition from a logic 0 to a logic 1 occurs at terminal H.

Transitions from a logic 1 to a logic 0 at terminal H, as shown at T0 in FIG. 3H, provide for a cutoff of the transistor 182 and the production of a positive voltage at the base electrode of transistor 24 with respect to earthen ground. With a positive voltage at the base electrode of transistor 24, current flows from terminal 20 through winding 22a of isolation transformer 22 and transistor 24 to earthen ground. The current flowing through winding 22a during the saturation of transistor 24 produces a logic 0 at terminal I as shown in FIG. 3I and a negative potential at terminal J and terminal K with respect to terminal L of windings 22b and 22c similar to that shown in FIG. 3J.


When the signal at terminal H of monostable 32 makes a transition from a logic 0 to a logic 1, as shown at t6 in FIG. 3H, transistor 182 is placed in saturation, thereby producing a negative potential at the base electrode of transistor 24 with respect to earthen ground. With a negative potential at the base electrode of transistor 24, transistor 24 is cut off, thereby providing for a collapse of the field developed in isolation transformer 22 during saturation of transistor 24. The collapse of field in isolation transformer 22 produces a positive voltage at terminals J and K with respect to terminal L of winding 22b and 22c similar to that shown in FIG. 3J.

With a signal similar to that shown in FIG. 3J being produced at terminal J and K of windings 22b and 22c, a pulsating direct current voltage is developed at terminal C and B+ is developed at the cathode of diode 86. With B+ being developed at the cathode of diode 86, oscillator and APC 96 starts producing a signal similar to that shown in FIG. 3A at terminal A. The signal at output terminal A of oscillator and APC 96 provides for triggering of the monostable 222, thereby providing a signal at terminal 6 of monostable 222 similar to that shown in FIG. 3D but of constant amplitude. The signal at terminal 6 of monostable 222 provides for switching of transistor 234 and the production of a waveform at terminal D as shown in FIG. 3D. The amplitude of the signal at terminal D is directly proportional to the amplitude of the B+ produced at the cathode of diode 86. The signal at terminal A of oscillator and APC 96 is shaped and delayed by shaper and delay network 94, thereby providing a gating signal at terminal B as shown in FIG. 3B. In addition, due to choice of components in pulse shaper and delay network 94 and modulator 90, pulses are developed at terminal D of transformer 40 before p
ulses are produced at terminal B during initial start-up of the power supply (i.e., prior to t0).

The transition from a logic 0 to a logic 1 at output terminal B of pulse shaper and delay 94 occurs at t1 as shown in FIG. 3B, thereby providing for assurance that the commutating switch 58 is not turned on until after the voltage at terminal J goes negative. The voltage at terminal J remains negative for an interval t0 -t6. Since the commutating switch 58 ceases conduction at t4 as shown in FIG. 3C, no significant current flows through the diode 52 during conduction of commutating switch 58. The deflection system 53 operates similar to that described in U.S. Pat. No. 3,452,244 and thereby produces pulses across winding 78c which, when coupled to the oscillator and APC 96 and compared to signals produced by the sync source 92, produce a signal at output terminal A which maintains synchronization of the signals produced by the sync source 92 and the pulses across winding 78c.

At t0 a positive pulse is initiated at terminal D of winding 40a. The initiation of the positive pulse provides for saturation of transistor 112 by way of resistor 146, thereby providing a logic 0 at terminal E. The logic 0 at terminal E provides for base-emitter current in the transistor 114 by way of resistor 113, resulting in saturation of transistor 114. With transistor 114 in saturation, the voltage at the collector of transistor 114 is at a logic 1. With a logic 1 at the collector electrode of transistor 114, the transistor 120 is placed in saturation by means of base-emitter current flow produced by resistor 122. With transistor 120 in saturation, the voltage at terminal 130 of dual input NAND gate 132 is at a logic 0 and the base electrode of transistor 126 is at a logic 0. With a logic 0 at terminal 130 of dual input NAND gate 132, the auxiliary oscillator 26 is disabled, thereby maintaining a logic 1 at the output of dual input NAND gate 132. With the logic 0 at the base
electrode of transistor 126, the collector electrode of transistor 126 at a logic 1 and the output of dual input NAND gate 132 at a logic 1, the monostable 32 produces a transition from a logic 1 to a logic 0 at output terminal H, as shown in FIG. 3H, when a transition from a logic 0 to a logic 1 occurs at terminal D of winding 40a, as shown at t0 in FIG. 3D.

By altering the time constant of the integrator of the peak detector 30, two different modes of operation can be obtained. Each of these modes of operation will be considered as a separate embodiment of a non-isolated portion 42 of the television receiver.

A first embodiment utilizes an integrator having a time constant very much longer than the pulse repetition rate (t0 -t0 ') of the oscillator and APC 96. With the long time constant, the positive pulses at terminal D of winding 40a produce a voltage across capacitor 152 which is nearly constant and is approximately equal to the maximum amplitude of the positive pulses at terminal D. A voltage proportional to the voltage across capacitor 152 is therefore produced at terminal F and is as shown in FIG. 3F.

Assuming that the amplitude of the positive pulse at terminal D is within the predetermined range to which voltage comparator 34 is responsive, the voltage at the collector of transistor 162 is proportional to the voltage at terminal F.

At t0 the voltge at terminal G of monostable 32 goes negative as shown in FIG. 3G. After t0 the voltage at terminal G begins to increase at an exponential rate determined by the voltage at the collector of transistor 162. When the voltage at terminal G reaches the threshold level established by the characteristics of the monostable 32, the output terminal H of monostable 32 makes a transition from a logic 0 to a logic 1 as shown in FIG. 3H at t6.


Transitions at terminal H produce corresponding transitions at terminals I, J and K as described above under conditions whereby the auxiliary oscillator 26 is operational. The transitions at terminals I, J and K provide for operation of the deflection system 53 and production of B+ at the cathode of diode 86, thereby maintaining operation of the isolated portion 44.

Components of modulator 90 and pulse shaper and delay 94 are chosen to delay the production of gating pulses at terminal B during the transient period until positive pulses at terminal C have a proper phase relationship with respect to the signals produced by the sync source to prevent current flow through diode 52 during conduction of the commutating switch 58. The aforementioned delay prevents excessive current flow through diode 52 during the start-up of power supply.

When B+ increases, the pulse amplitude at terminal D increases as shown by the dotted curve of FIG. 3D, a larger voltage is produced at terminal F as shown in FIG. 3F, and the voltage at terminal G reaches the threshold level at t5 rather than t6. With the voltage at terminal G reaching the threshold level faster, the time duration during which the voltage at terminals H, I, J and K are at a logic 0 is less during each deflection interval. This change at terminals J and K results in a drop of the peak voltage at terminal J and the B+ to the levels produced by the solid curves of FIG. J even though the peak-to-peak voltage at terminals J and K is greater than under the original conditions. By maintaining a relatively constant peak voltage at terminal J and a relatively constant B+, the operation of the isolated portion 44 is maintained relatively uniform.

A second embodiment utilizes an inte
grator having a time constant which is shorter than the pulse repetition rate of the oscillator and APC 96. With the short time constant, the positive pulse at terminal D of winding 40a produces a voltage at the emitter electrode of transistor 142 which is approximately equal to the maximum amplitude of the positive pulse produced at terminal D during the interval t0 -t1 . A voltage proportional to the voltage at the emitter electrode of transistor 142 is produced at terminal F. At t0 a voltage is developed at terminal F which is in excess of the zener voltage of the zener diode 174. This condition produces maximum conduction of transistor 160 and cutoff of transistor 162. With transistor 162 in cutoff, the collector electrode of transistor 162 is at a potential approximately equal to the zener voltage of zener diode 106, thereby providing for a relatively fast charging of capacitor 172 from the level at t0 as shown in FIG. 4G.

The point at which the voltage at terminal G reaches the threshold level as shown in FIG. 4G determines when the signal at output terminal H of monostable 32 makes a transition from a logic 0 to a logic 1.

At t1 the voltage at terminal D goes negative, providing for cutoff of transistor 112 and a logic 1 at terminal E. With a logic 1 at terminal E, transistor 114 is placed in cutoff and capacitor 116 begins to discharge through the resistor 118 and through the series combination of resistor 122 and the base-emitter junction of transistor 120. Due to the repetition rate of the pulses produced at terminal D of winding 40a of isolation transformer 40 relative to the time constant of the capacitor 116, resistor 118 and resistor 122, the voltage at the collector electrode of transistor 114 will not drop below a level which will sustain saturation of transistor 120 between pulses produced at terminal D. Therefore, terminal 130 of dual input NAND gate 132 will remain at a logic 0 and the output of NAND gate 132 will remain at a logic 1.

With the negative voltage at terminal D of winding 40a, the transistor 142 will be cut off and the capacitor 152 will begin to discharge through the resistors 154, 156 and 158 as shown in FIG. 4F between t1 and t0 '. At t2, the voltage at terminal F is equal to the zener voltage of zener diode 174. When the voltage at terminal F drops just below this level, transistor 160 cuts off and transistor 162 is placed in maximum conduction. During the interval t2 - t6, the transistor 162 remains in maximum conduction and the rate of charging of capacitor 172 is less than the rate of charging of capacitor 172 with transistor 162 in cutoff, as shown in FIG. 4G. At t6 the signal at output terminal H makes a transition from logic 0 to logic 1 as shown in FIG. 4H as a result of the voltage at terminal G reaching the threshold level as shown in FIG. 4G.

Positive and negative transitions at output terminal H of monostable 32 produce positive and negative transitions at termial I and terminal J as described above under conditions whereby the auxiliary oscillator 26 is operational.
When the pulse amplitude at the terminal D of winding 40a increases as shown in dotted curve of FIG. 4D, the maximum amplitude of the voltage at terminal F increases as shown in FIG. 4F. This change of maximum voltage at terminal F increases the time during which capacitor 172 is charged at the faster rate as shown in FIG. 4G and decreases the total time for charging capacitor 172 to the threshold level. This decrease in total time for charging the capacitor 172 to the threshold level decreases the duration during which terminal H of monostable 32 is at a logic 0 as shown in FIG. 4H and decreases the duration of saturation of the transistor 24 which provides for compensation for an increase of direct current voltage at terminal 20 which initially produced an increase of the pulse amplitude at terminal D as shown in FIG. 4D. This compensation can be seen by referring to FIG. 4J where it can be seen that the positive peak voltage remains approximately the same due to the change of saturation period of the transistor 24 in response to an increase of the pulse amplitude at terminal D of winding 40a.

The power supply of the television receiver as described above provides for regulation of B+, synchronization of the switching transistor 24 at the line rate to reduce interference, isolation of the alternating current source from operator accessible components coupled to reference potential and elimination of the input reactor of the deflection system 53 by providing synchronization of B+ with conduction of the commutating switch 58.

One particular configuration corresponding to that illustrated in FIGS. 1 and 2 is set forth below in terms of component types.
______________________________________
Monostable 32 SN74121 Texas Instruments Oscillator and APC 96 TBA920 Philips Monostable 222 SN74121 Texas Instruments
______________________________________



METZ  7096 CLASSIC COLOR  (CH679G)  CHASSIS 679G  CIRCUIT ARRANGEMENT IN A PICTURE DISPLAY DEVICE UTILIZING A STABILIZED SUPPLY VOLTAGE CIRCUIT:

A stabilized supply voltage circuit for a picture display device comprising a chopper wherein the switching signal has the line frequency and is duration-modulated. The coil of the chopper constitutes the primary winding of a transformer a secondary winding of which drives the line output transistor so that the switching transistor of the chopper also functions as a driver for the line output stage. The oscillator generating the switching signal may be the line oscillator. In a special embodiment the driver and line output transistor conduct simultaneously and in order to limit the base current of the line output transistor a coil shunted by a diode is incorporated in the drive line of the line output transistor. Other secondary windings of the transformer drive diodes which conduct simultaneously with the efficiency diode of the chopper so as to generate further stabilized supply voltages.



1. An electrical circuit arrangement for a picture display device operating at a given line scanning frequency, comprising a source of unidirectional voltage, an inductor, first switching transistor means for periodically energizing said inductor at said scanning frequency with current from said source, an electrical load circui coupled to said inductor and having applied thereto a voltage as determined by the ratio of the ON and OFF periods of said transistor, means for maintaining the voltage across said load circuit at a given value comprising means for comparing the voltage of said load circuit with a reference voltage, means responsive to departures of the value of the load circuit voltage from the value of said reference voltage for varying the conduction ratio of the ON and OFF periods of said transistor thereby to stabilize said load circuit voltage at the given value, a line deflection coil system for said picture display device, means for energizing said line deflection coil system from said load voltage circuit means, means for periodically interrupting the energization of said line deflection coil comprising second switching means and means coupled to said inductor for deriving therefrom a switching current in synchronism with the energization periods of said transistor and applying said switching current to said switching means thereby to actuate the same, and means coupled to said switching means and to said load voltage circuit for producing a voltage for energizing said 2. A circuit as claimed in claim 1 wherein the duty cycle of said switching 3. A circuit as claimed in claim 1 further comprising an efficiency first 4. A circuit as claimed in claim 3 further comprising at least a second diode coupled to said deriving means and to ground, and being poled to 5. A circuit as claimed in claim 1 wherein said second switching means comprises a second transistor coupled to said deriving means to conduct simultaneously with said first transistor, and further comprising a coil coupled between said driving means and said second transistor and a third diode shunt coupled to said coil and being poled to conduct when said 6. A circuit as claimed in claim 1 further comprising a horizontal oscillator coupled to said first transistor, said oscillator being the 7. A circuit as claimed in claim 1 further comprising means coupled to said inductor for deriving filament voltage for said display device.
Description:
The invention relates to a circuit arrangement in a picture display device wherein the input direct voltage between two input terminals, which is obtained be rectifying the mains alternating voltage, is converted into a stabilized output direct voltage by means of a switching transistor and a coil and wherein the transistor is connected to a first input terminal and an efficiency diode is connected to the junction of the transistor and the coil. The switching transistor is driven by a pulsatory voltage of line frequency which pulses are duration-modulated in order to saturate the switching transistor during part of the period dependent on the direct voltage to be stabilized and to cut off this transistor during the remaining part of the period. The pulse duration modulation is effected by means of a comparison circuit which compares the direct voltage to be stabilized with a substantially constant voltage, the coil constituting the primary winding of a transformer.

Such a circuit arrangement is known from German "Auslegeschrift" 1.293.304. wherein a circuit arrangement is described which has for its object to convert an input direct voltage which is generated between two terminals into a different direct voltage. The circuit employs a switch connected to the first terminal of the input voltage and periodically opens and closes so that the input voltage is converted into a pulsatory voltage. This pulsatory voltage is then applied to a coil. A diode is arranged between the junction of the switch and the coil and the second terminal of the input voltage whilst a load and a charge capacitor in parallel thereto are arranged between the other end of the coil and the second terminal of the input voltage. The assembly operates in accordance with the known efficiency principle i.e., the current supplied to the load flows alternately through the switch and through the diode. The function of the switch is performed by a switching transistor which is driven by a periodical pulsatory voltage which saturates this transistor for a given part of the period. Such a configuration is known under different names in the literature; it will be referred to herein as a "chopper."
A known advantage thereof, is that the switching transistor must be able to stand a high voltage or provide a great current but it need not dissipate a great power. The output voltage of the chopper is compared with a constant reference voltage. If the output voltage attempts to vary because the input voltage and/or the load varies, a voltage causing a duration modulation of the pulses is produced at the output of the comparison arrangement. As a result the quantity of the energy stored in the coil varies and the output voltage is maintained constant. In the German "Auslegeschrift" referred to it is therefore an object to provide a stabilized supply voltage device.

In the circuit arrangement according to the mentioned German "Auslegeschrift" the frequency of the load variations or a harmonic thereof is chosen as the frequency for the switching voltage. Particularly when the load fed by the chopper is the line deflection circuit of a picture display device, wherein thus the impedance of the load varies in the rhythm of the line frequency, the frequency of the switching voltage is equal to or is a multiple of the line frequency.

It is to be noted that the chopper need not necessarily be formed as that in the mentioned German "Auslegeschrift." In fact, it is known from literature that the efficiency diode and the coil may be exchanged. It is alternatively possible for the coil to be provided at the first terminal of the input voltage whilst the switching transistor is arranged between the other end and the second terminal of the input voltage. The efficiency diode is then provided between the junction of said end and the switching transistor and the load. It may be recognized that for all these modifications a voltage is present across the connections of the coil which voltage has the same frequency and the same shape as the pulsatory switching voltage. The control voltage of a line deflection circuit is a pulsatory voltage which causes the line output transistor to be saturates and cut off alternately. The invention is based on the recognition that the voltage present across the connections of the coil is suitable to function as such a control voltage and that the coil constitutes the primary of a transformer. To this end the circuit arrangement according to the invention is characterized in that a secondary winding of the transformer drives the switching element which applies a line deflection current to line deflection coils and by which the voltage for the final anode of a picture display tube which forms part of the picture display device is generated, and that the ratio between the period during which the switching transistor is saturated and the entire period, i.e., the switching transistor duty cycle is between 0.3 and 0.7 during normal operation.

The invention is also based on the recognition that the duration modulation which is necessary to stabilize the supply voltage with the switching transistor does not exert influence on the driving of the line output transistor. This resides in the fact that in case of a longer or shorter cut-off period of the line output transistor the current flowing through the line deflection coils thereof is not influenced because of the efficiency diode current and transistor current are taken over or, in case of a special kind of transistor, the collector-emitter current is taken over by the base collector current and conversely. However, in that case the above-mentioned ratios of 0.3 : 0.7 should be taken into account since otherwise this take-over principle is jeopardized.

As will be further explained the use of the switching transistor as a driver for the line output transistor in an embodiment to be especially described hereinafter has the further advantage that the line output transistor automatically becomes non-conductive when this switching transistor is short circuited so that the deflection and the EHT for the display tube drop out and thus avoid damage thereof.

Due to the step according to the invention the switching transistor in the stabilized supply functions as a driver for the line deflection circuit. The circuit arrangement according to the invention may in addition be equipped with a very efficient safety circuit so that the reliability is considerably enhanced, which is described in the U.S. Pat. No. 3,629,686. The invention is furthermore based on the recognition of the fact that the pulsatory voltage present across the connections of the coil is furthermore used and to this end the circuit arrangement according to the invention is characterized in that secondary windings of the transformer drive diodes which conduct simultaneously with the efficiency diode so as to generate further stabilized direct voltages, one end of said diodes being connected to ground.

In order that the invention may be readily carried into effect, a few embodiments thereof will now be described in detail by way of example with reference to the accompanying diagrammatic drawings in which:

FIG. 1 shows a principle circuit diagram wherein the chopper and the line deflection circuit are further shown but other circuits are not further shown.

FIGS. 2a, 2b and 2c show the variation as a function of time of two currents and of a voltage occurring in the circuit arrangement according to FIG. 1.

FIGS. 3a 3b, 3c and 3d show other embodiments of the chopper.

FIGS. 4a and 4b show modifications of part of the circuit arrangement of FIG. 1.

In FIG. 1 the reference numeral 1 denotes a rectifier circuit which converts the mains voltage supplied thereto into a non-stabilized direct voltage. The collector of a switching transistor 2 is connected to one of the two terminals between which this direct voltage is obtained, said transistor being of the npn-type in this embodiment and the base of which receives a pulsatory voltage which originates through a control stage 4 from a modulator 5 and causes transistor 2 to be saturated and cut off alternately. The voltage waveform 3 is produced at the emitter of transistor 2. In order to maintain the output voltage of the circuit arrangement constant, the duration of the pulses provided is varied in modulator 5. A pulse oscillator 6 supplies the pulsatory voltage to modulator 5 and is synchronized by a signal of line frequency which originates from the line oscillator 6' present in the picture display device. This line oscillator 6' is in turn directly synchronized in known manner by pulses 7' of line frequency which are present in the device and originate for example from a received television signal if the picture display device is a television receiver. Pulse oscillator 6 thus generates a pulsatory voltage the repetition frequency of which is the line frequency.

The emitter of switching transistor 2 is connected at one end to the cathode of an efficiency diode 7 whose other end is connected to the second input voltage terminal and at the other end to primary winding 8 of a transformer 9. Pulsatory voltage 3 which is produced at the cathode of efficiency diode 7 is clamped against the potential of said second terminal during the intervals when this diode conducts. During the other intervals the pulsatory voltage 3 assumes the value V i .
A charge capacitor 10 and a load 11 are arranged between the other end of winding 8 and the second input voltage terminal. The elements 2,7,8,10 and 11 constitute a so-called chopper producing a direct voltage across charge capacitor 10, provided that capacitor 10 has a sufficiently great value for the line frequency and the current applied to load 11 flowing alternately through switching transistor 2 or through efficiency diode 7. The output voltage V o which is the direct voltage produced across charge capacitor 10 is applied to a comparison circuit 12 which compares the voltage V o with a reference voltage. Comparison circuit 12 generates a direct voltage which is applied to modulator 5 so that the duration of the effective period δ T of switching transistor 2 relative to the period T of pulses 3 varies as a function of the variations of output voltage V 0 . In fact, it is readily evident that output voltage V o is proportional to the ratio δ :

V o = V i . δ

Load 11 of the chopper consists in the consumption of parts of the picture display device which are fed by output voltage V 0 . In a practical embodiment of the circuit arrangement according to FIG. 1 wherein the mains alternating voltage has a nominal effective value of 220 V and the rectified voltage V i is approximately 270 V, output voltage V o for δ = 0.5 is approximately 135 V. This makes it also possible, for example, to feed a line deflection circuit as is shown in FIG. 1 wherein load 11 then represents different parts which are fed by the chopper. Since voltage V o is maintained constant due to pulse duration modulation, the supply voltage of this line deflection circuit remains constant with the favorable result that the line amplitude(= the width of the picture displayed on the screen of the picture display tube) likewise remains constant as well as the EHT required for the final anode of the picture display tube in the same circuit arrangement independent of the variations in the mains voltage and the load on the EHT generator (= variations in brightness).

However, variations in the line amplitude and the EHT may occur as a result of an insufficiently small internal impedance of the EHT generator. Compensation means are known for this purpose. A possibility within the scope of the present invention is to use comparison circuit 12 for this purpose. In fact, if the beam current passes through an element having a substantially quadratic characteristic, for example, a voltage-dependent resistor, then a variation for voltage V o may be obtained through comparison circuit 12 which variation is proportional to the root of the variation in the EHT which is a known condition for the line amplitude to remain constant.

In addition this facilitates smoothing of voltage V o since the repetition frequency of pulsatory voltage 3 is many times higher than that of the mains and a comparatively small value may be sufficient for charge capacitor 10. If charge capacitor 10 has a sufficiently high value for the line frequency, voltage V o is indeed a direct voltage so that a voltage having the same form as pulsatory voltage 3 is produced across the terminals of primary winding 8. Thus voltages which have the same shape as pulsatory voltage 3 but have a greater or smaller amplitude are produced across secondary windings 13, 14 of transformer 9 (FIG. 1 shows only 2 secondary windings but there may be more). The invention is based on the recognition that one end of each secondary winding is connected to earth while the other end thereof drives a diode, the winding sense of each winding and the direction of conductance of each diode being chosen to be such that these diodes conduct during the same period as does efficiency diode 7.  After smoothing, stabilized supply voltages, for example, at terminal 15 are generated in this manner at the amplitudes and polarities required for the circuit arrangements present in the picture display device. In FIG. 1 the voltage generated at terminal 15 is, for example, positive relative to earth. It is to be noted that the load currents of the supply voltages obtained in this manner cause a reduction of the switching power which is economized by efficiency diode 7. The sum of all diode currents including that of diode 7 is in fact equal to the current which would flow through diode 7 if no secondary winding were wound on transformer 9 and if no simultaneous diode were used. This reduction may be considered an additional advantage of the circuit arrangement according to the invention, for a diode suitable for smaller powers may then be used. However, it will be evident that the overall secondary load must not exceed the primary load since otherwise there is the risk of efficiency diode 7 being blocked so that stabilization of the secondary supply voltages would be out of the question.

It is to be noted that a parabola voltage of line frequency as shown at 28 is produced across the charge capacitor 10 if this capacitor is given a smaller capacitance so that consequently the so-called S-correction is established.

In FIG. 1 charge capacitors are arranged between terminals 15 etc. and earth so as to ensure that the voltages on these points are stabilized direct voltages. If in addition the mean value of the voltage on one of these terminals has been made equal to the effective value of the alternating voltage which is required for heating the filament of the picture display tube present in the picture display device, this voltage is suitable for this heating. This is a further advantage of the invention since the cheap generation of a stabilized filament voltage for the picture display tube has always been a difficult problem in transistorized arrangements.

A further advantage of the picture display device according to the invention is that transformer 9 can function as a separation transformer so that the different secondary windings can be separated from the mains and their lower ends can be connected to ground of the picture display device. The latter step makes it possible to connect a different apparatus such as, for example, a magnetic recording and/or playback apparatus to the picture display device without earth connection problems occurring.

In FIG. 1 the reference numeral 14 denotes a secondary winding of transformer 9 which in accordance with the previously mentioned recognition of the invention can drive line output transistor 16 of the line deflection circuit 17. Line deflection circuit 17 which is shown in a simplified form in FIG. 1 includes inter alia line deflection coils 18 and an EHT transformer 19 a secondary winding 20 of which serves for generating the EHT required for the acceleration anode of the picture display tube. Line deflection circuit 17 is fed by the output voltage V o of the chopper which voltage is stabilized due to the pulse duration modulation with all previously mentioned advantages. Line deflection circuit 17 corresponds, for example, to similar arrangements which have been described in U.S. Pat. No. 3,504,224 issued Mar. 31, 1970 to J.J. Reichgelt et al., U.S. patent application Ser. No. 737,009 filed June 14, 1968 by W. H. Hetterscheid and U.S. application Ser. No. 26,497 filed April 8, 1970 by W. Hetterscheid et al. It will be evident that differently formed lined deflection circuits are alternatively possible.

It will now be shown that secondary winding 14 can indeed drive a line deflection circuit so that switching transistor 2 can function as a driver for the line deflection. FIGS. 2a and b show the variation as a function of time of the current i C which flows in the collector of transistor 16 and of the drive voltage v 14 across the terminals of secondary winding 14. During the flyback period (0, t 1 ) transistor 16 must be fully cut off because a high voltage peak is then produced at its collector; voltage v 14 must then be absolutely negative. During the scan period (t 1 , t 4 ) a sawtooth current i C flows through the collector electrode of transistor 16 which current is first negative and then changes its direction. As the circuit arrangement is not free from loss, the instant t 3 when current i C becomes zero lies, as is known, before the middle of the scan period. At the end t 4 of the scan period transistor 16 must be switched off again. However, since transistor 16 is saturated during the scan period and since this transistor must be suitable for high voltages and great powers so that its collector layer is thick, this transistor has a very great excess of charge carriers in both its base and collector layers. The removal of these charge carriers takes a period t s which is not negligible whereafter the transistor is indeed switched off. Thus the fraction δ T of the line period T at which v 14 is positive must end at the latest at the instant (t 4 - t s ) located after the commencement (t = 0) of the previous flyback.

The time δ T may be initiated at any instant t 2 which is located between the end t 1 of the flyback period and the instant t 3 when collector current i C reverses its direction. It is true that emitter current flows through transistor 16 at the instant t 2 , but collector current i C is not influenced thereby, at least not when the supply voltage (= V o ) for line deflection circuit 17 is high enough. All this has been described in the U.S. Pat. No. 3,504,224. The same applies to line deflection
circuits wherein the collector base diode does not function as an efficiency diode as is the case in the described circuit 17, but wherein an efficiency diode is arranged between collector and emitter of the line output transistor. In such a case the negative part of the current i C of FIG. 2a represents the current flowing through the said efficiency diode.

After the instant t 3 voltage v 14 must be positive. In other words, the minimum duration of the period T when voltage v 14 must be positive is (t 4 - t s ) - t 3 whilst the maximum duration thereof is (t 4 - t s ) - t 1 . In a television system employing 625 lines per raster the line period t 4 is approximately 64 μus and the flyback period is approximately 12 μus. Without losses in the circuit arrangement instant t 3 would be located approximately 26 μus after the instant t 1 , and with losses a reasonable value is 22 μus which is 34 μus after the commencement of the period. If for safety's sake it is assumed that t s lasts approximately 10 μus, the extreme values of δ T are approximately 20 and 42 μus and consequently the values for δ are approximately 0.31 and 0.66 at a mean value which is equal to approximately 0.49. It was previously stated that a mean value of δ = 0.5 was suitable. Line deflection circuit 17 can therefore indeed be used in combination with the chopper in the manner described, and the relative variation of δ may be (0.66 - 0.31) : 0.49 = 71.5 percent. This is more than necessary to obviate the variations in the mains voltage or in the various loads and to establish the East-West modulation and ripple compensation to be described hereinafter.
In fact, if it is assumed that the mains voltage varies between -15 and +10 percent of the nominal value of 220 V, while the 50 Hz ripple voltage which is superimposed on the input voltage V i has a peak-to-peak value of 40 V and V i is nominally 270 V, then the lowest occurring V i is:

0.85 × 270 V - 20 V = 210 V and the highest occurring V i is

1.1 × 270 V + 20 V = 320 V. For an output voltage V o of 135 V the ratio must thus vary between

δ = 135 : 210 = 0.64 and δ = 135 : 320 = 0.42.

A considerable problem presenting itself is that of the simultaneous or non-simultaneous drive of line output transistor 16 with switching transistor 2, it being understood that in case of simultaneous drive both transistors are simultaneously bottomed, that is during the period δ T. This depends on the winding sense of secondary winding 14 relative to that of primary winding 8. In FIG. 1 it has been assumed that the drive takes place simultaneously so that the voltage present across winding 14 has the shape shown in FIG. 2b. This voltage assumes the value n(V i - V o ) in the period δ T and the value -nVo in the period (1 - δ )T, wherein n is the ratio of the number of turns on windings 14 and 8 and wherein V o is maintained constant at nominal mains voltage V o = δ V inom .
However, if as a result of an increase or a decrease of the mains voltage V i increases or decreases proportionally therewith, i.e., V i = V i nom + Δ V, the positive portion of V 14 becomes equal to n(V i nom - V o +Δ V) = n [(1 -δ)V i nom +ΔV] = n(0.5 V inom +ΔV) if δ = 0.5 for V i = V i nom. Relatively, this is a variation which is twice as great. For example, if V i nom = 270 V and V o = 135 V, a variation in the mains voltage of from -15 to +10 percent causes a variation of V i of from -40.5 V to +27 V which ranges from -30 to +20 percent of 135 V which is present across winding 8 during the period δ T. The result is that transistor 16 can always be bottomed over a large range of variation. If the signal of FIG. 2b would be applied through a resistor to the base of transistor 16, the base current thereof would have to undergo the same variation while the transistor would already be saturated in case of too low a voltage. In this case it is assumed that transformer 9 is ideal (without loss) and that coil 21 has a small inductance as is explained in the U.S. patent application Ser. No. 737,009 above mentioned. It is therefore found to be desirable to limit the base current of transistor 16.

This may be effected by providing a coil 22 having a large value inductance, approximately 100 μH, between winding 14 and the small coil 21. The variation of said base current i b is shown in FIG. 2c but not to the same scale as the collector current of FIG. 2a. During the conducting interval δ T current i b varies as a linear function of time having a final value of wherein L represents the inductance of coil 22. This not only provides the advantage that this final value is not immediately reached, but it can be shown that variation of this final value as a function of the mains voltage has been reduced, for there applies at nominal mains voltage that: If the mains voltage V i = V i nom +Δ V, then ##SPC1## because V i nom = 2 V o . Thus this variation is equal to that of the mains voltage and is not twice as great.

During switching off, t 2 , of transistor 16 coil 22 must exert no influence and coil 21 must exert influence which is achieved by arranging a diode 23 parallel to coil 22. Furthermore the control circuit of transistor 16 in this example comprises the two diodes 24 and 25 as described in U.S. application Ser. No. 26,497 above referred to, wherein one of these diodes, diode 25 in FIG. 1, must be shunted by a resistor.

The control circuit of transistor 16 may alternatively be formed as is shown in FIG. 4. In fact, it is known that coil 21 may be replaced by the parallel arrangement of a diode 21' and a resistor 21" by which the inverse current can be limited. To separate the path of the inverse current from that of the forward current the parallel arrangement of a the diode 29' and a resistor 29" must then be present. This leads to the circuit arrangement shown in the upper part of FIG. 4. This circuit arrangement may now be simplified if it is noted that diodes 25 and 21' on the one hand and diodes 23 and 29' on the other hand are series-arranged. The result is shown in the lower part of FIG. 4 which, as compared with the circuit arrangement of FIG. 1, employs one coil less and an additional resistor.

FIG. 3 shows possible modifications of the chopper. FIG. 3a shown in a simplified form the circuit arrangement according to FIG. 1 wherein the pulsatory voltage present across the connections of windings 8 has a peak-to-peak amplitude of V i - V o = 0.5 V i for δ = 0.5, As has been stated, the provision of coil 22 gives a relative variation for the base current of transistor 16 which is equal to that of the mains voltage. In the cases according to FIG. 3b, 3c and 3d the peak-to-peak amplitude of the voltage across winding 8 is equal to V i so that the provision of coil 22 results in a relative variation which is equal to half that of the mains voltage which is still more favorable than in the first case.

Transistors of the npn type are used in FIG. 3. If transistors of the pnp type are used, the relevant efficiency diodes must of course be reversed.

In this connection it is to be noted that it is possible to obtain an output voltage V o with the aid of the modifications according to FIGS. 3b, c and d, which voltage is higher than input voltage V i . These modifications may be used in countries such as, for example, the United of America or France where the nominal mains voltage is 117 or 110 V without having to modify the rest of the circuit arrangement.

The above-mentioned remark regarding the sum of the diode currents only applies, however, for the modifications shown in FIGS. 3a and d.

If line output transistor 16 is not simultaneously driven with switching transistor 2, efficiency diodes 7 conducts simultaneously with transistor 16 i.e., during the period which is denoted by δ T in FIGS. 1 and 2b. During that period the output voltage V o of the chopper is stabilized so that the base current of transistor 16 is stabilized without further difficulty. However, a considerable drawback occurs. In FIG. 1 the reference numeral 26 denotes a safety circuit the purpose of which is to safeguard switching transistor 2 when the current supplied to load 11 and/or line deflection circuit 17 becomes to high, which happens because the chopper stops. After a given period output voltage V o is built up again, but gradually which means that the ratio δ is initially small in the order of 0.1. All this is described in U.S. patent No. 3,629,686. The same phenomenon occurs when the display device is switched on. Since δ = 0.1 corresponds to approximately 6 μs when T = 64 μs, efficiency diode 7 conducts in that case for 64 - 6 = 58 μus so that transistor 16 is already switched on at the end of the scan or at a slightly greater ratio δ during the flyback. This would cause an inadmissibly high dissipation. For this reason the simultaneous drive is therefore to be preferred.

The line deflection circuit itself is also safeguarded: in fact, if something goes wrong in the supply, the driver voltage of the line deflection circuit drops out because the switching voltage across the terminals of primary winding 8 is no longer present so that the deflection stops. This particularly happens when switching transistor 2 starts to constitute a short-circuit between emitter and collector with the result that the supply voltage V o for the line deflection circuit in the case of FIG. 1 becomes higher, namely equal to V i . However, the line output transformer is now cut off and is therefore also safe as well as the picture display tube and other parts of the display device which are fed by terminal 15 or the like. However, this only applies to the circuit arrangement according to FIG. 1 or 3a.

Pulse oscillator 6 applies pulses of line frequency to modulator 5. It may be advantageous to have two line frequency generators as already described, to wit pulse oscillator 6 and line oscillator 6' which is present in the picture display device and which is directly synchronized in known manner by line synchronizing pulses 7'. In fact, in this case line oscillator 6' applies a signal of great amplitude and free from interference to pulse oscillator 6. However, it is alternatively possible to combine pulse oscillator 6 and line oscillator 6' in one single oscillator 6" (see FIG. 1) which results in an economy of components. It will be evident that line oscillator 6' and oscillator 6" may alternatively be synchronized indirectly, for example, by means of a phase discriminator. It is to be noted neither pulse oscillator 6, line oscillator 6' and oscillator 6" nor modulator 5 can be fed by the supply described since output voltage V o is still not present when the mains voltage is switched on. Said circuit arrangements must therefore be fed directly from the input terminals. If as described above these circuit arrangements are to be separated from the mains, a small separation transformer can be used whose primary winding is connected between the mains voltage terminals and whose secondary winding is connected to ground at one end and controls a rectifier at the other end.

Capacitor 27 is arranged parallel to efficiency diode 7 so as to reduce the dissipation in switching transistor 2. In fact, if transistor 2 is switched off by the pulsatory control voltage, its collector current decreases and its collector-emitter voltage increases simultaneously so that the dissipated power is not negligible before the collector current has becomes zero. If efficiency diode 7 is shunted by capacitor 27 the increase of the collector-emitter voltage is delayed i.e., this voltage does not assume high values until the collector current has already been reduced. It is true that in that case the dissipation in transistor 2 slightly increases when it is switched on by the pulsatory control voltage but on the other hand since the current flowing through diode 7 has decreased due to the presence of the secondary windings, its inverse current is also reduced when transistor 2 is switched on and hence its dissipation has become smaller. In addition it is advantageous to delay these switching-on and switching-off periods to a slight extent because the switching pulses then contain fewer Fourier components of high frequency which may cause interferences in the picture display device and which may give rise to visible interferences on the screen of the display tube. These interferences occupy a fixed position on the displayed image because the switching frequency is the line frequency which is less disturbing to the viewer. In a practical circuit wherein the line frequency is 15,625 Hz and wherein switching transistor 2 is an experimental type suitable for a maximum of 350 V collector-emitter voltage or 1 A collector current and wherein efficiency diode 7 is of the Philips type BA 148 the capacitance of capacitor 27 is approximately 680 pF whilst the load is 70 W on the primary and 20 W on the secondary side of transformer 9. The collector dissipation upon switching off is 0.3 W (2.5 times smaller than without capacitor 27) and 0.7 W upon switching on.

As is known the so-called pincushion distortion is produced in the picture display tubes having a substantially flat screen and large deflection angles which are currently used. This distortion is especially a problem in color television wherein a raster correction cannot be brought about by magnetic means. The correction of the so-called East-West pincushion distortion i.e., in the horizontal direction on the screen of the picture display tube can be established in an elegant manner with the aid of the circuit arrangement according to the invention. In fact, if the voltage generated by comparison circuit 12 and being applied to modulator 5 for duration-modulating pulsatory voltage 3 is modulated by a parabola voltage 28 of field frequency, pulsatory voltage 3 is also modulated thereby. If the power consumption of the line deflection circuit forms part of the load on the output voltage of the chopper, the signal applied to the line deflection coils is likewise modulated in the same manner. Conditions therefore are that the parabola voltage 28 of field frequency has a polarity such that the envelope of the sawtooth current of line frequency flowing through the line deflection coils has a maximum in the middle of the scan of the field period and that charge capacitor 10 has not too small an impedance for the field frequency. On the other hand the other supply voltages which are generated by the circuit arrangement according to the invention and which might be hampered by this component of field frequency must be smoothed satisfactorily.

A practical embodiment of the described example with the reference numerals given provides an output for the supply of approximately 85 percent at a total load of 90 W, the internal resistance for direct current loads being 1.5 ohms and for pulsatory currents being approximately 10 ohms. In case of a variation of ± 10 percent of the mains voltage, output voltage V o is stable within 0.4 V. Under the nominal circumstances the collector dissipation of switching transistor 2 is approximately 2.5 W.

Since the internal resistance of the supply is so small, it can be used advantageously, for example, at terminal 15 for supplying a class-B audio amplifier which forms part of the display device. Such an amplifier has the known advantages that its dissipation is directly proportional to the amplitude of the sound to be reproduced and that its output is higher than that of a class-A amplifier. On the other hand a class-A amplifier consumes a substantially constant power so that the internal resistance of the supply voltage source is of little importance. However, if this source is highly resistive, the supply voltage is modulated in the case of a class-B amplifier by the audio information when the sound intensity is great which may detrimentally influence other parts of the display device. This drawback is prevented by means of the supply according to the invention.

The 50 Hz ripple voltage which is superimposed on the rectified input voltage V i is compensated by comparison circuit 12 and modulator 5 since this ripple voltage may be considered to be a variation of input voltage V i . A further compensation is obtained by applying a portion of this ripple voltage with suitable polarity to comparison circuit 12. It is then sufficient to have a lower value for the smoothing capacitor which forms part of rectifier circuit 1 (see FIG. 3). The parabola voltage 28 of field frequency originating from the field time base is applied to the same circuit 12 so as to correct the East-West pincushion distortion.
The term "power transformer" as used herein refers to a transformer used in a commercial power supply network for supplying power to the deflection circuits from a commercial power supply, and should not be confused with transformers in other portions of the receiver designated by different terms. Thus, the expression "television receiver of a power transformerless type" refers to a television receiver which does not use the defined power transformer.

It is an object of the invention to provide in conjunction with a transformerless power supply a transformer coupling means effective to isolate, d.c. wise, deflection circuits of the receiver from grounded receiver circuit components while at the same time enabling a.c. coupling between components to be coupled to one another.

It is another object of the invention to provide a transformerless power supply and a transformer coupling means which co-operate to permit operation of the deflection circuits without need for connecting the deflection circuits to chassis ground for a.c. by means of a small coupling condenser or otherwise.

It is a further object of the invention to provide transformerless coupling means having a turns ratio between the primary and secondary windings thereof effective to couple in a forward direction a sync signal amplifier output to the ungrounded horizontal and vertical deflection circuits while substantially attenuating in the reverse direction transients and external noise prevalent in the ungrounded deflection circuits.
INTEGRAL THYRISTOR-RECTIFIER DEVICE TD3F700R34  TD3F800H46

A semiconductor switching device comprising a silicon controlled rectifier (SCR) and a diode rectifier integrally connected in parallel with the SCR in a single semiconductor body. The device is of the NPNP or PNPN type, having gate, cathode, and anode electrodes. A portion of each intermediate N and P region makes ohmic contact to the respective anode or cathode electrode of the SCR. In addition, each intermediate region includes a highly conductive edge portion. These portions are spaced from the adjacent external regions by relatively low conductive portions, and limit the conduction of the diode rectifier to the periphery of the device. A profile of gold recombination centers further electrically isolates the central SCR portion from the peripheral diode portion.
That class of thyristors known as controlled rectifiers are semiconductor switches having four semiconducting regions of alternate conductivity and which employ anode, cathode, and gate electrodes. These devices are usually fabricated from silicon. In its normal state, the silicon controlled rectifier (SCR) is non-conductive until an appropriate voltage or current pulse is applied to the gate electrode, at which point current flows from the anode to the cathode and delivers power to a load circuit. If the SCR is reverse biased, it is non-conductive, and cannot be turned on by a gating signal. Once conduction starts, the gate loses control and current flows from the anode to the cathode until it drops below a certain value (called the holding current), at which point the SCR turns off and the gate electrode regains control. The SCR is thus a solid state device capable of performing the circuit function of a thyratron tube in many electronic applications. In some of these applications, such as in automobile ignition systems and horizontal deflection circuits in television receivers, it is necessary to connect a separate rectifier diode in parallel with the SCR. See, for example, W. Dietz, U. S. Pat. Nos. 3,452,244 and 3,449,623. In these applications, the anode of the rectifier diode is connected to the cathode of the SCR, and the cathode of the rectifier is connected to the SCR anode. Thus, the rectifier diode will be forward biased and current will flow through it when the SCR is reverse biased; i.e., when the SCR cathode is positive with respect to its anode. For reasons of economy and ease of handling, it would be preferable if the circuit function of the SCR and the associated diode rectifier could be combined in a single device, so that instead of requiring two devices and five electrical connections, one device and three electrical connections are all that would be necessary. In fact, because of the semiconductor profile employed, many SCR's of the shorted emitter variety inherently function as a diode rectifier when reverse biased. However, the diode rectifier function of such devices is not isolated from the controlled rectifier portion, thus preventing a rapid transition from one function to the other. Therefore, it would be desirable to physically and electrically isolate the diode rectifier portion from that portion of the device which functions as an SCR.

METZ  7096 CLASSIC COLOR  (CH679G)  CHASSIS 679G  LINE / HORIZONTAL DEFLECTION WITH THYRISTOR SWITCH TECHNOLOGY OVERVIEW./HORIZONTAL ABLENKUNG MIT THYRISTOREN SCHALTUNG.


Horizontal deflection circuit

(Thyristor Horizontalsteuerung)





























Description:



1. A horizontal deflection circuit for generating the deflection current in the deflection coil of a television picture tube wher
ein a first switch controls the horizontal sweep, and wherein a second switch in a so-called commutation circuit with a commutating inductor and a commutating capacitor opens the first switch and, in addition, controls the energy transfer from a dc voltage source to an input inductor, characterized in that the input inductor (Le) and the commutating inductor (Lk) are combined in a unit designed as a transformer (U) which is proportioned so that the open-circuit inductance of the transformer is essentially equal to the value of the input inductor (Le), while the short-circuit inductance of the transformer (U) is essentially equal to the value of the commutating inductor (Lk), and that the second switch (S2) is connected in series with the dc voltage source (UB) and a first winding (U1) of the transformer (U). 2. A horizontal deflection circuit according to claim 1, characterized in that the transformer (U) operates as an isolation transformer between the supply (UB) and the subcircuits connected to a second winding. 3. A horizontal deflection circuit according to claim 1, characterized in that the second switch (S2) is connected between ground and that terminal of the first winding (U1) of the transformer (U) not connected to the supply potential (+UB). 4. A horizontal deflection circuit according to claim 1, characterized in that a capacitor (CE) is connected across the series combination of the first winding (U1) of the transformer and the second switch (S2). 5. A horizontal deflection circuit according to claim 1, characterized in that the second winding (U2) of the transformer (U) is connected in series with a first switch (S1), the commutating capacitor (Ck), and a third, bipolar switch (S3) controllable as a function of the value of a controlled variable developed in the deflection circuit. 6. A horizontal deflection circuit according to claim 5, characterized in that the third switch (S3) is connected between ground and the second winding (U2) of the transformer. 7. A horizontal deflection circuit according to claim 2, characterized in that the isolation transformer carries a third winding via which power is supplied to the audio output stage of the television set. 8. A horizontal deflection circuit according to claims 2, characterized in that the voltage serving to control the first switch (S1) is derived from a third winding of the transformer.
Description:
The present invention relates to a horizontal deflection circuit for generating the deflection current in the deflection coil of a television picture tube wherein a first switch controls the horizontal sweep, and wherein a second switch in a so-called commutation circuit with a commutating inductor and a commutating capacitor opens the first switch and, in addition, controls the energy transfer from a dc voltage source to an input inductor.
German Aus
legeschrift (DT-AS) No. 1,537,308 discloses a horizontal deflection circuit in which, for generating a periodic sawtooth current within the respective deflection coil of the picture tube, in a first branch circuit, the deflection coil is connected to a sufficiently large capacitor serving as a current source via a first controlled, bilaterally conductive switch which is formed by a controlled rectifier and a diode connected in inverse parallel. The control electrode of the rectifier is connected to a drive pulse source which renders the switch conductive during part of the sawtooth trace period. In that arrangement, the sawtooth retrace, i.e. the current reversal, also referred to as "commutation", is initiated by a second controlled switch.
The first controlled switch also forms part of a second branch circuit where it is connected in series with a second current source and a reactance capable of oscillating. When the first switch is closed, the reactance, consisting essentially of a coil and a capacitor, receives energy from the second current source during a fixed time interval. This energy which is taken from the second current source corresponds to the circuit losses caused during the previous deflection cycle.
As can be seen, such a circuit needs two different, separate inductive elements, it being known that inductive elements are expensive to manufacture and always have a certain volume determined by the electrical properties required.
The object of the invention is to reduce the amount of inductive elements required.
The invention is characterized in that the input inductor and the commutating inductor are combined in a unit designed as a transformer which is proportioned so that the open-circuit inductance of the transformer is essentially equal to the value of the input inductor, while the short-circuit inductance of the transformer is essentially equal to the value of the commutating inductor, and that the second switch is connected in series with the dc voltage source and a first winding of the transformer.
This solution has an added advantage in that, in mass production, both the open-circuit and the short-circuit inductance are reproducible with reliability.
According to another feature of the invention, the electrical isolation between the windings of the transformer is such that the transformer operates as an isolation transformer between the supply and the subcircuits connected to a second winding or to additional windings of the transformer. In this manner, the transformer additionally provides reliable mains isolation.
According to a further feature of the invention, the second switch is connected between ground and that terminal of the first winding of the transformer not connected to the supply potential. This simplifies the control of the switch.
According to a further feature of the invention, to regulate the energy supply, the second winding of the transf
ormer is connected in series with the first switch, the commutating capacitor, and a third, bipolar switch controllable as a function of the value of a controlled variable developed in the deflection circuit.

The advantage gained by this measure lies in the fact that the control takes place on the side separated from the mains, so no separate isolation device is required for the gating of the third switch. Further details and advantages will be apparent from the following description of the accompanying drawings and from the claims. In the drawings,
FIG. 1 is a basic circuit diagram of the arrangement disclosed in German Auslegeschrift (DT-AS) No. 1,537,308;
FIG. 2 shows a first embodiment of the horizontal deflection circuit according to the invention, and
FIG. 3 shows a development of the horizontal deflection circuit according to the invention.
FIG. 1 shows the essential circuit elements of the horizontal deflection circuit known from the German Auslegeschrift (DT-AS) No. 1,537,308 referred to by way of introduction.
Connected in series with a dc voltage source UB is an input inductor Le and a bipolar, controlled switch S2. In the following, this switch will be referred to as the "second switch"; it is usually called the "commutating switch" to indicate its function.
In known circuits, the second switch S2 consists of a controlled rectifier and a diode connected in inverse parallel.
The second switch S2 also forms part of a second circuit which contains, in addition, a commutating inductor Lk, a commutating capacitor Ck, and a first switch S1. The first switch S1, controlling the horizontal sweep, is constructed in the same manner as the above-described second switch S2, consisting of a controlled rectifier and a diode in inverse parallel. Connected in parallel with this first switch is a deflection-coil arrangement AS with a capacitor CA as well as a high voltage generating arrangement (not shown). In FIGS. 1, 2, and 3, this arrangement is only indicated by an arrow and by the reference characters Hsp. The operation of this known horizontal deflection circuit need not be explained here in detail since it is described not only in the German Auslegeschrift referred to by way of introduction, but also in many other publications.
FIGS. 2 and 3 show the horizontal deflection circuit modified in accordance with the present invention. Like circuit elements are designated by the same reference characters as in FIG. 1.
FIG. 2 shows the basic principle of the invention. The two inductors Le and Lk of FIG. 1 have been replaced by a transformer U. To be able to serve as a substitute for the two inductors Le and Lk, the transformer must be proportioned in a special manner. Regardless of the turns ratio, the open-circuit inductance of the transformer is chosen to be essentially equal to the value of the input inductor Le, and the short-circuit inductance of the transformer is essentially equal to the value of the commutating inductor Lk.
To permit the second switch S2 to be utilized for the connection of the dc voltage source UB, it is included in the circuit of that winding U1 of the transformer connected to the dc voltage UB.
In principle, it is of no consequence for the operation of the switch S2 whether it is inserted on that side of the winding U1 connected to the positive operating potential +UB or on the side connected to ground. In practice, however, the solution shown in FIGS. 2 and 3 will be chosen since the gating of the controlled rectifier is less problematic in this case.
In compliance with pertinent safety regulations, the transformer U may be designed as an isolation transformer and can thus provide mains separation, which is necessary for various reasons. It is known from German Offenlegungschrift (DT-OS) No. 2,233,249 to provide dc isolation by designing the commutating inductor as a transformer, but this measure is not suited to attaining the object of the present invention.
If the energy to be taken from the dc voltage source is to be controlled as a function of the energy needed in the horizontal deflection circuit and in following subcircuits, the embodiment of the horizontal deflection circuit of FIG. 3 may be used.
The circuit including the winding U2 of the transformer U contains a third controlled switch S3, which, too, is inserted on the grounded side of the winding U2 for the reasons mentioned above. This third switch S3, just as the second switch S2, is operated at the frequency of a horizontal oscillator HO, but a control circuit RS whose input l is fed with a controlled variable is inserted between the oscillator and the switch S3. Depending on this controlled variable, the controlled rectifier of the third switch S3 can be caused to turn on earlier. A suitable controlled variable containing information on the energy consumption is, for example, the flyback pulse capable of being taken from the high voltage generating circuit (not shown). Details of the operation of this kind of energy control are described in applicant's German Offenlegungsschrift (DT-OS) No. b 2,253,386 and do not form part of the present invention.
With mains isolation, the additional, third switch S3 shown here has the advantage of being on the side isolated from the mains and eliminates the need for an isolation device in the control lead of the controlled rectifier.
As an isolation transformer, the transformer U may also carry additional windings U3 and U4 if power is to be supplied to the audio output stage, for example; in addition, the first switch S1 may be gated via such an additional winding.
The points marked at the windings U1 and U2 indicate the phase relationship between the respective voltages. Connected in parallel with the winding U1 and the second switch S2 is a capacitor CE which completes the circuit for the horizontal-frequency alternating current; this serves in particular to bypass the dc voltage source or the electrolytic capacitors contained therein.
If required, a well-known tuning coil may be inserted, e.g. in series with the second winding U2, without changing the basic operation of the horizontal deflection circuit according to the invention.

METZ  7096 CLASSIC COLOR  (CH679G)  CHASSIS 679G  Electron beam deflection circuit including thyristors Further Discussion and deepening of knowledge, Thyristor horizontal output circuits: (ZEILEN ABLENKUNG MIT THYRISTOR SCHALTUNG)

1. An electron beam deflection circuit for a cathode ray tube with electromagnetic deflection by means of a sawtooth current waveform having a trace portion and a retrace portion, said circuit comprising: a deflection winding; a first source of electrical energy formed by a first capacitor; first controllable switching means comprising a parallel combination of a first thyristor and a first diode connected together to conduct in opposite directions, for connecting said winding to said first source during said trace portion, while said first switching means is turned on; a second source of electrical energy including a first inductive energy storage means coupled to a voltage supply; reactive circuit means including a combination of inductive and capacitive reactances for storing the energy supplied by said second source; second controllable switching means, substantially similar to said first one, for completing a circuit including said reactive circuit means and said first switching means, when turned on before the end of said trace portion, so as to pass through said first switching means an oscillatory current in opposite direction to that which passes through said first thyristor from said first source and to turn said first thyristor off after these two currents cancel out, the oscillatory current flowing thereafter through said first diode for an interval termed the circuit turn-off time, which has to be greater than the turn-off time of said first thyristor; wherein the improvement comprises: means for drawing, during at least a part of said trace portion, a substantial amount of additional current through said first switching means, in the direction of conduction of said first diode, whereby to perceptibly shift the waveform of the current flowing through said first switching means towards the negative values by an amount equal to that of said substantial additional current and to lengthen, in proportion thereto, said circuit turn-off time, without altering the values of the reactances in the reactive circuit which intervene in the determination of both the circuit turn-off and retrace portion time intervals.

2. A deflection circuit as claimed in claim 1, wherein said amount of additional current is greater than or equal to 5 per cent of the peak-to-peak value of the current flowing through the deflection winding.

3. A deflection circuit as claimed in claim 1, wherein said means for drawing a substantial amount of additional current through said first switching means comprises a resistor connected in parallel to said first capacitor.

4. A deflection circuit as claimed in claim 1, wherein said means for drawing an additional current is formed by connecting said first and second energy sources in series so that the current charging said reactive circuit means forms the said additional current.

5. A deflection circuit as claimed in claim 1, further including a series combination of an autotransformer winding and a second high-value capacitor, said combination being connected in parallel to said first switching means, wherein said autotransformer comprises an intermediate tap located between its terminals respectively connected to said first switching means and to said second capacitor, said tap delivering, during said trace portion, a suitable DC supply voltage lower than the voltage across said second capacitor; and wherein said means for drawing a substantial amount of additional current comprises a load to be fed by said supply voltage and having one terminal connected to ground; and further controllable switching means controlled to conduct during at least part of said trace portion and to remain cut off during said retrace portion, said further switching means being connected between said tap and the other terminal of said load.

Description:
The present invention relates to electron beam deflection circuits including thyristors, such as silicon controlled rectifiers and relates, in particular, to horizontal deflection circuits for television receivers.










The present invention constitutes an improvement in the circuit described in U.S. Pat. No. 3,449,623 filed on Sept. 6, 1966, this circuit being described in greater detail below with reference to FIGS. 1 and 2 of the accompanying drawings. A deflection circuit of this type comprises a first thyristor switch which allows the conenction of the horizontal deflection winding to a constant voltage source during the time interval used for the transmisstion of the picture signal and for applying this signal to the grid of the cathode ray tube (this interval will be termed the "trace portion" of the scan), and a second thyristor switch which provides the forced commutation of the first one by applying to it a reverse current of equal amplitude to that which passes through it from the said voltage source and thus to initiate the retrace during the horizontal blanking interval.

A undirectional reverse blocking triode type thyristor or silicon controlled rectifier (SCR), such as that used in the aformentioned circuit, requires a certain turn-off time between the instant at which the anode current ceases and the instant at which a positive bias may be applied to it without turning it on, due to the fact that there is still a high concentration of free carriers in the vicinity of the middle junction, this concentration being reduced by a process of recombination independently from the reverse polarity applied to the thyristor. This turn-off time of the thyristor is a function of a number of parameters such as the junction temperature, the DC current level, the decay time of the direct current, the peak level of the reverse current applied, the amplitude of the reverse anode to cathode voltage, the external impedance of the gate electrode, and so on, certain of these varying considerably from one thyristor to another.

In horizontal deflection circuits for television receivers, the flyback or retrace time is limited to approximately 20 percent of the horizontal scan period, the retrace time being in the case of the CCIR standard of 625 lines, approximately 12 microseconds and, in the case of the French standard of 819 lines, approximately 9 microseconds. During this relatively short interval, the thyristor has to be rendered non-conducting and the electron beam has to be returned to the origin of the scan. The first thyristor is blocked by means of a series resonant LC circuit which is subject to a certain number of restrictions (limitations as to the component values employed) due to the fact that, inter alia, it simultaneously determines the turn-off time of the circuit which blocks the thyristor and it forms part of the series resonant circuit which is to carry out the retrace. To obtain proper operation of the deflection circuit of the aforementioned Patent, especially when used for the French standard of 819 lines per image, the values of the components used have to subject to very close tolerances (approximately 2%), which results in high costs.

The improved deflection circuit, object of the present invention, allows the lengthening of the turn-off time of the circuit for turning the scan thyristor off, without altering the values of the LC circuit, which are determined by other criteria, and without impairing the operation of the circuit.

According to the invention, there is provided an electron beam deflection circuit for a cathode ray tube with electromagentic deflection by means of a sawtooth current waveform having a trace portion and a retrace portion, said circuit comprising: a deflection winding; a first source of electrical energy formed by a first capacitor; first controllable switching means comprising a parallel combination of a first thyristor and a first diode, connected together to conduct in opposite directions, for connecting said winding to said first source during said trace portion when said first switching means is turned on; a second source of electrical energy including a first inductive energy storage means coupled to a voltage supply; reactive circuit means including a combination of inductive and capacitive reactances for storing the energy supplied by the said second source; a second controllable switching means, substantially identical with the first one, for completing a circuit including said reactive circuit means and said first switching means, when turned on, so as to pass through said first thyristor an oscillatory current in the opposite direction to that which passes through it from said first source and to turn it off after these two currents cancel out, the oscillatory current then flowing through said first diode for an interval termed the circuit turn-off time which has to be greater than the turn-off time of said first thyristor; and means for drawing duing at least a part of said trace portion a substantial amount of additional current from said first switching means in the direction of conduction of said first diode, whereby said circuit turn-off time is lengthened in proportion to the amount of said additional current, without altering the values of the reactances in the reactive circuit by shifting the waveform of the current flowing through said first switching means towards the negative by an amount equal to that of said additional current.

A further object of the invention consists in using the supplementary current in the recovery diode of the first switching means to produce a DC voltage which may be used as a power supply for the vertical deflection circuit of the television receiver, for example.

The invention will be better understood and other features and advantages thereof will become apparent from the following description and the accompanying drawings, given by way of example, and in which:

FIG. 1 is a schematic circuit diagram partially in bloc diagram form of a prior art deflection circuit according to the aforementioned Patent;

FIG. 2 shows waveforms of currents and voltages generated at various points in the circuit of FIG. 1;

FIG. 3 is a schematic diagram of a deflection circuit according to the invention which allows the principle of the improvement to be explained;

FIG. 4 is a diagram of the waveforms of the current through the first switching means 4, 5 of the circuit of FIG. 3;

FIG. 5 is a circuit diagram of another embodiment of the circuit according to the invention;

FIG. 6 is a schematic representation of the preferred embodiment of the circuit according to the invention; and

FIG. 7 shows voltage waveforms at various points of the high voltage autotransformer 21 of FIG. 6.

In all these Figures the same reference numerals refer to the same components.

FIG. 1 shows the horizontal deflection circuit described and claimed in the U.S. Pat. No. 3,449,623 mentioned above, which comprises a first source of electrical energy in the shape of a first capacitor 2 having a high capacitance C 2 for supplying a substantially constant voltage Uc 2 across its terminals. A first terminal of the first capacitor 2 is connected to ground, whilst its second terminal which supplies a positive voltage is connected to one of the terminals of a horizontal deflection winding shown as a first inductance 1. A first switching means 3, consisting of a first reverse blocking triode thyristor 4 (SCR) and a first recovery diode 5 in parallel, the two being interconnected to conduct current in opposite directions, is connected in parallel with the series combination formed by the deflection winding 1 and the first capacitor 2. The assembly of components 1, 2, 4 and 5 forms the final stage of the horizontal deflection circuit in a television receiver using electromagnetic delfection.

The deflection circuit also includes a drive stage for this final stage which here controls the turning off of the first thyristor 4 to produce the retrace or fly-back portion of the scan during the line-blanking intervals i.e. while the picture signal is not transmitted. This driver stage comprises a second voltage source in the shape of a DC power supply 6 which delivers a constant high voltage E. The negative terminal of the power supply 6 is connected to ground and its positive terminal to one of the terminals of a second inductance 7 of relatively high value, which draws a substantially lineraly varying current from the power supply 6 to avoid its overloading. The other terminal of the second inductance 7 is connected, on the one hand, to the junction of the deflection winding 1 and the first switching means 3 by means of a second inductance 8 and a second capacitor 9 in series and, on the other hand, to one of the terminals of a second controllable bi-directionally conducting switching means 10, similar to the first one 3, including a parallel combination of a second thyristor 11 and a second recovery diode 12 also arranged to conduct in opposite directions.

The respective values of the third inductance 8 (L 8 ) and of the second capacitor 9 (C 9 ) are principally selected so that, on the one hand, one half-cycle of oscillation of the first series resonant circuit L 8 - C 9 , (i.e. π √ L 8 . C 9 ) is longer than the turn-off time of the first thyristor 4, but still is as short as possible since this time interval determines the speed of the commutation of the thyristor 4, and, on the other hand, one half-cycle of oscillation of another series resonant circuit formed by L 1 , L 8 and C 9 , i.e. π √ (L 1 + L 8 ) . C 9 , is substantially equal to the required retrace time interval (i.e. shorter than the horizontal blanking interval).

The gate (control electrode) of the second thyristor 11 is coupled to the output of the horizontal oscillator 13 of the television receiver by means of a first pulse transformer 14 and a first pulse shaping circuit 15 so that it is fed short triggering pulses which are to turn it on.

The gate of the first thyristor 4 fed with signals of a substantially rectangular waveform which are negative during the horizontal blanking intervals, is coupled to a winding 16 by means of a second pulse shaping circuit 17, the winding 16 being magnetically coupled to the second inductance 7 to make up the secondary winding of a transformer of which the inductance 7 forms the primary winding. It will be noted here that it is also possible to couple the secondary winding 16 magnetically to a primary winding connected to a suitable output (not shown) of the horizontal oscillator 13.

The operation of a circuit of this type will be explained below with reference to FIG. 2 which shows the waveforms at various points in the circuit of FIG. 1 during approximately one line period.

FIG. 2 is not to scale since one line period (t 7 - t 0 ) is equal to 64 microseconds in the case of 625 lines and 49 microseconds in the case of 819 lines, while the durations of the respective horizontal blanking intervals are approximately 12 and 9.5 microseconds.

Waveform A shows the form of the current i L1 passing through deflection winding 1, this current having a sawtooth waveform substantially linear from t 0 to t 3 and from t 5 to t 7 , and crossing zero at time instants t 0 and t 7 , and reaching values of + I 1m and - I 1m , at time instants t 3 and t 5 respectively, these being its maximum positive and negative amplitudes.

During the second half of the trace portion of the horizontal deflection cycle, that is to say from t 0 to t 3 , the thyristor 4 of the first switching means 3 is conductive and makes the high value capacitor 2 discharge through the deflector winding 1, which has a high inductance, so that current i L1 increases linearly.

A few microseconds (5 to 8 μ s) before the end of the trace portion, i.e. at time instant t 1 , the trigger of the second thyristor 11 receives a short voltage pulse V G11 which causes it to turn on as its anode is at this instant at a positive potential with respect to ground, which is due to the charging of the second capacitor 9 through inductances 7 and 8 by the voltage E from the power supply 6.

When thyristor 11 is made conductive at time t 1 , on the one hand, inductance 7 is connected between ground and the voltage source 6 and a linearly increasing current flows through it and, on the other hand, the reactive circuit 8, 9 forms a loop through the second and first switching means 10 and 3, thus forming a resonant circuit which draws an oscillatory current i 8 ,9 of frequency ##EQU1##

This oscillatory current i 8 ,9 will pass through the first switching means 3, i.e. thyristor 4 and diode 5, in the opposite direction to that of current i L1 . Since the frequency f 1 is high, current i 8 ,9 will increase more rapidly than i L1 and will reach the same level at time t 2 , that is to say i 8 ,9 (t 2 ) = -i L1 (t 2 ) and these currents will cancel out in the thyristor 4 in accordance with the well known principle of forced commutation. After time instant t 2 , current i 8 ,9 continues to increase more rapidly than i L1 , but the difference between them (i 8 ,9 - i L1 ) passes the diode 5 (see wave form B) until it becomes zero at time instant t 3 which is the turn off time instant of the first switching means 3, at which the retrace begins.

The interval between the time instant t 2 and t 3 , i.e. (t 3 -t 2 ), during which diode 5 is conductive and the thyristor is reverse biased will be termed in what follows the circuit turn-off time and it should be greater than the turn-off time of the thyristor 4 itself since the latter will subsequently become foward biased (i.e. from t 3 to t 5 ) by the retrace or flyback pulse (see waveform E) which should not trigger it.

At time instant t 3 , the switching means 3 is opened (i 4 and i 5 are both zero -- see waveforms B and C) and the reactive circuit 8, 9 forms a loop through capacitor 2 and the deflection coil 1 and thus a series resonant circuit including (L 1 + L 8 ) and C 9 , C 2 being of high value and representing a short circuit for the flyback frequency ##EQU2## thus obtained.

The retrace which stated at time t 3 takes place during one half-cycle of the resonant circuit formed by reactances L 1 , L 8 and C 9 , i.e. during the interval between t 3 and t 5 . In the middle of this interval i.e. at time instant t 4 , both i L1 (waveform A) and i 8 ,9 (waveform D) pass through zero and change their sign, whereas the voltage at the terminals of the first switching means 3 (V 3 , waveform E) passes through a maximum. Thus, from t 4 onwards, thyristor 11 will be reverse biased and diode 12 will conduct the current from the resonant circuit 1, 8 and 9 in order to turn the second thyristor 11 off.

At time instant t 5 , when current i L1 has reached - I 1m and when voltage v 3 falls to zero, diode 5 of the first switching means 3 becomes conductive and the trace portion of scan begins.

Current i 8 ,9 nevertheless continues to flow in the resonant circuit 8, 9 through diodes 5 and 12, which causes a break to appear in waveform D at t 5 , and a negative peak to appear in waveform D and a positive one in waveform B in the interval between t 5 and t 6 , these being principally due to the distributed capacities of coil 1 or to an eventual capacitor (not shown) connected in parallel to the first switching means 3.

At time instant t 6 , diode 12 of the second switching means 10 ceases to conduct after having allowed thyristor 11 time to become turned off completely.

The level of current i 8 ,9 at time instant t 5 (i.e. I c ) as well as the negative peak I D12 in i 8 ,9 and the positive peak I D5 in i 5 depend on the values of L 8 and C 9 in the same way as does the turn-off time of the circuit (t 3 - t 2 ). If, for example, L 8 and C 9 , are increased I D5 increases towards zero and this could cause diode 5 to be cut off in an undesirable fashion. I c also increases towards zero, which is liable to cause diode 12 to be blocked and thyristor 11 to trigger prematurely.

From the foregoing it can be clearly seen that the choice of values for L 8 and C 9 is subject to four limitations which prevent the values from being increased to lengthen the turn-off time of the driver circuit of first switching thyristor 4 so as to forestall its spurious triggering.

Waveform F shows the voltage v G4 obtained at the gate of thyristor 4 from the secondary winding 16 coupled to the inductor 7. This voltage is positive from t 0 to t 1 and from t 6 to t 7 and is negative between t 2 and t 6 i.e. while the second switching means 10 is conducting.

The present invention makes the lengthening of the turn-off time of thyristor 4 possible without altering the parameters of the circuit such as inductance 8 and capacitor 9.

In the circuit shown in FIG. 3, which illustrates the principle of the present invention, means are added to the circuit in FIG. 1 which enable the turn-off time to be lengthened by connecting a load to diode 5 so as to increase the current which flows through it during the time that it is conductive. These means are here formed by a resistor 18 connected in parallel with a capacitor 20 (which replaces capacitor 2) which is of a higher capacitance so that, in practice, it holds its charge during at least one half of the line period. FIG. 4, which shows the waveform of the current in the first switching means 3 for a circuit as shown in FIG. 3, makes it possible to explain how this lenthening of the turn-off time is achieved.

In FIG. 4, the broken lines show the waveform of the current in the first switch device 3 in the circuit of FIG. 1, this waveform being produced by adding waveforms B and C of FIG. 2. The current i 4 above the axis flows through thyristor 4 and current i 5 below the axis flows through diode 5. When the capacitance C 20 of the capacitor in series with the deflector coil is increased to some tens of microfarads (C 2 having been of the order of 1 μ F) and when there is connected in parallel with capacitor 20 a resistor 18 the value of which is calculated to draw a strong current I R18 from capacitor 20, that is to say a current at least equal to 0,1 I m (I m being of the order of some tens of amperes), current I R18 is added to that i 5 which flows through diode 5 without in any way altering the linearity of the trace portion nor the oscillatory commutation of thyristor 4 which is brought about by the resonant circuit L 8 , C 9 .

The fact of loading capacitor C 20 by means of a resistor 18 thus has the effect of permanently displacing the waveform of the current in the negative direction by I R18 . Thus, during the trace portion of the scan, the transfer of the current from the diode 5 to the thyristor 4 begins at time t 10 instead of t 0 , that is to say with a delay proportional to I R18 . The effect of the triggering pulse delivered by the horizontal oscillator (13 FIG. 1) to the second thyristor 11 at time instant t 1 , will be to start the commutation process of the first thyristor 4 when the current it draws is less by I R18 than that i 4 (t 1 ) which it would have been drawing had there been no resistor 18. Because of this, the turn-off time of the thyristor 4 proper, which as has been mentioned increases with the maximum current level passing throught it, is slightly reduced. Moreover, because the oscillatory current i 8 ,9 (FIG. 2) from circuit L 8 , C 9 which flows through thyristor 4 in the opposite direction is unchanged, it reaches a value equal to that of the current i L1 (FIG. 1) flowing in the coil 1 in a shorter time, that is to say at time t 12 . Diode 5 will thus take the oscillatory current i 8 ,9 (FIG. 2) over in advance with respect ro time instant t 2 and will conduct it until it reaches zero value at a time instant t 13 later than t 3 , the amounts of advance (t 2 - t 12 ) and delay (t 13 - t 3 ) being practically equal.

It can thus be seen in FIG. 4 that the circuit turn-off time T R of a circuit according to the invention and illustrated by FIG. 3 is distinctly longer than that T r of the circuit in FIG. 1. This increase in the turn-off time (T R - T r ) depends on the current I R18 and increases therewith.

It should be noted at this point that the current I R18 produces a voltage drop at the terminals of the resistor the only effect of which is to heat up the resistor since the level of this voltage (40 to 60 volts) does not necessarily have a suitable value to be used as a voltage supply for other circuits in an existing transistorised television receiver.

In accordance with one embodiment of the invention, illustrated in FIG. 5, an application is proposed for the additional current which is to be drawn through diode 5. In FIG. 5, the positive terminal of capacitor 20 is connected by a conductor 19 to the negative pole of the power supply 6 and the voltage at the terminals of capacitor 20 is thus added to that E from the source 6.

In the preferred embodiment of the present invention, which is shown in FIG. 6, it is possible to cause a supplementary current of a desired value to flow through the first diode 5 while obtaining a voltage which has a suitable value for use in another circuit in the television receiver.

If the voltage at the terminals of capacitor 20 in FIG. 3 is not a usable value, it is possible to connect in parallel with the series circuit comprising the deflector coil 1 and the capacitor 2 in FIG. 1, i.e. in parallel with the terminals of the first switching means 3, a series combination of an autotransformer 21 and a high value capacitor 22 (comparable with capacitor 20 in FIGS. 3 and 5). The autotransformer 21 has a tap 23 is suitably positioned between the terminal connected to capacitor 22 at the tap 24 connected to the first switching means 3. This autotransformer 21 may be formed by the one conventionally used for supplying a very high voltage to the cathode ray tube, as described for example in U.S. Pat. No. 3,452,244; such a transformer comprises a voltage step-up winding between taps 24 and 25, which latter is connected to a high voltage rectifier (not shown).

The waveform of the voltage at the various points in the autotransformer is shown in FIG. 7, in which waveform A shows the voltage at the terminals of capacitor 22, waveform B the voltage at tap 24 and waveform C the voltage at tap 23 of the autotransformer 21.

The voltage V c22 at the terminals of capacitor 22 varies slightly about a mean value V cm . It is increasing while diode 5 is conducting and decreasing during the conduction of the thyristor 4.

The voltage v 24 at tap 24 follows substantially the same curve as waveform E in FIG. 2, that is to say that during the retrace time interval from t 13 to t 5 to a positive pulse called the flyback pulse is produced and, during the time interval while the first switching means 3 is conducting, the voltage is zero. The mean valve of the voltage v 24 at tap 24 of the auto-transformer 21 is equal to the mean value V cm of the voltage at the terminals of capacitors 2 and 22.

Thus, there is obtained at tap 23 a waveform which is made up, during the retrace portion, of a positive pulse whose maximum amplitude is less than that of v 24 at tap 24 and, during the trace portion, of a substantially constant positive voltage, the level V of which is less than the mean value V cm of the voltage v c22 at the terminals of capacitor 22. By moving tap 23 towards terminals 24 the amplitude of the pulse during fly-back increases while voltage V falls and conversely by moving tap 23 towards capacitor 22 voltage V increases and the amplitude of the pulse drops.

In more exact terms, the voltage V at tap 23 is such that the means value of v 23 is equal to V cm . It has thus been shown that by choosing carefully the position of tape 23, a voltage V may be obtained during the trace portion of the scan, which may be of any value between V cm and zero.

This voltage V is thus obtained by periodically controlled rectification during the trace portion of the scan. For this purpose an electronic switch is used to periodically connect the tap 23 of trnasformer winding 21 to a load. This switch is made up of a power transistor 26 whose collector is connected to tap 23 and the emitter to a parallel combination formed by a high value filtering capacitor 27 and the load which it is desired to supply, which is represented by a resistor 28. The base of the transistor 26 receives a control voltage to block it during retrace and to unblock it during the whole or part of the trace period. A control voltage of this type may be obtained from a second winding 29 magnetically coupled to the inductance 7 of the deflection circuit and it may be transmitted to the base of transistor 26 by means of a coupling capacitor 30 and a resistor 31 connected between the base and the emitter of transistor 26.

It may easily be seen that the DC collector/emitter current in transistor 26 flows through the first diode 5 of the first switching means 3 via a resistor 28 and the part of the winding of auto-transformer 21 located between taps 23 and 24.

Experience has shown that a circuit as shown in FIG. 6 can supply 24 volts with a current of 2 amperes to the vertical deflection circuit of the same television set, the voltage at the terminals of capacitor 22 being from 50 to 60 volts.

It should be mentioned that, when the circuit which forms the load of the controlled rectifier 26, 27 does not draw enough current to sufficiently lengthen the circuit turn-off time T R , an additional resistor (not shown) may be connected between the emitter of transistor 26 and ground or in parallel to capacitor 22, which resistor will draw the additional current required.

METZ  7096 CLASSIC COLOR  (CH679G)  CHASSIS 679G  Gating circuit for television SCR deflection system AND REGULATION / stabilization of horizontal deflection NETWORK CIRCUIT with Transductor reactor / Reverse thyristor energy recovery circuit.


In a television deflection system
employing a first SCR for coupling a deflection winding across a source of energy during a trace interval of each deflection cycle and a second SCR for replenishing energy to the source of energy during a commutation interval of each deflection cycle, a gating circuit for triggering the first SCR. The gating circuit employs a voltage divider coupled in parallel with the second SCR which develops gating signals proportional to the voltage across the second SCR.


1. In a television deflection system in which a first switching means couples a deflection winding across a source of energy during a trace interval of each deflection cycle and a second switching means replenishes energy to said source of energy during a commutation interval of each deflection cycle, a gating circuit for said first switching means, comprising:
capacitive voltage divider means coupled in parallel with said second switching means for developing gating signals proportional to the voltage across said second switching means; and
means for coupling said voltage divider means to said first switching means to provide for conduction of said first switching means in response to said gating signals.
2. A gating circuit according to claim 1 wherein said voltage divider includes first and second capacitors coupled in series and providing said gating signals at the common terminal of said capacitors. 3. A gating circuit according to claim 2 wherein said first and second capacitors are proportional in value to provide for the desired magnitude of gating signals. 4. A gating circuit according to claim 3 wherein said means for coupling said voltage divider means to said first switching means includes an inductor. 5. A gating circuit according to claim 4 wherein said inductor and said first and second capacitors comprise a resonant circuit having a resonant frequency chosen to shape said gating signal to improve switching of said first switching means.
Description:
BACKGROUND OF THE INVENTION
This invention relates to a gating circuit for controlling a switching device employed in a deflection circuit of a television receiver.






























Various deflection system designs have been utilized in television receivers. One design employing two bidirectional conducting switches and utilizing SCR's (thyristors) as part of the switches is disclosed in U.S. Pat. No. 3,452,244. In this type deflection system, a first SCR is









employed for coupling a deflection winding across a source of energy during a trace interval of each deflection cycle, and a second SCR is employed for replenishing energy during a commutation interval of each deflection cycle. The first SCR is commonly provided with gating voltage by means of a separate winding or tap of an input reactor coupling a source of B+ to the second SCR.



Various regulator system designs have been utilized in conjunction with the afore described deflection system to provide for uniform high voltage production as well as uniform picture width with varying line voltage and kinescope beam current conditions.
One type regulator system design alters the amount of energy stored in a commutating capacitor coupled between the first and second SCR's during the commutating interval. A regulator design of this type may employ a regulating SCR and diode for coupling the input reactor to the source of B+. With this type regulator a notch, the width of which depends upon the regulation requirements, is created in the current supplied through the reactor and which notch shows up in the voltage waveform developed on the separate winding or tap of the input reactor which provides the gating voltage for the first SCR. The presence of the notch, even though de-emphasized by a waveshaping circuit coupling the gating voltage to the first SCR, causes erratic control of the first SCR.
SUMMARY OF THE INVENTION
In accordance with one embodiment of the invention, a gating circuit of a television deflection system employing a first switching means for coupling a deflection winding across a source of energy during a trace interval of each deflection cycle and a second switching means for replenishing energy to said source of energy during a commutation interval of each deflection cycle includes a voltage divider means coupled in parallel with the second switching means for developing gating signals proportional to the voltage across the second switching means. The voltage divider means are coupled to the first switching means to provide for conduction of the first switching means in response to the gating signals.
A more detailed description of a preferred embodiment of the invention is given in the following description and accompanying drawing of which:
FIG. 1 is a schematic diagram, partially in block form, of a prior art SCR deflection system;
FIG. 2 is a schematic diagram, partially in block form, of an SCR deflection system of the type shown in FIG. 1 including a gating circuit embodying the invention;
FIG. 3 is a schematic diagram, partially in block form, of one type of a regulator system which employs an SCR as a control device and which is suitable for use with the SCR deflection system of FIG.2;
FIG. 4 is a schematic diagram, partially in block form, of another type of a regulator system suitable for use with the deflection circuit of FIG. 2; and
FIG. 5 is a schematic diagram, partially in block form, of still another type of a regulator system suitable for use with the SCR deflection system of FIG. 2.
DESCRIPTION OF THE PREFERRED EMBODIMENT
FIG. 1 is a schematic diagram, partially in block form, of a prior art deflection system of the retrace driven type similar to that disclosed in U.S. Pat. No. 3,452,244. This system includes a commutating switch 12, comprising a silicon controlled rectifier (SCR) 14 and an oppositely poled damper diode 16. The commutating switch 12 is coupled between a winding 18a of an input choke 18 and ground. The other terminal of winding 18a is coupled to a source of direct current voltage (B+) by means of a regulator network 20 which controls the energy stored in the deflection circuit 10 when the commutating switch is off, during an interval T3 to T0' as shown in curve 21 which is a plot of the voltage level at the anode of SCR 14 during the deflection cycle. A damping network comprising a series combination of a resistor 22 and a capacitor 23 is coupled in parallel with commutating switch 12 and serves to reduce any ringing effects produced by the switching of commutating switch 12. Commutating switch 12 is coupled through a commutating coil 24, a commutating capacitor 25 and a trace switch 26 to ground. Trace switch 26 comprises an SCR 28 and an oppositely poled damper diode 30. An auxiliary capacitor 32 is coupled between the junction of coil 24 and capacitor 25 and ground. A series combination of a horizontal deflection winding 34 and an S-shaping capacitor 36 are coupled in parallel with trace switch 26. Also, a series combination of a primary winding 38a of a horizontal output transformer 38 and a DC blocking capacitor 40 are coupled in parallel with trace switch 26.
A secondary of high voltage winding 38b of transformer 38 produces relatively large amplitude flyback pulses during the retrace interval of each deflection cycle. This interval exists between T1 and T2 of curve 41 which is a plot of the current through windings 34 and 38a during the deflection cycle. These flyback pulses are applied to a high voltage multiplier (not shown) or other suitable means for producing direct current high voltage for use as the ultor voltage of a kinescope (not shown).
An auxiliary winding 38c of transformer 38 is coupled to a high voltage sensing and control circuit 42 which transforms the level of flyback pulses into a pulse width modulated signal. The control circuit 42 is coupled to the regulator network 20.
A horizontal oscillator 44 is coupled to the gate electrode of commutating SCR 14 and produces a pulse during each deflection cycle slightly before the end of the trace interval at T0 of curve 21 to turn on SCR 14 to initiate the commutating interval. The commutating interval occurs between T0 and T3 of curve 21. A resonant waveshaping network 46 comprising a series combination of a capacitor 48 and an inductor 50 coupled between a winding 18b of input choke 18 and the gate electrode of trace SCR 28 and a damping resistor 52 coupled between the junction of capacitor 48 and inductor 50 and ground shapes the signal developed at winding 18b (i.e. voltage waveform 53) to form a gating signal voltage waveform 55 to enable SCR 28 for conduction during the second half of the trace interval occurring between T2 and T1' of curve 41.
The regulator network 20, when of a type to be described in conjunction with FIG. 3, operates in such a manner that current through winding 18a of input choke 18 during an interval between T4 and T5 (region A) of curves 21, 53 and 55 is interrupted for a period of time the duration of which is determined by the signal produced by the high voltage sensing and control circuit 42. During the interruption of current through winding 18a a zero voltage level is developed by winding 18b as shown in interval T4 to T5 of curve 53. The resonant waveshaping circuit 46 produces the shaped waveform 55 which undesirably retains a slump in region A corresponding to the notch A of waveform 53. The slump in waveform 55 applied to SCR 28 occurs in a region where the anode of SCR 28 becomes positive and where SCR 28 must be switched on to maintain a uniform production of the current waveshape in the horizontal deflection winding 34 as shown in curve 41. The less positive amplitude current occurring at region A of waveform 55 may result in insufficient gating current for SCR 28 and may cause erratic performance resulting in an unsatisfactory raster.
FIG. 2 is a schematic diagram, partially in block form, of a deflection system 60 embodying the invention. Those elements which perform the same function in FIG. 2 as in FIG. 1 are labeled with the same reference numerals. FIG. 2 differs from FIG. 1 essentially in that the signal to enable SCR 28 derived from sampling a portion of the voltage across commutating switch 12 rather than a voltage developed by winding 18b which is a function of the voltage across winding 18a of input choke 18 as in FIG. 1. This change eliminates the slump in the enabling signal during the interval T4 to T5 as shown in curve 64 since the voltage across the commutating switch 12 is not adversely effected by the regulator network 20 operation.
A series combination of resistor 22, capacitor 23 and a capacitor 62 is coupled in parallel with commutating switch 12, one terminal of capacitor 62 being coupled to ground. The junction of capacitors 23 and 62 is coupled to the gate electrode of SCR 28 by means of the inductor 50. The resistor 52 is coupled in parallel with capacitor 62.
Capacitors 23 and 62 form a capacitance voltage divider which provides a suitable portion of the voltage across commutating switch 12 for gating SCR 28 via inductor 50. The magnitude of the voltage at the junction of capacitors 23 and 62 is typically 25 to 35 volts. It can, therefore, be seen that the ratio of values of capacitors 23 and 62 will vary depending on the B+ voltage utilized to energize the deflection system. Capacitors 23 and 62 and inductor 50 form a resonant circuit tuned in a manner which provides for peaking of the curve 64 between T4 and T5. This peaking effect further enhances gating of SCR 28 between T4 and T5.
Since the waveshape of the voltage across commutating switch 12 (curve 21) is relatively independent of the type of regulator system employed in conjunction with the deflection system, the curve 64 also is independent of the type of regulator system.
When commutating switch 12 switches off during the interval T3 to T0' curve 21, the voltage across capacitor 62 increases and the voltage at the gate electrode of SCR 28 increases as shown in curve 64. As will be noted, no slump of curve 64 occurs between T3 and T5 because there is no interruption of the voltage across commutating switch 12.



















FIG. 3 is a schematic diagram, partially in block form, of one type of a regulator system which may be used in conjunction with the invention. B+ is supplied through a regulator network 20 which comprises an SCR 66 and an oppositely poled diode 68. The diode is poled to provide for conduction of current from B+ to the horizontal deflection circuit 60 via winding 18a of input choke 18. Current flows through the diode during the period T3 to T4 of curve 21 FIG. 1 after which current tries to flow through the SCR 66 from the horizontal deflection circuit to B+ since the commutating capacitor 25 is charged to a voltage higher than B+.
The horizontal deflection circuit 60 produces a flyback pulse in winding 38a of the flyback transformer 38 which is coupled to winding 38c. The magnitude of the pulse on winding 38c determines how long the signal required to switch SCR 66 on is delayed after T4 curve 21 FIG. 1. If the flyback pulse is greater than desirable, the SCR 66 turns on sooner than if the flyback pulse is less than desirable and provides a discharge path for current in commutating capacitor 25 back to the B+ supply. In this manner a relatively constant amplitude flyback pulse is maintained.
FIG. 4 is a schematic diagram, partially in block form, of another well-known type of a regulator system which may be used in conjunction with the invention shown in FIG. 2. B+ is coupled through winding 18a of input choke 18 and through a series combination of windings 70a and 70b of a saturable reactor 70 and a parallel combination of a diode 72 and a resistor 74 to the horizontal deflection circuit 60. Diode 72 is poled to conduct current from the horizontal deflection circuit 60 to B+.
Flyback pulse variations are obtained from winding 38c of the horizontal output transformer 38 and applied to a voltage divider comprising resistors 76, 78 and 80 of the high voltage sensing and control circuit 42. A portion of the pulse produced by winding 38c is selected by the position of the wiper terminal on potentiometer 78 and coupled to the base electrode of a transistor 82 by means of a zener diode 84. The emitter electrode of transistor 82 is grounded and a DC stabilization resistor 85 is coupled in parallel with the base-emitter junction of transistor 82. When the pulse magnitude on winding 38c exceeds a level which results in forward biasing the base-emitter junction of transistor 82, current flows from B+ through a resistor 86, a winding 70c of saturable reactor 70 and transistor 82 to ground. Due to the exponential increase of current in winding 70c during the period of conduction of transistor 82, the duration of conduction of transistor 82 determines the magnitude of current flowing in winding 70c and thus the total inductance of windings 70a and 70b. The current in winding 70c is sustained during the remaining deflection period by means of a diode 88 coupled in parallel with winding 70c and poled not to conduct current from B+ to the collector electrode of transistor 82. A capacitor 90 coupled to the cathode of diode 88 provides a bypass for B+. Windings 70a and 70b are in parallel with input reactor 18a and thereby affect the total input inductance of the deflection circuit and thereby controls the transfer of energy to the deflection circuit. The dotted waveforms shown in conjunction with a curve 21' indicate variations from a nominal waveform provided at the input of horizontal deflection circuit 60 by the windings 70a and 70b.













FIG. 5 is a schematic diagram of yet another type of a regulator system which may be used in conjunction with the invention. B+ is coupled through a winding 92a and a winding 92b of a saturable reactor to the horizontal deflection circuit 60. Windings 92a and 92b are used to replace the input choke 18 shown in FIGS. 1 and 2 while also providing for a regulating function corresponding to that provided by regulating network 20.
Flyback pulse variations are obtained from winding 38c and applied to the high voltage sensing and control circuit 42 as in FIG. 4. Current flows from B+ through resistor 86, a winding 92c and transistor 82 to ground. As in FIG. 4 the duration of the conduction of transistor 82 determines the energy stored in winding 92c and thus the total inductance of windings 92a and 92b which control the amount of energy transferred to the deflection circuit during each horizontal deflection cycle. The variations in waveforms of curve 21', shown in conjunction with FIG. 4, are also provided at the input of horizontal deflection circuit 60 by windings 92a and 92b.
For various reasons including cost or performance, a manufacturer may wish to utilize a particular one of the regulators illustrated in FIGS. 3, 4 and 5. Regardless of the choice, the gating circuit according to the invention may be utilized therewith advantageously by providing improved performance and the possibility of cost savings by eliminating taps or extra windings on the wound components which heretofore normally provided a source of SCR gating waveforms.
