Friday, January 14, 2011

PHILIPS 18C636 /30Z RAFFAEL COLOR 636 CHASSIS KT2 INTERNAL VIEW.
















The PHILIPS CHASSIS KT2 is an awesome and amazing chassis you can see.

It's little based on bigger K9 and K11 CHASSIS Types.

and is the first in-line crt for small formats of screen for portable models.

Thruly amazing engineering with two sided chassis for small signals and Power signals panels.

On the bottom of the cabinet there is placed the FRAME DEFLECTION AND E/W CORRECTION PANEL.

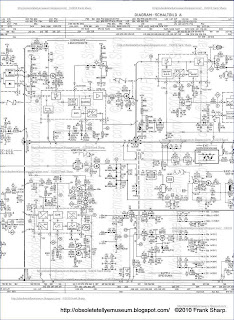

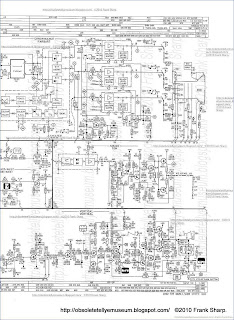

PHILIPS  18C636 /30Z RAFFAEL COLOR 636 CHASSIS KT2 CIRCUIT ARRANGEMENT IN A PICTURE DISPLAY DEVICE UTILIZING A STABILIZED SUPPLY VOLTAGE CIRCUIT:
Line synchronized switch mode power supply:

A stabilized supply voltage circuit for a picture display device comprising a chopper wherein the switching signal has the line frequency and is duration-modulated. The coil of the chopper constitutes the primary winding of a transformer a secondary winding of which drives the line output transistor so that the switching transistor of the chopper also functions as a driver for the line output stage. The oscillator generating the switching signal may be the line oscillator. In a special embodiment the driver and line output transistor conduct simultaneously and in order to limit the base current of the line output transistor a coil shunted by a diode is incorporated in the drive line of the line output transistor. Other secondary windings of the transformer drive diodes which conduct simultaneously with the efficiency diode of the chopper so as to generate further stabilized supply voltages.



1. An electrical circuit arrangement for a picture display device operating at a given line scanning frequency, comprising a source of unidirectional voltage, an inductor, first switching transistor means for periodically energizing said inductor at said scanning frequency with current from said source, an electrical load circuit coupled to said inductor and having applied thereto a voltage as determined by the ratio of the ON and OFF periods of said transistor, means for maintaining the voltage across said load circuit at a given value comprising means for comparing the voltage of said load circuit with a reference voltage, means responsive to departures of the value of the load circuit voltage from the value of said reference voltage for varying the conduction ratio of the ON and OFF periods of said transistor thereby to stabilize said load circuit voltage at the given value, a line deflection coil system for said picture display device, means for energizing said line deflection coil system from said load voltage circuit means, means for periodically interrupting the energization of said line deflection coil comprising second switching means and means coupled to said inductor for deriving therefrom a switching current in synchronism with the energization periods of said transistor and applying said switching current to said switching means thereby to actuate the same, and means coupled to said switching means and to said load voltage circuit for producing a voltage for energizing said 2. A circuit as claimed in claim 1 wherein the duty cycle of said switching 3. A circuit as claimed in claim 1 further comprising an efficiency first 4. A circuit as claimed in claim 3 further comprising at least a second diode coupled to said deriving means and to ground, and being poled to 5. A circuit as claimed in claim 1 wherein said second switching means comprises a second transistor coupled to said deriving means to conduct simultaneously with said first transistor, and further comprising a coil coupled between said driving means and said second transistor and a third diode shunt coupled to said coil and being poled to conduct when said 6. A circuit as claimed in claim 1 further comprising a horizontal oscillator coupled to said first transistor, said oscillator being the 7. A circuit as claimed in claim 1 further comprising means coupled to said inductor for deriving filament voltage for said display device.

Description:
The invention relates to a circuit arrangement in a picture display device wherein the input direct voltage between two input terminals, which is obtained be rectifying the mains alternating voltage, is converted into a stabilized output direct voltage by means of a switching transistor and a coil and wherein the transistor is connected to a first input terminal and an efficiency diode is connected to the junction of the transistor and the coil. The switching transistor is driven by a pulsatory voltage of line frequency which pulses are duration-modulated in order to saturate the switching transistor during part of the period dependent on the direct voltage to be stabilized and to cut off this transistor during the remaining part of the period. The pulse duration modulation is effected by means of a comparison circuit which compares the direct voltage to be stabilized with a substantially constant voltage, the coil constituting the primary winding of a transformer.

Such a circuit arrangement is known from German "Auslegeschrift" 1.293.304. wherein a circuit arrangement is described which has for its object to convert an input direct voltage which is generated between two terminals into a different direct voltage. The circuit employs a switch connected to the first terminal of the input voltage and periodically opens and closes so that the input voltage is converted into a pulsatory voltage. This pulsatory voltage is then applied to a coil. A diode is arranged between the junction of the switch and the coil and the second terminal of the input voltage whilst a load and a charge capacitor in parallel thereto are arranged between the other end of the coil and the second terminal of the input voltage. The assembly operates in accordance with the known efficiency principle i.e., the current supplied to the load flows alternately through the switch and through the diode. The function of the switch is performed by a switching transistor which is driven by a periodical pulsatory voltage which saturates this transistor for a given part of the period. Such a configuration is known under different names in the literature; it will be referred to herein as a "chopper." A known advantage thereof, is that the switching transistor must be able to stand a high voltage or provide a great current but it need not dissipate a great power. The output voltage of the chopper is compared with a constant reference voltage. If the output voltage attempts to vary because the input voltage and/or the load varies, a voltage causing a duration modulation of the pulses is produced at the output of the comparison arrangement. As a result the quantity of the energy stored in the coil varies and the output voltage is maintained constant. In the German "Auslegeschrift" referred to it is therefore an object to provide a stabilized supply voltage device.

In the circuit arrangement according to the mentioned German "Auslegeschrift" the frequency of the load variations or a harmonic thereof is chosen as the frequency for the switching voltage. Particularly when the load fed by the chopper is the line deflection circuit of a picture display device, wherein thus the impedance of the load varies in the rhythm of the line frequency, the frequency of the switching voltage is equal to or is a multiple of the line frequency.

It is to be noted that the chopper need not necessarily be formed as that in the mentioned German "Auslegeschrift." In fact, it is known from literature that the efficiency diode and the coil may be exchanged. It is alternatively possible for the coil to be provided at the first terminal of the input voltage whilst the switching transistor is arranged between the other end and the second terminal of the input voltage. The efficiency diode is then provided between the junction of said end and the switching transistor and the load. It may be recognized that for all these modifications a voltage is present across the connections of the coil which voltage has the same frequency and the same shape as the pulsatory switching voltage. The control voltage of a line deflection circuit is a pulsatory voltage which causes the line output transistor to be saturates and cut off alternately. The invention is based on the recognition that the voltage present across the connections of the coil is suitable to function as such a control voltage and that the coil constitutes the primary of a transformer. To this end the circuit arrangement according to the invention is characterized in that a secondary winding of the transformer drives the switching element which applies a line deflection current to line deflection coils and by which the voltage for the final anode of a picture display tube which forms part of the picture display device is generated, and that the ratio between the period during which the switching transistor is saturated and the entire period, i.e., the switching transistor duty cycle is between 0.3 and 0.7 during normal operation.

The invention is also based on the recognition that the duration modulation which is necessary to stabilize the supply voltage with the switching transistor does not exert influence on the driving of the line output transistor. This resides in the fact that in case of a longer or shorter cut-off period of the line output transistor the current flowing through the line deflection coils thereof is not influenced because of the efficiency diode current and transistor current are taken over or, in case of a special kind of transistor, the collector-emitter current is taken over by the base collector current and conversely. However, in that case the above-mentioned ratios of 0.3 : 0.7 should be taken into account since otherwise this take-over principle is jeopardized.

As will be further explained the use of the switching transistor as a driver for the line output transistor in an embodiment to be especially described hereinafter has the further advantage that the line output transistor automatically becomes non-conductive when this switching transistor is short circuited so that the deflection and the EHT for the display tube drop out and thus avoid damage thereof.

Due to the step according to the invention the switching transistor in the stabilized supply functions as a driver for the line deflection circuit. The circuit arrangement according to the invention may in addition be equipped with a very efficient safety circuit so that the reliability is considerably enhanced, which is described in the U.S. Pat. No. 3,629,686. The invention is furthermore based on the recognition of the fact that the pulsatory voltage present across the connections of the coil is furthermore used and to this end the circuit arrangement according to the invention is characterized in that secondary windings of the transformer drive diodes which conduct simultaneously with the efficiency diode so as to generate further stabilized direct voltages, one end of said diodes being connected to ground.

In order that the invention may be readily carried into effect, a few embodiments thereof will now be described in detail by way of example with reference to the accompanying diagrammatic drawings in which:

FIG. 1 shows a principle circuit diagram wherein the chopper and the line deflection circuit are further shown but other circuits are not further shown.

FIGS. 2a, 2b and 2c show the variation as a function of time of two currents and of a voltage occurring in the circuit arrangement according to FIG. 1.

FIGS. 3a 3b, 3c and 3d show other embodiments of the chopper.

FIGS. 4a and 4b show modifications of part of the circuit arrangement of FIG. 1.

In FIG. 1 the reference numeral 1 denotes a rectifier circuit which converts the mains voltage supplied thereto into a non-stabilized direct voltage. The collector of a switching transistor 2 is connected to one of the two terminals between which this direct voltage is obtained, said transistor being of the npn-type in this embodiment and the base of which receives a pulsatory voltage which originates through a control stage 4 from a modulator 5 and causes transistor 2 to be saturated and cut off alternately. The voltage waveform 3 is produced at the emitter of transistor 2. In order to maintain the output voltage of the circuit arrangement constant, the duration of the pulses provided is varied in modulator 5. A pulse oscillator 6 supplies the pulsatory voltage to modulator 5 and is synchronized by a signal of line frequency which originates from the line oscillator 6' present in the picture display device. This line oscillator 6' is in turn directly synchronized in known manner by pulses 7' of line frequency which are present in the device and originate for example from a received television signal if the picture display device is a television receiver. Pulse oscillator 6 thus generates a pulsatory voltage the repetition frequency of which is the line frequency.

The emitter of switching transistor 2 is connected at one end to the cathode of an efficiency diode 7 whose other end is connected to the second input voltage terminal and at the other end to primary winding 8 of a transformer 9. Pulsatory voltage 3 which is produced at the cathode of efficiency diode 7 is clamped against the potential of said second terminal during the intervals when this diode conducts. During the other intervals the pulsatory voltage 3 assumes the value V i . A charge capacitor 10 and a load 11 are arranged between the other end of winding 8 and the second input voltage terminal. The elements 2,7,8,10 and 11 constitute a so-called chopper producing a direct voltage across charge capacitor 10, provided that capacitor 10 has a sufficiently great value for the line frequency and the current applied to load 11 flowing alternately through switching transistor 2 or through efficiency diode 7. The output voltage V o which is the direct voltage produced across charge capacitor 10 is applied to a comparison circuit 12 which compares the voltage V o with a reference voltage. Comparison circuit 12 generates a direct voltage which is applied to modulator 5 so that the duration of the effective period δ T of switching transistor 2 relative to the period T of pulses 3 varies as a function of the variations of output voltage V 0 . In fact, it is readily evident that output voltage V o is proportional to the ratio δ :

V o = V i . δ

Load 11 of the chopper consists in the consumption of parts of the picture display device which are fed by output voltage V 0 . In a practical embodiment of the circuit arrangement according to FIG. 1 wherein the mains alternating voltage has a nominal effective value of 220 V and the rectified voltage V i is approximately 270 V, output voltage V o for δ = 0.5 is approximately 135 V. This makes it also possible, for example, to feed a line deflection circuit as is shown in FIG. 1 wherein load 11 then represents different parts which are fed by the chopper. Since voltage V o is maintained constant due to pulse duration modulation, the supply voltage of this line deflection circuit remains constant with the favorable result that the line amplitude(= the width of the picture displayed on the screen of the picture display tube) likewise remains constant as well as the EHT required for the final anode of the picture display tube in the same circuit arrangement independent of the variations in the mains voltage and the load on the EHT generator (= variations in brightness).

However, variations in the line amplitude and the EHT may occur as a result of an insufficiently small internal impedance of the EHT generator. Compensation means are known for this purpose. A possibility within the scope of the present invention is to use comparison circuit 12 for this purpose. In fact, if the beam current passes through an element having a substantially quadratic characteristic, for example, a voltage-dependent resistor, then a variation for voltage V o may be obtained through comparison circuit 12 which variation is proportional to the root of the variation in the EHT which is a known condition for the line amplitude to remain constant.

In addition this facilitates smoothing of voltage V o since the repetition frequency of pulsatory voltage 3 is many times higher than that of the mains and a comparatively small value may be sufficient for charge capacitor 10. If charge capacitor 10 has a sufficiently high value for the line frequency, voltage V o is indeed a direct voltage so that a voltage having the same form as pulsatory voltage 3 is produced across the terminals of primary winding 8. Thus voltages which have the same shape as pulsatory voltage 3 but have a greater or smaller amplitude are produced across secondary windings 13, 14 of transformer 9 (FIG. 1 shows only 2 secondary windings but there may be more). The invention is based on the recognition that one end of each secondary winding is connected to earth while the other end thereof drives a diode, the winding sense of each winding and the direction of conductance of each diode being chosen to be such that these diodes conduct during the same period as does efficiency diode 7. After smoothing, stabilized supply voltages, for example, at terminal 15 are generated in this manner at the amplitudes and polarities required for the circuit arrangements present in the picture display device. In FIG. 1 the voltage generated at terminal 15 is, for example, positive relative to earth. It is to be noted that the load currents of the supply voltages obtained in this manner cause a reduction of the switching power which is economized by efficiency diode 7. The sum of all diode currents including that of diode 7 is in fact equal to the current which would flow through diode 7 if no secondary winding were wound on transformer 9 and if no simultaneous diode were used. This reduction may be considered an additional advantage of the circuit arrangement according to the invention, for a diode suitable for smaller powers may then be used. However, it will be evident that the overall secondary load must not exceed the primary load since otherwise there is the risk of efficiency diode 7 being blocked so that stabilization of the secondary supply voltages would be out of the question.

It is to be noted that a parabola voltage of line frequency as shown at 28 is produced across the charge capacitor 10 if this capacitor is given a smaller capacitance so that consequently the so-called S-correction is established.

In FIG. 1 charge capacitors are arranged between terminals 15 etc. and earth so as to ensure that the voltages on these points are stabilized direct voltages. If in addition the mean value of the voltage on one of these terminals has been made equal to the effective value of the alternating voltage which is required for heating the filament of the picture display tube present in the picture display device, this voltage is suitable for this heating. This is a further advantage of the invention since the cheap generation of a stabilized filament voltage for the picture display tube has always been a difficult problem in transistorized arrangements.

A further advantage of the picture display device according to the invention is that transformer 9 can function as a separation transformer so that the different secondary windings can be separated from the mains and their lower ends can be connected to ground of the picture display device. The latter step makes it possible to connect a different apparatus such as, for example, a magnetic recording and/or playback apparatus to the picture display device without earth connection problems occurring.

In FIG. 1 the reference numeral 14 denotes a secondary winding of transformer 9 which in accordance with the previously mentioned recognition of the invention can drive line output transistor 16 of the line deflection circuit 17. Line deflection circuit 17 which is shown in a simplified form in FIG. 1 includes inter alia line deflection coils 18 and an EHT transformer 19 a secondary winding 20 of which serves for generating the EHT required for the acceleration anode of the picture display tube. Line deflection circuit 17 is fed by the output voltage V o of the chopper which voltage is stabilized due to the pulse duration modulation with all previously mentioned advantages. Line deflection circuit 17 corresponds, for example, to similar arrangements which have been described in U.S. Pat. No. 3,504,224 issued Mar. 31, 1970 to J.J. Reichgelt et al., U.S. patent application Ser. No. 737,009 filed June 14, 1968 by W. H. Hetterscheid and U.S. application Ser. No. 26,497 filed April 8, 1970 by W. Hetterscheid et al. It will be evident that differently formed lined deflection circuits are alternatively possible.

It will now be shown that secondary winding 14 can indeed drive a line deflection circuit so that switching transistor 2 can function as a driver for the line deflection. FIGS. 2a and b show the variation as a function of time of the current i C which flows in the collector of transistor 16 and of the drive voltage v 14 across the terminals of secondary winding 14. During the flyback period (0, t 1 ) transistor 16 must be fully cut off because a high voltage peak is then produced at its collector; voltage v 14 must then be absolutely negative. During the scan period (t 1 , t 4 ) a sawtooth current i C flows through the collector electrode of transistor 16 which current is first negative and then changes its direction. As the circuit arrangement is not free from loss, the instant t 3 when current i C becomes zero lies, as is known, before the middle of the scan period. At the end t 4 of the scan period transistor 16 must be switched off again. However, since transistor 16 is saturated during the scan period and since this transistor must be suitable for high voltages and great powers so that its collector layer is thick, this transistor has a very great excess of charge carriers in both its base and collector layers. The removal of these charge carriers takes a period t s which is not negligible whereafter the transistor is indeed switched off. Thus the fraction δ T of the line period T at which v 14 is positive must end at the latest at the instant (t 4 - t s ) located after the commencement (t = 0) of the previous flyback.

The time δ T may be initiated at any instant t 2 which is located between the end t 1 of the flyback period and the instant t 3 when collector current i C reverses its direction. It is true that emitter current flows through transistor 16 at the instant t 2 , but collector current i C is not influenced thereby, at least not when the supply voltage (= V o ) for line deflection circuit 17 is high enough. All this has been described in the U.S. Pat. No. 3,504,224. The same applies to line deflection circuits wherein the collector base diode does not function as an efficiency diode as is the case in the described circuit 17, but wherein an efficiency diode is arranged between collector and emitter of the line output transistor. In such a case the negative part of the current i C of FIG. 2a represents the current flowing through the said efficiency diode.

After the instant t 3 voltage v 14 must be positive. In other words, the minimum duration of the period T when voltage v 14 must be positive is (t 4 - t s ) - t 3 whilst the maximum duration thereof is (t 4 - t s ) - t 1 . In a television system employing 625 lines per raster the line period t 4 is approximately 64 μus and the flyback period is approximately 12 μus. Without losses in the circuit arrangement instant t 3 would be located approximately 26 μus after the instant t 1 , and with losses a reasonable value is 22 μus which is 34 μus after the commencement of the period. If for safety's sake it is assumed that t s lasts approximately 10 μus, the extreme values of δ T are approximately 20 and 42 μus and consequently the values for δ are approximately 0.31 and 0.66 at a mean value which is equal to approximately 0.49. It was previously stated that a mean value of δ = 0.5 was suitable. Line deflection circuit 17 can therefore indeed be used in combination with the chopper in the manner described, and the relative variation of δ may be (0.66 - 0.31) : 0.49 = 71.5 percent. This is more than necessary to obviate the variations in the mains voltage or in the various loads and to establish the East-West modulation and ripple compensation to be described hereinafter. In fact, if it is assumed that the mains voltage varies between -15 and +10 percent of the nominal value of 220 V, while the 50 Hz ripple voltage which is superimposed on the input voltage V i has a peak-to-peak value of 40 V and V i is nominally 270 V, then the lowest occurring V i is:

0.85 × 270 V - 20 V = 210 V and the highest occurring V i is

1.1 × 270 V + 20 V = 320 V. For an output voltage V o of 135 V the ratio must thus vary between

δ = 135 : 210 = 0.64 and δ = 135 : 320 = 0.42.

A considerable problem presenting itself is that of the simultaneous or non-simultaneous drive of line output transistor 16 with switching transistor 2, it being understood that in case of simultaneous drive both transistors are simultaneously bottomed, that is during the period δ T. This depends on the winding sense of secondary winding 14 relative to that of primary winding 8. In FIG. 1 it has been assumed that the drive takes place simultaneously so that the voltage present across winding 14 has the shape shown in FIG. 2b. This voltage assumes the value n(V i - V o ) in the period δ T and the value -nVo in the period (1 - δ )T, wherein n is the ratio of the number of turns on windings 14 and 8 and wherein V o is maintained constant at nominal mains voltage V o = δ V inom . However, if as a result of an increase or a decrease of the mains voltage V i increases or decreases proportionally therewith, i.e., V i = V i nom + Δ V, the positive portion of V 14 becomes equal to n(V i nom - V o +Δ V) = n [(1 -δ)V i nom +ΔV] = n(0.5 V inom +ΔV) if δ = 0.5 for V i = V i nom. Relatively, this is a variation which is twice as great. For example, if V i nom = 270 V and V o = 135 V, a variation in the mains voltage of from -15 to +10 percent causes a variation of V i of from -40.5 V to +27 V which ranges from -30 to +20 percent of 135 V which is present across winding 8 during the period δ T. The result is that transistor 16 can always be bottomed over a large range of variation. If the signal of FIG. 2b would be applied through a resistor to the base of transistor 16, the base current thereof would have to undergo the same variation while the transistor would already be saturated in case of too low a voltage. In this case it is assumed that transformer 9 is ideal (without loss) and that coil 21 has a small inductance as is explained in the U.S. patent application Ser. No. 737,009 above mentioned. It is therefore found to be desirable to limit the base current of transistor 16.

This may be effected by providing a coil 22 having a large value inductance, approximately 100 μH, between winding 14 and the small coil 21. The variation of said base current i b is shown in FIG. 2c but not to the same scale as the collector current of FIG. 2a. During the conducting interval δ T current i b varies as a linear function of time having a final value of wherein L represents the inductance of coil 22. This not only provides the advantage that this final value is not immediately reached, but it can be shown that variation of this final value as a function of the mains voltage has been reduced, for there applies at nominal mains voltage that: If the mains voltage V i = V i nom +Δ V, then ##SPC1## because V i nom = 2 V o . Thus this variation is equal to that of the mains voltage and is not twice as great.

During switching off, t 2 , of transistor 16 coil 22 must exert no influence and coil 21 must exert influence which is achieved by arranging a diode 23 parallel to coil 22. Furthermore the control circuit of transistor 16 in this example comprises the two diodes 24 and 25 as described in U.S. application Ser. No. 26,497 above referred to, wherein one of these diodes, diode 25 in FIG. 1, must be shunted by a resistor.

The control circuit of transistor 16 may alternatively be formed as is shown in FIG. 4. In fact, it is known that coil 21 may be replaced by the parallel arrangement of a diode 21' and a resistor 21" by which the inverse current can be limited. To separate the path of the inverse current from that of the forward current the parallel arrangement of a the diode 29' and a resistor 29" must then be present. This leads to the circuit arrangement shown in the upper part of FIG. 4. This circuit arrangement may now be simplified if it is noted that diodes 25 and 21' on the one hand and diodes 23 and 29' on the other hand are series-arranged. The result is shown in the lower part of FIG. 4 which, as compared with the circuit arrangement of FIG. 1, employs one coil less and an additional resistor.

FIG. 3 shows possible modifications of the chopper. FIG. 3a shown in a simplified form the circuit arrangement according to FIG. 1 wherein the pulsatory voltage present across the connections of windings 8 has a peak-to-peak amplitude of V i - V o = 0.5 V i for δ = 0.5, As has been stated, the provision of coil 22 gives a relative variation for the base current of transistor 16 which is equal to that of the mains voltage. In the cases according to FIG. 3b, 3c and 3d the peak-to-peak amplitude of the voltage across winding 8 is equal to V i so that the provision of coil 22 results in a relative variation which is equal to half that of the mains voltage which is still more favorable than in the first case.

Transistors of the npn type are used in FIG. 3. If transistors of the pnp type are used, the relevant efficiency diodes must of course be reversed.

In this connection it is to be noted that it is possible to obtain an output voltage V o with the aid of the modifications according to FIGS. 3b, c and d, which voltage is higher than input voltage V i . These modifications may be used in countries such as, for example, the United of America or France where the nominal mains voltage is 117 or 110 V without having to modify the rest of the circuit arrangement.

The above-mentioned remark regarding the sum of the diode currents only applies, however, for the modifications shown in FIGS. 3a and d.

If line output transistor 16 is not simultaneously driven with switching transistor 2, efficiency diodes 7 conducts simultaneously with transistor 16 i.e., during the period which is denoted by δ T in FIGS. 1 and 2b. During that period the output voltage V o of the chopper is stabilized so that the base current of transistor 16 is stabilized without further difficulty. However, a considerable drawback occurs. In FIG. 1 the reference numeral 26 denotes a safety circuit the purpose of which is to safeguard switching transistor 2 when the current supplied to load 11 and/or line deflection circuit 17 becomes to high, which happens because the chopper stops. After a given period output voltage V o is built up again, but gradually which means that the ratio δ is initially small in the order of 0.1. All this is described in U.S. patent No. 3,629,686. The same phenomenon occurs when the display device is switched on. Since δ = 0.1 corresponds to approximately 6 μs when T = 64 μs, efficiency diode 7 conducts in that case for 64 - 6 = 58 μus so that transistor 16 is already switched on at the end of the scan or at a slightly greater ratio δ during the flyback. This would cause an inadmissibly high dissipation. For this reason the simultaneous drive is therefore to be preferred.

The line deflection circuit itself is also safeguarded: in fact, if something goes wrong in the supply, the driver voltage of the line deflection circuit drops out because the switching voltage across the terminals of primary winding 8 is no longer present so that the deflection stops. This particularly happens when switching transistor 2 starts to constitute a short-circuit between emitter and collector with the result that the supply voltage V o for the line deflection circuit in the case of FIG. 1 becomes higher, namely equal to V i . However, the line output transformer is now cut off and is therefore also safe as well as the picture display tube and other parts of the display device which are fed by terminal 15 or the like. However, this only applies to the circuit arrangement according to FIG. 1 or 3a.

Pulse oscillator 6 applies pulses of line frequency to modulator 5. It may be advantageous to have two line frequency generators as already described, to wit pulse oscillator 6 and line oscillator 6' which is present in the picture display device and which is directly synchronized in known manner by line synchronizing pulses 7'. In fact, in this case line oscillator 6' applies a signal of great amplitude and free from interference to pulse oscillator 6. However, it is alternatively possible to combine pulse oscillator 6 and line oscillator 6' in one single oscillator 6" (see FIG. 1) which results in an economy of components. It will be evident that line oscillator 6' and oscillator 6" may alternatively be synchronized indirectly, for example, by means of a phase discriminator. It is to be noted neither pulse oscillator 6, line oscillator 6' and oscillator 6" nor modulator 5 can be fed by the supply described since output voltage V o is still not present when the mains voltage is switched on. Said circuit arrangements must therefore be fed directly from the input terminals. If as described above these circuit arrangements are to be separated from the mains, a small separation transformer can be used whose primary winding is connected between the mains voltage terminals and whose secondary winding is connected to ground at one end and controls a rectifier at the other end.

Capacitor 27 is arranged parallel to efficiency diode 7 so as to reduce the dissipation in switching transistor 2. In fact, if transistor 2 is switched off by the pulsatory control voltage, its collector current decreases and its collector-emitter voltage increases simultaneously so that the dissipated power is not negligible before the collector current has becomes zero. If efficiency diode 7 is shunted by capacitor 27 the increase of the collector-emitter voltage is delayed i.e., this voltage does not assume high values until the collector current has already been reduced. It is true that in that case the dissipation in transistor 2 slightly increases when it is switched on by the pulsatory control voltage but on the other hand since the current flowing through diode 7 has decreased due to the presence of the secondary windings, its inverse current is also reduced when transistor 2 is switched on and hence its dissipation has become smaller. In addition it is advantageous to delay these switching-on and switching-off periods to a slight extent because the switching pulses then contain fewer Fourier components of high frequency which may cause interferences in the picture display device and which may give rise to visible interferences on the screen of the display tube. These interferences occupy a fixed position on the displayed image because the switching frequency is the line frequency which is less disturbing to the viewer. In a practical circuit wherein the line frequency is 15,625 Hz and wherein switching transistor 2 is an experimental type suitable for a maximum of 350 V collector-emitter voltage or 1 A collector current and wherein efficiency diode 7 is of the Philips type BA 148 the capacitance of capacitor 27 is approximately 680 pF whilst the load is 70 W on the primary and 20 W on the secondary side of transformer 9. The collector dissipation upon switching off is 0.3 W (2.5 times smaller than without capacitor 27) and 0.7 W upon switching on.

As is known the so-called pincushion distortion is produced in the picture display tubes having a substantially flat screen and large deflection angles which are currently used. This distortion is especially a problem in color television wherein a raster correction cannot be brought about by magnetic means. The correction of the so-called East-West pincushion distortion i.e., in the horizontal direction on the screen of the picture display tube can be established in an elegant manner with the aid of the circuit arrangement according to the invention. In fact, if the voltage generated by comparison circuit 12 and being applied to modulator 5 for duration-modulating pulsatory voltage 3 is modulated by a parabola voltage 28 of field frequency, pulsatory voltage 3 is also modulated thereby. If the power consumption of the line deflection circuit forms part of the load on the output voltage of the chopper, the signal applied to the line deflection coils is likewise modulated in the same manner. Conditions therefore are that the parabola voltage 28 of field frequency has a polarity such that the envelope of the sawtooth current of line frequency flowing through the line deflection coils has a maximum in the middle of the scan of the field period and that charge capacitor 10 has not too small an impedance for the field frequency. On the other hand the other supply voltages which are generated by the circuit arrangement according to the invention and which might be hampered by this component of field frequency must be smoothed satisfactorily.

A practical embodiment of the described example with the reference numerals given provides an output for the supply of approximately 85 percent at a total load of 90 W, the internal resistance for direct current loads being 1.5 ohms and for pulsatory currents being approximately 10 ohms. In case of a variation of ± 10 percent of the mains voltage, output voltage V o is stable within 0.4 V. Under the nominal circumstances the collector dissipation of switching transistor 2 is approximately 2.5 W.

Since the internal resistance of the supply is so small, it can be used advantageously, for example, at terminal 15 for supplying a class-B audio amplifier which forms part of the display device. Such an amplifier has the known advantages that its dissipation is directly proportional to the amplitude of the sound to be reproduced and that its output is higher than that of a class-A amplifier. On the other hand a class-A amplifier consumes a substantially constant power so that the internal resistance of the supply voltage source is of little importance. However, if this source is highly resistive, the supply voltage is modulated in the case of a class-B amplifier by the audio information when the sound intensity is great which may detrimentally influence other parts of the display device. This drawback is prevented by means of the supply according to the invention.

The 50 Hz ripple voltage which is superimposed on the rectified input voltage V i is compensated by comparison circuit 12 and modulator 5 since this ripple voltage may be considered to be a variation of input voltage V i . A further compensation is obtained by applying a portion of this ripple voltage with suitable polarity to comparison circuit 12. It is then sufficient to have a lower value for the smoothing capacitor which forms part of rectifier circuit 1 (see FIG. 3). The parabola voltage 28 of field frequency originating from the field time base is applied to the same circuit 12 so as to correct the East-West pincushion distortion.



PHILIPS 18C636 /30Z CHASSIS KT2 E/W CORRECTION Circuit arrangement in an image display apparatus for (horizontal) line deflectionLine deflection circuit in which the deflection coil is east-west modulated. In order to cancel an east-west dependent horizontal linearity defect the inductance value of the linearity correction coil is made independent of the field frequency, for example by means of a compensating current. In an embodiment this current is supplied by the shunt coil of the east-west modulator.



1. Circuit arrangement for use with a line deflection coil, said circuit comprising a generator means adapted to be coupled to said coil for producing a sawtooth line-deflection current through said line deflection coil, said deflection current having a field-frequency component current, a horizontal linearity correction coil adapted to be coupled in series with said deflection coil and including an inductor having a bias-magnetized core, and means for making the inductance value of the linearity correction coil substantially independent of the field frequency component current. 2. Circuit arrangement as claimed in claim 1, wherein said making means includes a current supply source means for producing a compensating line-frequency sawtooth current through a winding of the linearity correction coil, the amplitude of the compensating current having a field-frequency variation. 3. Circuit arrangement as claimed in claim 2, wherein the direction of curvature of the field-frequency envelope of the compensating current is opposite to the direction of curvature of the field-frequency component current of the line deflection current, whereby the magnetic fields produced in the core of the correction coil by the two currents have the same direction. 4. Circuit arrangement as claimed in claim 2, wherein the direction of curvature of the field-frequency envelope of the compensating current is the same as the direction of curvature of the field-frequency component current of the line deflection current, whereby the magnetic fields produced in the core of the correction coil by the two currents have opposite directions. 5. Circuit arrangement as claimed in claim 2, wherein said correction coil further comprises an additional winding disposed on the core, said additional winding being coupled to said supply source means to receive the compensating current. 6. Circuit arrangement as claimed in claim 5, further comprising modulator means for modulating the line deflection current with said field frequency component, said modulator including a compensation coil coupled in series with said additional winding. 7. Horizontal linearity correction coil comprising a core made of a magnetic material and bias-magnetized by at least one permanent magnet, and an additional winding disposed on the core. 8. Image display apparatus including a circuit arrangement as claimed in claim 1.
Description:
The invention relates to a circuit arrangement in an image display apparatus for (horizontal) line deflection, which apparatus also includes a circuit arrangement for (vertical) field deflection, provided with a generator for generating a sawtooth line-frequency deflecting current through a line deflection coil and with a modulator for field-frequency modulation of this current, the deflection coil being connected in series with a linearity correction coil in the form of an inductor having a bias-magnetized core.
By means of the linearity correction coil the linearity error due to the ohmic resistance of the deflection circuit is corrected. The sign of the bias magnetisation is chosen so that it is cancelled by the deflection current at the beginning of the deflection interval, so that the inductance of the correction coil is a maximum, whereas the voltage drop across the deflection coil then is a minimum. This voltage drop is adjustable by adjustment of the starting inductance of the correction coil. During the deflection interval the core gradually becomes saturated so that the inductance of, and the voltage drop across, the correction coil decrease. Thus the linearity error can be cancelled exactly at the beginning of the interval, that is to say on the left on the screen of the image display tube, and with a certain approximation at other locations.
In image display tubes using a large deflection angle, raster distortion, which generally is pincushion-shaped, of the image displayed occurs. This distortion can be removed in the horizontal direction, the so-called east-west direction, by means of field-frequency modulation of the line deflection current, the envelope in the case of pincushion-shaped distortion being substantially parabolic so that the amplitude of the line deflection current is a maximum at the middle of the field deflection interval.
It was found in practice that the said two corrections are not independent of one another, that is to say the adjustment of the east-west modulation affects horizontal linearity. As long as the modulation depth is not excessive, a satisfactory compromise can be found. However, in display tubes having a deflection angle of 110° and particularly in colour display tubes in which the deflection coils have a converging effect also, it is difficult to find such a compromise. A tube of this type is described in "Philips Research Reports," volume Feb. 14, 1959, pages 65 to 97; the distribution of the deflection field is such that throughout the display screen the landing points of the electron beams coincide without the need for a converging device. Owing to this field distribution, however, the pin-cushion-shaped distortion in the image displayed in the east-west direction is greater than in comparable display tubes of another type. Hence there must be east-west modulation of the line deflection current to a greater depth. It is true that under these conditions horizontal linearity can correctly be adjusted over a given horizontal strip after the east-west modulation has been adjusted correctly, i.e., for a rectangular image, but it is found that in other parts of the display screen a serious linearity error remains. When vertical straight lines are displayed as straight lines in the right-hand part of the screen, they are displayed as curved lines in the left-hand part.
It is an object of the present invention to remove the said defect so that horizontal linearity can satisfactorily be adjusted throughout the screen, and for this purpose the circuit arrangement according to the invention is characterized in that it includes means by which the inductance of the linearity correction coil is made substantially independent of the field frequency.
The invention is based on the recognition that the defect to be removed is due to a field-frequency variation of the said inductance because the latter is current-dependent. According to a further recognition of the invention the circuit arrangement is characterized in that it includes a current supply source for producing a compensating line-frequency sawtooth current through a winding of the linearity correction coil, the amplitude of the current being field-frequency modulated. The circuit arrangement according to the invention may further be characterized in that an additional winding is provided on the core of the linearity correction coil and is traversed by the compensating current. A circuit arrangement in which the modulator for modulating the line deflection current includes a compensation or bridge coil may according to the invention be characterized in that the additional winding is connected in series with the said coil.
The invention also relates to a linearity correction coil for use in a line deflection circuit having a core which is made of a magnetic material and is bias magnetized by at least one permanent magnet, which coil is characterized in that an additional winding is provided on the core.
Embodiments of the invention will now be described by way of example, with reference to the accompanying diagrammatic drawings, in which
FIG. 1 is the circuit diagram of a known circuit arrangement for line deflection in which the line deflection current is east-west modulated,
FIG. 2 shows the distorted image which is displayed on the screen when the circuit arrangement of FIG. 1,
FIG. 3 is a graph explaining the observed defect, and
FIGS. 4 and 7 show embodiments of the circuit arrangement according to the invention by which this defect can be cancelled.
FIG. 1 is a greatl simplified circuit diagram of a line deflection circuit of an image display apparatus, not shown further. The circuit includes the series combination of a line deflection coil L y , a linearity correction coil L and a trace capacitor C t , which series combination is traversed by the line deflection current i y . The collector of an npn switching transistor T r and one end of a choke coil L 1 are connected to a junction point A of a diode D, a capacitor C r and the said series combination. The other end of the choke coil is connected to the positive terminal of a supply voltage source which supplies a substantially constant direct voltage V b and to the negative terminal of which the emitter of transistor Tr is connected. This negative terminal may be connected to earth. The other junction point B of elements D and C r and of the series combination of elements C t , L y and L is connected to one terminal of a modulation source M for east-west correction which has its other terminal connected to earth. Diode D has the pass direction shown in the FIG.
To the base of transistor Tr line-frequency switching pulses are supplied. In known manner the said series combination is connected to the supply voltage source during the deflection interval (the trace time), diode D and transistor Tr conducting alternately. During the retrace time these elements are both cut off. Under these conditions the current i y is a sawtooth current. The coil L, which has a saturable ferrite core which is bias-magnetized by means of at least one permanent magnet, serves to correct the linearity of the current i y during the trace time, whilst the capacitance of the capacitor C t is chosen so that the currenct i y is subjected to what is generally referred to as S correction. During the retrace time, at point A pulses are produced the amplitude of which is much higher than that of the voltage V b and would be constant in the absence of modulation source M. Information from the field deflection circuit, not shown, of the image display apparatus and line retrace pulses, the latter for example by means of a transformer, are supplied in known manner to modulation source M. Amplitude-modulated line retrace pulses having a field-frequency parabolic envelope, as indicated in the FIG., are produced at point B. During the line trace time the voltage at point B is zero. Thus the current i y is given the desired field-frequency modulated form which is also shown in FIG. 1.
The amplitude of the envelope in point B at the beginning and at the end of the field trace time and the amplitude of this envelope at the middle of the said time can both be adjusted so that the image displayed on the display screen of the display tube (not shown) has the correct substantially rectangular form. If, however, the required modulation depth is comparatively large, a linearity error of the line deflection is produced which cannot be removed by means of the correction coil L.
FIG. 2 shows the image of a pattern of vertical straight lines as it is displayed on the screen with the correction coil L adjusted so that horizontal linearity is satisfactory along and near the central horizontal line. In FIG. 2 the defect is exaggerated. It is found that horizontal linearity is defective in other areas of the screen so that the vertical lines are displayed correctly in the right-hand half of the screen but as curves in the left-hand path, the defect increasing as the line is farther to the left.
This phenomenon can be explained with reference to FIG. 3. In this FIG. the inductance L of the linearity correction coil is plotted as a function of the magnetic field strength H. In the absence of current, H has a value H 0 owing to the bias magnetization. If an approximately linear sawtooth current i (t) as shown in the bottom left-hand part of FIG. 3 flows through the coil, the field strength H varies proportionally about the value H 0 , for the mean value of the current is zero. Because the curve of L is not linear, the variation L(t) of L, which is shown in the top right-hand part, is not a linear function of time. The resulting curve may be regarded as composed of a linear component and a substantially parabolic component which is to be taken into account when choosing the capacitance of capacitor C t .
Because owing to the east-west modulation the amplitude of current i(t) varies, the amplitude of L(t) also varies. This implies a field-frequency variation of L which is non-linear. This variation is undesirable. In the case of a small variation of the amplitude of current i(t) the variation of L(t) can be more or less neglected, but this is no longer possible when the amplitude of current i(t) varies greatly owing to the east-west modulation. L(t) varies according to different curves. FIG. 3 shows two of such curves and also illustrates the fact that the undesirable variation of L(t) is greatest at the beginning of the trace time and smallest at the end thereof.
FIG. 4 shows a circuit arrangement in which the defect described can be corrected. On the core of the correction coil L of the circuit of FIG. 1 an additional winding L 2 is provided. Winding L 2 is connected to a current source which produces a compensating current i 2 which has a line-frequency sawtooth variation and a field-frequency amplitude modulation. The envelope here also is parabolic, however, with a shape opposite to that of deflection current i y , that is to say having a minimum at the middle of the field trace time. The direction of current i 2 and the winding sense of winding L 2 relative to that of coil L are chosen so that the magnetic field produced in the core by winding L 2 has the same direction as the field produced by coil L. Hence the two field strengths are added. The amplitude of current i 2 and the turns number of winding L 2 can be chosen so that current i y flows through inductances the total value of which is not dependent upon the field frequency. The curve L(t) of FIG. 3 remains substantially unchanged. Consequently the undesirable field-frequency modulation is removed without variation of the bias magnetization, which would have been varied if current i 2 were a field-frequency current. Obviously the same result can be achieved by a choice such of the direction of current i 2 and of the winding sense of winding L 2 that the two field strengths are subtracted one from the other, whilst the curvature of the envelope of current i 2 has the same direction as that of the envelope of current i y .
The current source of FIG. 4 may be formed in known manner by means of a modulator in which a line-frequency sawtooth signal is field-frequency modulated, the envelope being parabolic. FIG. 5 shows a circuit arrangement in which current i 2 is produced by the modulation source which provides the east-west correction. In FIG. 5, the source M of FIG. 1 comprises a diode D', a coil L' and two capacitors C' r and C' t , which elements constitute a network of the same structure as the network formed by elements D, L y , C r and C t . The capacitor C' t is shunted by a modulation source V m which supplies a field-frequency parabolic voltage having a minimum at the middle of the field trace time.
With the exception of the linearity correction means to be described hereinafter, the circuit arrangement of FIG. 5 was described in more detail in U.S. Pat. No. 3,906,305. Hence it will be sufficient to mention that the capacitances of capacitors C r and C' r and of a capacitor C 1 connected between junction point A and earth and the inductance of coil L' are chosen so that the three sawtooth currents flowing through L y , L' and L 1 have the same retrace time. The capacitances of capacitors C t and C' t , which are large, are ignored. When voltage V b is constant, current i y is subjected to the desired east-west modulation having the form shown in FIG. 1.
Coil L y is connected in series with correction coil L, and winding L 2 is connected in series with coil L'. FIG. 5 shows that the current flowing through winding L 2 has the same waveform as the current i 2 of FIG. 4, for its envelope has the same shape as the voltage supplied by source V m . By a suitable choice of the number of turns of winding L 2 it can be ensured that the linearity correction remains the same for every line during the field trace time.
Modified embodiments of the circuit arrangement of FIG. 5 can also be used. FIG. 6 shows such a modified embodiment in which the capacitive voltage divider C r , C' r of FIG. 5 is replaced by an inductive voltage divider by means of a tapping on coil L 1 . A capacitor C 2 is included between the tapping and the junction point of diodes D and D', whilst capacitor C' t here forms part of two networks C t , L y and C' t , L' traversed by a sawtooth current. In FIG. 6 modulation source V m is connected via a choke coil L 3 to the junction point of D, D', C 2 and C' t . One end of winding L 2 is connected to the junction point of capacitor C' t and the coil L, whilst the other end is connected to earth via coil L'. The capacitances of capacitors C 1 and C 2 and the location of the tapping on coil L 1 are chosen so that the sawtooth currents flowing through L y , and L' and L 1 have the same retrace time, whilst the field-frequency linearity defect of FIg. 2 is cancelled by correctly proportioning winding L 2 .
Other east-west modulators are known in which the step of FIGS. 5 and 6 can be used. An example is the modulator described in the publication by Philips, Electronic Components and Materials: "110° Colour television receiver with A66-140X standard-neck picture tube and DT 1062 multisection saddle yoke," May 1971, pages 19 and 20, which modulator also comprises two diodes and a compensation coil L', which are arranged in a slightly different manner. In another example the east-west modulator and the line deflection generator are included in a bridge circuit whilst they are decoupled from one another by means of a bridge coil which has the same function as coil L' in FIGS. 5 and 6. In these circuit arrangements coil L and winding L 2 may be arranged in the same manner as in FIG. 6. The same applies to an east-west modulator using a transductor the operating winding of which is in series with the deflection coil.
In the abovedescribed embodiments of the circuit arrangement according to the invention the compensating current i 1 is provided by transformer action. In the embodiment of FIG. 7 the current source which supplies the current i 2 is connected in parallel with correction coil L, i.e., without an auxiliary winding. In this embodiment the east-west modulation is achieved not by means of a modulator, but by means of the fact that the supply voltage V b is the super-position of a field-frequency parabolic voltage on the direct voltage. In this known manner the supply source also is the modulator.
It will be seen that in the embodiments of FIGS. 4, 5 and 6 current i 2 counteracts the east-west modulation of deflection current i y . It was found in practice, however, that this counteraction is slight.

PHILIPS CHASSIS KT2 COLOR BURST CIRCUIT WITH A.G.C.
A color television receiver has at least partially separate color information and burst signal paths. A passive burst subcarrier regenerator is located within said burst signal path. In order to supply a constant amplitude regenerated subcarrier without effecting the amplitude of the color information signal, an amplitude detector is coupled to the output of the regenerator. The detected signal goes through a high-pass filter and is used to control the gain of an amplifier located exclusively within the burst signal path.


1. A circuit comprising: means for receiving a color television signal having amplitude varying color information and burst signal components, means coupled to said receiving means for separating said components from said television signal, a burst signal path coupled to said separating means for receiving only said burst signal, said path comprising the serial coupling of means for passively regenerating a subcarrier reference signal from said burst signal, means having a control terminal for controlling the amplitude of said subcarrier reference signal within said burst signal path without effecting the amplitude of said color information signals, means for detecting the amplitude of the output of said amplitude controlling means and a high pass filter coupled between said detecting means and said control terminal; whereby said reference signal is kept at a substantially constant amplitude regardless of the rapidity of said variations. 2. A circuit as claimed in claim 1 further comprising a chrominance amplifying means for amplifying both said color information and burst signal components and means for controlling the gain of said chrominance amplifier coupled to the output of said detecting means. 3. A circuit as claimed in claim 2 wherein said chrominance signal amplifier-controlling means comprises a low-pass filter having a higher cutoff frequency than said high-pass filter.
Description:
The invention relates to a color television receiver having a color information signal path and a burst signal path, which burst signal path includes a color subcarrier regenerator of a passive type (passive integrator) so that a burst signal obtained from a received color television signal can be converted into a color subcarrier reference signal, the burst signal path including a detection circuit for obtaining at an output thereof an automatic gain control signal from the color subcarrier reference signal.

In known receivers of the above-mentioned type the drawback occurs that particularly upon reception of weak signals the color subcarrier reference signal may show great fluctuations as a result of the burst signal decreasing in amplitude sometimes during a number of successive line periods. This reference signal is used for synchronously demodulating the color difference signals which are passed through the color information signal. Upon variation in the amplitude of the reference signal this may give rise to color errors upon this demodulation. Consequently, to prevent this phenomenon a limiter stage is generally included after the passive integrator. However, this limiter does not operate at a slight amplitude of the integrated burst signal. The operation of this limiter may be rendered more effective by using more amplification stage for this limiter. From an economic point of view this is, however, not particularly interesting. An object of the invention is to avoid as must as possible the occurrence of color errors upon reception of weak signals.

According to the invention a color television receiver of the type described in the preamble is characterized in that the said output of the detection circuit is connected through a low cutoff filter to a gain-control input of an amplifier included in the burst signal path outside the color information signal path.

As a result an automatic gain control is obtained which acts upon comparatively rapid variation in the amplitude of the regenerated color subcarrier reference signal and which tends to maintain the amplitude of this reference signal constant. By the step according to the invention this rapid automatic gain control is not effective in the color information signal path. This is based on the recognition of the fact that due to the short duration of the burst signals amplitude variation often occur in the individual bursts, which variation are not representative of the amplitude variations which occur in the associated line periods in the color information signal. Any automatic gain control for the color information signal path obtained from the burst signal path must therefore not be influenced by accidental fluctuations of the burst signal amplitude, such as occur particularly upon reception of weak signals.

In order that the invention may be readily carried into effect it will now be described in detail, by way of example, with reference to the accompanying diagrammatic drawing which shows a color television receiver according to the invention in a block diagram.

Details which are not important for the understanding of the invention have been omitted as much as possible for the sake of clarity.

In the Figure, a section of the receiver is indicated by 1 in which a color television signal receiver through an input 3 is amplified and converted into a brightness signal Y, a chrominance signal 1 Chr and a synchronization signal S. These signals occur at the outputs 5, 7 and 9, respectively, of the section 1.

The output 5 of the section 1 is connected to an input 11 of a picture display section 13. The brightness signal Y is applied through this line to the picture display section 13.

The output 7 of the section 1 is connected to an input 15 of a chrominance amplifier 17. An output 19 of the chrominance amplifier 17 is connected to an input 21 of a separator stage 23. The separator stage 23 further has an input 25 which is connected to an output 27 of a time base state 29, through which line it is possible to apply a switching signal to the separator stage 23.

The time base stage 29 receives a synchronization signal S from an input 31 connected to the output 9 of the section 1 and supplies time base currents to the picture display section 13 through an output 33 which is connected to an input 35 of the picture display section 13.

The chrominance signal Chr becoming available at the output 7 of the section 1 comprises a color information signal and a burst signal. The color information signal is applied from the output 7 through the chrominance amplifier 17 and the separator stage 23 to an output 37 thereof and the burst signal is applied from the output 7 through the chrominance amplifier 17 and the separator stage 23 to an output 39 of this stage. To this end a time selection is applied on the chrominance signal in the separator stage 23 with the aid of a switching signal applied to the input 25.

The output 37 is connected to an input 41 of a color information signal amplifier 43. An output 45 thereof is connected to an input 47 of a demodulator and matrix circuit 49. The demodulator and matrix circuit 49 has three outputs 51, 53 and 55 which are connected to inputs 57, 59 and 61, respectively, of the picture display section 13.

The signal path leading from the output 7 of the section 1 through the chrominance amplifier 17, the separator stage 23, the output 37 of this separator stage, the color information amplifier 43 to the input 47 of the demodulator and matrix circuit 49 belongs to the color information signal path. The color information signal is applied through this path to the demodulator and matrix circuit 49.

The output 39 of the separator stage 23 is connected to an input 63 of a burst signal amplifier 65. An output 67 of the burst signal amplifier 65 is connected to an input 69 of a passive integrator circuit 71 and to an input 73 of a phase detection circuit 75. The passive regenerator is a high-Q crystal circuit. This circuit along with the phase detector and their operation are described in "Proceedings of the I.R.E.," Jan. 1954, vol. 42, pp. 111--112.

The color subcarrier burst are integrated to form a continuous reference signal with the aid of the passive integrator circuit 71. This reference signal becomes available at the output 77. The output 77 is connected to an input 79 of a reference signal amplifier 81. A reference signal which is applied to an input 85 of the demodulator and matrix circuit 49 becomes available at an output 83 of this amplifier.

The reference signal is further applied to an input 87 of the phase detection circuit 75. The phase of the burst signal applied through the input 73 is compared in the phase detection circuit 75 with that of the integrated burst signal (reference signal) applied through the input 87. A voltage which is a measure of the phase deviation between these two signals is obtained at an output 89. The output 89 is connected to the input 91 of the passive integrator circuit 71. A phase deviation possibly produced in the integrator circuit 71 is corrected with the aid of the voltage applied through this line, so that the phase of the reference signal obtained at the output 83 is maintained as much as possible the same as that of the burst signal applied to the input 69.

The reference signal obtained at the output 83 is further applied to a detection circuit having a diode 92, a capacitor 93 and a resistor 95. A voltage dependent on the amplitude of the reference signal is obtained from an output 97 of the detection circuit 92, 93, 95. This voltage is applied through a low-pass filter serving as a high cutoff filter including a resistor 99 and a capacitor 101 to a gain control input 103 of the chrominance amplifier 17. The gain of the chrominance amplifier 17 is thus dependent on the average amplitude of the burst signal. This average amplitude is thus maintained substantially constant. The average amplitude of the burst signal is a measure of the amplitude of the color information signal. Hence the color information signal appears with a automatically corrected amplitude at the output 19 of the chrominance amplifier 17. The saturation of a picture obtained with the aid of the color information signal will thus be substantially independent of variations in the transmission of the transmission path of the color television signal.

The above described trajectory from the output 7 of the section 1 through the chrominance amplifier 17, the output 39 of the separator stage, the burst signal amplifier 65, the passive integrator circuit 71, the reference signal amplifier 81 and the detection circuit 92, 93 95 belongs to the burst signal path. Part of the burst signal path, namely the chrominance amplifier 17, coincides with part of the color information signal path.

According to the invention the output 97 of the detection circuit 92, 93, 95 provided in the burst signal path is connected through a high-pass filter serving as a low cutoff filter, including a capacitor 105 and a resistor 107, to a gain control input 109 of an amplifier 81 included outside the color information signal path. Rapid variations in the output signal of the reference signal amplifier 81 will be readjusted by the automatic gain control circuit thus formed without exerting influence on the color information signal path.

According to the invention this rapid automatic gain control, which is effected outside the color information signal path, is based on the recognition of the fact that rapid variations in the amplitude of the burst signal such as occur, for example, upon reception of weak signals or during the frame flyback period, are no measure of the variations in the color information signal and hence must not exert influence on a possible automatic gain control in the color information signal path.

By the step according to the invention a very constant reference signal voltage amplitude is obtained at the input 85 of the demodulator and matrix circuit 49 so that it will substantially be impossible for color errors to occur due to the demodulation of the color information signal, even with unfavorable conditions of reception.

The lower limit frequency of the high-pass filter 105, 107 is preferably chosen to be such that it is higher than the upper limit frequency of the low-pass filter 99--101.

It will be evident that the rapid automatic gain control according to the invention can be used in color television receivers for both the NTSC-system and the PAL-system.

Although the described embodiment includes a control voltage from the output 97 of the detection circuit 92, 93, 95 to the input 103 of the chrominance amplifier 17. It is readily evident that this voltage is not essential for using the step according to the invention. However, to ensure a satisfactory operation of the color difference signal demodulators it is generally desirable to apply this control voltage to the input 103.

In the embodiment described the feedback of the rapid automatic gain control is effected in the reference signal amplifier 81 following the passive integrator circuit 71. The feedback may in principle also be effected in an amplifier, for example, preceding the passive integrator circuit or, at will, preceding as following it.


PHILIPS PAL CHROMA DELAY LINE:An improved ultrasonic delay line comprising a solid glass body having one or more slits in the side walls extending inwardly from the outer edge faces of the body. The slits are arranged in the path of the propagating ultrasonic energy so as to effectively increase the number of energy transmission paths in the body by acting as additional energy reflecting surfaces. The slits extend the effective length of the delay line. The slits also operate to reduce undesired cross-coupling between the input and output transducers.

1. An ultrasonic delay line comprising a solid body having a plurality of energy reflecting edge walls and composed of ultrasonic wave energy transmitting material, said edge walls being arranged to provide a first point for introducing ultrasonic energy and a second point for extracting said energy from the body and further providing a plurality of multiply reflected internal transmission paths for delaying said ultrasonic energy, and an energy reflecting surface positioned in the desired energy transmission path and formed by a wall slit arranged to block the passage therethrough of impinging ultrasonic energy and extending inwards from an outer edge wall of the solid body and positioned so as to provide substantially complete reflection of the desired energy from opposite faces thereof to the edge walls thereby to redirect said energy through 2. A delay line as claimed in claim 1 wherein the wall slit is arranged relative to one or more reflecting edge walls of the body so as to produce an odd number of said paths between a reflection from one face of the slit and a subsequent reflection from the same or opposite face of said slit. 3. A delay line as claimed in claim 2 further comprising first and second electromechanical transducers coupled to said body at said first and 4. A delay line as claimed in claim 1 further comprising first and second electromechanical transducers coupled to said body at said first and 5. A delay line as claimed in claim 1 wherein the wall slit is located in the plane of symmetry of the body, said delay line further comprising first and second electromechanical transducers coupled to said body at 6. A delay line as claimed in claim 1 wherein said body includes a second wall slit extending inwards from an outer edge wall and positioned so that the ultrasonic energy is reflected off of opposite faces of the second 7. A delay line as claimed in claim 1 wherein the wall slit is arranged in the body relative to one or more reflecting edge walls thereof so as to multiply reflect the desired energy from said wall slit to produce an odd number of said paths between a first reflection from one face of the slit 8. An ultrasonic delay line comprising a solid body having a plurality of energy reflecting edge walls and composed of ultrasonic wave energy transmitting material, said edge walls being arranged to provide a first point for introducing ultrasonic energy and a second point for extracting said energy from the body and further providing a plurality of multiply reflected internal transmission paths for delaying said ultrasonic energy, and an energy reflecting surface positioned in the desired energy transmission path and formed by a wall slit arranged to block the passage therethrough of impinging ultrasonic energy and extending inwards from an outer edge wall of the solid body to reflect the desired energy to the edge walls thereby to redirect said energy through the body, said wall slit being arranged in the body so as to intercept ultrasonic energy propagating along given undesired transmission paths between said first and second energy points of the body thereby to reduce any direct coupling of scattered secondary ultrasonic energy between said first and second 9. An ultrasonic delay line comprising a solid body having at least five energy reflecting edge walls and composed of ultrasonic wave energy transmitting material, two of said edge walls being parallel to each other and orthogonal to a third edge wall, the fourth and fifth edge walls each being at an angle of approximately 135° to a respective one of said parallel edge walls, said edge walls being arranged to provide a first point for introducing ultrasonic energy and a second point for extracting said energy from the body and further providing a plurality of multiply reflected internal transmission paths for delaying said ultrasonic energy, and an energy reflecting surface positioned in the desired energy transmission path and formed by a wall slit extending centrally inwards into the body orthogonal to said third edge wall and arranged to block the passage therethrough of impinging ultrasonic energy thereby to redirect 10. A delay line as claimed in claim 9 wherein said wall slit extends 11. A delay line as claimed in claim 9 wherein said fourth and fifth edge walls intersect one another and said wall slit extends inwardly from the 12. A delay line is claimed in claim 1 wherein said body has a generally rectangular shape and a second wall slit extending inwards from an outer edge wall of the body so as to reflect the ultrasonic energy, the first and second wall slits extending inwards from opposite parallel edge walls 13. A delay line as claimed in claim 9 further comprising first and second electromechanical transducers coupled to said body at one or more edge 14. A delay line as claimed in claim 11 further comprising first and second electromechanical transducers coupled to said body at said fourth and fifth edge walls, respectively, thereby to reduce direct coupling of 15. An ultrasonic delay line comprising a solid body having a plurality of energy reflecting edge walls and composed of ultrasonic wave energy transmitting material, said edge walls being arranged to provide a first point for introducing ultrasonic energy and a second point for extracting said energy from the body and further providing a plurality of multiply reflected internal transmission paths for delaying said ultrasonic energy, an energy reflecting surface positioned in the desired energy transmission path and formed by a wall slit arranged to block the passage therethrough of impinging ultrasonic energy and extending inwards from an outer edge wall of the solid body thereby to redirect said energy through the body, and a second wall slit extending inwards from an outer edge wall of the body so as to reflect the ultrasonic energy, the first and second wall slits extending inwards from opposite parallel edge walls of the body, and wherein said body has a parallelogram cross-section and said first and second wall slits extend orthogonally inwards from the longer pair of 16. A delay line as claimed in claim 12 further comprising first and second electromechanical transducers coupled to said body at said first and second points which are located on edge walls other than the edge walls 17. An ultrasonic delay line comprising a solid body having at least five energy reflecting edge walls and composed of ultrasonic wave energy transmitting material, two of said edge walls being parallel to each other and two other edge walls being at right angles thereto, a fifth edge wall being at an angle of approximately 135° to each of two adjacent edge walls, said edge walls being arranged to provide a first point for introducing ultrasonic energy and a second point for extracting said energy from the body and further providing a plurality of multiply reflected internal transmission paths for delaying said ultrasonic energy, and an energy reflecting surface positioned in the desired energy transmission path and formed by a wall slit extending into the body centrally of and orthogonal to one of the edge walls located opposite to the fifth edge wall and arranged to block the passage therethrough of impinging ultrasonic energy thereby to redirect said energy through the 18. A delay line as claimed in claim 17 further comprising first and second electromechanical transducers coupled to said body at said first and 19. A delay line as claimed in claim 18 wherein said first and second energy points are located on the fifth edge wall.
Description:
This invention relates to ultrasonic delay lines of the type using a solid medium such as quartz or glass through which an acoustic signal wave is made to travel to provide a time delay between the application of the wave and its extraction. In such delay lines it is known to shape the solid medium so as to provide internal peripheral reflective surfaces for the ultrasonic wave in order to fold the wave over a plurality of legs to increase the length of the transmission path through the medium and thus increase the wave delay with a minimum mass of solid medium.

It is also known to increase the length of the transmission path of an ultrasonic wave by including specially shaped openings in the solid medium to provide additional reflective surfaces. In this case such openings have to be very accurately positioned and dimensioned to ensure proper operation.

In connection with such delay lines there arises a number of problems. Some of these concern the solid medium itself and its thermal properties. Delay lines using wavelengths equivalent to several Megahertz require very accurate dimensioning to reduce internal energy scatter and give an accurate source of extraction. This requires a solid medium having a very low temperature coefficient. A special glass having such properties is available but it is relatively costly for use in mass production so that any design steps that will allow an overall reduction in the mass of the delay medium will not only in itself reduce thermal problems but will also reduce overall costs.

In certain color television receiver systems a prescribed signal delay is required so that the delay line has to provide stable operation and yet lend itself to mass production at a very low cost.

Another problem which confronts the designer of such delay lines is the prevention of direct signal coupling between the application and extraction points of the signal which can result in the desired delayed signal being masked by a strong undelayed signal arriving at the extraction point. A further problem is the suppression of alternative signal paths which contribute a train of secondary spurious signals each having a different delay and which make extraction of the wanted delayed signal difficult.

The purpose of this invention is to provide a simple delay line construction in which the overall mass of the delay line medium is reduced in a manner which will also allow greater freedom from expensive manufacturing processes as well as providing enhanced electro-acoustical performance.

According to this invention there is provided an ultrasonic delay line using a solid medium through which an ultrasonic signal wave is made to travel and which is reflected over a plurality of paths to increase the time delay between the application point of the ultrasonic signal and its point of extraction, wherein the path followed by the ultrasonic waves includes at least one reflecting surface constituted by the side wall or face of a slit extending inwards from an edge face of the solid medium.

In order to make maximum utilization of a given delay line mass, the delay line may include several slits arranged so that both side walls of the slits can be used as reflective surfaces. Furthermore, if the geometrical pattern of the reflected signal legs or path is so arranged that an odd number of legs exists between reflections on the same or associated slit wall, this gives the advantage that the angular orientation of the slit is non-critical and it displays self-cancelling properties for minor errors.

Furthermore, the use of slits to provide reflective walls also has the advantage of reducing spurious secondary signals in that a greater control can be exercised over the required signal path by the very high damping barrier provided by the absence of any delay line medium forming the slit. This reduces any signal transference across the slit to a value far below the minimum requirements.

It should be noted that the use of notches introduced in the edge surfaces of a solid medium for a delay line to reduce secondary waves from reaching the output transducer is known per se. However, these notches do not constitute reflecting walls for the desired signal.

Examples of this invention will now be described with reference to the accompanying drawings in which FIG. 1 is a plan view of a substantially rectangularly shaped delay line showing a simplified embodiment of applicant's invention.

FIG. 2 is a plan view of a substantially rectangularly shaped delay line showing two slits for further increasing the length of the delay line of FIG. 1.

FIG. 3 is a plan view of a delay line having five reflecting faces for further increasing the length of the delay line of FIG. 1.

FIG. 4 is a plan view of a delay line shaped as a parallelogram having four slits.

FIG. 5 is a plan view of a delay line having five edges and a central slit.

FIGS. 1 to 5 show five different embodiments of delay lines according to this invention. Each Figure has certain design features which will be discussed below.

FIG. 1 shows a solid body 1 made, for example, of glass and having a substantially rectangular cross-section. Two corners of the body 1 are beveled and transducers A and B are arranged on the surfaces 14 and 15, respectively. The surfaces 14 and 15 are at respective angles of 135° to the surfaces 17, 18 and 18, 19 of the body 1. The input transducer A has an electric signal applied to it which is converted by the transducer into an acoustic ultrasonic signal. This acoustic signal propagates in the form of a wave through the body 1 and after a number of reflections it reaches the transducer B which reconverts it into an electric signal. The time required for the acoustic ultrasonic wave to cover the entire path (shown in dotted lines) from the transducer A to the transducer B determines the delay time between the application of the electric input signal at the transducer A and the electric output signal recovered at the transducer B. Use is preferably made of piezo-electric transducers which are so polarized that shear mode vibrations are produced so that the overall reflection at each of the reflective surfaces occurs without energy conversion of the shear vibrations into longitudinal vibrations.

According to this invention, a slit 2, in the form of a saw-cut having plane parallel walls, is provided at the plane of symmetry in the body 1 so that the waves originating from the transducer A first reflect at the left-hand wall of the slit 2 and then at the rectangular walls 16, 17, 18, 19, and 20 of the body 1, whereupon they are reflected from the right-hand wall of the slit 2 and finally strike the transducer B. The energy path from transducer A to transducer B is made up of eight reflected signal legs shown by dashed lines with arrowheads. It will be apparent from FIG. 1 that an increased path length for the ultrasonic wave is thus obtained in a simple manner. Moreover, secondary waves are suppressed by the slit 2. The angle at which the ultrasonic wave strikes the various reflective surfaces is always 45°. However, in this embodiment the angle 3 of 90° between the slit 2 and the surfaces 16 and 20 must be very accurately defined in order that the waves may follow the path indicated.

In the delay line of FIG. 2, the signal paths (shown in dotted lines) are obtained by providing two slits 2 and 4 at suitably chosen areas at right-angles to the long surfaces 21 and 22 of the delay line medium 1. In this embodiment the ultrasonic waves also strike the reflective surfaces at angles of 45°. However, after reflection at one wall of the slit 2, an odd number of signal legs (five) occurs before reflection at the other wall of the slit 2. As a result, the orientation of the angles 5 and 6 of 90° is not critical and the angular errors introduced into the reflected signals are cancelled automatically. In this construction, the slits 2 and 4 also cause a reduction of secondary (spurious) signals, and moreover the formation of any direct or secondary transmission path between the input transducer A and the output transducer B is prevented.

The delay line construction of FIG. 3 provides an increased length of the transmission path while retaining the advantages of the delay line constructions shown in FIGS. 1 and 2. In this case, the body 1 has a square cross-section (a corner of the square being denoted by x--x) and the opposite corner of the square is removed so that an additional wall 31 is formed on the body 1 which is at an angle of 135° to the walls 32 and 33. The transducers A and B are arranged side by side on the wall 31, while a slit 8 is provided at right angles to and approximately centrally of a wall 34 of the body 1 and extends approximately as far as half the length x into the body 1. The ultrasonic waves again follow the path indicated by dotted lines.

Either the transducer A or the transducer B may be used as input or output. Since the number of signal legs between the reflections at one wall and those at the other wall of the slit 8 is odd (five), the orientation of the angle 7 of 90° between the slit 8 and the surface 34 is not critical because the angular error introduced into the signal wave is automatically canceled. This self-canceling effect is illustrated in FIG. 3, in which the slit 8 is purposely slightly tilted. A practical embodiment of a glass delay line of this construction for use in a PAL color television receiver system has the following approximate dimensions:

x = 33 mm, y = 15 mm, and z = 6 mm.

The width of the slit 8 is approximately 1 mm and this slit extends over approximately 15 mm into the delay line 1. The electric characteristics give a delay of one line period, i.e., approximately 64 μ sec, at a band center frequency of 4.4 Mc/s.

FIG. 4 shows a body 1 in the form of a rectangular prism having a cross-section in the form of a parallelogram whose sides 41, 42 and 43, 44 respectively are at angles of 45° to each other. Slits 8, 10 and 9, 11, respectively, are provided at right angles to the side faces 42 and 44. In this delay line, only one side wall of each of the slits 8, 9, 10, and 11 is used at a time. An input transducer A is arranged for injecting an ultrasonic signal which follows the path shown in dotted lines and which is extracted by the output transducer B. In this construction, any angular displacements of the slits are not automatically canceled and the angles are therefore critical, but the remote positioning and interspersion of the slits between the input transducer A and the output transducer B provides a high degree of decoupling for spurious (secondary) signals when compared with known delay lines.

The surface of the delay line of FIG. 5 has a cross-section in the form of a pentagon having two parallel sides 51 and 52 and a third side 53 at right angles to the sides 51 and 52, while the fourth and fifth sides 54 and 55 are at angles of 135° to the sides 51 and 52, respectively. The latter sides 54 and 55 support the transducers A and B, respectively. According to the invention, a slit 56 is positioned at the intersection of the sides 54 and 55 and extends into the body 1 parallel to the sides 51 and 52 over a distance approximately equal to half the length of the sides 51 and 52. The path followed by the ultrasonic waves is shown in dotted lines. Small angular displacements of the surfaces 51 and 52 again substantially do not influence the overall delay time and the direction in which the waves strike the output transducer B. Also, the slit 56 prevents the direct coupling of scattered radiation from the input transducer A to the output transducer B.

It will be evident from the foregoing that delay lines constructed in accordance with this invention can be easily and economically mass produced. A comparatively long rod of delay line medium may be profiled, for example, in the desired shape, while the slits may be accurately arranged throughout its length. The method of manufacturing separate delay lines then merely resides in parting off portions of the rod to the desired thickness. This results in a high reproducibility of components of individual delay lines.

The invention is not limited to the delay line described consisting of a single layer, but the advantages of this invention may also be obtained in delay lines consisting of several layers, the path followed by the signal in one layer then being reflected at a suitable point to a further layer so that it can pass on through this further layer before it is extracted.


GLASS TECHNOLOGY FOR PHILIPS PAL CHROMA DELAY LINE / ACOUSTIC DELAY LINE:A glass for an acoustic delay line which consists of SiO2, Al2 O3, B2 O3 and an oxide of a bivalent metal and satisfies the requirement that -5×10-6i αi x1 < +5×10-6 where αi is the temperature coefficient of the rate of propagation in the range of 20°-70° C for the oxide component i and xi is the molar fraction of that component.

1. In an acoustic delay line of the type having signal converting elements on the surface of a glass body for converting an input electric signal into an acoustic signal and an output acoustic signal into an electrical signal, the improvement comprising that said body of glass consist of the following compositions in wt. percent: 2. In an acoustic delay line of the type having signal converting elements on the surface of a glass body for converting an input electric signal into an acoustic signal and an output acoustic signal into an electric signal, the improvement comprising that said body of glass consist of the following composition in wt. percent:
Description:
The invention relates to an acoustic delay line in which the delay medium is glass.

Such delay lines are known per se for electronic uses in which delays of electric signals in the order 0.01-1 millisecond are to be obtained with bandwidths of a few tens of mc/s. The delay is produced in that an electric signal is converted, by means of a piezo-electric element, into an ultrasonic mechanical vibration, preferably a shear vibration, and after said acoustic signal has traversed the delay medium this is likewise converted again into an electric signal by a piezo-electric element, said signal having experienced the desired delay with respect to the original signal. The rate of propagation of the acoustic shear waves in a solid is approximately 10 5 times smaller than that of electro-magnetic waves so that a comparatively large delay can be obtained over a comparatively small distance.

Delay lines are used inter alia in electronic computers, in radar technology and in television technology. In two color television systems delay lines are used for combining the color information of adjacent lines of a frame. The delay time required for this purpose is approximately 64 μsec. with 625 lines and a frequency of 50 c/s. At the frequency to be considered of 4.43 mc/s and the required bandwidth of approximately 2 mc/s, glass is a suitable delay medium.

A known glass which is excellency suitable for this purpose has the following composition in mol. percent:

SiO 2 70-78 PbO 15-30, of which maximally 5 mol. percent may be replaced by one or more of the oxides MgO, BaO, CaO and SrO, Na 2 O + K 2 O 0-7 Na 2 O ≤0.5 SB 2 O 3 + As 2 O 3 ≤ 0.5

this glass is distinguished by the quality of various properties which are of importance for the end in view. Taking into account the temperature variations of ±30° C occurring in practice, the delay times does not vary more than 0.02 μsec. This means that the temperature coefficient of the delay time dτ/(τdτ) of these glasses is smaller than 10 × 10 -6 per ° C and in some cases even smaller than 1 × 10 -6 per ° C.

The damping of the acoustic vibrations in delay lines of this class is not too large. The mechanical attenuation of said glass is not more than 9 × 10 -3 dB/μs. Mc/s which is amply sufficient for delay lines in television receivers.

A further advantage of this glass consists in that it is very slightly sensitive to the previous thermal history of the glass which means that it has substantially no influence on the temperature coefficient of the delay time, whether the glass has been cooled relatively rapidly or slowly from temperatures in the proximity of the annealing temperature. Large variations in the treatment which consists of a heating for approximately 10 minutes at a temperature which lies approximately 50° C above the annealing temperature succeeded by cooling at a rate of approximately 1.5° C per minute, do substantially not influence the reproducibility.

Finally, a hysteresis effect is not present in this glass to any inconvenient extent, in contrast with some other known glasses. This hysteresis effect manifests itself in the delay time when the glass is heated from room temperature to a temperature between 60° and 80° C, is kept at said temperature for more than 1 hour, and is then cooled to room temperature again. The delay time at room temperature may be increased 1 to 10 4 , said increase disappearing again gradually in the course of a few days. In the above-mentioned glasses said variation is at most 3 to 10 5 at the temperature cycle described.

The rate of propagation for shear waves in these glasses is comparatively low and varies only slightly with the composition (2,400-2,600 m/sec.).

A difficulty in manufacturing the glass compositions required for delay lines is associated with the fact that small variations in the composition of a chosen glass may cause variations in the acoustic properties, notably in the temperature coefficient of the delay time. This is most undesirable, particularly when used in delay lines for color television. So this involves the necessity of keeping the content of the components of the glass constant between narrow limits. The known glasses have a high content of lead monoxide. However, lead monoxide has the property of partly evaporating at the surface of the glass melt so that there the PbO-content is considerably reduced. If such a glass, originating from the surface layer of the melt, forms part of the delay body, the good operation as a delay medium may be disturbed.

Possibilities are known, it is true, to restrict said evaporation of PbO. However, these requires special precautionary measures.

The invention provides a class of glasses of which the drawback of evaporation of one or more of the components with the resulting adverse influence on the acoustic properties of the glass is considerably smaller while the above-mentioned advantageous properties of the known glass are maintained therein.

According to the invention the acoustic delay line, the delay body of which consists of glass which contains the components SiO 2 , K 2 O and oxide of bivalent metal, is characterized in that the glass has the following composition in percent by weight:

SiO 2 50-75 K 2 O + Na 2 O 0-8 Na 2 O ≤0.5 Sb 2 O 3 + As 2 O 3 ≤ 1.5 B 2 O 3 < 5 Al 2 O 3 < 15 PbO 0-10 CaO 0-20 BaO 0-40 MgO 0-10 ZnO 0-25 totally 20-50 CdO 0-35 SrO 0-30 Bi 2 O 3 0-30

on the understanding, however, that the requirement is also satisfied, that -5 × 10 -6 i α i x i < +5 × 10 -6 , where α i is the factor for the temperature coefficient of the rate of propagation in the range of 20° to 70° C for the oxidic component i and x i is the molar fraction in which said component is present in the glass.

During the experiments which led to the invention it was found that the temperature coefficient of the rate of propagation of acoustic shear waves is an additive quantity with respect to said quantity for the free oxidic components. In order that the temperature coefficient of the delay line be substantially zero, the above condition should be fulfilled. Within the above-mentioned range of compositions, only those glasses may be used as a delay medium in ultrasonic delay lines for the above-mentioned purposes in which the said condition is fulfilled without having to use additive ancillary means which have for their object to improve a delay line the temperature coefficient of which is not equal to zero, for example, by the combination with an electric transit time line the temperature coefficient of which is equal to but opposite to that of the glass delay line.

In the following Table I the values of the factors α i are listed for the oxides to be considered.

TABLE I

Oxide i α i + 10 6 SiO 2 - 100 B 2 O 3 - 90 Al 2 O 3 + 180 ZnO +165 PbO +285 CaO +340 BaO +350 MgO +325 CdO +210 Bi 2 O 3 + 350 SrO + 350 K 2 O +300

as 2 O 3 and Sb 2 O 3 may be neglected in the calculation. The accuracy of the value of the temperature coefficient calculated by means of the formula is such that for glasses which have been cooled at a rate of approximately 1° C per minute from the highest annealing temperature or 50° C above said temperature said value does not differ from the experimentally determined value of the temperature coefficient more than ±5 × 10 -6 /° C over the temperature range of 20° - 70° C. With a desired greater accuracy a quantity of one or more components, starting from a previously chosen composition, may be varied until the desired value of the temperature coefficient has been reached. As a rule the desired value for glasses which are used as an acoustic medium will be equal to or substantially equal to zero but in some cases a value differing slightly from zero is desirable in order to obtain an optimum action of the delay line in a temperature range other than the said range of 20° to 70° C or to compensate for the temperature coefficient of the transducers and/or other components of the associated electric circuit. Alternatively, a different manner of cooling may result in a slightly differing value of the temperature coefficient.

The glasses according to the invention for the present use and a good stability, that is to say that the above-mentioned hysteresis effects do not occur to any inconvenient extent also after prolonged use.

Whereas for most of the known glasses the delay time τ in accordance with temperature has an approximately parabolic variation:

(Δτ)/τ = c . (T - T o ) 2

in the temperature range in which │T-T o │ ≤50° C and in which c is approximately +0.04 × 10 -6 /(° C) 2 , the value of c for a large number of glasses according to the invention is only +0.02 × 10 -6 /(° C) 2 , so that the constancy of the delay time as a function of the temperature for these glasses is still larger than for the known types of glass.

The rate of propagation of acoustic shear waves varies for the glasses with compositions within the range according to the invention from 2,800 to 3,500 m/sec. These values are somewhat higher than the above-mentioned known glasses (2,400-2,600 m/sec.) which means that for the same delay time a proportionally larger length of the acoustic beam is necessary. For delay lines having a small delay time of, for example, 64 μsec., however, that is no objection.

A preferred range of compositions is determined by the following limits (also in percent by weight).

SiO 2 60-70 K 2 O+Na 2 O 2-6 Na 2 O ≤0.5 Sb 2 O 3 +As 2 O 3 ≤ 1.5 B 2 O 3 < 5 Al 2 O 3 < 15 PbO 0-5 CaO 0-10 BaO 0-25 MgO 0-5 together 25-38 i.e., the remainder not less than 25 ZnO 0-15 CdO 0-20 SrO 0-15 Bi 2 O 3 0-20

a few examples of glass types which are used according to the invention as a delay medium in an acoustic delay line are the following which are stated in mol. percent and in wt. percent. Stated are the following properties: the average temperature coefficient TC = (Δτ)/(TΔT) in the temperature range of 20° - 70° C in 10 -6 per ° C, the variation (ΔTC) at 20° C of the temperature coefficient in 10 -6 per ° C after a cooling treatment in which the glass is heated from room temperature to 50° C above the annealing temperature of the glass and is then cooled to room temperature at a rate of 1 1/2° C per minute compared with that of the glass in which it is cooled at a rate of approximately 100° C per minute and the value of the constant c from the above formula in 10 -8 per (° C) 2 . ------------------------------------------------------------ --------------- TABLE II

1 2 3 4 Mol Wt. Mol Wt. Mol Wt. Mol Wt. % % % % % % % % ____________________________________________________________ ______________ SiO 2 63.7 69.2 54.3 67.0 62.0 72.9 60.7 B 2 O 3 3.0 2.7 3.0 3.2 Al 2 O 3 5.0 6.7 5.0 7.9 K 2 O2.5 3.4 2.5 3.1 2.5 3.6 2.5 3.3 PbO CaO 7.9 6.4 5.0 4.3 5.0 3.9 BaO 7.7 16.9 12.1 24.2 6.5 13.8 ZnO 7.7 9.0 8.0 8.5 12.3 15.3 7.9 8.9 MgO 5.0 3.1 CdO 5.0 8.9 As 2 O 3 0.2 0.6 0.2 0.5 0.2 0.6 0.2 0.5 ____________________________________________________________ ______________ TC 0 ± 1 0 ± 1 0 ± 1 0 ± 1 ΔTC 4 3 6 6 c. 3 3 4 3 ____________________________________________________________ ______________ ____________________________________________________________ ______________ 5 6 7 8 Mol Wt. Mol Wt. Mol Wt. Mol Wt. % % % % % % % % ____________________________________________________________ ______________ SiO 2 53.9 73.3 58.5 70.1 60.7 72.6 62.5 B 2 O 5 5.0 5.1 Al 2 O 3 5.0 7.4 K 2 O2.5 2.8 2.5 3.1 2.5 3.4 2.5 3.4 PbO CaO 5.0 3.3 5.0 4.0 7.0 5.6 BaO 5.5 9.9 11.0 22.4 7.2 15.9 7.0 15.4 ZnO 8.0 8.6 10.7 12.5 MgO 5.0 2.3 5.0 2.9 SrO 5.0 6.9 Bi 2 O 3 5.0 27.3 As 2 O 3 0.2 0.5 0.2 0.5 0.2 0.6 0.2 0.6 ____________________________________________________________ ______________ TC 0 ± 1 0 ± 1 0 ± 1 0 ± 1 ΔTC 6 3 3 5 c. 2 3 2 3 ____________________________________________________________ ______________

No comments:

Post a Comment

The most important thing to remember about the Comment Rules is this:
The determination of whether any comment is in compliance is at the sole discretion of this blog’s owner.

Comments on this blog may be blocked or deleted at any time.
Fair people are getting fair reply. Spam and useless crap and filthy comments / scrapers / observations goes all directly to My Private HELL without even appearing in public !!!

The fact that a comment is permitted in no way constitutes an endorsement of any view expressed, fact alleged, or link provided in that comment by the administrator of this site.
This means that there may be a delay between the submission and the eventual appearance of your comment.

Requiring blog comments to obey well-defined rules does not infringe on the free speech of commenters.

Resisting the tide of post-modernity may be difficult, but I will attempt it anyway.

Your choice.........Live or DIE.
That indeed is where your liberty lies.

Note: Only a member of this blog may post a comment.
