The SCHNEIDER DTV5535 DIGITAL PROFI CONCEPT 55 is the first digital TELEVISION developed by Schneider using the DIGIVISION ITT technology and they called it the DIGITECH 2000 series.
The SCHNEIDER DTV1 CHASSIS is developed completely at SCHNEIDER based around DIGIVISION ITT DIGIT2000 chipset, and was fitted from 21 to 32 inches color television sets.
ITT Semiconductors in W. Germany have been working on the application of digital techniques to basic TV receiver signal processing since 1977 with the supervision of the Engineer Micic Ljubomir, and at the recent Berlin Radio Show presented a set of digital chips for processing the video, audio and deflection signals in a TV receiver. The set consists of a' couple of l.s.i. and six v.l.s.i. chips - and by very large scale integration (v.l.s.i.) we're talking about chips that contain some more 200,000 transistors. What are the advantages?
For the setmaker, there's reduction in the component count and simpler, automated receiver alignment - alignment data is simply fed into a programmable memory in the receiver, which then adjusts itself. Subsequently, the use of feedback enables the set to maintain its performance as it ages. From the user's viewpoint, the advantages are improved performance and the fact that extra features such as picture -within -a -picture (two pictures on the screen at the same time) and still pictures become relatively simple to incorporate. The disadvantage of course is the need for a lot of extra circuitry. Since the received signals remain in analogue form, analogue -to -digital conversion is required before signal processing is undertaken. As the c.r.t. requires analogue drive signals, digital -to -analogue conversion is required prior to the RGB output stages - the situation is somewhat different in the timebase and audio departments, since the line drive is basically digital anyway and class D amplifier techniques can be used in the field and audio output stages. In between the A -D conversion and the various output stages, handling the signals in digital form calls for much more elaborate circuitry - hence those chips with 200,000 or so transistors. The extra circuitry is all incorporated within a handful of chips of course, but the big question is if and when the use of these chips will become an economic proposition, taking into account reduced receiver assembly/setting up costs, compared to the use of the present analogue technology - after all, colour receiver component counts are already very low. With the present digital technology, it's not feasible to convert the signals to digital form at i.f. So conversion takes place following video and sound demodulation. Fig. 1 shows in simple block diagram form the basic video and deflection signal processing arrangement used in the system devised by ITT Semiconductors. Before going into detail, two basic points have to be considered - the rate at which the incoming analogue signals are sampled for conversion to digital form, and the number of digits required for signal coding. Consider the example shown in Fig. 2. At both (a) and (b) the signals are sampled at times Ti, T2 etc. In (a) the signal is changing at a much faster rate than the sampling rate. So very little of the signal information would be present in the samples. In (b) the rate at which the signal is changing is much slower, and since the sampling rate is the same the samples will contain the signal information accurately. In practice, the sampling rate has to be at least twice the bandwidth of the signal being sampled. Once you've got your samples, the next question is how many digits are required for adequate resolution of the signal, i.e. how many steps are required on the vertical (signal level) scale in Fig. 2 The use of a four -digit code, i.e. 0000, 0001 etc., gives 16 possible signal levels. Doubling the number of digits to eight gives 256 signal levels and so on. ITT's experience shows that the luminance signal requires 8 bits (digits), the colour -difference signals require 6 bits, the audio signal requires 12 bits (14 for hi-fi quality) while 13 bits are required for a linear horizontal scan on a 26inch tube. These digital signals are handled as parallel data streams in the subsequent signal processing. Returning to Fig. 1, the A -D and D -A conversion required in the video channel is carried out by a single chip which ITT call the video codec (coder/decoder). A clock pulse generator i.c. is required to produce the various pulse trains necessary for the digital signal processing, and a control i.c. is used to act as a computer for the whole digital system and also to provide interfacing to enable the external controls (brightness, volume, colour etc.) to produce the desired effects. In addition, the control i.c. incorporates the digital channel selection system. The video codec i.c. uses parallel A-D/D-A conversion, i.e. a string of voltage comparators connected in parallel. This system places a high premium on the number of bits used to code the signal in digital form, so ITT have devised a technique of biasing the converter to achieve 8 -bit resolution using only 7 bits (the viewer's eye does some averaging on alternate lines, as with Simple PAL, but this time averaging luminance levels). The A -D comparators provide grey -encoded outputs, so the first stage in the video processor i.c. is a grey -to -binary transcoder. As Fig. 3 shows, the processes carried out in the video processor i.c. then follow the normal practice, though everything's done in digital form. The key to this processing is the use of digital filters. These are clocked at rates up to 18MHz, and provide delays, addition and multiplication. The glass chroma delay line required for PAL decoding in a conventional analogue decoder consists of blocks of RAM (random-access memory) occupying only three square millimeters of chip area each. As an example of the ingenuity of the ITT design, the digital delay line used for chroma signal averaging/separation in the PAL system is used in the NTSC version of the chip as a luminance/chrominance signal separating comb filter. Fig. 4 shows the basic processes carried out in the deflection processor i.c. This employs the sorts of techniques we're becoming used to in the latest generation of sync processor i.c.s. Digital video goes in, and the main outputs consist of a horizontal drive pulse plus drives to the field output and EW modulator circuits. The latter are produced by a pulse -width modulator arrangement, i.e. the sort of thing employed with class D output stages. The necessary gating and blanking pulses are also provided. A further chip provides audio signal processing. One might wonder why the relatively simple audio department calls for this sort of treatment. The W. German networks are already equipping themselves for dual -channel sound however, and the audio processor i.c. contains the circuitry required to sort out the two -carrier sound signals. These chips represent a major step in digitalizing the domestic TV receiver. It seems likely that some enterprising setmaker will in due course announce a "digital TV set". The interesting point then will be whether the chip yields, and the chip prices as production increases, will eventually make it worthwhile for all setmakers to follow this path (in 1984).
All previously types were analog chassis technology (TV1 TV2.....) and since SCHNEIDER have had a very brief TV manufacturing history these are even quite rare and not sold much.
The SCHNEIDER DTV5535 DIGITAL PROFI CONCEPT 55 is a DIGITAL Colour television receiver or set , are known in which the majority of signal processing that takes place therein is carried out digitally. That is, a video or television signal is received in a conventional fashion using a known analog tuning circuit and then, following the tuning operation, the received analog television signal is converted into a digital signal and digitally processed before subsequently being converted back to an analog signal for display on a colour cathode ray tube.
In a conventional television receiver, all signals are analog-processed. Analog signal processing, however, has the problems at the video stage and thereafter. These problems stem from the general drawbacks of analog signal processing with regard to time-base operation, specifically, incomplete Y/C separation (which causes cross color and dot interference), various types of problems resulting in low picture quality, and low precision of synchronization. Furthermore, from the viewpoints of cost and ease of manufacturing the analog circuit, a hybrid configuration must be employed even if the main circuit comprises an IC. In addition to these disadvantages, many adjustments must be performed.
In order to solve the above problems, it is proposed to process all signals in a digital form from the video stage to the chrominance signal demodulation stage. In such a digital television receiver, various improvements in picture quality should result due to the advantages of digital signal processing.
Therefore digital television signal processing system introduced in 1984 by the Worldwide Semiconductor Group (Freiburg, West Germany) of International Telephone and Telegraph Corporation is described in an ITT Corporation publication titled "VLSI Digital TV System--DIGIT 2000." In that system color video signals, after being processed in digital (binary) form, are converted to analog form by means of digital-to-analog converters before being coupled to an image displaying kinescope. The analog color video signals are coupled to the kinescope via analog buffer amplifiers and video output kinescope driver amplifiers which provide video output signals at a high level suitable for driving intensity control electrodes of the kinescope.
The SCHNEIDER DTV5535 DIGITAL PROFI CONCEPT 55 Is a multistandard set and relates to a digital multistandard decoder for video signals and to a method for decoding video signals.
Colour video signals, so-called composite video, blanking and sync signals (CVBS) are essentially composed of a brightness signal or luminance component (Y), two colour difference signals or chrominance components (U, V or I, Q), vertical and horizontal sync signals (VS, HS) and a blanking signal (BL).
The different coding processes, e.g. NTSC, PAL and SECAM, introduced into the known colour television standards, differ in the nature of the chrominance transmission and in particular the different systems make use of different colour subcarrier frequencies and different line frequencies.
The following explanations relate to the PAL and NTSC systems, but correspondingly apply to video signals of other standards and non-standardized signals.
The colour subcarrier frequency (fsc) of a PAL system and a NTSC system is fsc(NTSC) = 3.58 MHz or fsc(PAL) = 4.43 MHz.
In addition, in PAL and NTSC systems the relationships of the colour subcarrier frequency (fsc) to the line frequency (fh) are given by fsc(NTSC) = 227.50 * fh or 4•fsc(NTSC) = 910 • fh fsc(PAL) = 283.75 * fh or 4•fsc(PAL) = 1135 • fh so that the phase of the colour subcarrier in the case of NTSC is changed by 180°/line and in PAL by 270°/line.
In the case of digital video signal processing and decoding the prior art fundamentally distinguishes between two system architectures. These are the burst-locked architecture and the line-locked architecture, i.e. systems which operate with sampling frequencies for the video signal, which are produced in phase-locked manner to the colour subcarrier frequency transmitted with the burst pulse or in phase-locked manner with the line frequency, respectively.
The principal advantage of the present invention is a color television receiver is provided having a fully digital color demodulator wherein the luminance signal and the chrominance signals are separated and digitally processed prior to being converted to analog signals in that the all-digital signal processing largely eliminates the need for nonintegratable circuit elements, i.e., particularly coils and capacitors, and that the subcircuits can be preferably implemented using integrated insulated-gate field-effect transistor circuits, i.e., so-called MOS technology. This technology is better suited for implementing digital circuits than the so-called bipolar technology.
The SCHNEIDER DTV5535 DIGITAL PROFI CONCEPT 55 is a multisound tv digital sound processing.
It has a DTI.(dti digital transient improvement pertains to a circuit for steepening color-signal transitions in color television receivers or the like particularly in DIGIVISION DIGIT2000 . ) circuit arrangement designed for use in digital color-television receivers or the like and contains for each of the two digital color-difference signals a slope detector to which both a digital signal defining an amplitude threshold value and a digital signal defining a time threshold value are applied. At least one intermediate value occurring during an edge to be steepened is stored, and at the same time value of the steepened edge, it is "inserted" into the latter.
The bandwidth of the color-difference channel is very small compared with the bandwidth of the luminance channel, namely only about 1/5 that of the luminance channel in the television standards now in use. This narrow bandwidth leads to blurred color transitions ("color edging") in case of sudden color-signal changes, e.g., at the edges of the usual color-bar test signal, because, compared with the associated luminance-signal transition, an approximately fivefold duration of the color-signal transition results from the narrow transmission bandwidth.
In the prior circuit arrangement, the relatively slowly rising color-signal edges are steepened by suitably delaying the color-difference signals and the luminance signal and steepening the edges of the color-difference signals at the end of the delay by suitable analog circuits. The color-difference signals and the luminance signal are present and processed in analog form as usual. This circuit arrangement is designed for use in digital color-television receivers or the like and contains for each of the two digital color-difference signals a slope detector to which both a digital signal defining an amplitude threshold value and a digital signal defining a time threshold value are applied. At least one intermediate value occurring during an edge to be steepened is stored, and at the same time value of the steepened edge, it is "inserted" into the latter. This is done by means of memories, switches, output registers, and a sequence controller.
ADVANTAGE - Increased picture sharpness and highly improved signal-to-noise ratio.

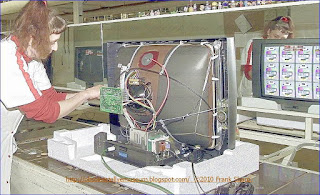

SCHNEIDER has started production of TV in 1982-83 and ceased the production in the 2005.
The set here in collection is a 21 inches with 110° degree CRT TUBE and it's stereo , multistandard all features digital television.
AV SCART SOCKET IS present and headphones stereo jack too.
The set is featuring the DIGIVISION ITT technology but the chassis design is developed by SCHNEIDER itself with a 2 board concept design, Power board + Signal processing board.
Schneider Rundfunkwerke AG
The company has it's roots in a company founded by Felix Schneider in 1889 in Türkheim in Swabia, Germany, that manufactured industrial woodworking machinery. The company entered the audio business in 1965 by starting the manufacture of radios cabinets etc. and moved into the manufacture of other Brown Goods soon thereafter and became in particular associated with music systems in the 70's and 80's. The Schneider company was unusual for West German companies at the time in that they focused squarely on the manufacture of low budget & value products, while the rest of the electronics sector was increasingly focused on higher priced products in response to the ever increasing valuation of the German Mark. Entered the computer market in 1984 when they started marketing Amstrad computers under their own name in central Europe, initially with notable success, but split up with Amstrad in 1987 when they rejected to distribute the AT compatible computers that the latter company was introducing at the time as they thought they where unsellable, but rather decided to hire the entire European design team from Commodore that had been responsible for designing the PC compatible designs Commodore had introduced a couple of years earlier in addition to the Amiga 2000. This resulted in the introduction of the Euro-PC line of computers in late 1988, an interesting designs in some respects, for instance the first PC compatible that had all hardware I/O and set-up functions controlled by the BIOS configuration program rather than having to open the computer and move jumpers around, another unusual BIOS related feature is that you could start the configuration program anytime, even when the OS was running, although innovative this line was not a resounding success but it did pave the way for Schneider to become one of the larger European computer OEM's in the 1990's. The company bought the trademark, product lines and factories of the Dual company from Thomson in 1988, this was not primarily to get the product lines but rather it appears to be in response to the need for a new trademark for some European markets, notably France, were the Schneider brand was either owned by local companies or there where very well known companies with that name operating in other business sectors. The old Dual factory in St. Georgen was closed down in 1993 after sales of turntables tumbled and the manufacture of the turntable lineup was taken over by Alfred Fehrenbacher but they are located in the same town as the original Dual Co., the Dual trademark was licensed to the Karstad retail chain in 1996 but by that time Schneider was only using the trademark in France one on hand and for record players internationally. The company's name was changed to Schneider Electronics AG at some time in the 1990's and different operations where organised into independently run divisions. In the latter years it was perhaps best known locally as a manufacturer of low and mid range televisions and video recorders but they had started manufacturing those in 1983 but in the early 1990's the Schneider Technologies AG subsidary developed some innovative TV's for professional usage, the most interesting of these being the laser TV which was based around a solid state RGB laser gun developed in conjunction with Jenoptik, this allows for huge screens without the usual multi screen/projector setups or the lack of brightness usually associated with projectors. Worsening trade conditions in the late 90's however meant that the company declared itself bankrupt on January 26 2002, TCL International Holdings bought production facilities, stocks and trademarks for 8,2 million € in September 2002 and used those to form a new company called Schneider Electronics GmbH.
Die SCHNEIDER Technologies Aktiengesellschaft (vormals Schneider-Rundfunkwerke AG) war ein Hersteller von Unterhaltungselektronik und Computern in Türkheim.
Die Geschichte der Schneider-Rundfunkwerke AG geht zurück auf das Jahr 1889. Felix Schneider begann in Türkheim im Unterallgäu mit der Fabrikation von Holzwaschmaschinen.
Werbesticker der „Schneider Computer Division“ aus den 1990ern
Auf die Produktion von Unterhaltungselektronik stellte die Firma unter Firmenchef Leo Schneider 1965 um, als die ersten Musikschränke produziert wurden. Weitere Meilensteine in der Produktentwicklung waren 1971 Musik-Kompaktanlagen und 1983 TV-Geräte mit eigenem Chassis. Weitere Innovationen wie ein 500-Seiten-Speed-Videotext, der Prime Timer und Laser-TV folgten. Im Sommer 1996 stellte Schneider die Produktion im Zweigwerk in Nersingen-Straß ein.Im Glanz vergangener Tage kann sich die deutsche Unterhaltungselektronik nicht mehr sonnen. Die Gegenwart ist ernüchternd. Heute kommen nicht einmal zehn Prozent der Fernseher, die hierzulande verkauft werden, aus deutschen Werken. Den Markt dominieren Firmen wie Samsung und LG. Vor zehn Jahren haben die Asiaten die Branche mit Flachbildschirmen revolutioniert, während die Deutschen noch an der Röhre festhielten. Nun setzen sie mit Billigpreisen Maßstäbe – auch weil sie unter viel günstigeren (Lohn-)Bedingungen produzieren. Ein Standortvorteil, der deutsche Herstellern wie ein Keulenschlag trifft. Markengeräte mit einem Meter Bildschirmdiagonale, die in Elektromärkten für 369 Euro verkauft werden, sind keine Seltenheit.
2002 stellte Schneider einen Insolvenzantrag, und im Oktober 2002 wurden die Produktionsanlagen in Türkheim, Warenbestände und die Schneider-Markenrechte an den chinesischen Elektronikkonzern TCL verkauft. 2004 fusionierte dann TCL mit dem französischen Thomson-Konzern zum weltgrößten Hersteller von TV-Geräten. Als Ende Januar 2005 die Produktion eingestellt wurde, arbeiteten noch 120 Mitarbeiter im Werk Türkheim.
Martin Runge kritisierte als wirtschaftspolitischer Sprecher der GRÜNEN-Landtagsfraktion den zuständigen Minister Wiesheu:
"...Die „Sanierungsaktivitäten" von Staatsregierung und LfA, der landeseigenen Förderbank, waren so angelegt, dass sie von Anfang an keinen Gewinn für das Unternehmen und seine Mitarbeiter bringen konnten. Im Gegenteil: Staatsregierung und LfA sind mitverantwortlich am Niedergang und an der Zerschlagung der Schneider Technologies AG und ihrer Töchter Schneider Electronics AG und Schneider Laser Technologies AG... "
Das ehemalige Werksgelände in Türkheim wurde von einem Speditionsunternehmen aufgekauft, und im Sommer 2006 wurde mit der Demontage des Schneider-Schriftzuges die Ära der Schneider-Rundfunkwerke AG in Türkheim endgültig beendet.
