THOMSON 29DF45E "SCENIUM" YEAR 2000.

THE THOMSON  29DF45E  "SCENIUM"  WAS a Top High end television set with high number of features; digital scan converter means including field-memory means supplied with an input video signal of an interlaced television system having a selected plurality of fields per second different from PHILIPS 100HZ scan system.
The television receiver has an alphanumeric display  which appears on the picture tube screen, to give the user data on the tuned channel number, colour settings and other operating data. The digital processor which generates the characters for display also controls the channel setting, etc., under the control of a digital remote control unit . The processor  has an associated memory circuit  for permanente tuning back up. The control of the capacitance diode tuner  is achieved by the processor  altering the dividing factor of a feedback loop to a phase/frequency comparator . The other input to the comparator is a divided frequency from a quartz oscillator.The present invention concerns a television system with apparatus for controlling a relatively large number of functions and characteristics with only a relatively small number of control devices.

Television receivers have a relatively large number of functions that are controllable by the user. Typically, these include turning the receiver on and off, selecting channels, setting the volume level and adjusting certain picture characteristics such as brightness, contrast sharpness (sometimes called "peaking"), color level (or saturation) and color tint (or hue) and in television receivers with stereo sound provisions, adjusting certain audio characters such as balance, treble and bass. In addition, with the increased use of digital signal processing and microprocessors, a large number of other control functions have become economically practical. Often a control device is provided for each function or characteristic.

In the case of television receivers with analog signal processing systems, potentiometers are provided for adjusting respective picture and audio characteristics in both increasing and decreasing senses. However, in television receivers with digital signal processing systems it is anticipated that each of these potentiometers may be replaced by two pushbutton switches for digitally causing the respective characteristic to be increased or decreased. Therefore it is anticipated that a digital television receiver will require even more control devices than a comparable analog receiver.

It is desirable for cost and for human engineering reasons to limit the number of user operable control devices. Thus, there has been the desire to provide control apparatus for controlling a large number of functions and characteristics of a television receiver with only a few control devices.

In the past, attempts to make multiple use of switches for controlling various functions in order to limit the number of control devices have been confusing to users. Thus, there exists a need for plural-function and characteristic control apparatus in which multiple use is made of control devices with little or no confusion to users.

In accordance with a feature of the present invention, in a television system, a programming switch and a plurality of switches identified by respective symbols such as numbers, the latter being normally used for channel or television signal source selection, are used to select various functions of a receiver for control. When the programming switch is operated by a user, a character generator produces signals for displaying a list or menu of various receiver control functions, such as the controlling of the picture and audio responses on an image reproducing device associated with the television system. In the menu, each one of the functions is identified by one of the symbols associated with the signal source selection switches. Thereafter, a particular one of the functions displayed on the menu can be selected for control by operation of the corresponding signal source selection switch.

In accordance with another aspect of the invention, after a particular function has been selected for control, a list or menu of characteristics of the selected function, such as brightness, contrast, sharpness, color level and color tint characteristics of the picture response is caused to be displayed. In the menu, each of the functions is identified by one of the symbols associated with the signal source selection switches. Thereafter, a particular one of the characteristics displayed on the menu can be selected for adjustment by operation of the corresponding signal source selection switch. After a characteristic has been selected for control, positive and negative sense adjustment switches common to all the characteristics can be operated to adjust the selected characteristic.

The   THOMSON  29DF45E  "SCENIUM"    is A 100HZ frame rate TELEVISION In a known arrangement, the frame rate of a television signal is doubled by using a field store. In a first operating mode, each field of the television signal is entered into the field store in this arrangement and read out twice at twice the frequency. In a second mode, only every second field is entered into the field store and read out four times at twice the frequency. In an arrangement for converting an original picture signal representing a sequence of frames, each of which is composed of two interlaced fields, into a converted picture signal which has a double field frequency with respect to the original picture signal, is for doubling the field frequency, for the purpose of noise reduction, motion compensation and line flicker reduction.

 The THOMSON  29DF45E  "SCENIUM"    features also Beam Scan Velocity modulation.
When the phosphor screen of a video signal reproducing apparatus, such as, the screen of the cathode ray tube in a television receiver, is scanned by an electron beam or beams so as to form a picture or image on the screen, the beam current varies with the luminance or brightness level of the input video signal. Therefore, each electron beam forms on the phosphor screen a beam spot whose size is larger at high brightness levels than at low brightness levels of the image so that sharpness of the reproduced picture is deteriorated, particularly at the demarcation between bright and dark portions or areas of the picture. Further, when a beam scanning the screen in the line-scanning direction moves across the demaraction or edge between dark and bright areas of the picture, for example, black and white areas, respectively, the frequency response of the receiver does not permit the beam intensity to change instantly from the low level characteristic of the black area to the high level characteristic of the white area. Therefore, the sharpness of the reproduced image is degraded at portions of the image where sudden changes in brightness occur in response to transient changes in the luminance or brightness of the video signal being reproduced. The increase in the beam current and in the beam spot size for bright portions of the reproduced picture or image and the inadequate frequency response of the television receiver to sudden changes in the brightness or luminance level of the incomming video signal are additive in respect to the degradation of the horizontal sharpness of the reproduced image or picture.
It is well known that an improvement in apparent picture resolution can be achieved by modulating the beam scan velocity in accordance with the derivative of the video signal which controls the beam intensity. This video signal is referred to as the luminance signal and the derivative of the luminance signal is employed for such control. An advantage of this method over a peaking approach to picture sharpness enhancement is the avoidance of blooming of peaked white picture elements.

Advanced osd is present for all functions (Inclusive nice Service features.)On screen display (OSD) arrangements employed in video processing systems include a switching (or "multiplexing") network for switching between graphic image representative signals and normal video signals so that a graphic image can be displayed on the screen of a picture reproduction device either in place of the image represented by the video signals or together with (inserted in) the image. The graphic image can take the form of alphanumeric symbols or-pictorial graphics, and can be used to indicate status information, such as channel numbers or time, or operating instructions.

In an OSD arrangement for use in an analog video signal processing system, the multiplexing network typically operates to switch in levels corresponding to the desired intensity of respective portions of the graphic image at the time the graphic image portions are to be displayed. In such an arrangement the graphic image representative signals take the form of timing pulses which occur when the graphic image portions are to be displayed and are used to control the multiplexing network. Such an analog OSD arrangement can also be used in a digital video processing system, but requires that the video signals be first converted to analog form. While digital video signal processing systems typically include a digital-to-analog converter section in which the digital video signals are converted to analog form, it may be more cost effective for the OSD arrangement to be incorporated as an integral part of the digital video processing section.

Teletext is a television-based communication technique in which a given horizontal video line is utilized for broadcasting textual and graphical information encoded in a digital binary representation. Such horizontal video line signal that contains teletext data is referred to herein as a Data-line. It is assumed herein, for explanation purposes, that teletext is sent by the broadcaster only during the vertical blanking interval (VBI), when no other picture information is sent. The organization of the binary information in the broadcast signal is determined by the standard employed by the broadcaster. By way of an example only, references are made herein to a teletext based on a standard referred to by the British Broadcasting Corporation (BBC) as CEEFAX.

Each Data-line carries data synchronizing and address information and the codes for a Row of 40 characters. The synchronizing information includes a clock run-in sequence followed by an 8-bit framing code sequence. Each Data-line contains a 3 bit code referred to as the Magazine number. A teletext Page includes 24 Rows of 40 characters, including a special top Row called the Page-Header. Each ROW is contained in a corresponding Data-line. A user selected Page is intended to be displayed in place of, or added to a corresponding television picture frame. A Magazine is defined to include Pages having Data-lines containing a corresponding Magazine number. The transmission of a selected Page begins with, and includes its Page Header and ends with and excludes the next Page Header of the selected Magazine number. All intermediate Data lines carrying the selected Magazine number relate to the selected Page.

The set has even Digital Audio DOLBY NR feature, and AV SCART socket and stereo headphones jack.

It has heretofore been known that, in order to improve the S/N (signal-to-noise) ratio of certain specified transmission systems or specified recording/playback systems, a noise reduction system including a signal compressor and a signal expander is used for the system.

In particular, a noise reduction system wherein the circuit constituent parts of a signal compressor and those of a signal expander are shared and wherein the function of the signal compressor and that of the signal expander can be changed-over by transferring a mode switch has been proposed in the "Journal of the Society of Electronic and Radio Technicians", Vol. 8, May/June 1974. The switchable signal compressor/signal expander of this type is well known to those in the art as the "Dolby B-type Noise Reduction System"

 A SCART Connector (which stands for Syndicat des Constructeurs d'Appareils Radiorécepteurs et Téléviseurs) is a standard for connecting audio-visual equipment together. The official standard for SCART is CENELEC document number EN 50049-1. SCART is also known as Péritel (especially in France) and Euroconnector but the name SCART will be used exclusively herein. The standard defines a 21-pin connector (herein after a SCART connector) for carrying analog television signals. Various pieces of equipment may be connected by cables having a plug fitting the SCART connectors. Television apparatuses commonly include one or more SCART connectors.
 Although a SCART connector is bidirectional, the present invention is concerned with the use of a SCART connector as an input connector for receiving signals into a television apparatus. A SCART connector can receive input television signals either in an RGB format in which the red, green and blue signals are received on Pins 15, 11 and 7, respectively, or alternatively in an S-Video format in which the luminance (Y) and chroma (C) signals are received on Pins 20 and 15. As a result of the common usage of Pin 15 in accordance with the SCART standard, a SCART connector cannot receive input television signals in an RGB format and in an S-Video format at the same time.

 Consequently many commercially available television apparatuses include a separate SCART connectors each dedicated to receive input television signals in one of an RGB format and an S-Video format. This limits the functionality of the SCART connectors. In practical terms, the number of SCART connectors which can be provided on a television apparatus is limited by cost and space considerations. However, different users wish the input a wide range of different combinations of formats of television signals, depending on the equipment they personally own and use. However, the provision of SCART connectors dedicated to input television signals in one of an RGB format and an S-Video format limits the overall connectivity of the television apparatus. Furthermore, for many users the different RGB format and S-Video format are confusing. Some users may not understand or may mistake the format of a television signal being supplied on a given cable from a given piece of equipment. This can result in the supply of input television signals of an inappropriate format for the SCART connector concerned.

Attaining optimal sound quality in surround sound or multi-channel sound systems, over the largest possible listening area, can be quite challenging. Some of the difficulties in achieving optimal sound quality in such systems result from the fact that a wide variety of different surround sound and multi-channel audio formats and speaker configurations exist, so that a particular sound system may have reasonably acceptable sound with respect to one or perhaps two audio formats yet sub-optimal sound with respect to other audio formats. Therefore, where a consumer desires, for example, to use a single sound system to play sound recordings in a variety of different formats, different levels of sound quality, some of which are poor or impaired, are likely to be experienced. While the user can adjust speaker positioning or relative balances to try to improve sound quality, such techniques may involve significant manual effort or inconvenience, may be hard to reproduce consistently, and may benefit only one or perhaps a few listeners in a relatively small portion of the listening area.



TV signals are defined primarily the National Television Standards Committee (NTSC), the Phase Alternative Line (PAL) or the Sequential Couleur Avec Memoire (SECAM) systems, and used in different countries around the world. An analog TV signal utilizes mainly two or three RF carriers, combined in the same channel band. One carrier may commonly be amplitude modulated (AM) with video content, and the other may be frequency modulated (FM) and/or amplitude modulated (AM) with audio content. An analog TV receiver functions by performing a series of operations comprising adjusting the signal power, separating the video and audio carriers, and locking to each carrier in order to down-convert the signals to baseband. The baseband video signal may then be decoded and displayed by achieving horizontal and vertical synchronization and extracting the luminance and color information. After demodulating the received signal, the resulting baseband audio may be decoded, and left, right, surround channels and/or other information may be extracted.
 - The  THOMSON  29DF45E  "SCENIUM"    Features a multistandard PAL/SECAM/NTSC 3.58 & 4.43 CCIR B/G/H/I/L/D/K/M. The different coding processes, e.g. NTSC, PAL and SECAM, introduced into the known colour television standards, differ in the nature of the chrominance transmission and in particular the different systems make use of different colour subcarrier frequencies and different line frequencies.

The following explanations relate to the PAL and NTSC systems, but correspondingly apply to video signals of other standards and non-standardized signals.
The colour subcarrier frequency (fsc) of a PAL system and a NTSC system is fsc(NTSC) = 3.58 MHz or fsc(PAL) = 4.43 MHz.
In addition, in PAL and NTSC systems the relationships of the colour subcarrier frequency (fsc) to the line frequency (fh) are given by fsc(NTSC) = 227.50 * fh or 4•fsc(NTSC) = 910 • fh fsc(PAL) = 283.75 * fh or 4•fsc(PAL) = 1135 • fh so that the phase of the colour subcarrier in the case of NTSC is changed by 180°/line and in PAL by 270°/line.

The invention relates to a digital multistandard decoder for video signals and to a method for decoding video signals. Colour video signals, so-called composite video, blanking and sync signals (CVBS) (chroma-video-blanking-sync) signal is a signal comprising both the chrominance and the luminance component of the video signal. Therefore, the CVBS video signal may be PAL video signal, a SECAM video signal, or an NTSC video signal. are essentially composed of a brightness signal or luminance component (Y), two colour difference signals or chrominance components (U, V or I, Q), vertical and horizontal sync signals (VS, HS) and a blanking signal (BL).

In order to decode a video signal and restore a color image, a color TV set has to identify the color TV standard used at the emission. Conventional color TV sets are equipped with a system for automatically identifying the norm or standard of the color TV set used for the emission. The invention more particularly relates to an automatic method for identifying a color TV standard in a multistandard TV set.

Presently, the most commonly used color TV standards are PAL, NTSC and SECAM standards. For these three standards, each line of the composite video signal comprises a synchronization pulse, a burst of a few oscillations of the chrominance sub-carrier signal, then the signal itself corresponding to the image, comprising superimposed luminance and chrominance information, the latter information being carried by the luminance signal.

The characteristics of the chrominance sub-carrier in the various PAL, NTSC and SECAM standards are defined in the published documents concerning these standards and will not be described in detail here. However, the main characteristics of these various standards will be briefly reminded because these indications are useful for a better understanding of the invention.

In the PAL standard, the frequency of the chrominance sub-carrier is equal for all the lines, but the phase of one of the modulation vectors varies + or -90° from one line to another. The frequency of the chrominance sub-carrier is standardized at 4.43 Mhz. In this system, the burst signal is also shifted by + or -90° from one line to the next.

In the NTSC standard, the chrominance sub-carrier is equal for all the lines.

In the SECAM standard, one uses two chrominance sub-carrier frequencies which alternate from one line to another, at 4.25 Mhz and 4.40 Mhz, respectively. These two chrominance sub-carriers are frequency modulated.

The multistandard color TV sets must have distinct internal systems designed to decode the luminance and chrominance signals for each standard used.

Therefore, these TV sets have to previously identify the received standard.

Systems for automatically identifying the standard used already exist. Generally, for such an automatic standard identification, the systems known use the bursts of the chrominance sub-carrier signal that are present at the beginning of each line. In fact, these bursts are standardized and calibrated samples of the chrominance sub-carrier transmitted on the video signal and comprise all the characteristic information concerning the transmitted color standard. The information contained in these bursts represents the frequency, the phase of one of the modulation vectors and the frequency or phase variation of one line with repect to the next one.

- CTI Picture Improvements circuitry in which colour signal, e.g. the line-sequential colour difference signals (R-Y,B-Y), is processed by an edge steepening circuit e.g. a colour transient improver and/or a two-line delay line in which the colour signals from two lines are added. The delay line may be part of a drop-out compensation circuit in which the colour signal of line n is replaced by the signal present for line n-2. A CCD-line may be used as the two-line delay line, and an amplitude limiter included. ADVANTAGE - Increased picture sharpness and improved signal-to-noise ratio.



The screen is a real flat type with 29 Inches Black Matrix and perfect convergence on all corners with SVM.

It's a full digital high end 100HZ technology and it has stereo digital sound with DOLBY Sytem. Featuring the THOMSON ICC20 chassis.

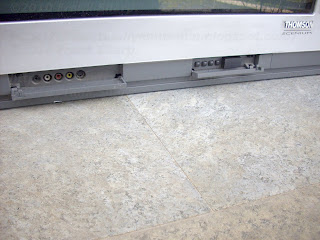

3 AV SCART SOCKET are present, all fully selectable i/o.

A SCART Connector (which stands for Syndicat des Constructeurs d'Appareils Radiorécepteurs et Téléviseurs) is a standard for connecting audio-visual equipment together. The official standard for SCART is CENELEC document number EN 50049-1. SCART is also known as Péritel (especially in France) and Euroconnector but the name SCART will be used exclusively herein. The standard defines a 21-pin connector (herein after a SCART connector) for carrying analog television signals. Various pieces of equipment may be connected by cables having a plug fitting the SCART connectors. Television apparatuses commonly include one or more SCART connectors.

Although a SCART connector is bidirectional, the present invention is concerned with the use of a SCART connector as an input connector for receiving signals into a television apparatus. A SCART connector can receive input television signals either in an RGB format in which the red, green and blue signals are received on Pins 15, 11 and 7, respectively, or alternatively in an S-Video format in which the luminance (Y) and chroma (C) signals are received on Pins 20 and 15. As a result of the common usage of Pin 15 in accordance with the SCART standard, a SCART connector cannot receive input television signals in an RGB format and in an S-Video format at the same time.

Consequently many commercially available television apparatuses include a separate SCART connectors each dedicated to receive input television signals in one of an RGB format and an S-Video format. This limits the functionality of the SCART connectors. In practical terms, the number of SCART connectors which can be provided on a television apparatus is limited by cost and space considerations. However, different users wish the input a wide range of different combinations of formats of television signals, depending on the equipment they personally own and use. However, the provision of SCART connectors dedicated to input television signals in one of an RGB format and an S-Video format limits the overall connectivity of the television apparatus. Furthermore, for many users the different RGB format and S-Video format are confusing. Some users may not understand or may mistake the format of a television signal being supplied on a given cable from a given piece of equipment. This can result in the supply of input television signals of an inappropriate format for the SCART connector concerned.

This kind of connector is todays obsoleted !

Advanced graphic OSD with Navilight Sliding Windows menues are provided for full control of all functions.


Pictures produced by this tellye are superb; high contrast; perfect focusing; excellent detailed picture nothing to compare with modern LCD Toys.


This is one of the last Television Models produced by THOMSON before "Closing".
