MIVAR 16M2 YEAR 2000.

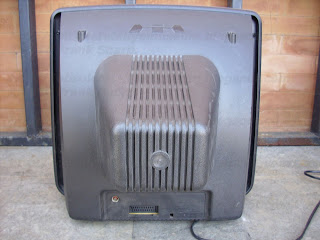

THE MIVAR 16M2 IS A 16 inches color television
look and type was replacing the previous models series.

It has 40 Programs and OSD + SCART socket for AV features.The television receiver has an alphanumeric display  which appears on the picture tube screen, to give the user data on the tuned channel number, colour settings and other operating data. The digital processor which generates the characters for display also controls the channel setting, etc., under the control of a digital remote control unit . The processor  has an associated memory circuit  for permanente tuning back up. The control of the capacitance diode tuner  is achieved by the processor  altering the dividing factor of a feedback loop to a phase/frequency comparator . The other input to the comparator is a divided frequency from a quartz oscillator.

A SCART Connector (which stands for Syndicat des Constructeurs d'Appareils Radiorécepteurs et Téléviseurs) is a standard for connecting audio-visual equipment together. The official standard for SCART is CENELEC document number EN 50049-1. SCART is also known as Péritel (especially in France) and Euroconnector but the name SCART will be used exclusively herein. The standard defines a 21-pin connector (herein after a SCART connector) for carrying analog television signals. Various pieces of equipment may be connected by cables having a plug fitting the SCART connectors. Television apparatuses commonly include one or more SCART connectors.

Although a SCART connector is bidirectional, the present invention is concerned with the use of a SCART connector as an input connector for receiving signals into a television apparatus. A SCART connector can receive input television signals either in an RGB format in which the red, green and blue signals are received on Pins 15, 11 and 7, respectively, or alternatively in an S-Video format in which the luminance (Y) and chroma (C) signals are received on Pins 20 and 15. As a result of the common usage of Pin 15 in accordance with the SCART standard, a SCART connector cannot receive input television signals in an RGB format and in an S-Video format at the same time.

Consequently many commercially available television apparatuses include a separate SCART connectors each dedicated to receive input television signals in one of an RGB format and an S-Video format. This limits the functionality of the SCART connectors. In practical terms, the number of SCART connectors which can be provided on a television apparatus is limited by cost and space considerations. However, different users wish the input a wide range of different combinations of formats of television signals, depending on the equipment they personally own and use. However, the provision of SCART connectors dedicated to input television signals in one of an RGB format and an S-Video format limits the overall connectivity of the television apparatus. Furthermore, for many users the different RGB format and S-Video format are confusing. Some users may not understand or may mistake the format of a television signal being supplied on a given cable from a given piece of equipment. This can result in the supply of input television signals of an inappropriate format for the SCART connector concerned.

This kind of connector is todays obsoleted !

Was first MIVAR series featuring the PHILIPS TDA8840 Signal processor.

Even this was a bestseller because of his fair price compared with very good picture, general quality and features.

remote control is the MIVAR X4.
In 1982 and in previous times MIVAR society name was Radio VAR then converted definitely to MIVAR.

In ancient times MIVAR was even a radios constructor, then the interest dropped to only television manufacturing.


It's made by MIVAR an Italian Brand no more active since 20/12/2013.


MIVAR is a Factory site in the near of Milan (italy) in a Industrial city conglomerate called Abbiate Grasso.

Founded in 1945 by Mr. Carlo Vichi class of 1923, The activity started in 1945 - in Milano, Via Ugo Tommei 5 street with fabrication of little radio apparates.

HISTORY OF MIVAR.

1945 - Milan, Via Ugo Tommei 5: Begin the activity assembling small radios.

1950 - Via Curtatone 12: developed with the construction of more direct major radio components fabricants.

1956 - 13 Street Strigelli: industrial production is manily targeted to first radio devices with frequency modulation (FM).

1958 - Via P. 30 Jordanians: TV become a reality, the industries is doubling his ACTIVITY, always in Milan, we build the first "real" plant with 400 employees.

1963 - Abbiategrasso, Via Dante 45: in the wake of decentralization and the rampant success of the television, building a facility that will become important in place 800 employees occupying between 1968-70.

1990 - Abbiategrasso Canal towpath: aware of the physiological importance that television plays in society? Modern, rich expertise and resources, we began construction of a factory area of ​​120,000 m? which covered 30.00o , for the viabilit with parking spaces and 60,000 park trees.

In origin the factory was brand named as Radio Var and indeed the tellye here in collection is internally marked as Radio VAR. After 1985 they were marked rightly MIVAR.
Today's activity is oriented in virtual production of LCD crap but with very low market penetration due to "unfair" asian competitors presence and a local governement which don't care about.

(You call it global market, I call it WORLD DESTRUCTION combined toghether with mass Afro scum crap Immigration (EUROPEAN INVASION) to obtain destruction on a large scale in all places and to help more and better the loose of all OUR workplaces and firms , lives, people).

 “If our buildings, our highways, and our railroads should be wrecked, we could rebuild them.

If our cities should be destroyed, out of the very ruins we could erect newer and greater ones.

Even if our armed might should be crushed, we could rear sons who would redeem our power.

Anyway Obsolete Technology Tellye will show even this model as a Time machine which looses nothing of the good tellyes ! ! !
