Tuesday, February 1, 2011

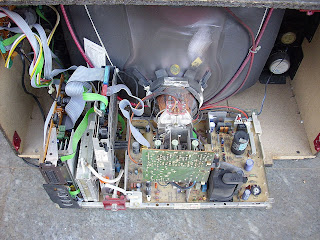

GRAETZ KONGRESS STEREO 4486 DIGIVISION (5436 85 61) CHASSIS ITT DIGI 3 90° FST / IFB-285/2 INTERNAL VIEW AND Case Study: Digital TV







































































GRAETZ KONGRESS STEREO 4486 DIGIVISION (5436 85 61) CHASSIS ITT DIGI 3 90° FST / IFB-285/2 INTERNAL VIEW AND Case Study: Digital TV- Digivision ITT

Case Study: Digital TV - Digivision ITTI will explain why this system is the father of all digital video/audio modern application field.
Today there is a race to design interoperable video systems for basic digital computer functions, involving multimedia applications in areas such as media information, education, medecine and entertainment, to name but a few. This chapter provides an overview of the current status in industry of digitized television including techniques used and their limitations, technological concerns and design methodologies needed to achieve the goals for highly integrated systems. Digital TV functions can be optimized for encoding and decoding and be implemented in silicon in a more dedicated way using a kind of automated custom design approach allowing enough flexibility.
Significance of VLSI for Digital TV Systems

When, at the 1981 Berlin Radio and TV Exhibition, the ITT Intermetall company exhibited to the public for the first time a digital television VLSI concept [1], [2], opinions among experts were by no means unanimously favourable. Some were enthusiastic, while others doubted the technological and economic feasibility. Today, after 13 years, more than 30 million TV sets worldwide have already been equipped with this system. Today, the intensive use of VLSI chips does not need a particular justification, the main reasons being increased reliability mainly because of the long-term stability of the color reproduction brought about by digital systems, and medium and long-term cost advantages in manufacturing which are essential for ensuring international competitiveness.
Digital signal processing permits solutions that guarantee a high degree of compatibility with future developments, whether in terms of quality improvements or new features like intermediate picture storage or adaptive comb filtering for example. In addition to these benefits, a digital system offers a number of advantages with regard to the production of TV sets:
- Digital circuits are tolerance-free and are not subject to drift or aging phenomena. These well-known properties of digital technology considerably simplify factory tuning of the sets and even permit fully automated, computer-controlled tuning.
- Digital components can be programmable. This means that the level of user convenience and the features offered by the set can be tailored to the manufacturer's individual requirements via the software.
- A digital system is inherently modular with a standard circuit architecture. All the chips in a given system are compatible with each other so that TV models of various specifications, from the low-cost basic model to the multi-standard satellite receiver, can be built with a host of additional quality and performance features.
- Modular construction means that set assembly can be fully automated as well. Together with automatic tuning, the production process can be greatly simplified and accelerated.

Macro-function Processing

The modular design of digital TV systems is reflected in its subdivision into largely independent functional blocks, with the possibility having special data-bus structures. It is useful to divide the structure into a data-oriented flow and control-oriented flow, so that we have four main groups of components:
1.- The control unit and peripherals, based on well-known microprocessor structures, with a central communication bus for flexibility and ease to use. An arrangement around a central bus makes it possible to easily expand the system constantly and thereby add on further quality-enhancing and special functions for the picture, text and/or sound processing at no great expense. A non-volatile storage element, in which the factory settings are stored, is associated to this control processor.
2.- The video functions are mainly the video signal processing and some additional features like for example deflection, a detailed description follows in the paper. However, the key point for VLSI implementations is a well-organized definition of the macro-blocks. This serves to facilitate interconnection of circuit components, and minimizes power consumption, which can be considerable at the processor speeds needed.
3.- The digital concept facilitates the decoding of today’s new digital sound broadcasting standards as well as the input of external signal sources, such as Digital Audio Tape (DAT) and Compact Disk (CD). Programmability permits mono, stereo, and multilingual broadcasts; the compatibility with other functions in the TV system is resolved with the common communication bus. This leads us to part two which is dedicated to the description of this problem.
4.- With a digital system, it is possible to add some special or quality-enhancing functions simply by incorporating a single additional macro-function or chip. Therefore, standards are no longer so important due to the high level of adaptability of digital solutions. For example adaptation to a 16:9 picture tube is easy.

In this chapter we first discuss the digitization of TV functions by analyzing general concepts based on existing systems. The second section deals with silicon technologies and, in particular design methodologies concerns. The intensive use of submicron technologies associated with fast on chip clock frequencies and huge numbers of transistors on the same substrate affects traditional methods of designing chips. As this chapter only outlines a general approach of the VLSI integration techniques for Digital TV

The idea of digitization of TV functions is not new. The time some companies have started to work on it, silicon technology was not really adequate for the needed computing power so that the most effective solutions were full custom designs. This forced the block-oriented architecture where the digital functions introduced were the one to one replacement of an existing analog function. In Figure 2 there is a simplified representation of the general concept.







Fig.2: Block Diagram of first generation digital TV set
The natural separation of video and audio resulted in some incompatibilities and duplication of primary functions. The emitting principle is not changed, redundancy is a big handicap, for example the time a SECAM channel is running, the PAL functions are not in operation. New generations of digital TV systems should re-think the whole concept top down before VLSI system partitioning.
In today’s state-of-the-art solution one can recognize all the basic functions of the analog TV set with, however, a modularity in the concept, permitting additional features becomes possible, some special digital possibilities are exploited, e.g. storage and filtering techniques to improve signal reproduction (adaptive filtering, 100 Hz technology), to integrate special functions (picture-in-picture, zoom, still picture) or to receive digital broadcasting standards (MAC, NICAM). The Figure 3 shows the ITT Semiconductors solution which was the first on the market in 1983 !! !!











Fig.3: The DIGIT2000 TV receiver block diagram

Description:This invention relates generally to digital television receivers and, particularly, to digital television receivers arranged for economical interfacing with a plurality of auxiliary devices.

With the proliferation of low cost microprocessors and microprocessor controlled devices, television (TV) receivers are being designed to utilize digitized signals and controls. There are many advantages associated with digital TV receivers, including uniformity of product, precise control of signal parameters and operating conditions, elimination of mechanical switches and a potential for reliability that has been heretofore unknown. Digital television receivers include a high speed communication bus for interconnecting a central control unit microprocessor (CCU) with various TV function modules for processing a TV signal. These modules include a deflection processing unit (DPU), a video processing unit (VPU), an automatic phase control (APC), a video codec unit (VCU), an audio analog to digital converter (ADC) and an audio processing unit (APU). The CCU has associated with it a non-volatile memory, a hardware-generated clock signal source and a suitable interface circuit for enabling the CCU to control processing of the TV signal throughout the various TV function modules. The received TV signal is in analog form and suitable analog to digital (A/D) converters and digital to analog (D/A) converters are provided for converting the digital and analog signals for signal processing and for reconverting them after processing for driving a cathode ray tube (CRT) and suitable speakers. The CCU microprocessor is heavily burdened because of the high speed timing required to control the various TV function modules.
To further complicate matters, modern TV receivers are increasingly being used with auxiliary devices for other than simple processing of TV signals. For example, the video cassette recorder (VCR) has enabled so-called "time-shifting" of program material by recording TV signals for later, more convenient viewing. The VCR is also extensively used with prerecorded material and with programs produced by users having access to a video camera. Other auxiliary devices providing features such as "Space Phone" whereby the user is enabled to make and receive telephone calls through his TV receiver, are desirable options. Additionally, a source selector auxiliary device enables a host of different signal sources, such as cable, over-the-air antenna, video disk, video games, etc. to be connected for use with the signal processing circuitry of the TV. In addition, all of these many auxiliary devices are preferably controllable from a remote position. A great deal of flexibility is available since each of the above auxiliary devices includes a microprocessor for internally controlling functioning of the device.
In the digital TV system described, the CCU microprocessor and the microprocessors in the auxiliary devices may be conventionally arranged to communicate over the main communication bus. Such a system would entail a specialized microprocessor with a hardware-generated clock signal in each auxiliary device in order to communicate at the high speeds used on the main communication bus. A specialized microprocessor, that is, one that is hardware configured, is significantly more expensive than an off-the-shelf microprocessor. Also, the auxiliary devices may not be required, or even desired, by all users and their low volume production cost becomes very important. It would therefore be desirable to provide a digital TV in which such auxiliary devices utilized off-the-shelf microprocessors for their control.



A digital TV system includes a CCU that is interconnected by a three-wire, high speed bus to a plurality of TV signal function modules for controlling operation thereof by means of a high speed hardware generated clock signal. A software generated clock signal in the CCU is supplied on a low speed two-wire auxiliary device bus which is connected to microprocessors in a plurality of auxiliary devices for performing functions ancillary to TV signal processing. The microprocessor in each auxiliary device is an off-the-shelf type that does not require any special hardware because the timing on the auxiliary device bus is sufficiently slow to enable software monitoring of the line and data transfer.
As mentioned, the three-wire IM bus 21 is a high speed bidirectional bus in which CCU 20 functions as the master and all of the interconnected TV signal processing function modules are slaves that communicate with the CCU in accordance with the protocol established for the system. CCU 20 is also indicated as including a software generated clock which supplies a two-wire auxiliary device bus 50. Two-wire bus 50 includes a clock lead 51 and a data lead 52 coupled to a plurality of auxiliary devices. A VCR 54, including an off-the-shelf microprocessor 55, is coupled to bus 50. A Source Selector 56, including an off-the-shelf microprocessor 57, is also coupled to bus 50. Source Selector 56 has access to four RF inputs, two baseband video and audio inputs and one separate baseband audio input. It will be appreciated that Source Selector 56 may have a greater or lesser number of signal sources to which it has access. Source Selector 56 outputs are coupled to VCR 54 and also to tuner 10 and supply, under control of CCU 20 and keyboard 44, the signal from the signal source selected by keyboard 44 or IR transmitter 46 for use with the digital TV. Auxiliary device bus 50 is also coupled to a Space Phone 58 which includes an off-the-shelf microprocessor 59 and a modem 60 that is connectable to a conventional telephone terminal.
Two-wire auxiliary device bus 50 is a relatively low speed bus and there is no need for separate hardware generated clock signals to be developed by the auxiliary device microprocessors. As mentioned above, this feature involves a significant savings in the cost and complexity of the auxiliary devices.
The protocol used on the two-wire auxiliary device bus consists of a 16 bit sequence, the first eight bits of which are used for bus address commands for the auxiliary devices. Each auxiliary device may respond to 16 addresses which allows the CCU to write into or read from various storage registers in the devices which are used for control or data storage. Thus, with this low cost system, as many as 16 auxiliary devices may be connected to the auxiliary device bus. The second eight bits of the 16 bit sequence contain data which is either transferred from the CCU to the auxiliary device addressed, or transferred from the auxiliary device to the CCU, based upon the bus address used. Thus, the various bus addresses to which a given auxiliary device will respond determine whether the auxiliary device will receive data from the CCU or send data to the CCU. The clock line timing, generated by software in CCU 20, is slow enough to permit software monitoring of the line and data reception by simple auxiliary device microprocessors that are not equipped with an external interrupt feature. The timing on the auxiliary device bus is made sufficiently fast to avoid too many instruction steps or the need for special registers in CCU 20. In the system described, data is clocked every 82.5 microseconds, thus permitting a 16 bit word to be clocked in 1.32 milliseconds. A pause of 277.5 microseconds between the first 8 bits and the second 8 bits permits the slave auxiliary device to process the bus address data contained in the first 8 bits. This timing fits into the 2 millisecond timing block structure used for the CCU in controlling the DIGIT 2000 digital TV. Two-2 millisecond timing blocks have been established in the CCU, which has a 20 millisecond timing loop divided into ten-2 millisecond timing blocks. Thus, two control words may be sent to an auxiliary device every 20 milliseconds, or a request by the CCU to receive data and the actual receipt of that data may take place in that time period.



Referring to the drawing, a digital TV includes a tuner 10 coupled to an IF/Detector 12 which has a pair of outputs 13 and 14 supplying video and audio signals, respectively. Control signals for tuner 10 are supplied through an interface circuit 16 from a CCU microprocessor 20 which functions as a single master control unit for the system. Microprocessor 20 is interconnected by means of a bidirectional three-wire IM (Intermetal) bus 21 to a DPU 22, a VPU 26, an APC 30, a TTX (teletext processor) 38, an APU 36, an ADC 32 and a non-volatile memory 24. A serial control line 29 interconnects a hardware generated clock 28, VPU 26 and VCU 34. VPU 26 and VCU 34 are also interconnected by a seven wire cable and TTX 38 is interconnected with a DRAM 42. DRAM 42 is a dynamic RAM in which TTX information is stored for display. VCU 34 is supplied with video signal and supplies a digitized 7 bit grey coded video signal to VPU 24 for processing and RGB color signals to a Video Drive 40 which, in turn, supplies a cathode ray tube (not shown). A keyboard 44 is coupled to CCU 20 and includes an IR detector that is responsive to coded IR signals supplied from an IR transmitter (IRX) 46. A resident microprocessor in keyboard 44 decodes the received IR signals and generated control commands and supplies appropriate outputs to CCU 20. The diagram, as described, is substantially identical to that for a "DIGIT" 2000 VLSI Digital TV System developed by ITT Intermetal and published in Edition 1984/85 Order No. 6250-11-2E

--------------------------
By its very nature, computer technology is digital, while consumer electronics are geared to the analog world. Starts have been made only recently to digitize TV and radio broadcasts at the transmitter end (in form of DAB, DSR, D2-MAC, NICAM etc). The most difficult technical tasks involved in the integration of different media are interface matching and data compression [5].
After this second step in the integration of multimedia signals, an attempt was made towards standardization, namely, the integration of 16 identical high speed processors with communication and programmability concepts comprised in the architecture !

Many solutions proposed today (for MPEG 1 mainly) are derived from microprocessor architectures or DSPs, but there is a gap between today’s circuits and the functions needed for a real fully HDTV system. The AT&T hybrid codec [29], for instance, introduces a new way to design multimedia chips by optimizing the cost of the equipment considering both processing and memory requirements.
The concept is to provide generic architectures that can be applied to a wide variety of systems taking into account that certain functions have to be optimized and that some other complex algorithms have to be ported to generic processors.
Basics of current video coding standards

Compression methods take advantage of both data redundancy and the non-linearity of human vision. They exploit correlation in space for still images and in both space and time for video signals. Compression in space is known as intra-frame compression, while compression in time is called inter-frame compression. Generally, methods that achieve high compression ratios (10:1 to 50:1 for still images and 50:1 to 200:1 for video) use data approximations which lead to a reconstructed image not identical to the original.
Methods that cause no loss of data do exist, but their compression ratios are lower (no better than 3:1). Such techniques are used only in sensitive applications such as medical imaging. For example, artifacts introduced by a lossy algorithm into a X-ray radiograph may cause an incorrect interpretation and alter the diagnosis of a medical condition. Conversely, for commercial, industrial and consumer applications, lossy algorithms are preferred because they save storage and communication bandwidth.
Lossy algorithms also generally exploit aspects of the human visual system. For instance, the eye is much more receptive to fine detail in the luminance (or brightness) signal than in the chrominance (or color) signals. Consequently, the luminance signal is usually sampled at a higher spatial resolution. Second, the encoded representation of the luminance signal is assigned more bits (a higher dynamic) than are the chrominance signals. The eye is less sensitive to energy with high spatial frequency than with low spatial frequency [7]. Indeed, if the images on a personal computer monitor were formed by an alternating spatial signal of black and white, the human viewer would see a uniform gray instead of the alternating checkerboard pattern. This deficiency is exploited by coding the high frequency coefficients with fewer bits and the low frequency coefficients with more bits.
All these techniques add up to powerful compression algorithms. In many subjective tests, reconstructed images that were encoded with a 20:1 compression ratio are hard to distinguish from the original. Video data, even after compression at ratios of 100:1, can be decompressed with close to analog videotape quality.
Lack of open standards could slow the growth of this technology and its applications. That is why several digital video standards have been proposed:
  • JPEG (Joint Photographic Expert Group) for still pictures coding
  • H.261 at p times 64 kbit/s was proposed by the CCITT (Consultative Committee on International Telephony and Telegraphy) for teleconferencing
  • MPEG-1 (Motion Picture Expert Group) up to 1,5 Mbit/s was proposed for full motion compression on digital storage media
  • MPEG-2 was proposed for digital TV compression, the bandwith depends on the chosen level and profile [33].
Another standard, the MPEG-4 for very low bit rate coding (4 kbit/s up to 64 kbit/s) is currently being debated.

Digitalization of the fundamental TV functions is of great interest since more than 30 years. Several million of TV sets have been produced containing digital systems. However, the real and full digital system is for the future. A lot of work is done in this field today, the considerations are more technical than economical which is a normal situation for an emerging technology. The success of this new multimedia technology will be given by the applications running with this techniques.
The needed technologies and methodologies were discussed to emphasize the main parameters influencing the design of VLSI chips for Digital TV Applications like parallelization, electrical constraints, power management, scalability and so on...............................

GRAETZ KONGRESS STEREO 4486 DIGIVISION (5436 85 61) CHASSIS ITT DIGI 3 90° FST / IFB-285/2 Synchronized switch-mode power supply:In a switch mode power supply, a first switching transistor is coupled to a primary winding of an isolation transformer. A second switching transistor periodically applies a low impedance across a second winding of the transformer that is coupled to an oscillator for synchronizing the oscillator to the horizontal frequency. A third winding of the transformer is coupled via a switching diode to a capacitor of a control circuit for developing a DC control voltage in the capacitor that varies in accordance with a supply voltage B+. The control voltage is applied via the transformer to a pulse width modulator that is responsive to the oscillator output signal for producing a pulse-width modulated control signal. The control signal is applied to a mains coupled chopper transistor for generating and regulating the supply voltage B+ in accordance with the pulse width modulation of the control signal.



Description:
The invention relates to switch-mode power supplies.
Some television receivers have signal terminals for receiving, for example, external video input signals such as R, G and B input signals, that are to be developed relative to the common conductor of the receiver. Such signal terminals and the receiver common conductor may be coupled to corresponding signal terminals and common conductors of external devices, such as, for example, a VCR or a teletext decoder.
To simplify the coupling of signals between the external devices and the television receiver, the common conductors of the receiver and of the external devices are connected together so that all are at the same potential. The signal lines of each external device are coupled to the corresponding signal terminals of the receiver. In such an arrangement, the common conductor of each device, such as of the television receiver, may be held "floating", or conductively isolated, relative to the corresponding AC mains supply source that energizes the device. When the common conductor is held floating, a user touching a terminal that is at the potential of the common conductor will not suffer an electrical shock.
Therefore, it may be desirable to isolate the common conductor, or ground, of, for example, the television receiver from the potentials of the terminals of the AC mains supply source that provide power to the television receiver. Such isolation is typically achieved by a transformer. The isolated common conductor is sometimes referred to as a "cold" ground conductor.
In a typical switch mode power supply (SMPS) of a television receiver the AC mains supply voltage is coupled, for example, directly, and without using transformer coupling, to a bridge rectifier. An unregulated direct current (DC) input supply voltage is produced that is, for example, referenced to a common conductor, referred to as "hot" ground, and that is conductively isolated from the cold ground conductor. A pulse width modulator controls the duty cycle of a chopper transistor switch that applies the unregulated supply voltage across a primary winding of an isolating flyback transformer. A flyback voltage at a frequency that is determined by the modulator is developed at a secondary winding of the transformer and is rectified to produce a DC output supply voltage such as a voltage B+ that energizes a horizontal deflection circuit of the television receiver. The primary winding of the flyback transformer is, for example, conductively coupled to the hot ground conductor. The secondary winding of the flyback transformer and voltage B+ may be conductively isolated from the hot ground conductor by the hot-cold barrier formed by the transformer.
It may be desirable to synchronize the operation of the chopper transistor to horizontal scanning frequency for preventing the occurrence of an objectionable visual pattern in an image displayed in a display of the television receiver.
It may be further desirable to couple a horizontal synchronizing signal that is referenced to the cold ground to the pulse-width modulator that is referenced to the hot ground such that isolation is maintained.
A synchronized switch mode power supply, embodying an aspect of the invention, includes a transfromer having first and second windings. A first switching arrangement is coupled to the first winding for generating a first switching current in the first winding to periodically energize the second winding. A source of a synchronizing input signal at a frequency that is related to a deflection frequency is provided. A second switching arrangement responsive to the input signal and coupled to the second winding periodically applies a low impedance across the energized second winding that by transformer action produces a substantial increase in the first switching current. A periodic first control signal is generated. The increase in the first switching current is sensed to synchronize the first control signal to the input signal. An output supply voltage is generated from an input supply voltage in accordance with the first control signal.

















GRAETZ KONGRESS STEREO 4486 DIGIVISION (5436 85 61) CHASSIS ITT DIGI 3 90° FST / IFB-285/2 CIRCUIT ARRANGEMENT IN A PICTURE DISPLAY DEVICE UTILIZING A STABILIZED SUPPLY VOLTAGE CIRCUIT:
Line synchronized switch mode power supply:

A stabilized supply voltage circuit for a picture display device comprising a chopper wherein the switching signal has the line frequency and is duration-modulated. The coil of the chopper constitutes the primary winding of a transformer a secondary winding of which drives the line output transistor so that the switching transistor of the chopper also functions as a driver for the line output stage. The oscillator generating the switching signal may be the line oscillator. In a special embodiment the driver and line output transistor conduct simultaneously and in order to limit the base current of the line output transistor a coil shunted by a diode is incorporated in the drive line of the line output transistor. Other secondary windings of the transformer drive diodes which conduct simultaneously with the efficiency diode of the chopper so as to generate further stabilized supply voltages.



1. An electrical circuit arrangement for a picture display device operating at a given line scanning frequency, comprising a source of unidirectional voltage, an inductor, first switching transistor means for periodically energizing said inductor at said scanning frequency with current from said source, an electrical load circuit coupled to said inductor and having applied thereto a voltage as determined by the ratio of the ON and OFF periods of said transistor, means for maintaining the voltage across said load circuit at a given value comprising means for comparing the voltage of said load circuit with a reference voltage, means responsive to departures of the value of the load circuit voltage from the value of said reference voltage for varying the conduction ratio of the ON and OFF periods of said transistor thereby to stabilize said load circuit voltage at the given value, a line deflection coil system for said picture display device, means for energizing said line deflection coil system from said load voltage circuit means, means for periodically interrupting the energization of said line deflection coil comprising second switching means and means coupled to said inductor for deriving therefrom a switching current in synchronism with the energization periods of said transistor and applying said switching current to said switching means thereby to actuate the same, and means coupled to said switching means and to said load voltage circuit for producing a voltage for energizing said 2. A circuit as claimed in claim 1 wherein the duty cycle of said switching 3. A circuit as claimed in claim 1 further comprising an efficiency first 4. A circuit as claimed in claim 3 further comprising at least a second diode coupled to said deriving means and to ground, and being poled to 5. A circuit as claimed in claim 1 wherein said second switching means comprises a second transistor coupled to said deriving means to conduct simultaneously with said first transistor, and further comprising a coil coupled between said driving means and said second transistor and a third diode shunt coupled to said coil and being poled to conduct when said 6. A circuit as claimed in claim 1 further comprising a horizontal oscillator coupled to said first transistor, said oscillator being the 7. A circuit as claimed in claim 1 further comprising means coupled to said inductor for deriving filament voltage for said display device.

Description:
The invention relates to a circuit arrangement in a picture display device wherein the input direct voltage between two input terminals, which is obtained be rectifying the mains alternating voltage, is converted into a stabilized output direct voltage by means of a switching transistor and a coil and wherein the transistor is connected to a first input terminal and an efficiency diode is connected to the junction of the transistor and the coil. The switching transistor is driven by a pulsatory voltage of line frequency which pulses are duration-modulated in order to saturate the switching transistor during part of the period dependent on the direct voltage to be stabilized and to cut off this transistor during the remaining part of the period. The pulse duration modulation is effected by means of a comparison circuit which compares the direct voltage to be stabilized with a substantially constant voltage, the coil constituting the primary winding of a transformer.

Such a circuit arrangement is known from German "Auslegeschrift" 1.293.304. wherein a circuit arrangement is described which has for its object to convert an input direct voltage which is generated between two terminals into a different direct voltage. The circuit employs a switch connected to the first terminal of the input voltage and periodically opens and closes so that the input voltage is converted into a pulsatory voltage. This pulsatory voltage is then applied to a coil. A diode is arranged between the junction of the switch and the coil and the second terminal of the input voltage whilst a load and a charge capacitor in parallel thereto are arranged between the other end of the coil and the second terminal of the input voltage. The assembly operates in accordance with the known efficiency principle i.e., the current supplied to the load flows alternately through the switch and through the diode. The function of the switch is performed by a switching transistor which is driven by a periodical pulsatory voltage which saturates this transistor for a given part of the period. Such a configuration is known under different names in the literature; it will be referred to herein as a "chopper." A known advantage thereof, is that the switching transistor must be able to stand a high voltage or provide a great current but it need not dissipate a great power. The output voltage of the chopper is compared with a constant reference voltage. If the output voltage attempts to vary because the input voltage and/or the load varies, a voltage causing a duration modulation of the pulses is produced at the output of the comparison arrangement. As a result the quantity of the energy stored in the coil varies and the output voltage is maintained constant. In the German "Auslegeschrift" referred to it is therefore an object to provide a stabilized supply voltage device.

In the circuit arrangement according to the mentioned German "Auslegeschrift" the frequency of the load variations or a harmonic thereof is chosen as the frequency for the switching voltage. Particularly when the load fed by the chopper is the line deflection circuit of a picture display device, wherein thus the impedance of the load varies in the rhythm of the line frequency, the frequency of the switching voltage is equal to or is a multiple of the line frequency.

It is to be noted that the chopper need not necessarily be formed as that in the mentioned German "Auslegeschrift." In fact, it is known from literature that the efficiency diode and the coil may be exchanged. It is alternatively possible for the coil to be provided at the first terminal of the input voltage whilst the switching transistor is arranged between the other end and the second terminal of the input voltage. The efficiency diode is then provided between the junction of said end and the switching transistor and the load. It may be recognized that for all these modifications a voltage is present across the connections of the coil which voltage has the same frequency and the same shape as the pulsatory switching voltage. The control voltage of a line deflection circuit is a pulsatory voltage which causes the line output transistor to be saturates and cut off alternately. The invention is based on the recognition that the voltage present across the connections of the coil is suitable to function as such a control voltage and that the coil constitutes the primary of a transformer. To this end the circuit arrangement according to the invention is characterized in that a secondary winding of the transformer drives the switching element which applies a line deflection current to line deflection coils and by which the voltage for the final anode of a picture display tube which forms part of the picture display device is generated, and that the ratio between the period during which the switching transistor is saturated and the entire period, i.e., the switching transistor duty cycle is between 0.3 and 0.7 during normal operation.

The invention is also based on the recognition that the duration modulation which is necessary to stabilize the supply voltage with the switching transistor does not exert influence on the driving of the line output transistor. This resides in the fact that in case of a longer or shorter cut-off period of the line output transistor the current flowing through the line deflection coils thereof is not influenced because of the efficiency diode current and transistor current are taken over or, in case of a special kind of transistor, the collector-emitter current is taken over by the base collector current and conversely. However, in that case the above-mentioned ratios of 0.3 : 0.7 should be taken into account since otherwise this take-over principle is jeopardized.

As will be further explained the use of the switching transistor as a driver for the line output transistor in an embodiment to be especially described hereinafter has the further advantage that the line output transistor automatically becomes non-conductive when this switching transistor is short circuited so that the deflection and the EHT for the display tube drop out and thus avoid damage thereof.

Due to the step according to the invention the switching transistor in the stabilized supply functions as a driver for the line deflection circuit. The circuit arrangement according to the invention may in addition be equipped with a very efficient safety circuit so that the reliability is considerably enhanced, which is described in the U.S. Pat. No. 3,629,686. The invention is furthermore based on the recognition of the fact that the pulsatory voltage present across the connections of the coil is furthermore used and to this end the circuit arrangement according to the invention is characterized in that secondary windings of the transformer drive diodes which conduct simultaneously with the efficiency diode so as to generate further stabilized direct voltages, one end of said diodes being connected to ground.

In order that the invention may be readily carried into effect, a few embodiments thereof will now be described in detail by way of example with reference to the accompanying diagrammatic drawings in which:

FIG. 1 shows a principle circuit diagram wherein the chopper and the line deflection circuit are further shown but other circuits are not further shown.

FIGS. 2a, 2b and 2c show the variation as a function of time of two currents and of a voltage occurring in the circuit arrangement according to FIG. 1.

FIGS. 3a 3b, 3c and 3d show other embodiments of the chopper.

FIGS. 4a and 4b show modifications of part of the circuit arrangement of FIG. 1.

In FIG. 1 the reference numeral 1 denotes a rectifier circuit which converts the mains voltage supplied thereto into a non-stabilized direct voltage. The collector of a switching transistor 2 is connected to one of the two terminals between which this direct voltage is obtained, said transistor being of the npn-type in this embodiment and the base of which receives a pulsatory voltage which originates through a control stage 4 from a modulator 5 and causes transistor 2 to be saturated and cut off alternately. The voltage waveform 3 is produced at the emitter of transistor 2. In order to maintain the output voltage of the circuit arrangement constant, the duration of the pulses provided is varied in modulator 5. A pulse oscillator 6 supplies the pulsatory voltage to modulator 5 and is synchronized by a signal of line frequency which originates from the line oscillator 6' present in the picture display device. This line oscillator 6' is in turn directly synchronized in known manner by pulses 7' of line frequency which are present in the device and originate for example from a received television signal if the picture display device is a television receiver. Pulse oscillator 6 thus generates a pulsatory voltage the repetition frequency of which is the line frequency.

The emitter of switching transistor 2 is connected at one end to the cathode of an efficiency diode 7 whose other end is connected to the second input voltage terminal and at the other end to primary winding 8 of a transformer 9. Pulsatory voltage 3 which is produced at the cathode of efficiency diode 7 is clamped against the potential of said second terminal during the intervals when this diode conducts. During the other intervals the pulsatory voltage 3 assumes the value V i . A charge capacitor 10 and a load 11 are arranged between the other end of winding 8 and the second input voltage terminal. The elements 2,7,8,10 and 11 constitute a so-called chopper producing a direct voltage across charge capacitor 10, provided that capacitor 10 has a sufficiently great value for the line frequency and the current applied to load 11 flowing alternately through switching transistor 2 or through efficiency diode 7. The output voltage V o which is the direct voltage produced across charge capacitor 10 is applied to a comparison circuit 12 which compares the voltage V o with a reference voltage. Comparison circuit 12 generates a direct voltage which is applied to modulator 5 so that the duration of the effective period δ T of switching transistor 2 relative to the period T of pulses 3 varies as a function of the variations of output voltage V 0 . In fact, it is readily evident that output voltage V o is proportional to the ratio δ :

V o = V i . δ

Load 11 of the chopper consists in the consumption of parts of the picture display device which are fed by output voltage V 0 . In a practical embodiment of the circuit arrangement according to FIG. 1 wherein the mains alternating voltage has a nominal effective value of 220 V and the rectified voltage V i is approximately 270 V, output voltage V o for δ = 0.5 is approximately 135 V. This makes it also possible, for example, to feed a line deflection circuit as is shown in FIG. 1 wherein load 11 then represents different parts which are fed by the chopper. Since voltage V o is maintained constant due to pulse duration modulation, the supply voltage of this line deflection circuit remains constant with the favorable result that the line amplitude(= the width of the picture displayed on the screen of the picture display tube) likewise remains constant as well as the EHT required for the final anode of the picture display tube in the same circuit arrangement independent of the variations in the mains voltage and the load on the EHT generator (= variations in brightness).

However, variations in the line amplitude and the EHT may occur as a result of an insufficiently small internal impedance of the EHT generator. Compensation means are known for this purpose. A possibility within the scope of the present invention is to use comparison circuit 12 for this purpose. In fact, if the beam current passes through an element having a substantially quadratic characteristic, for example, a voltage-dependent resistor, then a variation for voltage V o may be obtained through comparison circuit 12 which variation is proportional to the root of the variation in the EHT which is a known condition for the line amplitude to remain constant.

In addition this facilitates smoothing of voltage V o since the repetition frequency of pulsatory voltage 3 is many times higher than that of the mains and a comparatively small value may be sufficient for charge capacitor 10. If charge capacitor 10 has a sufficiently high value for the line frequency, voltage V o is indeed a direct voltage so that a voltage having the same form as pulsatory voltage 3 is produced across the terminals of primary winding 8. Thus voltages which have the same shape as pulsatory voltage 3 but have a greater or smaller amplitude are produced across secondary windings 13, 14 of transformer 9 (FIG. 1 shows only 2 secondary windings but there may be more). The invention is based on the recognition that one end of each secondary winding is connected to earth while the other end thereof drives a diode, the winding sense of each winding and the direction of conductance of each diode being chosen to be such that these diodes conduct during the same period as does efficiency diode 7. After smoothing, stabilized supply voltages, for example, at terminal 15 are generated in this manner at the amplitudes and polarities required for the circuit arrangements present in the picture display device. In FIG. 1 the voltage generated at terminal 15 is, for example, positive relative to earth. It is to be noted that the load currents of the supply voltages obtained in this manner cause a reduction of the switching power which is economized by efficiency diode 7. The sum of all diode currents including that of diode 7 is in fact equal to the current which would flow through diode 7 if no secondary winding were wound on transformer 9 and if no simultaneous diode were used. This reduction may be considered an additional advantage of the circuit arrangement according to the invention, for a diode suitable for smaller powers may then be used. However, it will be evident that the overall secondary load must not exceed the primary load since otherwise there is the risk of efficiency diode 7 being blocked so that stabilization of the secondary supply voltages would be out of the question.

It is to be noted that a parabola voltage of line frequency as shown at 28 is produced across the charge capacitor 10 if this capacitor is given a smaller capacitance so that consequently the so-called S-correction is established.

In FIG. 1 charge capacitors are arranged between terminals 15 etc. and earth so as to ensure that the voltages on these points are stabilized direct voltages. If in addition the mean value of the voltage on one of these terminals has been made equal to the effective value of the alternating voltage which is required for heating the filament of the picture display tube present in the picture display device, this voltage is suitable for this heating. This is a further advantage of the invention since the cheap generation of a stabilized filament voltage for the picture display tube has always been a difficult problem in transistorized arrangements.

A further advantage of the picture display device according to the invention is that transformer 9 can function as a separation transformer so that the different secondary windings can be separated from the mains and their lower ends can be connected to ground of the picture display device. The latter step makes it possible to connect a different apparatus such as, for example, a magnetic recording and/or playback apparatus to the picture display device without earth connection problems occurring.

In FIG. 1 the reference numeral 14 denotes a secondary winding of transformer 9 which in accordance with the previously mentioned recognition of the invention can drive line output transistor 16 of the line deflection circuit 17. Line deflection circuit 17 which is shown in a simplified form in FIG. 1 includes inter alia line deflection coils 18 and an EHT transformer 19 a secondary winding 20 of which serves for generating the EHT required for the acceleration anode of the picture display tube. Line deflection circuit 17 is fed by the output voltage V o of the chopper which voltage is stabilized due to the pulse duration modulation with all previously mentioned advantages. Line deflection circuit 17 corresponds, for example, to similar arrangements which have been described in U.S. Pat. No. 3,504,224 issued Mar. 31, 1970 to J.J. Reichgelt et al., U.S. patent application Ser. No. 737,009 filed June 14, 1968 by W. H. Hetterscheid and U.S. application Ser. No. 26,497 filed April 8, 1970 by W. Hetterscheid et al. It will be evident that differently formed lined deflection circuits are alternatively possible.

It will now be shown that secondary winding 14 can indeed drive a line deflection circuit so that switching transistor 2 can function as a driver for the line deflection. FIGS. 2a and b show the variation as a function of time of the current i C which flows in the collector of transistor 16 and of the drive voltage v 14 across the terminals of secondary winding 14. During the flyback period (0, t 1 ) transistor 16 must be fully cut off because a high voltage peak is then produced at its collector; voltage v 14 must then be absolutely negative. During the scan period (t 1 , t 4 ) a sawtooth current i C flows through the collector electrode of transistor 16 which current is first negative and then changes its direction. As the circuit arrangement is not free from loss, the instant t 3 when current i C becomes zero lies, as is known, before the middle of the scan period. At the end t 4 of the scan period transistor 16 must be switched off again. However, since transistor 16 is saturated during the scan period and since this transistor must be suitable for high voltages and great powers so that its collector layer is thick, this transistor has a very great excess of charge carriers in both its base and collector layers. The removal of these charge carriers takes a period t s which is not negligible whereafter the transistor is indeed switched off. Thus the fraction δ T of the line period T at which v 14 is positive must end at the latest at the instant (t 4 - t s ) located after the commencement (t = 0) of the previous flyback.

The time δ T may be initiated at any instant t 2 which is located between the end t 1 of the flyback period and the instant t 3 when collector current i C reverses its direction. It is true that emitter current flows through transistor 16 at the instant t 2 , but collector current i C is not influenced thereby, at least not when the supply voltage (= V o ) for line deflection circuit 17 is high enough. All this has been described in the U.S. Pat. No. 3,504,224. The same applies to line deflection circuits wherein the collector base diode does not function as an efficiency diode as is the case in the described circuit 17, but wherein an efficiency diode is arranged between collector and emitter of the line output transistor. In such a case the negative part of the current i C of FIG. 2a represents the current flowing through the said efficiency diode.

After the instant t 3 voltage v 14 must be positive. In other words, the minimum duration of the period T when voltage v 14 must be positive is (t 4 - t s ) - t 3 whilst the maximum duration thereof is (t 4 - t s ) - t 1 . In a television system employing 625 lines per raster the line period t 4 is approximately 64 μus and the flyback period is approximately 12 μus. Without losses in the circuit arrangement instant t 3 would be located approximately 26 μus after the instant t 1 , and with losses a reasonable value is 22 μus which is 34 μus after the commencement of the period. If for safety's sake it is assumed that t s lasts approximately 10 μus, the extreme values of δ T are approximately 20 and 42 μus and consequently the values for δ are approximately 0.31 and 0.66 at a mean value which is equal to approximately 0.49. It was previously stated that a mean value of δ = 0.5 was suitable. Line deflection circuit 17 can therefore indeed be used in combination with the chopper in the manner described, and the relative variation of δ may be (0.66 - 0.31) : 0.49 = 71.5 percent. This is more than necessary to obviate the variations in the mains voltage or in the various loads and to establish the East-West modulation and ripple compensation to be described hereinafter. In fact, if it is assumed that the mains voltage varies between -15 and +10 percent of the nominal value of 220 V, while the 50 Hz ripple voltage which is superimposed on the input voltage V i has a peak-to-peak value of 40 V and V i is nominally 270 V, then the lowest occurring V i is:

0.85 × 270 V - 20 V = 210 V and the highest occurring V i is

1.1 × 270 V + 20 V = 320 V. For an output voltage V o of 135 V the ratio must thus vary between

δ = 135 : 210 = 0.64 and δ = 135 : 320 = 0.42.

A considerable problem presenting itself is that of the simultaneous or non-simultaneous drive of line output transistor 16 with switching transistor 2, it being understood that in case of simultaneous drive both transistors are simultaneously bottomed, that is during the period δ T. This depends on the winding sense of secondary winding 14 relative to that of primary winding 8. In FIG. 1 it has been assumed that the drive takes place simultaneously so that the voltage present across winding 14 has the shape shown in FIG. 2b. This voltage assumes the value n(V i - V o ) in the period δ T and the value -nVo in the period (1 - δ )T, wherein n is the ratio of the number of turns on windings 14 and 8 and wherein V o is maintained constant at nominal mains voltage V o = δ V inom . However, if as a result of an increase or a decrease of the mains voltage V i increases or decreases proportionally therewith, i.e., V i = V i nom + Δ V, the positive portion of V 14 becomes equal to n(V i nom - V o +Δ V) = n [(1 -δ)V i nom +ΔV] = n(0.5 V inom +ΔV) if δ = 0.5 for V i = V i nom. Relatively, this is a variation which is twice as great. For example, if V i nom = 270 V and V o = 135 V, a variation in the mains voltage of from -15 to +10 percent causes a variation of V i of from -40.5 V to +27 V which ranges from -30 to +20 percent of 135 V which is present across winding 8 during the period δ T. The result is that transistor 16 can always be bottomed over a large range of variation. If the signal of FIG. 2b would be applied through a resistor to the base of transistor 16, the base current thereof would have to undergo the same variation while the transistor would already be saturated in case of too low a voltage. In this case it is assumed that transformer 9 is ideal (without loss) and that coil 21 has a small inductance as is explained in the U.S. patent application Ser. No. 737,009 above mentioned. It is therefore found to be desirable to limit the base current of transistor 16.

This may be effected by providing a coil 22 having a large value inductance, approximately 100 μH, between winding 14 and the small coil 21. The variation of said base current i b is shown in FIG. 2c but not to the same scale as the collector current of FIG. 2a. During the conducting interval δ T current i b varies as a linear function of time having a final value of wherein L represents the inductance of coil 22. This not only provides the advantage that this final value is not immediately reached, but it can be shown that variation of this final value as a function of the mains voltage has been reduced, for there applies at nominal mains voltage that: If the mains voltage V i = V i nom +Δ V, then ##SPC1## because V i nom = 2 V o . Thus this variation is equal to that of the mains voltage and is not twice as great.

During switching off, t 2 , of transistor 16 coil 22 must exert no influence and coil 21 must exert influence which is achieved by arranging a diode 23 parallel to coil 22. Furthermore the control circuit of transistor 16 in this example comprises the two diodes 24 and 25 as described in U.S. application Ser. No. 26,497 above referred to, wherein one of these diodes, diode 25 in FIG. 1, must be shunted by a resistor.

The control circuit of transistor 16 may alternatively be formed as is shown in FIG. 4. In fact, it is known that coil 21 may be replaced by the parallel arrangement of a diode 21' and a resistor 21" by which the inverse current can be limited. To separate the path of the inverse current from that of the forward current the parallel arrangement of a the diode 29' and a resistor 29" must then be present. This leads to the circuit arrangement shown in the upper part of FIG. 4. This circuit arrangement may now be simplified if it is noted that diodes 25 and 21' on the one hand and diodes 23 and 29' on the other hand are series-arranged. The result is shown in the lower part of FIG. 4 which, as compared with the circuit arrangement of FIG. 1, employs one coil less and an additional resistor.

FIG. 3 shows possible modifications of the chopper. FIG. 3a shown in a simplified form the circuit arrangement according to FIG. 1 wherein the pulsatory voltage present across the connections of windings 8 has a peak-to-peak amplitude of V i - V o = 0.5 V i for δ = 0.5, As has been stated, the provision of coil 22 gives a relative variation for the base current of transistor 16 which is equal to that of the mains voltage. In the cases according to FIG. 3b, 3c and 3d the peak-to-peak amplitude of the voltage across winding 8 is equal to V i so that the provision of coil 22 results in a relative variation which is equal to half that of the mains voltage which is still more favorable than in the first case.

Transistors of the npn type are used in FIG. 3. If transistors of the pnp type are used, the relevant efficiency diodes must of course be reversed.

In this connection it is to be noted that it is possible to obtain an output voltage V o with the aid of the modifications according to FIGS. 3b, c and d, which voltage is higher than input voltage V i . These modifications may be used in countries such as, for example, the United of America or France where the nominal mains voltage is 117 or 110 V without having to modify the rest of the circuit arrangement.

The above-mentioned remark regarding the sum of the diode currents only applies, however, for the modifications shown in FIGS. 3a and d.

If line output transistor 16 is not simultaneously driven with switching transistor 2, efficiency diodes 7 conducts simultaneously with transistor 16 i.e., during the period which is denoted by δ T in FIGS. 1 and 2b. During that period the output voltage V o of the chopper is stabilized so that the base current of transistor 16 is stabilized without further difficulty. However, a considerable drawback occurs. In FIG. 1 the reference numeral 26 denotes a safety circuit the purpose of which is to safeguard switching transistor 2 when the current supplied to load 11 and/or line deflection circuit 17 becomes to high, which happens because the chopper stops. After a given period output voltage V o is built up again, but gradually which means that the ratio δ is initially small in the order of 0.1. All this is described in U.S. patent No. 3,629,686. The same phenomenon occurs when the display device is switched on. Since δ = 0.1 corresponds to approximately 6 μs when T = 64 μs, efficiency diode 7 conducts in that case for 64 - 6 = 58 μus so that transistor 16 is already switched on at the end of the scan or at a slightly greater ratio δ during the flyback. This would cause an inadmissibly high dissipation. For this reason the simultaneous drive is therefore to be preferred.

The line deflection circuit itself is also safeguarded: in fact, if something goes wrong in the supply, the driver voltage of the line deflection circuit drops out because the switching voltage across the terminals of primary winding 8 is no longer present so that the deflection stops. This particularly happens when switching transistor 2 starts to constitute a short-circuit between emitter and collector with the result that the supply voltage V o for the line deflection circuit in the case of FIG. 1 becomes higher, namely equal to V i . However, the line output transformer is now cut off and is therefore also safe as well as the picture display tube and other parts of the display device which are fed by terminal 15 or the like. However, this only applies to the circuit arrangement according to FIG. 1 or 3a.

Pulse oscillator 6 applies pulses of line frequency to modulator 5. It may be advantageous to have two line frequency generators as already described, to wit pulse oscillator 6 and line oscillator 6' which is present in the picture display device and which is directly synchronized in known manner by line synchronizing pulses 7'. In fact, in this case line oscillator 6' applies a signal of great amplitude and free from interference to pulse oscillator 6. However, it is alternatively possible to combine pulse oscillator 6 and line oscillator 6' in one single oscillator 6" (see FIG. 1) which results in an economy of components. It will be evident that line oscillator 6' and oscillator 6" may alternatively be synchronized indirectly, for example, by means of a phase discriminator. It is to be noted neither pulse oscillator 6, line oscillator 6' and oscillator 6" nor modulator 5 can be fed by the supply described since output voltage V o is still not present when the mains voltage is switched on. Said circuit arrangements must therefore be fed directly from the input terminals. If as described above these circuit arrangements are to be separated from the mains, a small separation transformer can be used whose primary winding is connected between the mains voltage terminals and whose secondary winding is connected to ground at one end and controls a rectifier at the other end.

Capacitor 27 is arranged parallel to efficiency diode 7 so as to reduce the dissipation in switching transistor 2. In fact, if transistor 2 is switched off by the pulsatory control voltage, its collector current decreases and its collector-emitter voltage increases simultaneously so that the dissipated power is not negligible before the collector current has becomes zero. If efficiency diode 7 is shunted by capacitor 27 the increase of the collector-emitter voltage is delayed i.e., this voltage does not assume high values until the collector current has already been reduced. It is true that in that case the dissipation in transistor 2 slightly increases when it is switched on by the pulsatory control voltage but on the other hand since the current flowing through diode 7 has decreased due to the presence of the secondary windings, its inverse current is also reduced when transistor 2 is switched on and hence its dissipation has become smaller. In addition it is advantageous to delay these switching-on and switching-off periods to a slight extent because the switching pulses then contain fewer Fourier components of high frequency which may cause interferences in the picture display device and which may give rise to visible interferences on the screen of the display tube. These interferences occupy a fixed position on the displayed image because the switching frequency is the line frequency which is less disturbing to the viewer. In a practical circuit wherein the line frequency is 15,625 Hz and wherein switching transistor 2 is an experimental type suitable for a maximum of 350 V collector-emitter voltage or 1 A collector current and wherein efficiency diode 7 is of the Philips type BA 148 the capacitance of capacitor 27 is approximately 680 pF whilst the load is 70 W on the primary and 20 W on the secondary side of transformer 9. The collector dissipation upon switching off is 0.3 W (2.5 times smaller than without capacitor 27) and 0.7 W upon switching on.

As is known the so-called pincushion distortion is produced in the picture display tubes having a substantially flat screen and large deflection angles which are currently used. This distortion is especially a problem in color television wherein a raster correction cannot be brought about by magnetic means. The correction of the so-called East-West pincushion distortion i.e., in the horizontal direction on the screen of the picture display tube can be established in an elegant manner with the aid of the circuit arrangement according to the invention. In fact, if the voltage generated by comparison circuit 12 and being applied to modulator 5 for duration-modulating pulsatory voltage 3 is modulated by a parabola voltage 28 of field frequency, pulsatory voltage 3 is also modulated thereby. If the power consumption of the line deflection circuit forms part of the load on the output voltage of the chopper, the signal applied to the line deflection coils is likewise modulated in the same manner. Conditions therefore are that the parabola voltage 28 of field frequency has a polarity such that the envelope of the sawtooth current of line frequency flowing through the line deflection coils has a maximum in the middle of the scan of the field period and that charge capacitor 10 has not too small an impedance for the field frequency. On the other hand the other supply voltages which are generated by the circuit arrangement according to the invention and which might be hampered by this component of field frequency must be smoothed satisfactorily.

A practical embodiment of the described example with the reference numerals given provides an output for the supply of approximately 85 percent at a total load of 90 W, the internal resistance for direct current loads being 1.5 ohms and for pulsatory currents being approximately 10 ohms. In case of a variation of ± 10 percent of the mains voltage, output voltage V o is stable within 0.4 V. Under the nominal circumstances the collector dissipation of switching transistor 2 is approximately 2.5 W.

Since the internal resistance of the supply is so small, it can be used advantageously, for example, at terminal 15 for supplying a class-B audio amplifier which forms part of the display device. Such an amplifier has the known advantages that its dissipation is directly proportional to the amplitude of the sound to be reproduced and that its output is higher than that of a class-A amplifier. On the other hand a class-A amplifier consumes a substantially constant power so that the internal resistance of the supply voltage source is of little importance. However, if this source is highly resistive, the supply voltage is modulated in the case of a class-B amplifier by the audio information when the sound intensity is great which may detrimentally influence other parts of the display device. This drawback is prevented by means of the supply according to the invention.

The 50 Hz ripple voltage which is superimposed on the rectified input voltage V i is compensated by comparison circuit 12 and modulator 5 since this ripple voltage may be considered to be a variation of input voltage V i . A further compensation is obtained by applying a portion of this ripple voltage with suitable polarity to comparison circuit 12. It is then sufficient to have a lower value for the smoothing capacitor which forms part of rectifier circuit 1 (see FIG. 3). The parabola voltage 28 of field frequency originating from the field time base is applied to the same circuit 12 so as to correct the East-West pincushion distortion.




 GRAETZ  KONGRESS  STEREO  4486  DIGIVISION  (5436 85 61)  CHASSIS ITT DIGI 3 90° FST / IFB-285/2  Integrated circuit kit with a phase-locked loop for color television receivers:

 An improved kit of two integrated circuits having a phase-locked loop clock oscillator for use in a color television receiver utilizing digital signal processing is described. The voltage controlled oscillator and the phase discriminator of the phase-locked loop are each located in a different one of the two integrated circuits. The control signals for the voltage controlled oscillator are transferred into it via a two-wire digital bus. External discrete components are eliminated.
 1. An IC kit for a color-television receiver with digital signal processing, comprising first and second integrated circuits which jointly contain a clock oscillator realized in the form of a phase-locked loop for producing two-phase clock signals;
said first integrated circuit containing a phase-comparison stage said second integrated circuit containing a voltage-controlled oscillator of the phase-locked loop, control signals for said phase-locked loop being applied via a maximum of two connecting lines between said first and said second integrated circuits, characterized in that:
said phase-comparison stage comprises a digital low-pass filter at its output;
said control signals are digital signals applied to said second integrated circuit by said first integrated circuit via a first one of said connecting lines; and
said second integrated circuit comprising a first counter for counting a first one of said clock signals, and having a reset input connected to a second one of said connecting lines for receiving data clock signals during said control signals,
a shift register having parallel outputs and having a clock input to said second one connecting line, and having a serial input connected to the said first connecting line;
a storage device having parallel inputs connected to said parallel outputs of said shift register and having an enable input connected to a single counter-reading output of said first counter said single counter-reading output being selected in accordance with the relationship X/F≥1/Fd where X is the numerical value corresponding to said output, F indicates the frequency of said clock signals, and Fd indicates the frequency of said data clock signals; and
a digital-to-analog converter having inputs connected to the outputs of said storage device, and having an output connected to the control input of the oscillator.


2. An IC kit in accordance with claim 1, wherein said oscillator is a crystal oscillator selectively operable with at least two crystals, each of said crystals having a rated frequency being an integer multiple of the reference carrier frequency of a different television standard, said oscillator includes a switching stage for selecting one of said at least two crystals to be used by said oscillator,
said control signals comprise switching signals for selecting one of said crystals, and
said parallel outputs of said storage device includes outputs associated with said switching signals which are connected directly to said switching stage.


3. An IC kit in accordance with claim 2, wherein said said integer multiple frequency of each of said crystals is four times the reference carrier frequency of the corresponding television standard.

4. An IC kit for a color-television receiver with digital signal processing, comprising first and second integrated circuits which jointly contain a clock oscillator realized in the form of a phase-locked loop for producing two-phase clock signals; said first integrated circuit containing a phase-comparison stage said second integrated circuit containing a voltage-controlled oscillator of the phase-locked loop, control signals for said phase-locked loop being applied via one connecting line between said first and said second integrated circuits, characterized in that:
said phase-comparison stage comprises a digital low-pass filter at its output;
said control signals are digital signals applied to said second integrated circuit by said first integrated circuit via said one connecting line; and
said second integrated circuit comprising a first counter for counting a first one of said clock signals, and having a reset input connected to said connecting line for receiving data clock signals during said control signals,
a shift register having parallel outputs, a clock input, and having a serial input connected to the said connecting line,
a flip-flop having a first control input coupled to said single counter-reading output, a second control input coupled to said connecting line, a first output coupled to said electronic switch control input, and a second output coupled to a reset input of said second counter;
a storage device having parallel inputs connected to said parallel outputs of said shift register and having an enable input connected to a single counter-reading output of said first counter said single counter-reading output being selected in accordance with the relationship X/F≥1/Fd where X is the numerical value corresponding to said output, F indicates the frequency of said clock signals, and Fd indicates the frequency of said data clock signals; and
a second counter having a counting capacity equal to the ratio of the frequency of said clock signals to said data clock frequency,
an electronic switch having a control input and responsive to a first control signal at said first control input for connecting said first clock signal to said second counter,
a pulse shaping circuit having inputs coupled to the outputs of said second counter and having an output coupled to said shift register clock input, said pulse shaping circuit adjusting the pulse/no pulse ratio of signals at its output in accordance with the outputs of said second counter,
a digital-to-analog converter having inputs connected to the outputs of said storage device, and having an output connected to the control input of the oscillator.


5. An IC kit in accordance with claim 4, wherein said oscillator is a crystal oscillator selectively operable with at least two crystals, each of said crystals having a rated frequency being an integer multiple of the reference carrier frequency of a different television standard, said oscillator includes a switching stage for selecting one of said at least two crystals to be used by said oscillator,
said control signals comprise switching signals for selecting one of said crystals, and
said parallel outputs of said storage device includes outputs associated with said switching signals which are connected directly to said switching stage.

6. An IC kit in accordance with claim 5, wherein said integer multiple frequency of each of said crystals is four times the reference carrier frequency of the corresponding television standard.

7. An IC kit in accordance with claim 4, wherein said flip-flop is an RS flip-flop said first control input is the R input thereof, said second control input is the S input thereof, said first output is the non-inverting output thereof, and said second output is the inverting output thereof.

Description:
BACKGROUND OF THE INVENTION

This invention pertains to a kit of two integrated circuits (IC's) for a color television receiver with digital signal processing. The IC's contain a clock oscillator realized in the form of a phase-locked loop, for producing two phase clock signals. The phase comparator stage of the phase-locked loop is arranged in the first integrated circuit, and the voltage-controlled oscillator thereof is arranged in the second integrated circuit. The voltage control signals thereof are supplied via a maximum of two connecting lines from the first to the second integrated circuit. Such an IC kit is described on pages 1-3 and 1-4, 4-1 to 4-14 and 8-1 to 8-5 of the Intermetall book, "DIGIT 2000 VLSI-Digital-TV-System", March 1982. The pages beginning with the numeral 4 refer to the integrated circuit MAA 2200, and the pages beginning with the numeral 8 refer to the integrated circuit MEA 2600. On page 8-2 it is stated that the voltage-controlled oscillator as integrated into the integrated circuit MEA 2600 forms part of a phase-locked loop, with the other part thereof, i.e., the phase comparator, being integrated into the integrated circuit MAA 2200. The phase comparator stage supplies control signals to an external low-pass filter, i.e., one which is arranged outside the two integrated circuits, with this low-pass filter deriving the tuning voltages for the voltage-controlled oscillator from the control signals.
From an integration point of view, it is desirable to eliminate external discrete components. In addition thereto, the spatial separation of both the IC kit and the external low-pass filter presents a possible source of faults with respect to the DC and AC voltage behaviour of the control loop due to noise coupling owing to the voltage drop, as well as a capacitive or inductive coupling.

SUMMARY OF THE INVENTION:
It is one object of the invention to further embody the conventional IC kit in such a way that the external components required for the low-pass filter can be omitted, hence with the function thereof being replaced by integrated circuit portions. Relative thereto, care is to be taken that no more than the two already existing lines are required for transmitting the voltage control signals to the second integrated circuit. The solution to the problem resides in the digital transmission of the phase comparison signals and, additionally, in the inclusion of the low-pass filter in the IC kit as a digital low-pass filter.
In accordance with the principles of the invention, a first integrated circuit includes a phase-comparison stage with a digital low-pass filter and a second integrated circuit includes a voltage-controlled oscillator of a phase-locked loop. Digital control signals are applied to the second integrated circuit via a connecting line. The second integrated circuit contains a counter for counting the clock signal and the reset input thereof is connected to a second connecting line conducting the corresponding data clock signals. The second integrated circuit further includes a shift register having its clock input connected to the second connecting line, and having its serial input connected to the first connecting line. The second integrated circuit contains a storage device having a parallel input connected to the parallel output of the shift register, and having an enable input connected to a counter-reading output of the counter selected such that the following relationship applies: X/F≥1/Fd (X=numerical value of x; F=frequency of the clock signals and Fd=frequency of the data clock signals.) The second integrated circuit includes a digital-to-analog converter having its input connected to the parallel output of the storage device and its output connected to the control input of the oscillator.
In accordance with the invention, it is possible to do without an external integrating circuit for the control signals, and at most only two connecting lines are required for transmitting the control signals; in a modified arrangement in accordance with the invention even only one such connecting line is required.

BRIEF DESCRIPTION OF THE DRAWINGS
The invention will now be better understood from a reading of the following detailed description in greater detail with reference to FIGS. 1 to 5 of the accompanying drawing, in which:
FIG. 1 schematically and by way of a block diagram, shows the partial circuits of the IC kit essential to the invention;
FIG. 2 shows time diagrams of three signals appearing in the arrangement according to FIG. 1;
FIG. 3 shows a further embodiment of the arrangement according to FIG. 1;
FIG. 4, schematically and by way of a block diagram, shows a modification of the IC kit according to the invention employing only one connecting line for the control signals; and
FIG. 5 shows signal curves as a function of time relating to various signals appearing in the arrangement according to FIG. 4.

DETAILED DESCRIPTION
FIG. 1, schematically and in the form of a block diagram, shows a portion of the IC kit consisting of the first integrated circuit ic1 and of the second integrated circuit ic2. It is important with respect to the invention, that these parts together form a phase-locked loop (PLL), with the two essential partial circuits thereof being divided among the two integrated circuits. Thus, in the first integrated circuit ic1 there is contained, amongst others, the phase-comparison stage p with a digital low-pass filter tp at its output, whereas the voltage-controlled oscillator vc is arranged in the second integrated circuit ic2. According to the invention, the control signals cs for controlling the voltage of the oscillator vc, are transmitted via the first connecting line 11 from the first integrated circuit ic1 to the second integrated circuit ic2. These control signals, in accordance with a feature of the invention, are digital signals shown as curve c in FIG. 2.
Data clock signals fd are transmitted on the second connecting line l2 for the time-coordinated transmission of the digital control signals cs. Curve b of FIG. 2 shows the data clock signals fd as a function of time. The data clock signals fd can be formed in a suitable stage within the first integrated circuit ic1, to the input of which there is fed one of the clock signals f1, f2 produced by the voltage-controlled oscillator vc and, consequently by the clock oscillator. The signal curves as functions of time as shown in FIG. 2 require that the data clock signal fd is derived from the first clock signal f1 by means of a frequency divider 1 whose divisional number is 4.
The second integrated circuit ic2 contains a first counter z1 having a counting input ez for receiving the first clock signal f1 of the voltage-controlled oscillator vc. Accordingly, the first counter z1 counts these clock pulses. Counter z1 has a reset input er connected to the second connecting line l2, so that the data clock signals fd are fed thereto.
Moreover, the second integrated circuit ic2 contains a shift register sr having its series input es coupled to the first connecting line 11 for receiving the digital control signals cs. The clock input et of the shift register sr is connected to the second connecting line l2 and is thus supplied with the data clock signals fd. The parallel output of the shift register sr is connected to the parallel input of a storage device s. Storage device s has a parallel output connected to the parallel input of a digital-to-analog converter da. Storage device s has an enable input eu connected to the single counter-reading output x of the first counter z1. This counter-reading output x chosen such that with respect to the numerical value X associated therewith, as well as with respect to the frequency F of the clock signals f1, f2 and the frequency Fd of the data clock signals fd, there applies the following relationship: X/F≥1/Fd.
If the arrangement according to the invention as shown in FIG. 1 operates with a positive logic, the reset input er of the first counter z1 is reset in response to the more negative level L of two binary signal levels H, L. The enable input eu of the storage device s, however, responds to a corresponding H-level at the counter-reading output x. In other words, in response to the appearance of an H-level, the digital signals appearing at the parallel output of the shift register sr, are written into the storage device s. This writing only takes place at the end of a data word transmitted on the first connecting line 11, with this end being determined by the disconnection of the data clock signal fd and the clamping of the second connecting line 12 to a permanent H level as shown in curve b of FIG. 2. Owing to this permanent H level, the first counter z1 can reach the counter reading X, and consequently, the writing of the data into the storage device s can begin. During the appearance of the data clock signal fd, the first counter z1 cannot reach the counter reading X due to the L level periodically contained in the data clock signal fd which resets first counter z1. Due to the temporal assignment of the data clock signals fd to the duration of the control signals cs, as well as due to the partial circuits z1, da, sr, as provided for the second integrated circuit ic2, the two connecting lines are sufficient in the case of a digital control signal transmission.
The (time) relation between the digital control signals cs and the data clock signals fd can be chosen such that the shifting of the data within the shift register sr only takes place after a stationary state has been reached again in the individual stages compared with the preceding shifting cycle, that is when the data are stable. In FIG. 2, this is indicated on the left by the edges of the data clock signal fd marked by two small circles. At the falling edge the data are read in at the input, and at the rising edge they are shifted.
FIG. 3 shows a further embodiment of the arrangement according to FIG. 1 for multi-standard color television receivers. In this case, the clock oscillator is designed as a crystal oscillator comprising several crystals q1, q2. The rated frequency of the crystals is an integer multiple, preferably four times of the reference carrier frequency of different television standards. Thus, for example, the crystal q1 may be provided for the PAL standard, and the crystal q2 may be provided for the NTSC standard. Arrangements employing a third crystal for the SECAM standard are also possible. In this further embodiment, not only are the digital control signals cs transmitted over the first connecting line 11, but also the corresponding switching signals ss which are produced in the first integrated circuit ic1 with the corresponding selecting stage w.
Both the shift register sr and the storage device s have a sufficient number of stages to hold a data word sc' consisting of the digital control signals cs and of the switching signals ss. The outputs for the stages of the storage device s which are provided for the switching signals ss, are connected to the inputs of the switching stage vs of the oscillator vc. As in the arrangement of FIG. 1, the output of the digital-to-analog converter da is connected to the control input ec of the oscillator vc.
FIG. 4 shows such a modification of the invention wherein one single connecting line 1 is required for transmitting the digital control signals cs. Relative thereto, in the integrated circuit ic1 the control signals cs are correspondingly combined with the data clock signals fd.
In integrated circuit ic2, in addition to the stages provided for in the arrangements according to FIGS. 1 and 3, there is provided a second counter z2, an electronic switch s1 and a RS storage flip-flop ff. The first clock signal f1 is applied to the counting input ez of the second counter z2 via the switching section of the electronic switch s1. The counting capacity of the second counter z2 is equal to the ratio of the clock frequency F to the data clock frequency Fd.
The connecting line 1 is connected to the serial input es of the shift register sr and to the reset input er of the first counter z1. The single counter-reading output x of counter z1 is connected to the enable input eu of the storage device s and to the R input of the RS storage flip-flop ff. The inverting S input of flip-flop ff is connected to the connecting line 1. The Q output of flip-flop ff is connected to the reset input of the second counter z2, and the Q output is connected to the control input of the electronic switch s1.
FIG. 5 shows the signal waveforms occurring in the arrangement according to FIG. 4. Curve 5a shows the first clock signal f1, and curve 5b shows the combined control-data clock signal cs+fd. The hatchlined portions of curve 5b represent the digital data. Curve 5c shows the signal ts as applied to the clock input et of the shift register sr. Signal ts is produced by the pulse shaper is of FIG. 4 in such a way that the trailing edge thereof occurs in about the center of the second half of its pulse duration. For this purpose, the highest counter-reading output of the second counter z2 together with the preceding counter-outputs are applied to the input of the pulse-forming circuit adjusting the pulse / no pulse ratio.
Curve 5d shows the signal as appearing at the counter-reading output x of the first counter z1. The numerals 1 through 6 in FIG. 5b indicate various time positions which are essential to the mode of operation. The reference numeral 1 indicates the beginning of the shifting operation in the shift register sr. At the time position 2, the data are loaded into the shift register. At the time position 3, the last shifting pulse of the shown data word is started, and 4 indicates the last load time position. 5 and 6 indicate the time positions of writing the data word into the storage device s, with the writing being carried out, depending on the last data state, at one of these two time positions.
An advantage of the invention is that no external discrete components are required for producing the control voltage for the oscillator vc. Moreover, a considerable reduction in both the level dependence and the sensitivity to noise is achieved.
It should be apparent to those skilled in the art that the modification according to FIG. 4 may also be applied to the embodiment as shown in FIG. 3



No comments:

Post a Comment

The most important thing to remember about the Comment Rules is this:
The determination of whether any comment is in compliance is at the sole discretion of this blog’s owner.

Comments on this blog may be blocked or deleted at any time.
Fair people are getting fair reply. Spam and useless crap and filthy comments / scrapers / observations goes all directly to My Private HELL without even appearing in public !!!

The fact that a comment is permitted in no way constitutes an endorsement of any view expressed, fact alleged, or link provided in that comment by the administrator of this site.
This means that there may be a delay between the submission and the eventual appearance of your comment.

Requiring blog comments to obey well-defined rules does not infringe on the free speech of commenters.

Resisting the tide of post-modernity may be difficult, but I will attempt it anyway.

Your choice.........Live or DIE.
That indeed is where your liberty lies.
