The MIVAR 14C1V is A portable color 14 inches (HEAVY) television from MIVAR.
This set has 2 antennas mounted on top for VHF AND UHF Channels analog Broadcast.

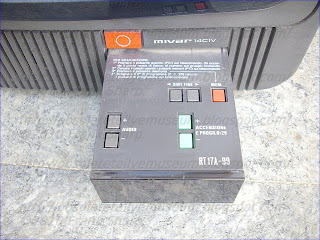

It has 29 Programs and 99 Channels PLL synthesized tuning RT17A-99 and remote . A television tuning system employs a frequency synthesizer system
for establishing the tuning of the receiver. A programmable frequency
divider counter is connected between the output of a reference
oscillator and a phase comparator to which the output of the local
oscillator in the tuner also is applied. The phase comparator output
provides a tuning voltage for controlling the tuning of the local
oscillator. A microprocessor is used to control the count of the
programmable frequency divider and initially to set a count
corresponding to the selected channel in a counter connected between the
output of the local oscillator and the phase comparator. The tuning
consists of three discrete time periods. First, a settling time to
allow channel change transients to settle; second, a short period of
forced search at a relatively rapid rate to insure proper tuning; and
third, a slower rate of step-by-step correction to accomodate for
station drift and the like during reception. This third time period is
initiated either by the passage of a fixed length of time following
the start of the forced search period or by sensing a preestablished
number of changes of state in the output of the frequency
discriminator during the forced/search period.
The system employed in the tv permits utilization of a frequency synthesizer tuning system which correctly tunes to a desired television station or channel even if the transmitted signals from that station are not precisely maintained at the proper frequencies even in combination of a fine tuning adjustable by the user.To enable operation of the receiver in a fringe area, where it may be desirable to intentionally mistune a channel slightly, manual fine tuning control logic circuitry is employed to disable the frequency offset logic circuit and to permit changing the count of the reversible counter by the viewer to manually fine tune the receiver as desired.
Accordingly, it is an object of this invention to provide an improved tuning system for a television receiver.
It is an additional object of this invention to provide an improved frequency synthesizer tuning system for a television receiver.
The plastic used for the cabinet is of very good quality grade, better than other bigger brand type quality.
These sets were sold at fair price and they did last long.
In 1982 and in previous times MIVAR society name was Radio VAR then converted definitely to MIVAR.
In ancient times MIVAR was even a radios constructor, then the interest dropped quickly to only television manufacturing.
It's made by MIVAR an Italian Brand no more active since 20/12/2013.
Founded in 1945 by Mr. Carlo Vichi class of 1923, The activity started in 1945 - in Milano, Via Ugo Tommei 5 street with fab
rication of little radio apparates.
rication of little radio apparates.
HISTORY OF MIVAR.
1945 - Milan, Via Ugo Tommei 5: Begin the activity assembling small radios.
1950 - Via Curtatone 12: developed with the construction of more direct major radio components fabricants.
1956 - 13 Street Strigelli: industrial production is manily targeted to first radio devices with frequency modulation (FM).
1958 - Via P. 30 Jordanians: TV become a reality, the industries is doubling his ACTIVITY, always in Milan, we build the first "real" plant with 400 employees.
1963 - Abbiategrasso, Via Dante 45: in the wake of decentralization and the rampant success of the television, building a facility that will become important in place 800 employees occupying between 1968-70.
1990 - Abbiategrasso Canal towpath: aware of the physiological importance that television plays in society? Modern, rich expertise and resources, we began construction of a factory area of 120,000 m? which covered 30.00o , for the viabilit with parking spaces and 60,000 park trees.
In origin the factory was brand nam1945 - Milan, Via Ugo Tommei 5: Begin the activity assembling small radios.
1950 - Via Curtatone 12: developed with the construction of more direct major radio components fabricants.
1956 - 13 Street Strigelli: industrial production is manily targeted to first radio devices with frequency modulation (FM).
1958 - Via P. 30 Jordanians: TV become a reality, the industries is doubling his ACTIVITY, always in Milan, we build the first "real" plant with 400 employees.
1963 - Abbiategrasso, Via Dante 45: in the wake of decentralization and the rampant success of the television, building a facility that will become important in place 800 employees occupying between 1968-70.
1990 - Abbiategrasso Canal towpath: aware of the physiological importance that television plays in society? Modern, rich expertise and resources, we began construction of a factory area of 120,000 m? which covered 30.00o , for the viabilit with parking spaces and 60,000 park trees.
ed as Radio Var and indeed the tellye here in collection is internally marked as Radio VAR. After 1985 they were marked rightly MIVAR.Today's activity is oriented in virtual production of LCD crap but with very low market penetration due to "unfair" asian competitors presence and a local governement which don't care about.
(You call it global market, I call it WORLD DESTRUCTION combined toghether with mass Afro scum crap Immigration (EUROPEAN INVASION) to obtain destruction on a large scale in all places and to help more and better the loose of all OUR workplaces and firms , lives, people).
“If our buildings, our highways, and our railroads should be wrecked, we could rebuild them.
If our cities should be destroyed, out of the very ruins we could erect newer and greater ones.
Even if our armed might should be crushed, we could rear sons who would redeem our power.
Anyway Obsolete Technology Tellye will show even this model as a Time machine which looses nothing of the good tellyes ! ! !
