Saturday, July 30, 2011

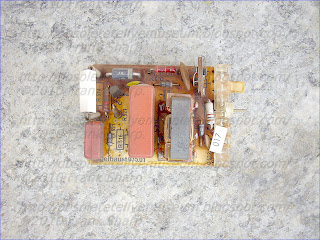

GRUNDIG SUPER COLOR 4600 CHASSIS 29301.114.06 UNITS VIEW.

   TBA920 line oscillator combination DESCRIPTION The line oscillator combination TBA920 is a monolithic integrated circuit intended for the horizontal deflection of the black and white and colour TV sets picture tube. FEATURES: SYNC-PULSE SEPARATION OPTIONAL NOISE












INVERSION GENERATION OF A LINE FREQUENCY VOL- TAGE BY MEANS OF AN OSCILLATOR PHASE COMPARISON BETWEEN SYNC- PULSE AND THE OSCILLATOR WAVEFORM PHASE COMPARISON BETWEEN THE OS- CILLATOR WAVEFORM AND THE MIDDLE OF THE LINE FLY-BACK PULSE AUTOMATIC SWITCHING OF THE VARIABLE TRANSCONDUCTANCE AND THE VARIABLE TIME CONSTANT TO ACHIEVE NOISE SUP- PRESSION AND, BY SWITCHING OFF, POS- SIBILITY OF TAPE-VIDEO-REGISTERED RE- PRODUCTION SHAPING AND AMPLIFICATION OF THE OS- CILLATOR WAVEFORM TO OBTAIN PULSES FOR THE CONTROL OF DRIVING STAGES IN HORIZONTAL, DEFLECTION CIRCUITS USING EITHER TRANSISTORS OR THYRISTORS. Horizontal-Baustein / Line Osc + Synch : 29301-008.02 with TBA920 - Regelbaustein / regulator unit: 20301-035.01 FARB BAUSTEIN 29301-024.01 TDA2510 TDA2521 VIDEO BST 29301-005.01 DIFFERENZ BAUSTEIN 29301.006.01 ABSTIMM BAUSTEIN 29301-056.32 TMS3727 TMS3894 SN29799N - Sicherung Bst / Safety Unit 29301-410.01 TDA2521 synchronous demodulator for PAL GENERAL DESCRIPTION The TDA2521 is a monolithic integrated circuit designed as a synchronous demodulator for PAL color television receivers. It includes an 8.8 MHz oscillator and divider, to generate two 4.4 MHz reference signals, and provides color difference output. The TDA2521 is intended to interface directly with the TDA251O with a minimum of external components and is constructed on a single silicon chip using the Fairchild Planar epitaxial process. ABSOLUTE MAXIMUM RATINGS Supply Voltage 14 V Internal Power Dissipation 600 mW ORDER INFQRMATIQN Operating Temperature Range —2O°C to +6O°C TYPE PART NO. Storage Temperature Range —55°C to +125°C 2521 TDA2521 Pin Temperature iSo|dering 10 si 260°C Planar is a patented Fairchild process TDA2510 CHROMINANCE COMBINATION GENERAL DESCRIPTION — The TDA2510 is a monolithic integrated circuit designed for the function of a color television receiver. It Is designed to Interface directly with the TDA2521, using a minimum number of external components. TDA251O is constructed on a single silicon chip using the Fairchild Planar‘ epitaxial process. ABSOLUTE MAXIMUM RATINGS supply Voltage 15 V Collector voltage of chroma output transistor (pin 7) 20 V (PD I 100 mW max) Collector current of chroma output transistor (pin 7) 20 mA Collector current of color killer output transistor (pin 11) 10 mA Power dissipation 500 mW Operating temperature range —25°C 10 +6O° Storage temperature range *55°C to +12!-3°C
