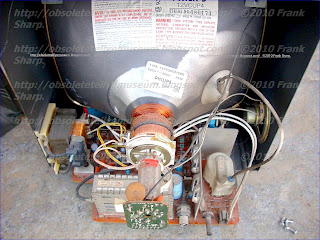

This chassis is a compact type POWER supplyed with a separation transformer mounted on the left of the cabinet.
Providing all functions on one alone PCB it has NO remote control, all channel selection are made via a Rotating commutator for prefixed tuned rails on the front, regulated with a "Special screw driver for the job".
ON and OFF switch is integrated on the volume regulator.
The tuning circuits has a large knob potentiometers tuning system which use voltage controlled capacitances such as varactor diodes as the frequency determining elements.
Therefore a stable AFC circuit is developed:
A
superheterodyne receiver having an automatic intermediate
frequency control circuit with means to prevent the faulty
regulation thereof. The receiver has means for receiving a radio
frequency signal and mixing the same with the output of a
superheterodyne oscillator. This produces an intermediate frequency
signal which is coupled to a frequency or phase discriminator to
produce an error signal for controlling the frequency of the
superheterodyne oscillator. A regulation circuit is provided having
an electronic switch to interrupt the feedback circuit when only
unwanted frequencies tend to produce faulty regulation of the
superheterodyne oscillator.
Power supply is realized with mains transformer and Linear transistorized power supply stabilizer, A DC power supply apparatus includes a rectifier circuit which rectifies an input commercial AC voltage. The rectifier output voltage is smoothed in a smoothing capacitor. Voltage stabilization is provided in the stabilizing circuits by the use of Zener diode circuits to provide biasing to control the collector-emitter paths of respective transistors.A linear regulator circuit according to an embodiment of the present invention has an input node receiving an unregulated voltage and an output node providing a regulated voltage. The linear regulator circuit includes a voltage regulator, a bias circuit, and a current control device.
Power
Supply: The examples chosen are taken from manufacturers' circuit
diagrams and are usually simplified to emphasise the fundamental nature
of the circuit. For each example the particular transistor properties
that are exploited to achieve the desired performance are made clear. As
a rough and ready classification the circuits are arranged in order of
frequency: this part is devoted to circuits used at zero frequency,
field frequency and audio frequencies. Series Regulator Circuit Portable
television receivers are designed to operate from batteries (usually
12V car batteries) and from the a.c. mains. The receiver usually has an
11V supply line, and circuitry is required to ensure that the supply
line is at this voltage whether the power source is a battery or the
mains. The supply line also needs to have good regulation, i.e. a low
output resistance, to ensure that the voltage remains constant in spite
of variations in the mean current taken by some of the stages in the
receiver. Fig. 1 shows a typical circuit of the power -supply
arrangements. The mains transformer and bridge rectifier are designed to
deliver about 16V. The battery can be assumed to give just over 12V.
Both feed the regulator circuit Trl, Tr2, Tr3, which gives an 11V output
and can be regarded as a three -stage direct -coupled amplifier. The
first stage Tr 1 is required to give an output current proportional to
the difference between two voltages, one being a constant voltage
derived from the voltage reference diode D I (which is biased via R3
from the stabilised supply). The second voltage is obtained from a
preset potential divider connected across the output of the unit, and is
therefore a sample of the output voltage. In effect therefore Tr 1
compares the output voltage of the unit with a fixed voltage and gives
an output current proportional to the difference between them. Clearly a
field-effect transistor could do this, but the low input resistance of a
bipolar transistor is no disadvantage and it can give a current output
many times that of a field-effect transistor and is generally preferred
therefore. The output current of the first stage is amplified by the two
subsequent stages and then becomes the output current of the unit.
Clearly therefore Tr2 and Tr3 should be current amplifiers and they
normally take the form of emitter followers or common emitter stages
(which have the same current gain). By adjusting the preset control we
can alter the fraction of the output voltage' applied to the first stage
and can thus set the output voltage of the unit at any desired value
within a certain range. By making assumptions about the current gain of
the transistors we can calculate the degree of regulation obtainable.
For example, suppose the gain of Tr2 and Tr3 in cascade is 1,000, and
that the current output demanded from the unit changes by 0.1A (for
example due to the disconnection of part of the load). The corresponding
change in Tr l's collector current is 0.1mA and, if the standing
collector current of Tr 1 is 1mA, then its mutual conductance is
approximately 4OmA/V and the base voltage must change by 2.5mV to bring
about the required change in collector current. If the preset potential
divider feeds one half of the output voltage to Tr l's base, then the
change in output voltage must be 5mV. Thus an 0.1A change in output
current brings about only 5mV change in output voltage: this represents
an output resistance of only 0.0552.In
one embodiment, the current control device is implemented as an
NPN bipolar junction transistor (BJT) having a collector electrode
forming the input node of the linear regulator circuit, an emitter
electrode coupled to the input of the voltage regulator, and a base
electrode coupled to the second terminal of the bias circuit. A
first capacitor may be coupled between the input and reference
terminals of the voltage regulator and a second capacitor may be
coupled between the output and reference terminals of the voltage
regulator. The voltage regulator may be implemented as known to
those skilled in the art, such as an LDO or non-LDO 3-terminal
regulator or the like.The bias circuit may include a bias device and a current source. The bias device has a first terminal coupled to the output terminal of the voltage regulator and a second terminal coupled to the control electrode of the current control device. The current source has an input coupled to the first current electrode of the current control device and an output coupled to the second terminal of the bias device. A capacitor may be coupled between the first and second terminals of the bias device.
In the bias device and current source embodiment, the bias device may be implemented as a Zener diode, one or more diodes coupled in series, at least one light emitting diode, or any other bias device which develops sufficient voltage while receiving current from the current source. The current source may be implemented with a PNP BJT having its collector electrode coupled to the second terminal of the bias device, at least one first resistor having a first end coupled to the emitter electrode of the PNP BJT and a second end, a Zener diode and a second resistor. The Zener diode has an anode coupled to the base electrode of the PNP BJT and a cathode coupled to the second end of the first resistor. The second resistor has a first end coupled to the anode of the Zener diode and a second end coupled to the reference terminal of the voltage regulator. A second Zener diode may be included having an anode coupled to the cathode of the first Zener diode and a cathode coupled to the first current electrode of the current control device.
A circuit is disclosed for improving
operation of a linear regulator, having an input terminal, an
output terminal, and a reference terminal. The circuit includes an
input node, a transistor, a bias circuit, and first and second
capacitors. The transistor has a first current electrode coupled to
the input node, a second current electrode for coupling to the
input terminal of the linear regulator, and a control electrode. The
bias circuit has a first terminal for coupling to the output
terminal of the linear regulator and a second terminal coupled to
the control electrode of the transistor. The first capacitor is for
coupling between the input and reference terminals of the linear
regulator, and the second capacitor is for coupling between the
output and reference terminals of the linear regulator. The bias
circuit develops a voltage sufficient to drive the control terminal
of the transistor and to operate the linear regulator. The bias
circuit may be a battery, a bias device and a current source, a
floating power supply, a charge pump, or any combination thereof.
The transistor may be implemented as a BJT or FET or any other
suitable current controlled device.
MAIN COMPONENT BASE:
TDA3190 TV SOUND CHANNEL (sgs)
The TDA3190 is a monolithic integrated circuit in a
16-lead dual in-line plastic package. It performs all
the functions needed for the TV sound channel :
.IF LIMITER AMPLIFIER .ACTIVE LOW-PASS FILTER
.FM DETECTOR
.DC VOLUMECONTROL
.AF PREAMPLIFIER .AF OUTPUT STAGE
DESCRIPTION
The TDA3190 can give an output power of 4.2 W
(d = 10 %) into a 16 W load at VS = 24 V, or 1.5 W
(d = 10 %) into an 8 W load at VS = 12 V. This
performance, togetherwith the FM-IF section characteristics
of high sensitivity, highAM rejection and
low distortion, enables the device to be used in
almost every type of television receivers.
The device has no irradiation problems, hence no
external screening is needed.
The TDA3190 is a pin to pin replacement of
TDA1190Z.
The electrical characteristics of the TDA3190 remain
almost constant over the frequencyrange 4.5
to 6 MHz, therefore it can be used in all television
standards (FM mod.). The TDA3190 has a high
input impedance,so it can work with a ceramic filter
or with a tuned circuit that provide the necessary
input selectivity.
The value of the resistors connected to pin 9,
determine the AC gain of the audio frequency amplifier.
This enables the desired gain to be selected
in relation to the frequency deviation at which the
output stage of the AF amplifier, must enter into
clipping.
Capacitor C8, connected between pins 10 and 11,
determines the upper cutoff frequency of the audio
bandwidth.To increase the bandwidth
the values of C8 and C7 must be reduced, keeping the ratio
C7/C8 as shown in the table of fig. 16.
The capacitor connected between pin 16 and
ground, together with the internal resistor of 10 KW
forms the de-emphasis network. The Boucherot
cell eliminates the high frequency oscillations
caused by the inductiveload and thewires connecting
the loudspeaker.
TDA2548 VIF IF VIDEO (PHILIPS)
