PHILIPS 22C845 GUARDI' (PHILIPS K12) YEAR 1978.










































The PHILIPS 22C845 is A 22 Inches, color television from PHILIPS.

The television here shown has a completely manual tuning and no remote control and it's sligltly uncommon for that because majority of them were already featured with remote control capability and electronic automatic search.

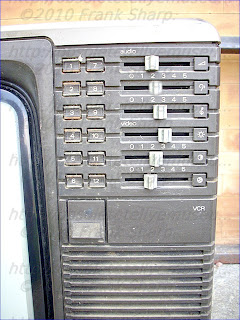

The Program changing is made via sensoric buttons and the tuning search is manually performed by potentiometers in a drawbar, and it's partially helped by a led diode to reach optimal tuning via manual FC (frequency control).
 It's a Circuit arrangement for establishing a reference potential of a chassis of an electrical device such as a radio and/or TV receiver, such device being provided with at least one contactless touching switch operating under the AC voltage principle. The device is switched by touching a unipole touching field in a contactless manner so as to establish connection to a grounded network pole. The circuit arrangement includes in combination an electronic blocking switch and a unidirectional rectifier which separates such switch from the network during the blocking phase.In electronic devices, for example TV and radio receivers, there are used in ever increasing numbers electronic touching switches for switching and adjusting the functions of the device. In one known embodiment of this type of touching switch, which operates on a DC voltage principle, the function of the electronic device, is contactlessly switched by touching a unipole touching field, the switching being carried out by means of an alternating current voltage.

The PHILIPS CHASSIS K12 have had several differences from ealier and after PHILIPS chassis types. Another combination of esclusive features was  the outer side of the monolithic semiconductor integrated circuit have been arrayed a tuner, a video intermediate-frequency amplifier, and a video detector. The video intermediate-frequency output signals obtained from the tuner are amplified by the video intermediate-frequency amplifier, and the output of the video intermediate-frequency amplifier is applied to the input of the video detector. The detected signals produced by the video detector are fed to the input of a video amplifier in the monolithic semiconductor integrated circuit. The video output signals of the video amplifier in the integrated circuit are fed to the input of a sync separator in the integrated circuit. The outputs of the sync separator are fed to a vertical oscillation output circuit and to a horizontal oscillation output circuit.
The set has the PHILIPS K12 CHASSIS and a PHILIPS 20AX CRT TUBE..

This  idea of incorporating the e.h.t. rectifier into the line output transformer is not new , it was first patented in 1966 by E. K. Cole Ltd. of Southend. What is new is that the e.h.t. tripler itself has now been integrated into a new type of line output transformer. Extensive testing has indicated that the life expectancy of this unit is excellent.
The new transformer makes use of the interlayer capacitances between a number of secondary windings, thus eliminating the high voltage capacitors necessary in a conventionally constructed voltage tripler. This in itself
leads to greater inherent reliability since these high voltage capacitors are largely responsible for tripler failures. In practical designs, the primary winding and the auxiliary windings - which provide the 1.t., reference flyback pulses, h.t. for the video output stages, etc. - are located on one leg of the core, the secondary windings, with the e.h.t. rectifier diodes and a link winding, being on the other leg. The link winding is connected in parallel with the primary winding and serves to eliminate the high leakage inductance that would otherwise exist between the primary and the secondaries as they are on opposite legs of the core. Fig. 1 shows the circuit diagram of a basic d.s.t. Each of the secondaries has the same number of turns, so each secondary layer will have only a d.c. potential difference between each coil and no a.c. potential difference. This approach makes the interlayer insulation much easier. The diodes are connected as shown in Fig. 2, and a d.c. voltage is obtained whose value is the sum of the rectified a.c. voltages per layer. To obtain an output of about 25kV, four secondary layers and four diodes are used, each carrying a peak flyback voltage of  around 7kV.The set is build with a Modular chassis design because as modern television receivers become more complex the problem of repairing the receiver becomes more difficult. As the number of components used in the television receiver increases the susceptibility to breakdown increases and it becomes more difficult to replace defective components as they are more closely spaced. The problem has become even more complicated with the increasing number of color television receivers in use. A color television receiver has a larger number of circuits of a higher degree of complexity than the black and white receiver and further a more highly trained serviceman is required to properly service the color television receiver.
Fortunately for the service problem to date, most failures occur in the vacuum tubes used in the television receivers. A faulty or inoperative vacuum tube is relatively easy to find and replace. However, where the television receiver malfunction is caused by the failure of other components, such as resistors, capacitors or inductors, it is harder to isolate the defective component and a higher degree of skill on the part of the serviceman is required.
Even with the great majority of the color television receiver malfunctions being of the "easy to find and repair" type proper servicing of color sets has been difficult to obtain due to the shortage of trained serviceman.
At the present time advances in the state of the semiconductor art have led to the increasing use of transistors in color television receivers. The receiver described in this application has only two tubes, the picture tube and the high voltage rectifier tube, all the other active components in the receiver being semiconductors.
One important characteristic of a semiconductor device is its extreme reliability in comparison with the vacuum tube. The number of transistor and integrated circuit failures in the television receiver will be very low in comparison with the failures of other components, the reverse of what is true in present day color television receivers. Thus most failures in future television receivers will be of the hard to service type and will require more highly qualified servicemen.
The primary symptoms of a television receiver malfunction are shown on the picture tube of the television receiver while the components causing the malfunction are located within the cabinet. Also many adjustments to the receiver require the serviceman to observe the screen. Thus the serviceman must use unsatisfactory mirror arrangements to remove the electronic chassis from the cabinet, usually a very difficult task. Further many components are "buried" in a maze of circuitry and other components so that they are difficult to remove and replace without damage to other components in the receiver.
Repairing a modern color television receiver often requires that the receiver be removed from the home and carried to a repair shop where it may remain for many weeks. This is an expensive undertaking since most receivers are bulky and heavy enough to require at least two persons to carry them. Further, two trips must be made to the home, one to pick up the receiver and one to deliver it. For these reasons, the cost of maintaining the color television receiver in operating condition often exceeds the initial cost of the receiver and is an important factor in determining whether a receiver will be purchased.
Therefore, the object of this invention is to provide a transistorized color television receiver in which the main electronic chassis is easily accessible for maintenance and adjustment. Another object of this invention is to provide a transistorized color television receiver in which the electronic circuits are divided into a plurality of modules with the modules easily removable for service and maintenance. The main electronic chassis is slidably mounted within the cabinet so that it may be withdrawn, in the same manner as a drawer, to expose the electronic circuitry therein for maintenance and adjustment from the rear closure panel after easy removal. Another aspect is the capability to be serviced at eventually the home of the owner.
The PHILIPS  22C845  GUARDI'   with the featured CHASSIS PHILIPS K12 incorporates first time an invention which relates to a novel automatic gray scale control circuit for a color television receiver. The circuit senses the cut-off voltage of each gun during the blanking interval, and uses a voltage equal to the cut-off voltage to energize the driver and bias the gun during the video field. The effect is to standardize the emission of each of the three guns against variation in gun cut-off voltage and to produce improved gray scale accuracy at the lowest emission levels. Since the gray scale adjustment is optimized at the lowest emission levels, where the eye is most intolerant to error in hue, one may avoid the need for manual adjustment of the cut-off point, and in cases where the gain does not vary widely from gun to gun, avoid the need for separate gain adjustment. Thus, the circuit may be used either to simplify or eliminate the color set up process at the factory when the receiver is manufactured. It may also reduce or avoid the need for readjustment after periods of use.The emission characteristics of the electron guns of a color kinescope in a television receiver are subject to varying as a function of temperature and aging, among other factors. When such variations affect the gain related transconductance of one or more electron guns, the affected electron guns conduct improper white level currents in response to a white level video drive signal. Thus a non-white color image is produced in response to a white video signal, and the overall color fidelity of a reproduced image is impaired.
