Saturday, September 17, 2011
SONY KV-2252ET YEAR 1985.

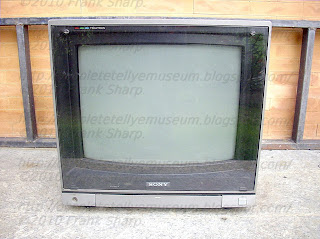

The SONY KV-2252ET is A 22 inches color television Monitor design with front glass.
A well made set with incorporated speakers for panoramic sound feature.

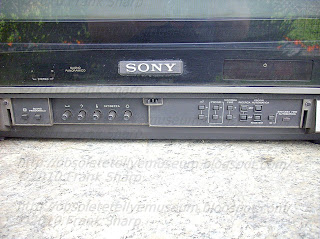

AV SCART SOCKET is featured and external speakers too with DIN 5 pole audio recording ouptut.
It has 32 programs with PLL synthesized tuning search and remote, Automatic pre-programming system for TV receivers, automatic tuning scheme for use in TV receivers includes a start/stop circuit which creates a search start signal and a search stop signal upon the receipt of a search start instruction and a detected incoming signal, respectively, a tuning voltage generator which generates a gradually varying tuning voltage under control of the search start signal and search stop signal, and a memory circuit for storing the tuning voltage from the generator when desired. The tuning voltage stored in the memory circuit is supplied to a tuner including a well known voltage-sensitive capacitance diode.
SONY KV-2252ET a television receiver incorporating a processing section for processing stereo/dual sound signals having a first sound carrier which is modulated by a first sound signal and a second sound carrier modulated by a second sound signal and also by a pilot signal which is modulated by a stereo-dual sound identifying signal, said processing section comprising a synchronous demodulator in which the pilot signal is demodulated and to which an output signal of a Phase-Locked Loop circuit is applied, the phase-locked loop circuit comprising a frequency-controllable oscillator and a phase discriminator which compares a signal derived from the oscillator with a reference signal which, as regards frequency and phase, is in a fixed relationship to the pilot signal. Such a television receiver is obtained when the known integrated circuit TDA 4940 marketed by Siemens is used.
As is known, two frequency-modulated sound carriers are used, according to the German standard, for the transmission of stereo/dual sound television signals, the second, for instance weaker, sound carrier being frequency-modulated by a pilot carrier which, in the case of stereo or dual sound transmission, is amplitude-modulated by an identifying signal which characterizes the stereo or dual-sound transmission mode and which is required in the receiver to enable the required switching actions to be effected automatically. In a television receiver comprising the prior art circuit, the identifying signal is obtained in that the modulated pilot carrier is multiplied by the output signal of a PLL circuit whose oscillator oscillates at a frequency equal to 28-times the line frequency and whose frequency is controlled by a phase discriminator which compares the frequency-divided oscillator signal with the line frequency.
An almost everlasting set with superb pictures and quality, nothing to compare to 1998 and newer models from SONY (FE2 CHASSIS) wich were utterly crap.
The set has the great hand grips on both side to easy transport ( ? ) the heavy weight.
(To see the Internal Chassis Just click on Older Post Button on bottom page, that's simple !)
Sony Corporation (Sonī Kabushiki Gaisha) (TYO: 6758, NYSE: SNE), or commonly referred to as Sony, is a Japanese multinational conglomerate corporation headquartered in Minato, Tokyo, Japan and the world's fifth largest media conglomerate with revenue exceeding ¥ 7.730.0 trillion, or US$77.20 billion (FY2010).
Sony is one of the leading manufacturers of electronics, products for the consumer and professional markets. Sony Corporation is the electronics business unit and the parent company of the Sony Group, which is engaged in business through its eight operating segments – Consumer Products & Devices (CPD), Networked Products & Services (NPS), B2B & Disc Manufacturing (B2B &Disc), Pictures, Music, Financial Services, Sony Ericsson and All Other.
These make Sony one of the most comprehensive entertainment companies in the world. Sony's principal business operations include Sony Corporation (Sony Electronics in the U.S.), Sony Pictures Entertainment, Sony Computer Entertainment, Sony Music Entertainment, Sony Ericsson, and Sony Financial. As a semiconductor maker, Sony is among the Worldwide Top 20 Semiconductor Sales Leaders. Its founders Akio Morita and Masaru Ibuka derived the name from sonus, the Latin word for sound, and also from the English slang word "sonny", since they considered themselves to be "sonny boys", a loan word into Japanese which in the early 1950s connoted smart and presentable young men. History Masaru Ibuka, the co-founder of Sony: In late 1945, after the end of World War II, Masaru Ibuka started a radio repair shop in a bomb-damaged department store building in Nihonbashi of Tokyo. The next year, he was joined by his colleague, Akio Morita, and they founded a company called Tokyo Tsushin Kogyo K.K., (Tokyo Telecommunications Engineering Corporation). The company built Japan's first tape recorder called the Type-G. In the early 1950s, Ibuka traveled in the United States and heard about Bell Labs' invention of the transistor.
He convinced Bell to license the transistor technology to his Japanese company. While most American companies were researching the transistor for its military applications, Ibuka and Morita looked to apply it to communications. Although the American companies Regency[disambiguation needed] and Texas Instruments built the first transistor radios, it was Ibuka's company that made them commercially successful for the first time. In August 1955, Tokyo Tsushin Kogyo released the Sony TR-55, Japan's first commercially produced transistor radio.
They followed up in December of the same year by releasing the Sony TR-72, a product that won favor both within Japan and in export markets, including Canada, Australia, the Netherlands and Germany. Featuring six transistors, push-pull output and greatly improved sound quality, the TR-72 continued to be a popular seller into the early sixties. In May 1956, the company released the TR-6, which featured an innovative slim design and sound quality capable of rivaling portable tube radios. It was for the TR-6 that Sony first contracted "Atchan", a cartoon character created by Fuyuhiko Okabe, to become its advertising character. Now known as "Sony Boy", the character first appeared in a cartoon ad holding a TR-6 to his ear, but went on to represent the company in ads for a variety of products well into the mid-sixties. The following year, 1957, Tokyo Tsushin Kogyo came out with the TR-63 model, then the smallest (112 × 71 × 32 mm) transistor radio in commercial production. It was a worldwide commercial success.
University of Arizona professor Michael Brian Schiffer, Ph.D., says, "Sony was not first, but its transistor radio was the most successful. The TR-63 of 1957 cracked open the U.S. market and launched the new industry of consumer microelectronics." By the mid 1950s, American teens had begun buying portable transistor radios in huge numbers, helping to propel the fledgling industry from an estimated 100,000 units in 1955 to 5,000,000 units by the end of 1968. Sony's headquarters moved to Minato, Tokyo from Shinagawa, Tokyo around the end of 2006.
Origin of name When Tokyo Tsushin Kogyo was looking for a romanized name to use to market themselves, they strongly considered using their initials, TTK. The primary reason they did not is that the railway company Tokyo Kyuko was known as TKK.
The company occasionally used the acronym "Totsuko" in Japan, but during his visit to the United States, Morita discovered that Americans had trouble pronouncing that name. Another early name that was tried out for a while was "Tokyo Teletech" until Morita discovered that there was an American company already using Teletech as a brand name.
The name "Sony" was chosen for the brand as a mix of two words. One was the Latin word Sonus which is the root of "sonic" and "sound" and the other was "sonny," a familiar term used in 1950s America to call a boy.
The first Sony-branded product, the TR-55 transistor radio, appeared in 1955 but the company name did not change to Sony until January 1958. At the time of the change, it was extremely unusual for a Japanese company to use Roman letters to spell its name instead of writing it in kanji. The move was not without opposition: TTK's principal bank at the time, Mitsui, had strong feelings about the name. They pushed for a name such as Sony Electronic Industries, or Sony Teletech. Akio Morita was firm, however, as he did not want the company name tied to any particular industry. Eventually, both Ibuka and Mitsui Bank's chairman gave their approval.
