Wednesday, May 11, 2011

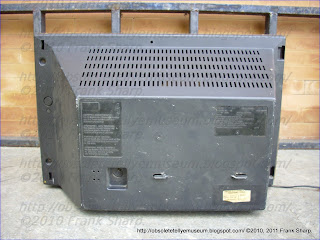

SELECO (ZANUSSI) 20ST211 BRAVO 20" YEAR 1980.






The SELECO (ZANUSSI) 20ST211 BRAVO 20" is A comfortable 20 inches color television with 16 + 16 programs and VST Tuning memory search system (MOTOROLA MEMOTRONIC).

A television tuning device having a circuit for continuously scanning at least one frequency band. Scanning can take place at two speeds and controls are provided for starting and stopping the scanning procedure. The scanning speed is automatically changed from high speed to low speed when a television channel is detected to allow ample time for scanning to be stopped manually. Alternatively, the scanning may be stopped automatically. present invention relates to a television tuning device, comprising a circuit for continuously scanning at least one band of receivable frequencies, and having control means for starting and stopping the said scanning procedure and a terminal for applying a switch signal for switching from a first band-scanning speed to a second band-scanning speed slower than the first.
The name usually applied to a unit consisting of circuits of this type for selecting and memorising a given number of preferred channels is "station memory".

Many types of station memories are already being sold on the market which can be divided into two main groups: those with automatic and those with manual television channel searching.
The automatic types are fitted with electronic searching circuits which locate television channels automatically when started by the user. This is done by scanning a given band (VHF or UHF, for example) and stopping on the located channel. Data relative to the located channel can then be memorised by the user in a memory circuit and the same channel recalled whenever required by simply pressing a button which recalls the said data from the memory and supplies it to the channel selection circuit.
This type of circuit is also fitted with components which sense, during search, if a television channel has been tuned into and disable automatic searching to prevent television band scanning from continuing. Most of these circuits are fitted with a phase detector which senses the coincidence between the sync signals received and those regenerated in the receiver (in particular, the flyback signal).
Manual station memories, on the other hand, are fitted with controls which, when activated by the user, start a device for scanning a given television band. These controls also stop the said device when required by the user. When the user sees the required channel appear on the screen, the device is stopped to disable search and enable the channel to be memorised in the appropriate circuit.
In these cases, the simplest way of starting and stopping the search is to fit the circuits with a button which, when pressed, supplies a search-start signal and, when released, stops the searching operation. For best tuning, two buttons are usually provided for band scanning in both directions.

The search tuning starts with pressing the key "S" and  an apparatus for indicating a tuned frequency of a tuner of a radio or television receiver, said tuner comprising a tank circuit employing a voltage controlled variable capacitance diode as a circuit element, which diode is supplied in a reverse direction with a scanning control voltage from a solid state potential memory device, which control voltage is set as a result of tuning of said tuner, said indicating apparatus comprising a plurality of light emitting diodes arranged in a line, each illuminating the corresponding frequency indicating region out of a plurality of divided frequency indicating regions of a frequency band to be received by said receiver, said regions being arranged in succession to cover said frequency band, and a corresponding plurality of drivers responsive to said control voltage for energizing the corresponding light emitting diode for illuminating the corresponding frequency region to which said tuned frequency pertains. In a preferred embodiment of the invention, the frequency indicating regions to be covered by the adjacent light emitting diodes are adapted to be overlapped in part at the ends thereof, so that the frequency in the overlapped portion in the region is indicated by said two adjacent light emitting diodes.Further the RF bands class are also displayed with leds in similar way.


 With this aim in view, the present invention provides a television tuning device comprising a circuit for continuously scanning at least one band of receivable frequencies, manual control means for starting and stopping the said scanning procedure, a terminal for applying a switch signal for switching from a first band-scanning speed to a second band-scanning speed lower than the first, and detection means for detecting the presence of a television channel by comparing the received sync signals with local signals generated in the television receiver, and applying a switch signal to the said terminal for switching from the said first scanning speed to the said second scanning speed in the presence of the said switch signal, so that the band scanning continues at said lower speed until the manual control means produce the stopping scanning procedure.




(It has the most FAST tuning Search system like the band "Road Runner" It can explore a complete band frequency in seconds and it's bugless).

These sets were not much expensive and they were very good made and almost everlasting.



Fine tuning was even possible manually with the < >  keys.

Was first ZANUSSI set with SMPS power supply developed with SIEMENS IC TDA4600 Design.



Set kindly donated to me by Fiorinda F.  ; Giovanni C.


Zanussi was an Italian producer of home appliances that in 1984 was bought by Electrolux . Zanussi is a leading brand for domestic kitchen appliances in Europe. Products have been exported from Italy since 1946.

The Zanussi Company began as the small workshop of Antonio Zanussi in 1916. The enterprising 26-year-old son of a blacksmith in Pordenone in Northeastern Italy began the business by making home stoves and wood-burning ovens.
After his father death in 1946 “Lino Zanussi” became the President of the company.
In the early 1970s Zanussi sold a lot in the UK and for some time after under the “Zoppas” brand, name which had been acquired, making Zanussi the first largest Italian appliance maker. They also produced washing machines Hotpoint for Hotpoint at this time which were very reliable and highly rated by users and engineers.
In the late 1970s and into the early 1980s the company had a range of washing machines which used an induction motor with a clutch pulley system. Again this range proved extremely popular and very reliable.
During this period Zanussi Professional, the catering range of appliances for commercial use, became a separate division in its own right.
In the early 1980s Zanussi launched the Jetsystem washing machine range to great acclaim whilst at the same time running the “Appliance Of Science” advertising campaign which is acknowledged as one of the most successful marketing campaigns of all time, in fact still remembered by many today. This gave the brand the impression of being forward thinking and innovative.
Zanussi has recently been rebranded as Zanussi-Electrolux in line with many other Electrolux brand names. Since that time many Zanussi appliances share common components and parts with the rest of the Electrolux range, primarily Electrolux, Tricity Bendix and AEG although it is worth noting that the “John Lewis” branded machines sold by the John Lewis Partnership in the UK are effectively rebranded Zanussi appliances.
In the late 1980s Zanussi launched the split tank design known as the “Nexus Tub” design which endures to this day with little change. The tub, base and certain other parts are made from a plastic material known as “Carboran” which can be re-used several times if recycled. To this day neither Zanussi or Electrolux has provided any way to return this material for recycling purposes.

Up until the end of the 1980s Zanussi service was run from Slough and was a network of independent repairers who gave an unparalleled service level. It is generally acknowledged within the industry that this service network was the best that there has ever been in the UK.
In the early 1990s Electrolux instigated amalgamating all its UK brands under one service entity. This entity was split, dependent on region, between the Zanussi service agents and the local Electrolux Service Centre. In general those in a high population density area where given to the Electrolux employed centres. Tricity Bendix, Electrolux and AEG as well as Zanussi were all to be serviced by the one network.
This was changed in the late 1990s and early 2000s as Electrolux sold or gave away the regional service centres, generally to the existing management or to area managers to run as independent businesses.
This service network was rebranded and became Service Force which still exists today but is, once again, all operated by independent service companies who repair and supply spare parts for all of the brands.................

 ..........................when the president Lino Zanussi died in a plane crash in June 1968 - Zanussi
Industries was the first Italian manufacturer of white goods and employs approximately 13000 employees.

When the Zanussi group of Pordenone lives a first phase of  financial stress then Lamberto Mazza, who succeeded Lino Zanussi, decides to liquidate some social funds with share capital held by Guido Zanussi  causing an outlay of 16 billion lire of that era.

Despite the Huge outlay to cope with such a withdrawal, the group aquired, in the course of 1970, competitor like Zoppas the other big Italian manufacturer of household appliances, which was,
significantly in debt due of an acquisition of Triplex in Solarolo and a construction of the new plant in Susegana.

The Zoppas, whose factories were located in Conegliano Veneto (TV), has a history quite similar to Zanussi: it is in fact founded by Ferdinand Zoppas in 1926 as an artisan company repair of wood-burning stoves and then spread widely and rapidly under the leadership of his sons Augusto and Gino.

Zanussi president, Lamberto Mazza, alleged a plan to achieve an optimal size to compete at the European level if not the world, strengthening the shares held by Zanussi on the Italian market to avoid  the entry of foreign competitors (in particular the U.S. Westinghouse).

The Financial stress imposed on Zanussi by acquisition of Zoppas and, simultaneously, the increase in the incidence both of labor costs and reasons of rise up of activity intensity (In the space of a short pass from 13,000 employees to 24,000 units?)  is faced with:

a. the sale to the German AEG-Telefunken
an amount equal to 25.01% of the Zanussi S.p.A.
(The operational holding company of the group)

(The share of ownership AEG-Telefunken is subsequently recognized in 1978 by Voet-Alpine.)


b. to loans from Italian Istituto Mobiliare
(IMI);

c.
about a loan of about two hundred million marks
disbursed in 1974 from Dresden Bank.

The union conflicts, the impact of labor costs (in 1974 Zanussi occupies nearly 31,000 employees), the Debt contract with institutions credit and the first oil shock induce Lamberto Mazza to start a rapid process of diversification The core of this strategy is, however, the belief that the market of appliance White has come to its stage of maturity, with a saturation level  and the consequent reduction of typical viability.

Therefore, in this back of years Zanussi invests substantial financial resources to acquiring control of businesses;

(The process of growth of Zanussi,  nevertheless sees the creation of new realities companys as a result of corporate spin-offs.

Considering, for example,

Zanussi Grandi Cucine SpA, Zanussi Grandi Impianti
SpA, Air Zanussi SpA, Zanussi Components for Construction SpA, the Industrialised Building ZanussiFarsura SpA to subsidiaries Iberian Zinsa-Zanussi Industrial SA Compania SA and Industrias Electrodomesticas,
and Lastly Anglo-Saxon Iaz International Ltd., was established in 1979
well as the company insurance and financial intermediation
group, called Infinas S.p.A.) with few exceptions   activities not related with the core business.

In particular, remembering the concentrations of corporate sectors relating to paper (Paper Mill Galvani SpA, Cartopiave SpA and subsidiaries Cartosud and Silica), electronic (Ducati Electrical, Electronics-Inelco), construction (Seicom-Building for Integrated Components SpA), metallurgical (Smalteria and Metallurgical Veneta SpA), hotel (Borsa SpA) of furniture (Galvani Porcelain SpA, Sambuceto SA, Meson's Spring SpA SpA and its subsidiaries and Pagnucco SpA), components (Ilpea Gomma SpA), photographic equipment ( Fotomec San Marco SpA) of entertainment
(Udinese Calcio SpA) and solar photovoltaics.

(The investments of Zanussi happenned sometimes even in the indirect form
 which is made through the CISVE (Industrial Consortium
Economic Development), founded by Lamberto Mazza in quality of
President of the association of Industrialists of Pordenone, as well, since 1978, through the Industrial Finance SpA, a company financial system constituted specifically for that.)

the Organization Company is  formed in a matrix in which the divisional activities and  are then grouped into the following sections:

1.apparatus for heating;
2.components for Building;
3.solar panels;
4.apparatus Idronet (for potability of the water);
5.components;
6.apparatus different from electronic television sets.

But when the financial situation Worsened in 1983,
Zanussi family the shareholder majority, distrusted Lamberto Mazza replacing him
initially with Umberto Cuttica, former manager of FIAT,
then later with Gianfranco Zoppas, husband of Antonia Zanussi and son Lino.

The corporate reorganization plan was then prepared by the new management and was designed to focus the now scarce financial resources in the core business of group, to continue or to divest a number of activities not closely related ( Air Zanussi, Zanussi Construction Industrialized, Zanussi Electronics, Paper Mill Galvani,Pagnucco, Fotomec, New Cartopiave) , thus preparing the field for the sale of the Entire group to Electrolux, the Swedish multinational leader in field of white goods.



Stern / REX / Zanussi / Seleco (WAS) is an electronics company based in Pordenone, Friuli Venezia Giulia, Italy. It is part of Super//Fluo, who bought the rights in August, 2006, along with Brionvega and Imperial.


Sèleco was born as in 1965 as a spin-off from the home appliances maker Zanussi. In the first years of his life, Seleco produced almost black and white televisions with the Zanussi or Rex brand. The company was being sold in 1984, and was first acquired by Gian Mario Rossignolo. He first became president and then main stockholder.
During the 1980s, the company launched worldwide marketing campaigns and began sponsoring some of the most famous Italian soccer team, such as Lazio A.S..
During the '90s, the company was mainly concentrated on the production of pay-tv decoders, but in 1993 suffered from a loss of competitivity. With the intent to reshape its position and to get gave new life to the company, Gian Mario Rossignolo bought Brionvega from the Brion family, the founder. This attempt get to nowhere, so the company was forced to declare failure in 1997. During the years, Sèleco has passed through ups and downs, at the end being overcome by the continuous changes in the electronics world.
After the crack-down, the company and all its interests were bought by the Formenti family. That gave life to the Seleco-Formenti Group, owner of the rights for the brands Sèleco, Rex, Phonola, Imperial, Stern, Phoenix, Televideon, Kerion and Webrik.
The Formenti family re-launched the company with the production of CRT-TVs. In 2000, the company suffered of a strong crisis, following the price dumping made by Turkish manufacturers. That seems to led to end of the Sèleco and Brionvega story, as the Sèleco-Formenti Group was forced to liquidation.
In 2004, the rights for the radio branch were bought by Sim2 Multimedia, and all the television interests (for the brands Sèleco, Brionvega and Imperial) were acquired by Super//Fluo in August 2006.

THIS INDUSTRY IS TODAY DEAD !!!!



Some References:

"Twenty completed the acquisition of Sèleco". Home Appliances World. Milan: Tecniche Nuove. 27 December 2016. Retrieved 20 May 2019.
"Cessione Società" (Press release) (in Italian). A.S. Pro Piacenza 1919. 29 June 2018. Retrieved 9 September 2018.

Del Giudice, Elena (28 September 2017). "Una romana di 78 anni è la proprietaria della nuova Sèleco". Messaggero Veneto (in Italian). Retrieved 20 May 2019.

"Pro Piacenza, la società passa alla Seleco". Corriere dello Sport - Stadio (in Italian). 29 June 2018. Retrieved 13 August 2018.


^ "Grazie a finanziamenti agevolati arrivano alla Sèleco 102 miliardi", articolo di Repubblica del 28 dicembre 1984 ^ "L'Electrolux minaccia la vendita della Sèleco", articolo di Repubblica del 13 novembre 1987 ^ "La Sèleco a Rossignolo e la REL va in pensione", articolo di Repubblica del 1º marzo 1991 ^ "A Sèleco il controllo della spagnola Elbe", articolo del Corriere della Sera del 18 marzo 1992 ^ "Terminato l'aumento di capitale della Sèleco", articolo del Corriere della Sera del 6 agosto 1994 ^ SELECO: COMPLETATO AUMENTO DI CAPITALE, Adnkronos, 3 agosto 1994. URL consultato il 30 giugno 2018 (archiviato il 30 giugno 2018). ^ "Sèleco, al via il rilancio anche i dipendenti soci", articolo del Corriere della Sera dell'8 settembre 1994 ^ SELECO RICAPITALIZZATA CHIAMA ALLA PRESIDENZA MARIO BORTOLUSSI, la Repubblica, 8 settembre 1994. URL consultato il 30 giugno 2018. ^ 2000/536/CE: Decisione della Commissione, del 2 giugno 1999, relativa all'aiuto di Stato concesso dall'Italia all'impresa Seleco SpA, EUR-Lex - 32000D0536 - EN. URL consultato il 21 gennaio 2018 (archiviato il 21 gennaio 2018).

«[...] il fallimento di Seleco era stato dichiarato in data 17 aprile 1997 [...]». ^ "Super//Fluo in liquidazione. In ansia i 96 lavoratori", articolo del Messaggero Veneto del 4 marzo 2009 ^ "È A-Data uno dei partner dell'ex Sèleco", articolo del Messaggero Veneto del 28 marzo 2009 ^ "Terzo fallimento Sèleco, a casa in 97", articolo de Il Giornale del Friuli del 17 ottobre 2009 ^ Twenty acquisisce il marchio Sèleco, Editoriale Duesse-Cons. Electronics, 21 dicembre 2016 ^ Rinasce la Sèleco, previste 50 assunzioni, Messaggero Veneto, 5 aprile 2017 ^ Trieste, Sèleco sbarca in Porto vecchio del 26 settembre 2017 ^ Sèleco, il tribunale di Milano dichiara il fallimento del 16 maggio 2019 ^ Domani in campo con SELECO, articolo di sslazio.it del 29 aprile 2017 ^ Sèleco sponsor ufficiale, articolo di sslazio.it del 2 maggio 2017 ^ Cuore Napoli Basket, è ufficiale la partnership con Sèleco, articolo di iamnaples.it dell'11 maggio 2017 ^ Sèleco è il nuovo title sponsor della Nuoto Catania, articolo di seleco.it del 27 luglio 2017 ^ Presentati gli sponsor della maglia ufficiale 2017/2018, articolo di uspontedera.it del 26 agosto 2017 ^ Sèleco rafforza il legame con la S.S. Lazio posizionando il marchio Easy Life sul retro maglia, articolo di sslazio.it dell'11 agosto 2017 ^ Sèleco Home è Main sponsor dell’Unione Sportiva Salernitana 1919, articolo di seleco.it del 25 agosto 2017 ^ COMUNICATO STAMPA Archiviato il 29 giugno 2018 in Internet Archive. - propiacenza.it, 29 giu 2018 ^ Sèleco nuovo sponsor di UYBA Volley! - legavolleyfemminile.it, 1 sett 2018.
