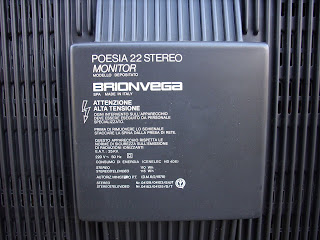

BRIONVEGA POESIA 22 STEREO MONITOR YEAR 1985.

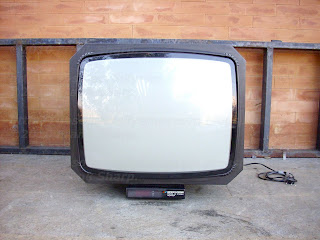

BRIONVEGA  POESIA 22 STEREO MONITOR  It's a 22 inches (56Cm) color television with stereo sound and particular design from BRIONVEGA.

It has the uncommon "Flaps" on both sides in the speaker direction.
Probabily they were thought as a space band enhancers during stereo sound performance in conjunction with design.
The base of the cabinet is very tiny and it integrates the frontend program displays and remote control IR receiver unit.


It can be connected via AV SCART socket or AV DIN socket type.


A SCART Connector (which stands for Syndicat des Constructeurs d'Appareils Radiorécepteurs et Téléviseurs) is a standard for connecting audio-visual equipment together. The official standard for SCART is CENELEC document number EN 50049-1. SCART is also known as Péritel (especially in France) and Euroconnector but the name SCART will be used exclusively herein. The standard defines a 21-pin connector (herein after a SCART connector) for carrying analog television signals. Various pieces of equipment may be connected by cables having a plug fitting the SCART connectors. Television apparatuses commonly include one or more SCART connectors.
Although a SCART connector is bidirectional, the present invention is concerned with the use of a SCART connector as an input connector for receiving signals into a television apparatus. A SCART connector can receive input television signals either in an RGB format in which the red, green and blue signals are received on Pins 15, 11 and 7, respectively, or alternatively in an S-Video format in which the luminance (Y) and chroma (C) signals are received on Pins 20 and 15. As a result of the common usage of Pin 15 in accordance with the SCART standard, a SCART connector cannot receive input television signals in an RGB format and in an S-Video format at the same time.
Consequently many commercially available television apparatuses include a separate SCART connectors each dedicated to receive input television signals in one of an RGB format and an S-Video format. This limits the functionality of the SCART connectors. In practical terms, the number of SCART connectors which can be provided on a television apparatus is limited by cost and space considerations. However, different users wish the input a wide range of different combinations of formats of television signals, depending on the equipment they personally own and use. However, the provision of SCART connectors dedicated to input television signals in one of an RGB format and an S-Video format limits the overall connectivity of the television apparatus. Furthermore, for many users the different RGB format and S-Video format are confusing. Some users may not understand or may mistake the format of a television signal being supplied on a given cable from a given piece of equipment. This can result in the supply of input television signals of an inappropriate format for the SCART connector concerned.
This kind of connector is todays obsoleted !

 Brionvega is (was) an Italian electronics company, established in Milan in 1945.


Vega, BP Radio, Brionvega, Brion & Pajetta; Milano, Lissone (MI) (I)
Abbreviation: vega
Products: Model types
Summary: Society B.P.M. (1945) Vega - BP Radio (Fabbrica Apparecchi e Accessori Radio, Perito Ind. Brion & Ing. Pajetta)
Via Pacini 59, Milano (1948)
Via Ampère 61, Milano (ca. 1950)
Brionvega Formenti Sèleco Spa
Via Dante Alighieri 43, 20035 Lissone / MI

Good design is no longer simply for an "elite" but is demanded by a far wider audience interested in continuous development.With so many designs and products available, how is it possible to distinguish a truly outstanding design from one that is simply trendy. World famous designers: Hannes Wettstein, Mario Bellini, Richard Sapper, Marco Zanuso, Castiglioni brothers and Ettore Sottsass, have tried to come up with the answer to what constitutes the perfect design. In finding inspiration, when designing for Brionvega, these people look beyond every day fashion and look for examples which are outstanding in their beauty. They also pay attention to people's attitude and how they relate to everyday objects.


Historically speaking, Brionvega is one of the most famous radio and Television manufacturers, thanks to its products, born from the collaboration with well-known design firms. Over the years, from its establishment, Brionvega has made some industrial design corner-stones, such as the radio "cube" TS502 from 1963, the Algol and Doney portable TV, and the radio-phonograph RR126.

The BRIONVEGA stylish design is well recognized around the world for it's particularity.
The television here in collection The  BRIONVEGA  POESIA 22 STEREO MONITOR   is a clear example of that style.

References:

^ "Ex Sèleco a un imprenditore udinese", Articolo del Messaggero Veneto del 18 febbraio 2010

"Brionvega History". Brionvega.tv. Retrieved 18 February 2012.
  "2008 Brionvega reissues". brionvega.tv.

"Cuboglass TV History". brionvega.it.
